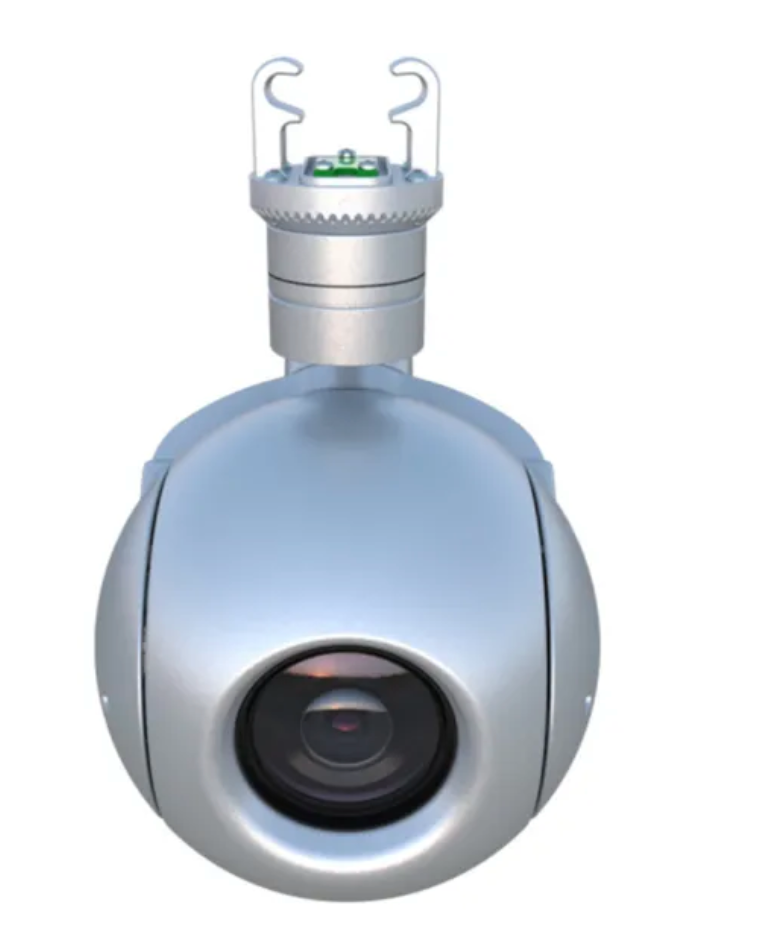

Zingto INYYO Q33

· SONY 33X Optical zoom starlight camera

· 180mm long-focus lens

· AF time＜1s

· High precision dip angle trivial PTZ

· Double layer physical shock absorption

· Quick-release structure

· 360° Rotation

· AI Target detection, recognition and tracking

· Target positioning

Military Standard

Made of aviation aluminum alloy with high strength, good vibration absorption, rain resistance, dust prevention and corrosion resistance, and can adapt to harsh field working environment.

· Storage range: -30℃~80℃

· Protection level: IP43

· Work range: -20℃~70℃

Excellent Stability

The advanced dip angle trivial stabilization PTZ works closely with the mechanical platform, and the high-speed processor controls the precise operation of the motor, with a steady-state frequency of up to 1250Hz to compensate for every subtle movement and maintain a stable shooting angle.

Rotation

The original intelligent mechanical design structure realizes 360 ° no blind angle rotation, can free access to unrestrained omnidirectional vision.

· Yaw: 360° unlimited

· Pitch：-120°~30°

· Roll：±40°

Detection Recognition

Zingto INYYO Q33 integrates 4-core 2.0GHz AI chip with advanced 22nm process, and built-in NPU computing power ≈1.0 Tops, has the function of automatic detection and recognition of typical targets such as vehicles and personnel, can detect multiple targets at the same time. The target detection probability is better than 85%, target recognition probability is better than 80%, false alarm rate is less than 15%.

Intelligent Tracking

The telephoto lens can perform high-precision real-time detection tracking or feature tracking of ground targets within visual range. During the tracking process, It can resist light changes, and target scale changes, occlusion, rotation, blur, deformation and rapid movement. It has tracking auto zoom and auto tracking based on target recognition results, it’s easy to perform reconnaissance, surveillance and other tasks.

Target Positioning

INYYO Series electro-optical pod can add target positioning module, through the INYYO GCS app software to connect the integrated data & video Transmitter or the data & video integrated ground station to realize all the control of the photoelectric pod, and the longitude latitude coordinates, and elevation information of the target can be intelligently calculated and displayed.

Full metal heat dissipation

The whole machine adopts aviation aluminum alloy CNC precision machining, with high strength and rapid heat dissipation, It can be turned on at -20℃~70℃.
