Preface About Goggles X
Preface About Goggles X
As the Walksnail Avatar born, we've always been constantly collecting market's feedback and suggestions. In the new generation of research and development, we fully consider each function for customers like HDMI input and CVBS input (AV IN interface).
Meanwhile, we have also optimized wider pupil adjustment range, improved optical clarity, suitable for different people's face shapes, and we are committed at developing the APP, which can realize firmware upgrades, fc adjustment, social media sharing, without cumbersome computer operations.
In order to reduce the user's cost of HD system, we designed the upper part of the goggles to be removable, make sure the receiving module can be replaced, so that you can maintain the latest without replacing the goggles every year.
●Weight 290g |
●+2 to-6 diopter |
●FOV 50° |
●Lenses can be replaced |
●7-26V |
●1PD54~74mm |
●Front cover DIY |
●Infrared Sensing |
●1080P/100FPS |
●Sharing mode |
●HDMI input |

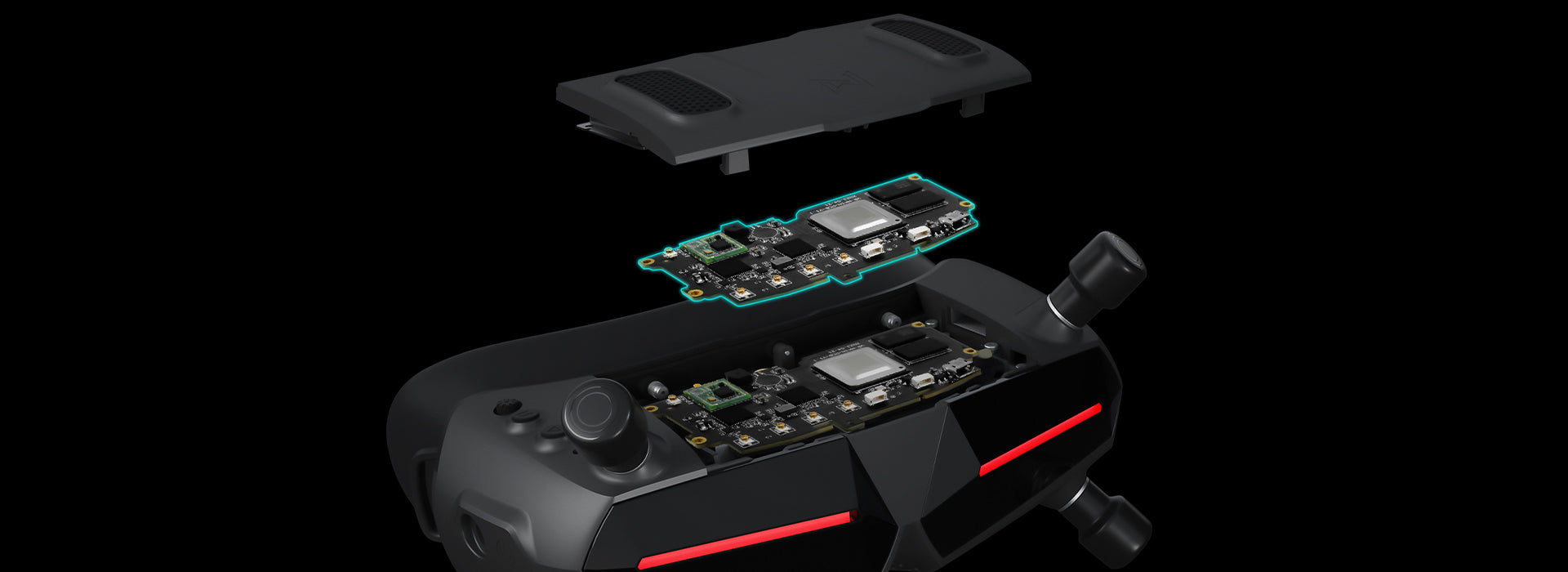

●Replace VRX |
●HDMI output |
●Built-in Gyro (in development) |
●AV in |
●Built-in Bluetooth Wi-Fi module (in development) |
Avatar HD Goggles X |
Avatar HD Goggles X |
---|---|
Communication Frequency |
5.725-5.850GHz |
Transmitter Power(EIRP) |
FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
I/O Interface |

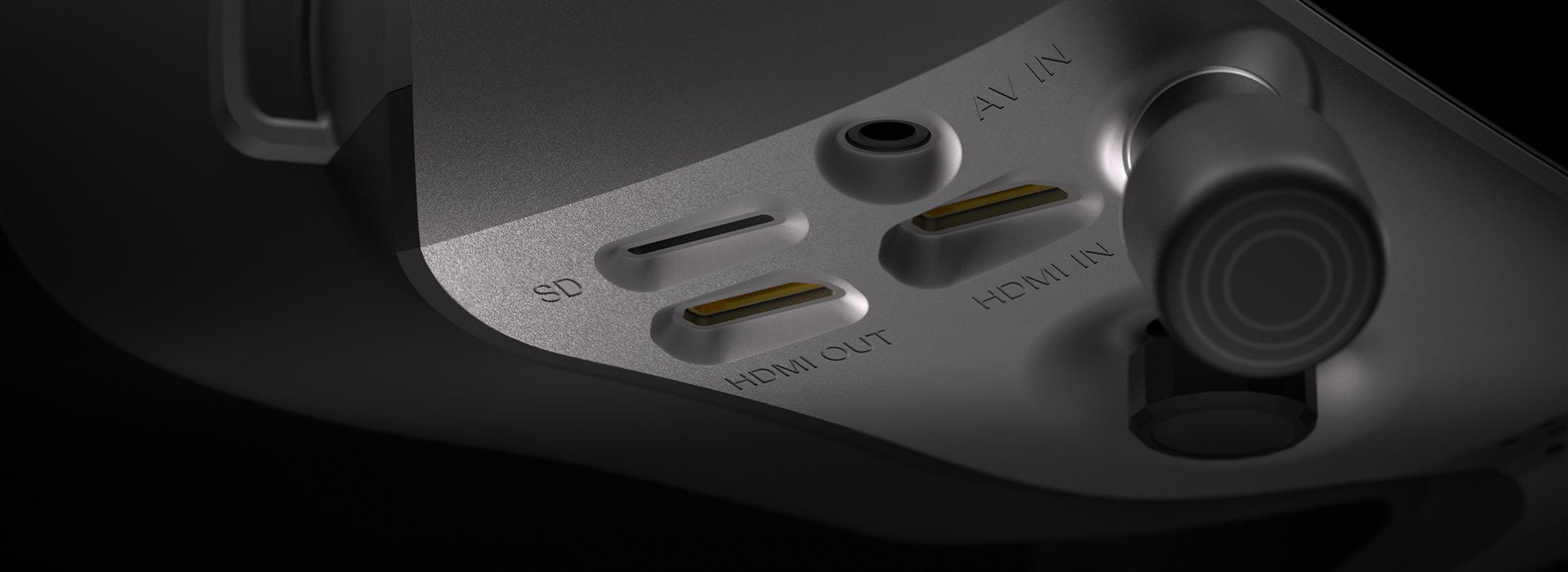

HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot |
Transmission Resolution |
1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps |
Code Rate |
Max 50 Mbps |
Min. Latency |
Average 22ms |
Average Gain |
2dBi |
Polarization |
LHCP |
Transmission Distance |
>4km |
Channel |
8 |
Screen Resolution |
1920*1080/100Hz |
Screen Material |
OLED |
IPD Mechanical Range |
54mm-74mm |
Adjustable Focus Range |
+2.0 to-6.0 Diopter |
FOV |
50° |
Power Input |
7-26V(2S-6S) |
SD card |
Support 256G |
System |
Avatar HD system |
Foam material |
PU |
Built-in WIFI |
Yes |
Built-in Gyro |
Yes |
Built-in Bluetooth |
Yes |

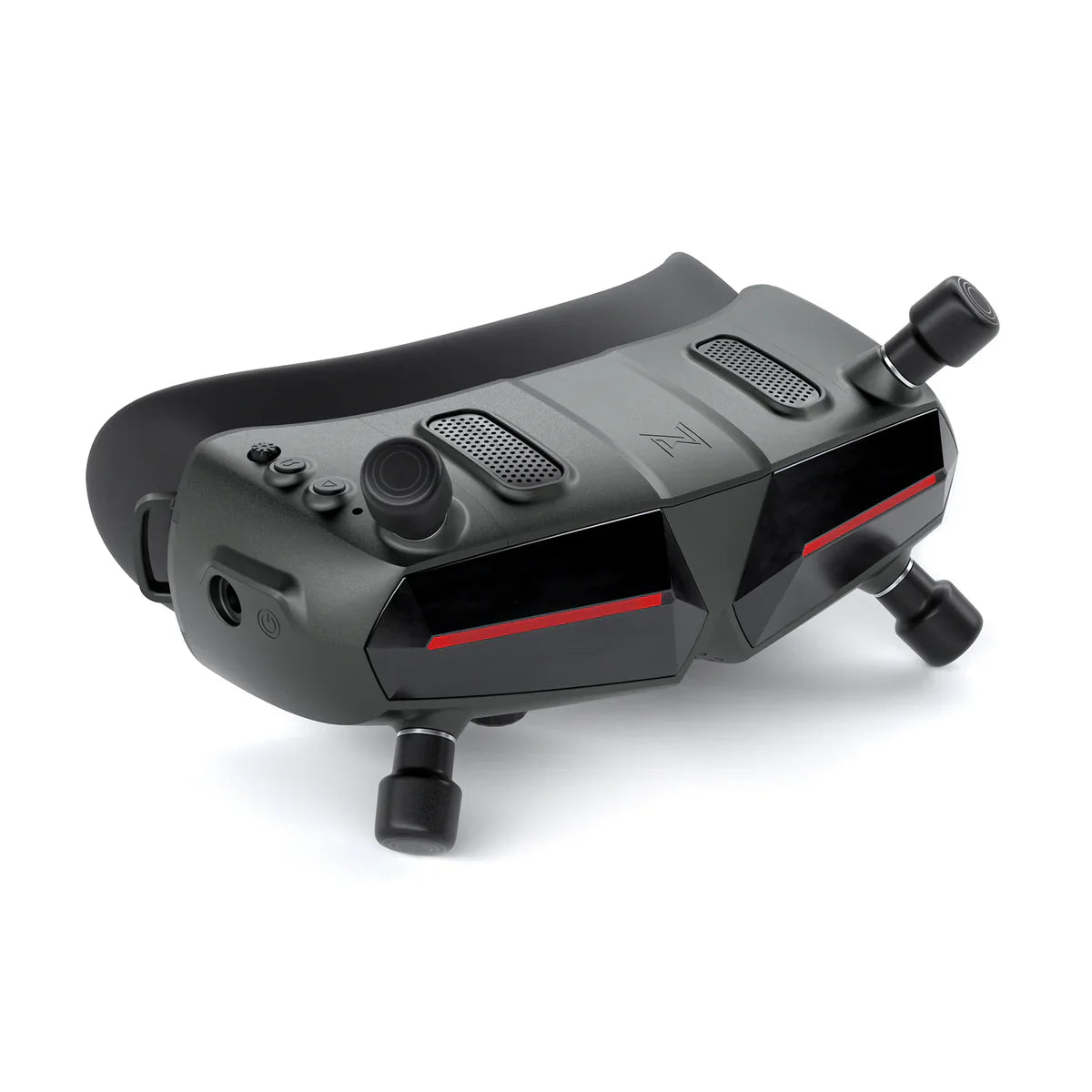

Walksnail Avatar HD Goggles X |
X1 |
---|---|
Foam (PU) |
X1 |
Lens cleaning cloth |
X1 |
XT60 to DC 5.5*2.1mm power cord |
X1 |
Storage Box |
X1 |
