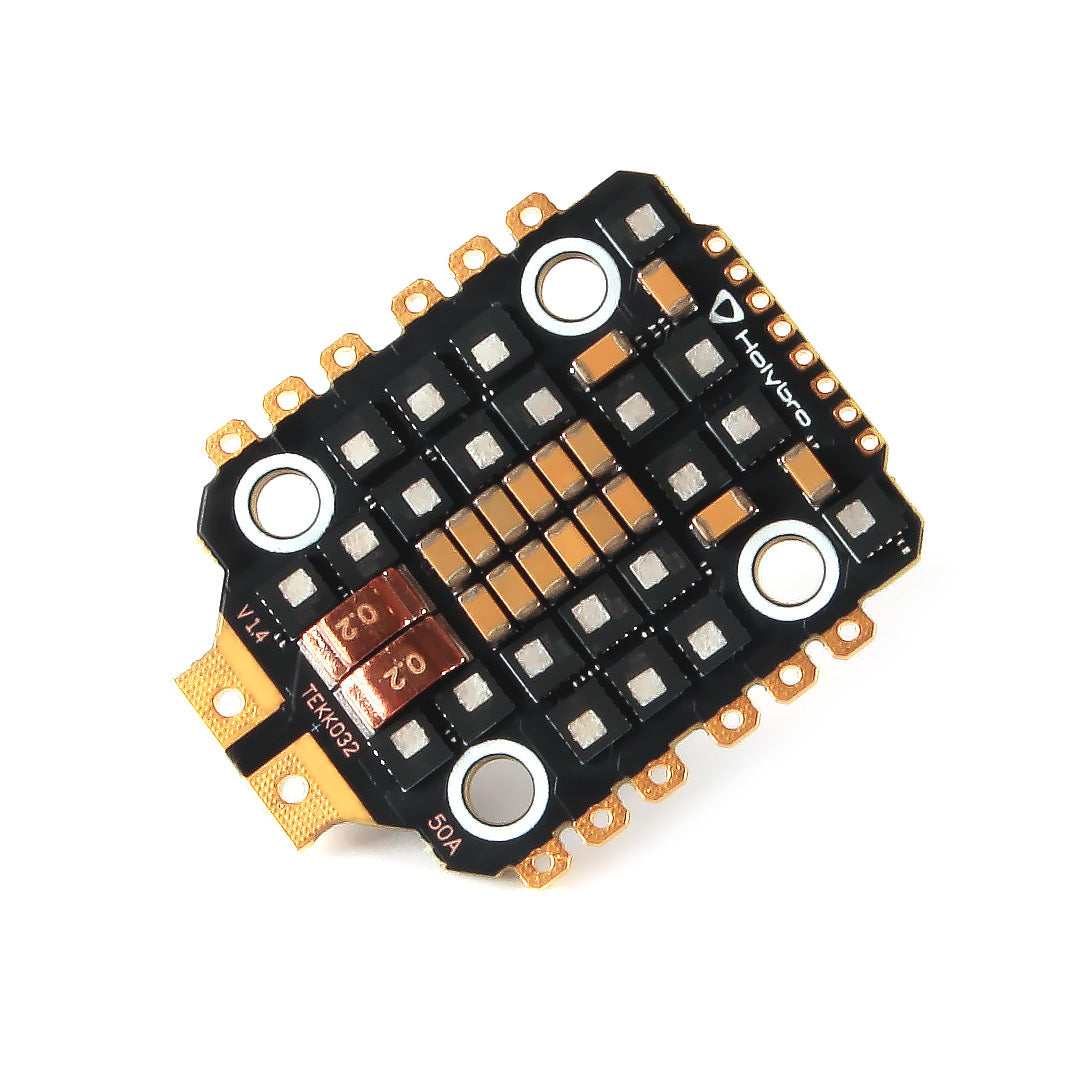

Tekko32 F4 4in1 Mini 50A ESC

Features: All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) Separate drive & control circuit,...
Vendor: Holybro
SKU: 31155
Availability: Many In Stock
Product Type: Electronic Speed Controller (ESC)
$545.00
$545.00
Subtotal: $545.00
Tekko32 F4 4in1 Mini 50A ESC

Tekko32 F4 4in1 Mini 50A ESC

$545.00

Tekko32 F4 4in1 Mini 50A ESC

$545.00

Features:

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Battery Supports: 4-6S
  • PWM Frequency: 16k to 96k
  • Supports DShot 150/300/600/1200/2400
  • Supports MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
  • Dimension: 32 x 40 mm

    PIN MAP:

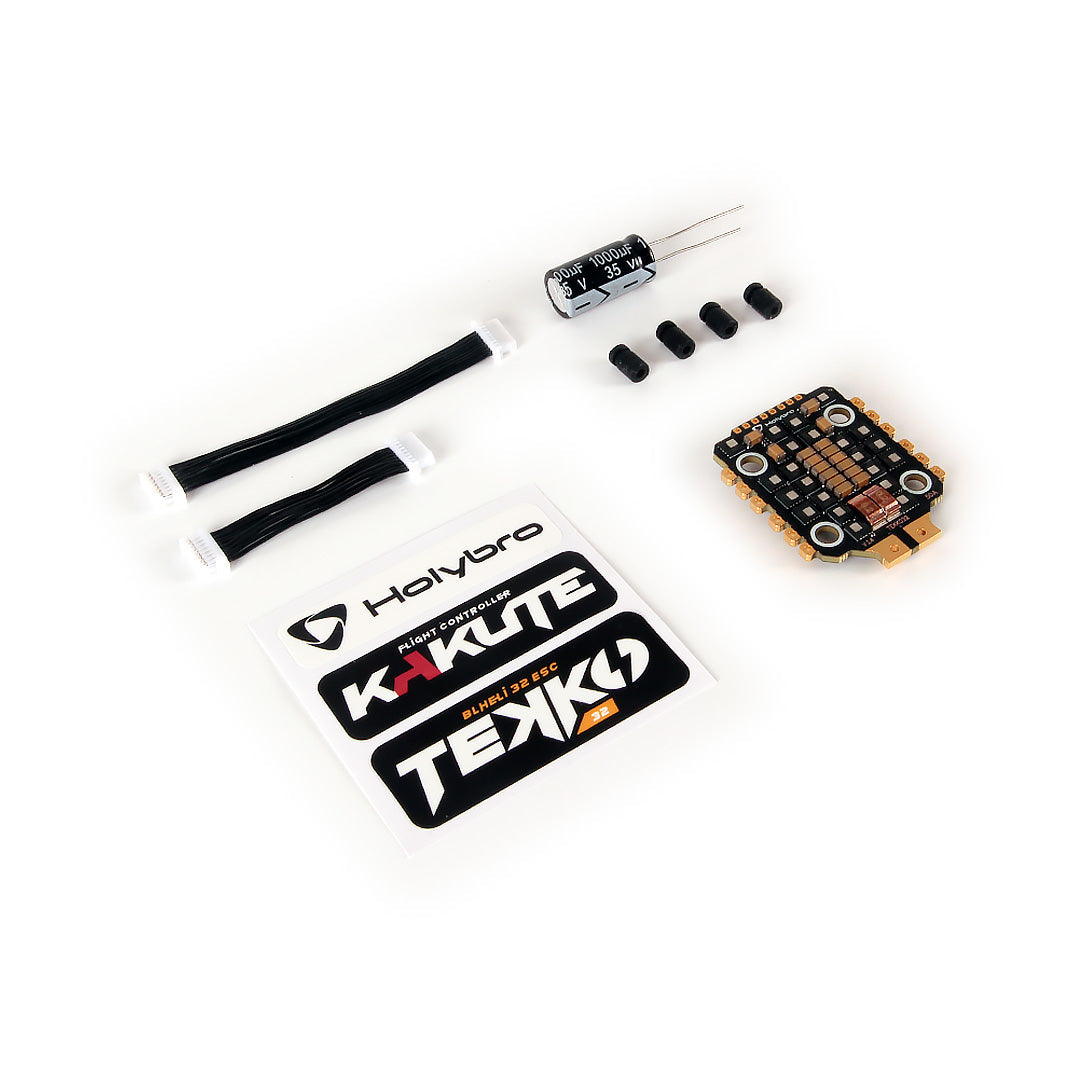

    Package included:

    • Tekko32 F4 4in1 mini 50A ESC *1
    • M2 Anti-Vibration Silicone Grommet Insert *4
    • M3 Anti-Vibration Silicone Grommet Insert *4
    • Electrolytic capacito: 1000uF 35v *1
    • 8pin to 8pin 1mm pitch 65mm cable *1
    • 8pin to 8pin 1mm pitch 25mm cable *1
