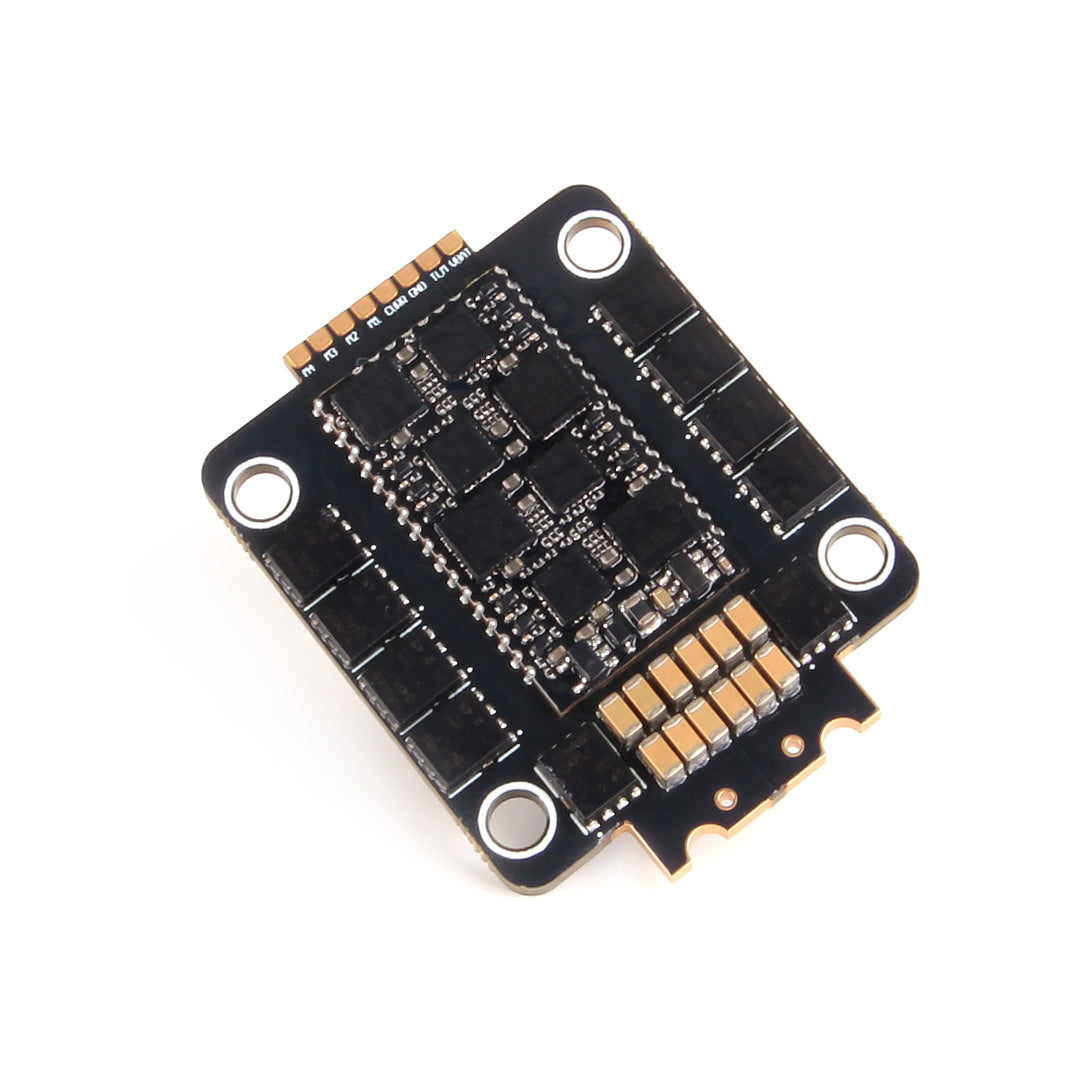

Tekko32 F4 4in1 60A ESC
Description: The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC...
Vendor:
Holybro
SKU:
31156
Availability:
Many In Stock
Product Type:
Electronic Speed Controller (ESC)
- $623.00
- $623.00
- Unit price
- per
Description:
The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30x30 mounting pattern and supports 3-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control.
Features:
- All new High-quality MOSFETs with low internal resistance and low heat generation
- Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
- A separate drive and control circuit, reducing the electrical interference
- Continuous Current Rating of 60 Amps
Specification:
- Continuous Current: 60A x4
- Burst Current: 70A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 120

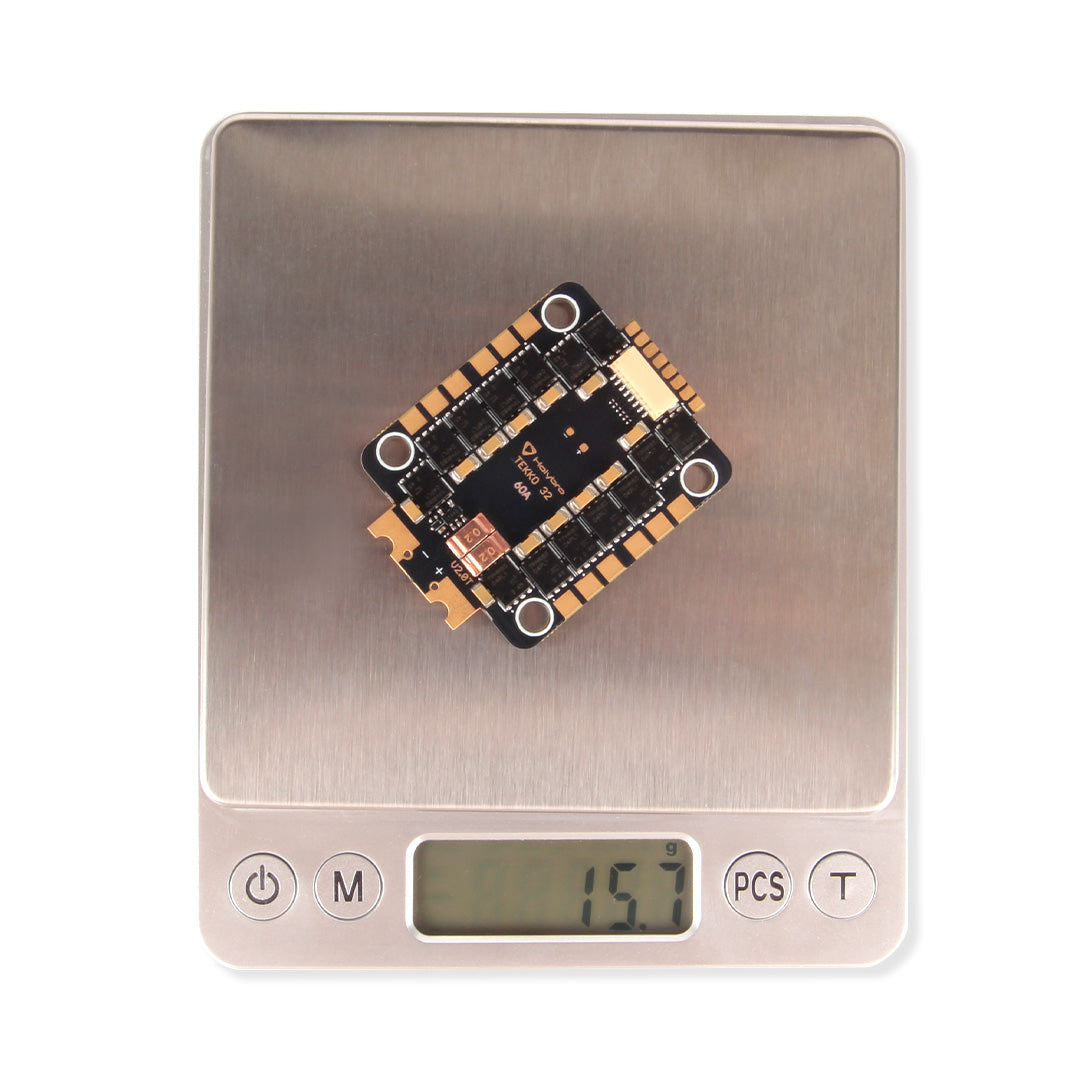

- Dimensions: 48x37x6mm / Weight: 15.7g
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)

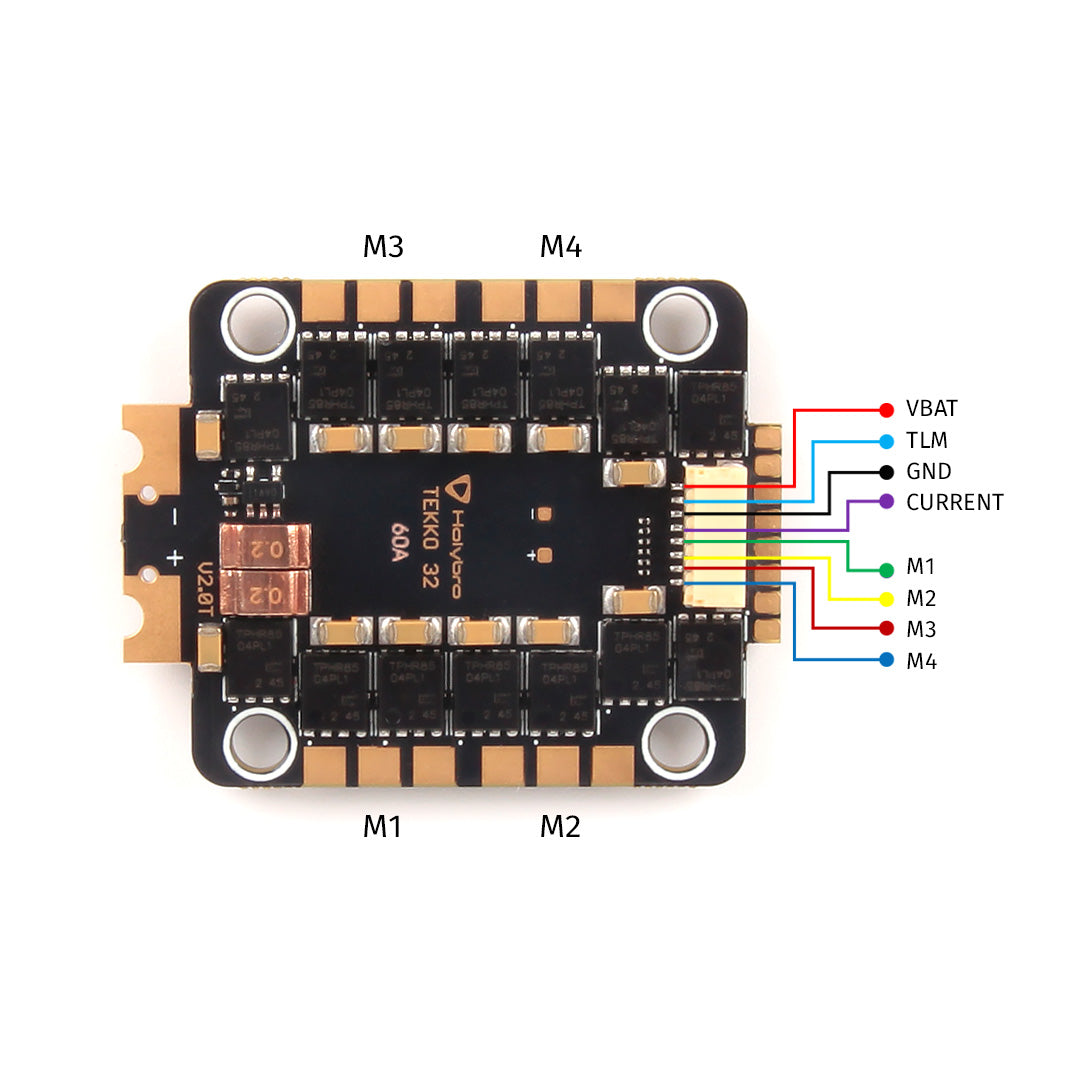

PIN MAP

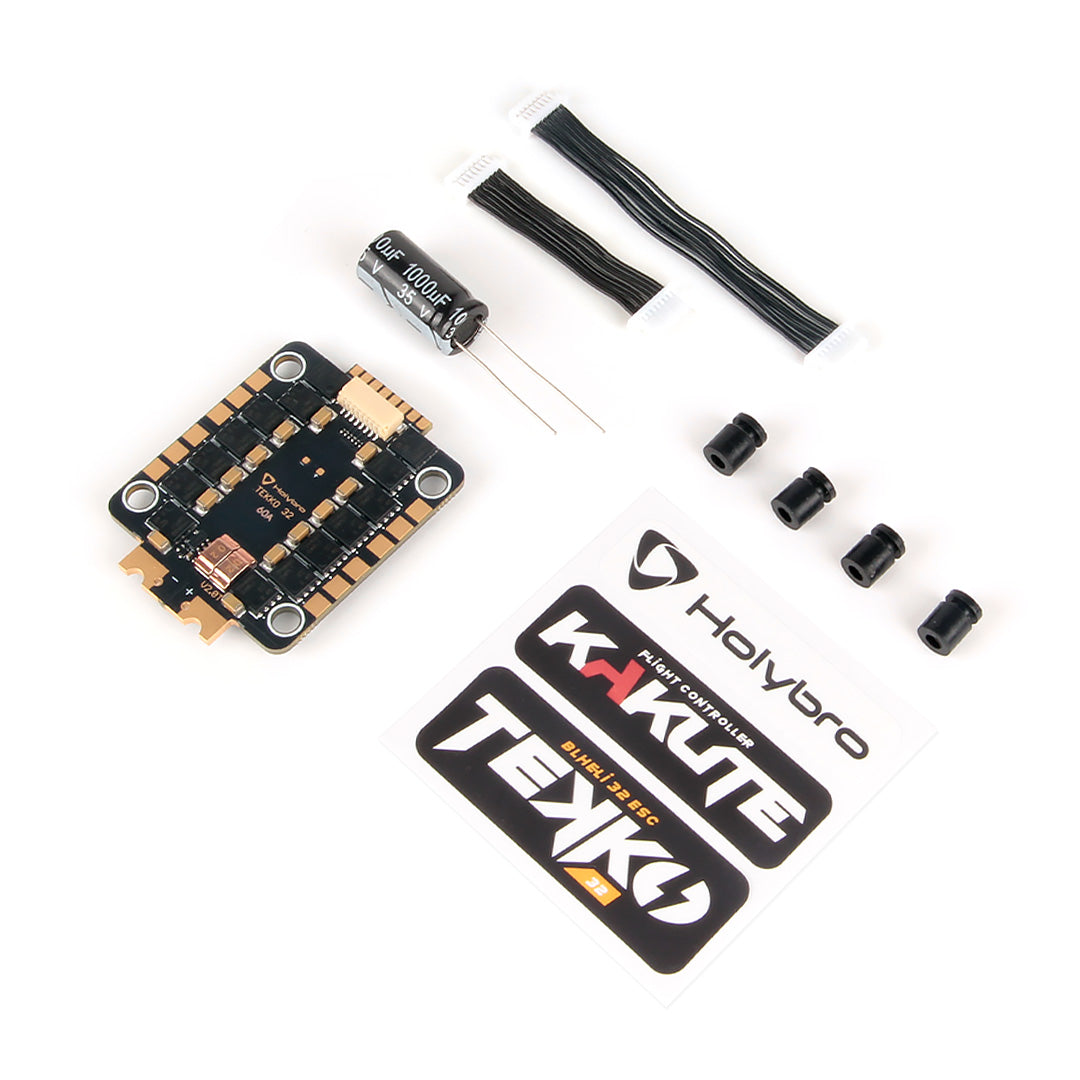

Package includes:
1x Tekko32 F4 4in1 60A ESC
4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
Some Tips:
BLHeli_32 ESC Firmware Overview
