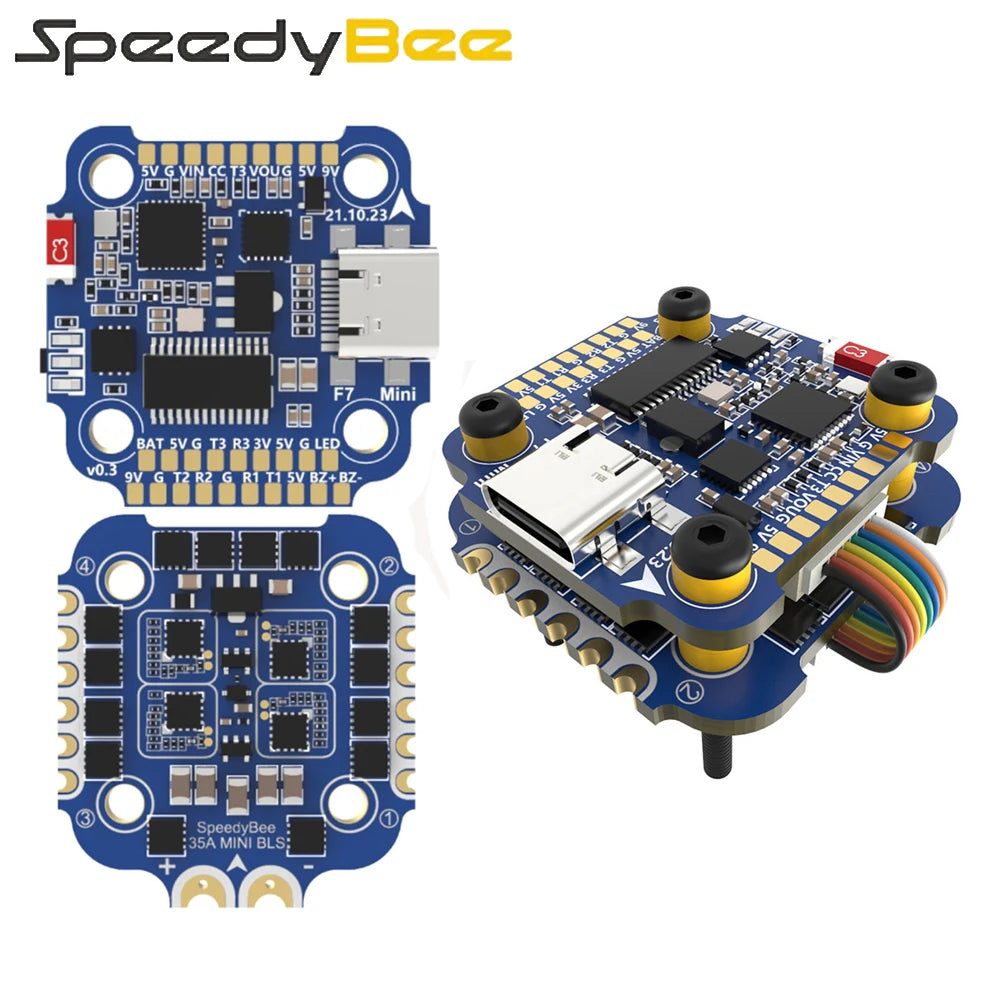

SpeedyBee Speedy Bee F7 Mini 3-6S STM32F722 Flight Control And 35A BLHeli_S Mini 4-in-1 DSHOT300/600 ESC For FPV Racing Drone
SpeedyBee Speedy Bee F7 Mini 3-6S STM32F722 Flight Control And 35A BLHeli_S Mini 4-in-1 DSHOT300/600 ESC Product...
- $694.00
$694.00- $694.00
- Unit price
- per
SpeedyBee Speedy Bee F7 Mini 3-6S STM32F722 Flight Control And 35A BLHeli_S Mini 4-in-1 DSHOT300/600 ESC

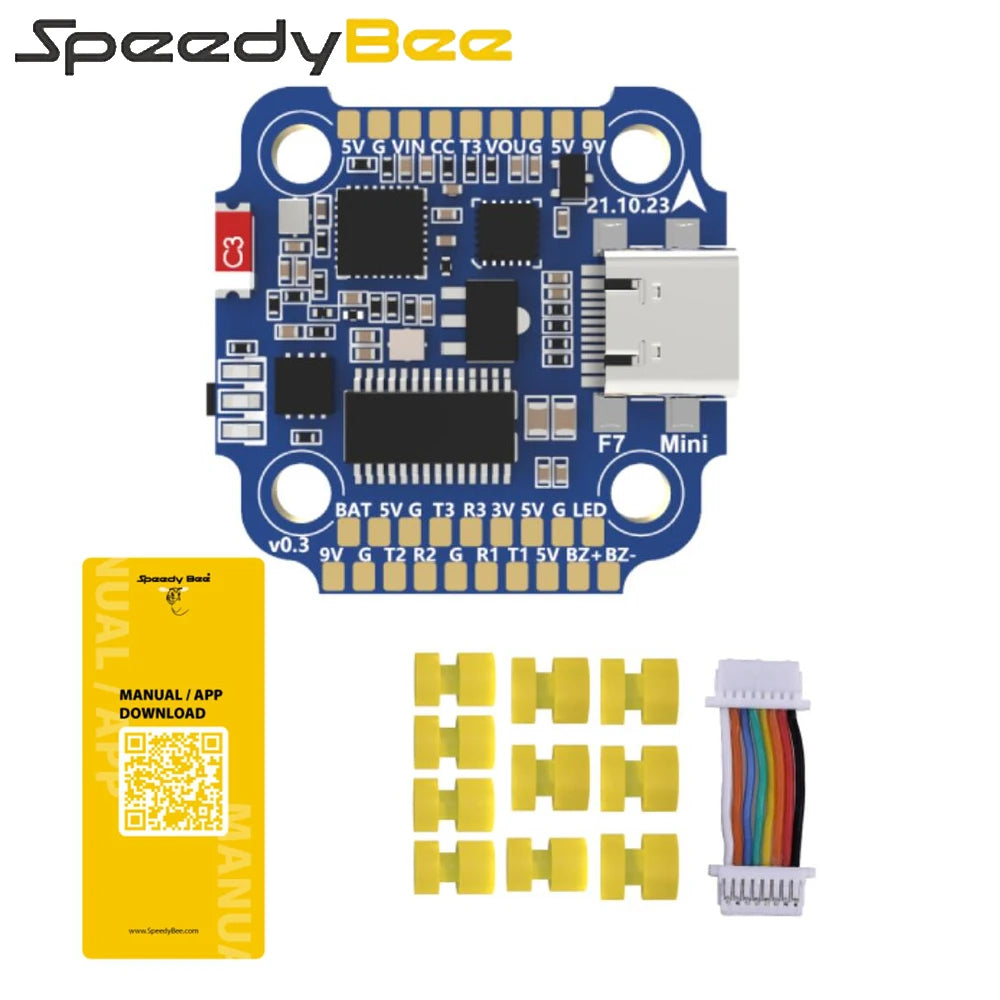

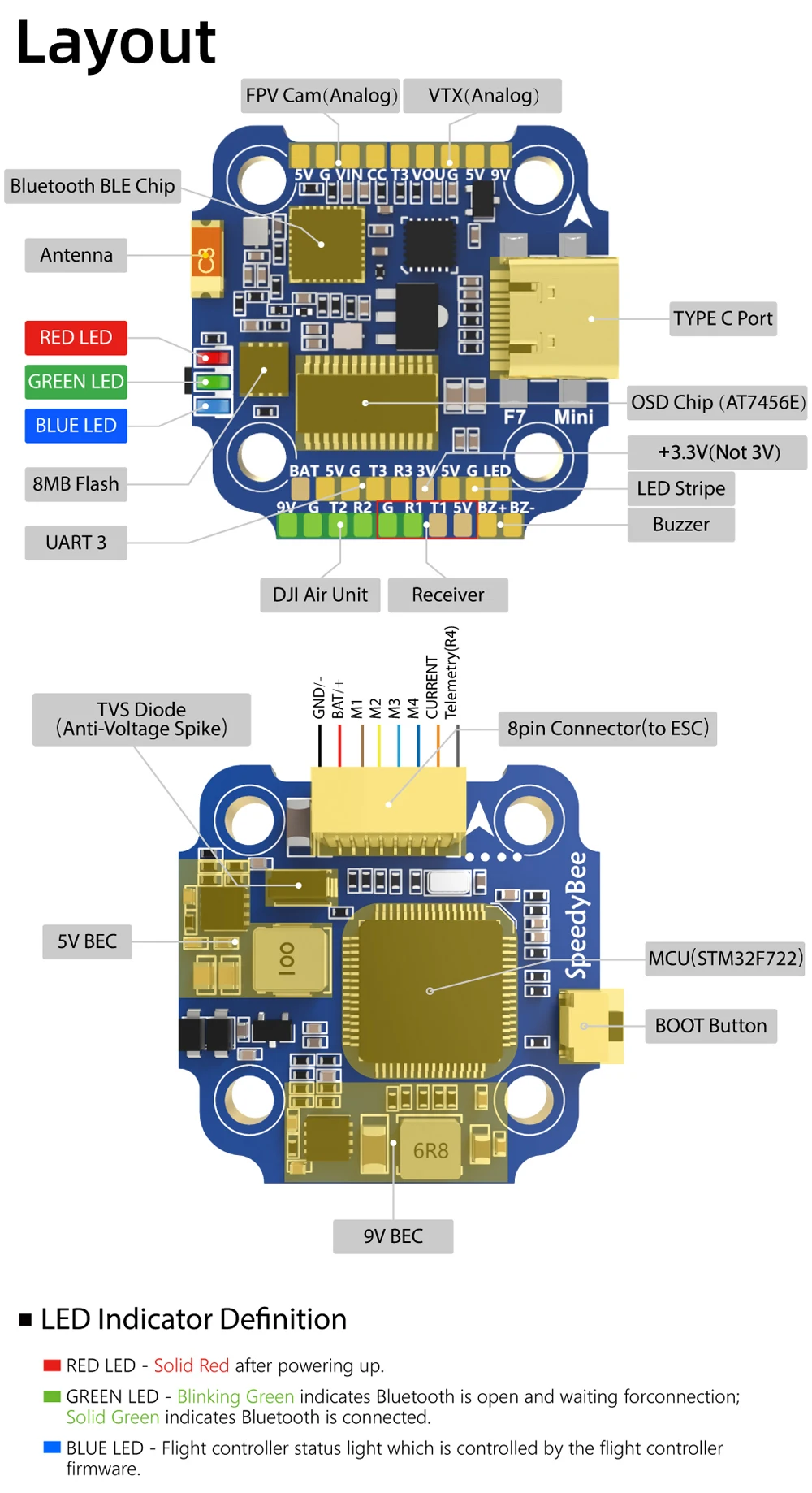

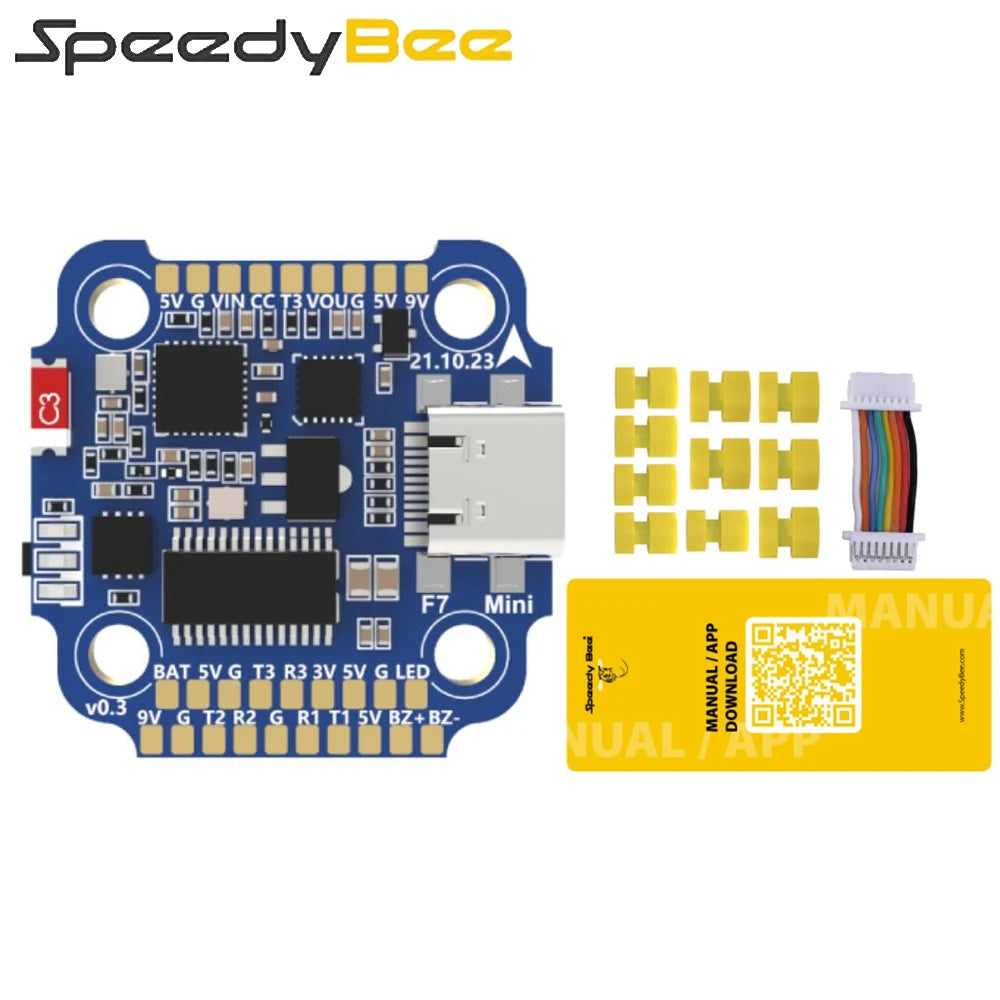

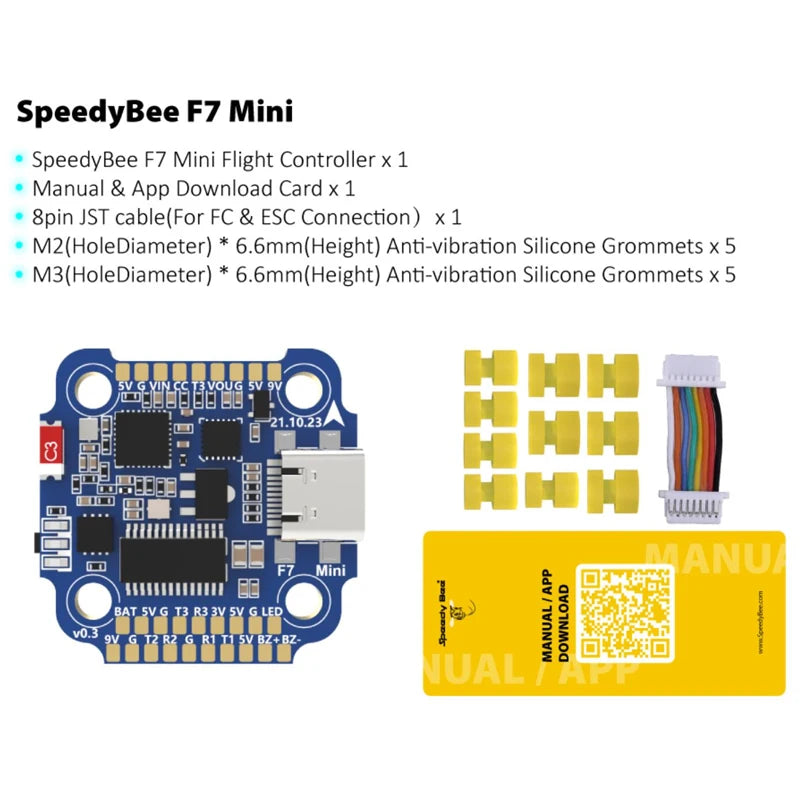

Product Name: SpeedyBee F7 Mini Specs
MCU: STM32F722
IMU(Gyro): BMI270 for current batches; MPU6000 for old batches before May 2022.
USB Port Type: Type-C
Barometer: N/A
OSD Chip: AT7456E chip
BLE Bluetooth: Supported, Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART 6);
WIFI: Not supported
Flash FC Firmware Wirelessly: Not supported. Please update firmware for this FC on the PC;
Download/Analyze Blackbox: Not supported. Please download and analyze Blackbox data on the PC;

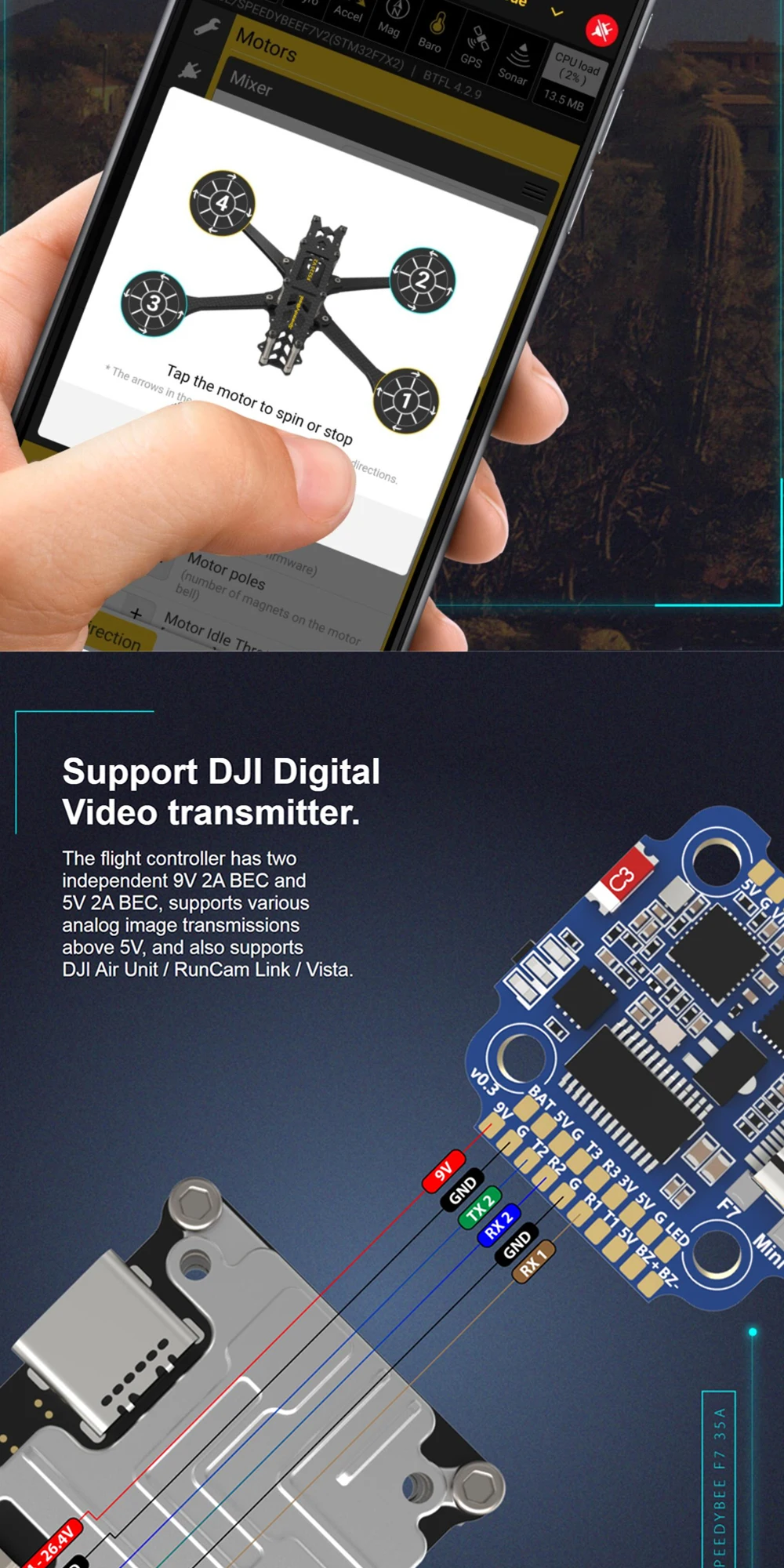

DJI Air Unit Soldering Pads: Supported
Flash(for BlackBox): 8MB
Current Sensor: Supported, Scale=250 Offset=-500
BetaFlight Camera Control Pad: Yes(CC pad)
Power Input: 3S-6S Lipo
5V Output: 6 groups of 5V output, five +5V pads and 1BZ+ pad( used for Buzzer). The total current load is 2.5A.
9V Output: 2 groups of 9V output, the total current load is 2A.
3.3V Output: Supported. Up to 500mA current load.
ESC Signal Pads: M1-M4
UART: Full UART*3(UART1, UART2, UART3)
ESC Telemetry UART: R4(UART4)
I2C: Not supported
LED Pad: Used for WS2812 LED
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
BOOT Button: Used to enter DFU mode
RSSI Input: Not supported
SmartPort: Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware: BetaFlight(Default)
Firmware Target Name: SPEEDYBEEF7MINIV2 for current batches(Gyro: BMI270); SPEEDYBEEF7MINI for old batches(Gyro: MPU6000) before May 2022.
Mounting: 20 x 20mm, 3.5mm hole diameter;
Dimension: 30 x 30 x 7.5mm
Weight: 5.7g

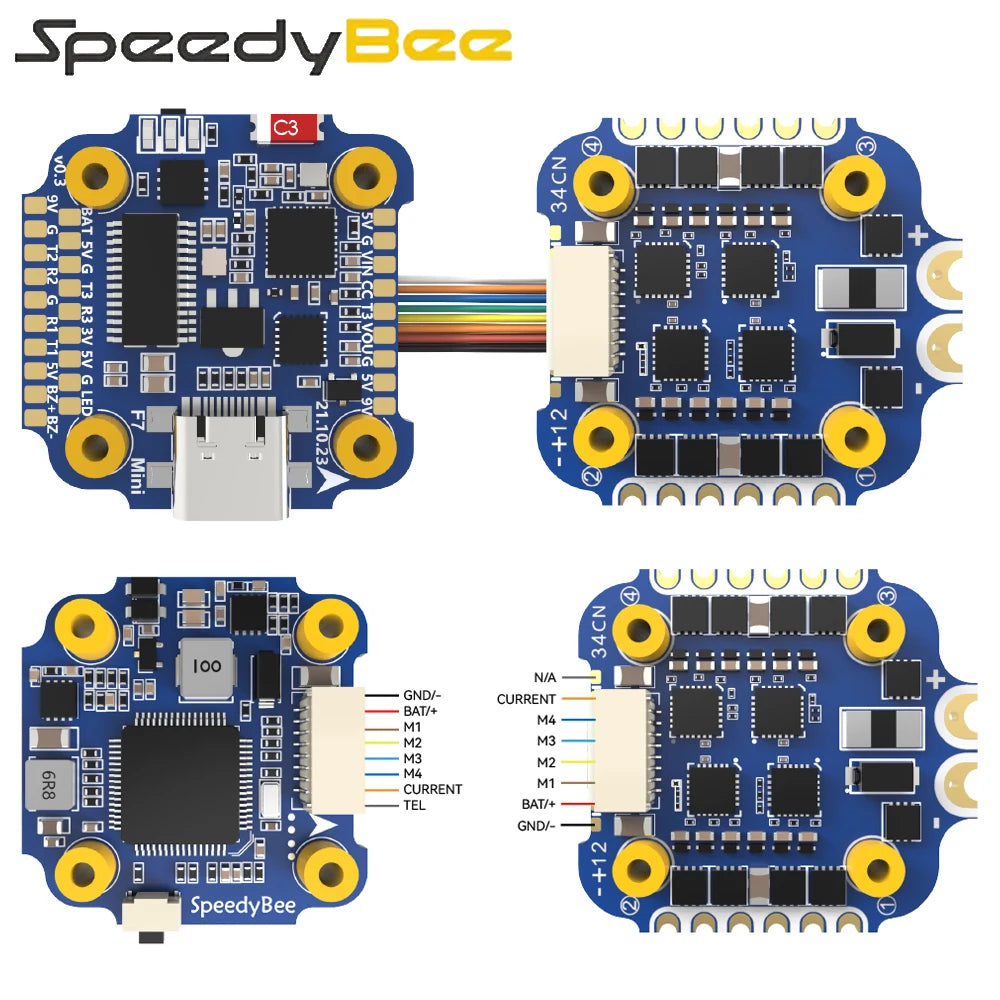

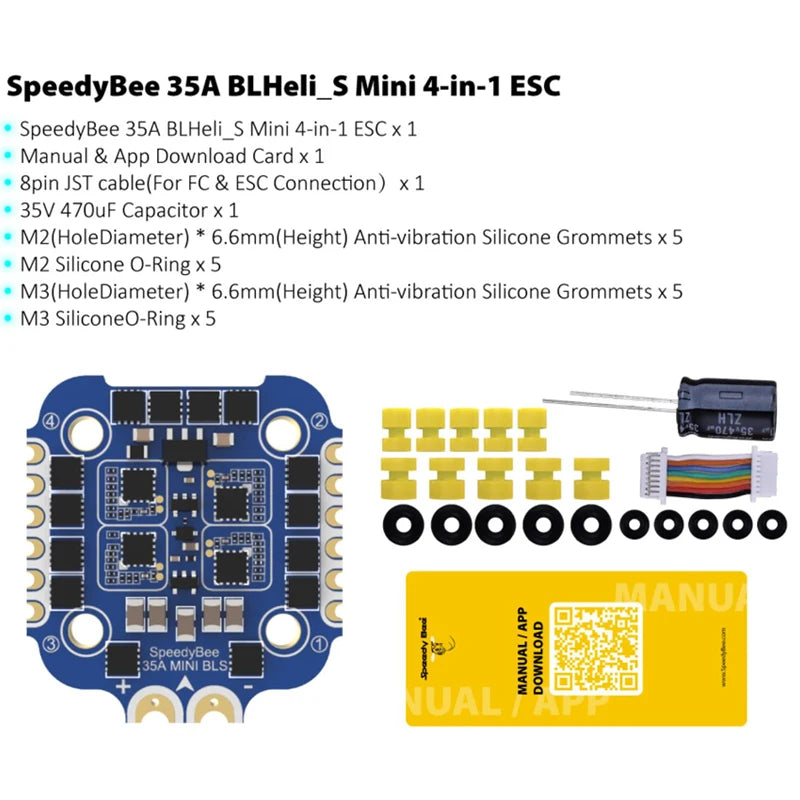

Product Name: SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Specs
Firmware: BLHeli_S JH40;

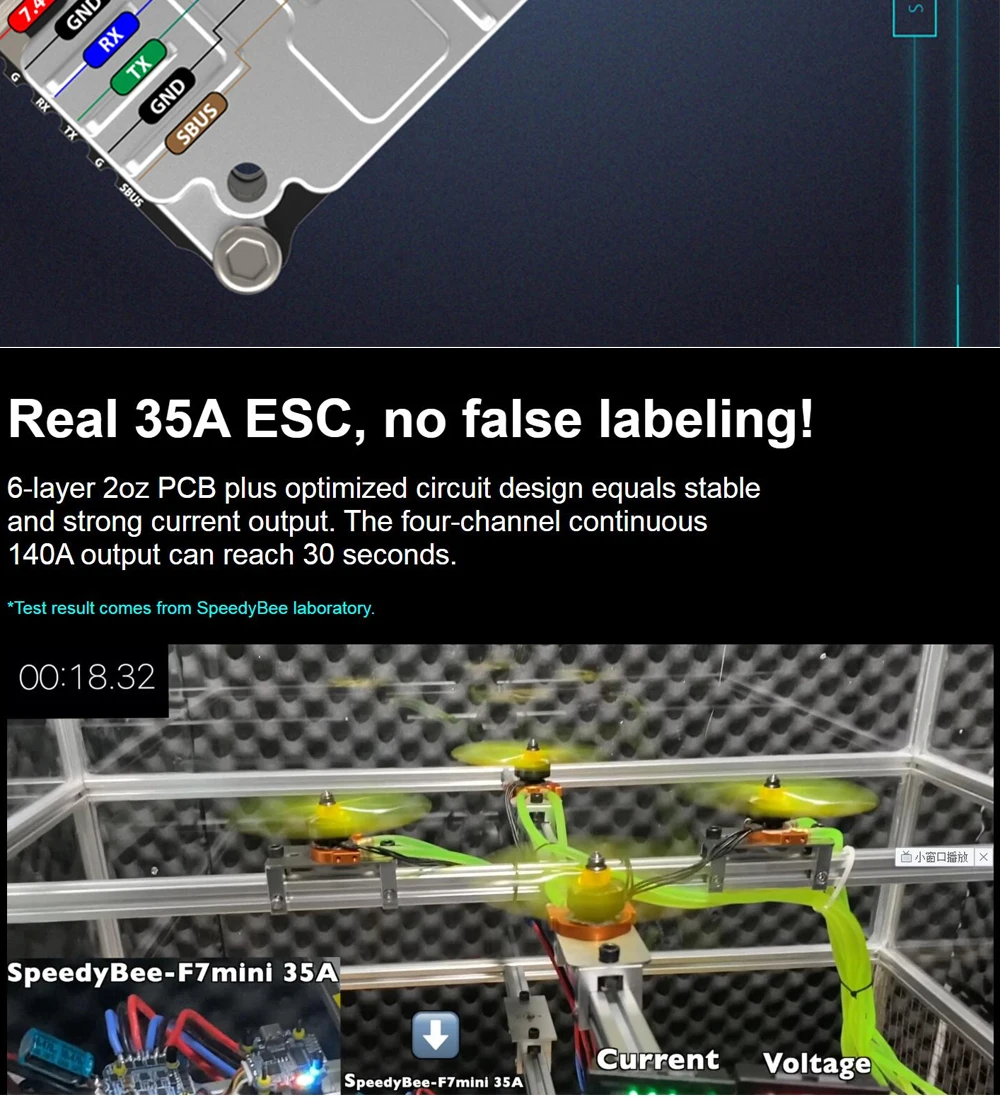

Continuous Current: 35A*4;
Burst Current: 45A(5seconds);
ESC Protocol: DSHOT300/600;
Power Input: 3-6S LiPo;
Power Output: VBAT;
ESC Telemetry: Not supported;
Current Sensor: Support (Scale=250 Offset=-500);
Mounting: 20 x 20mm, 3.6mm hole diameter;
Dimension: 35 * 35 * 5.5mm;
Weight: 7g;
