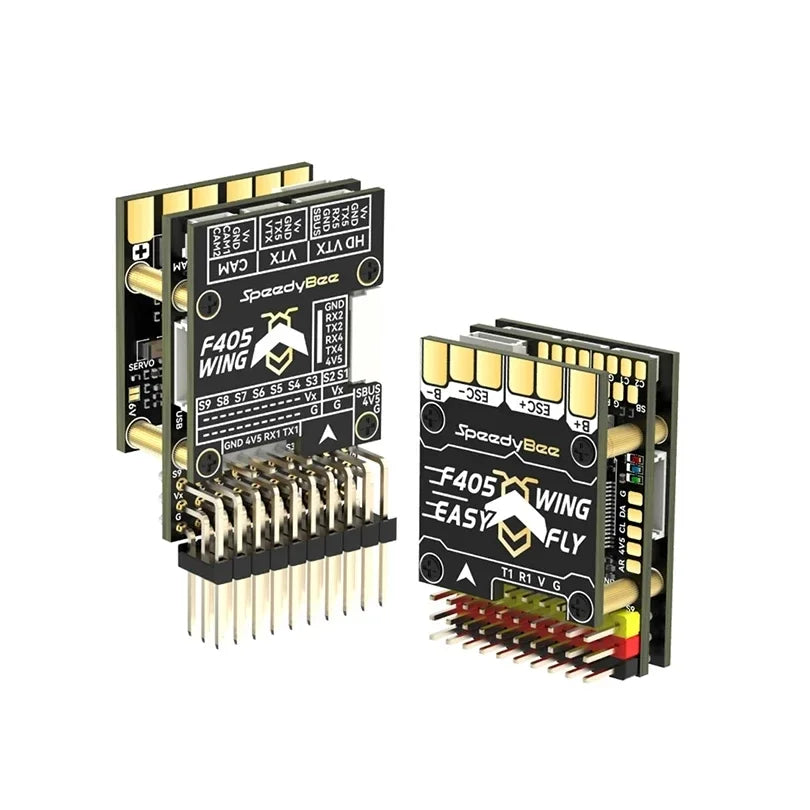

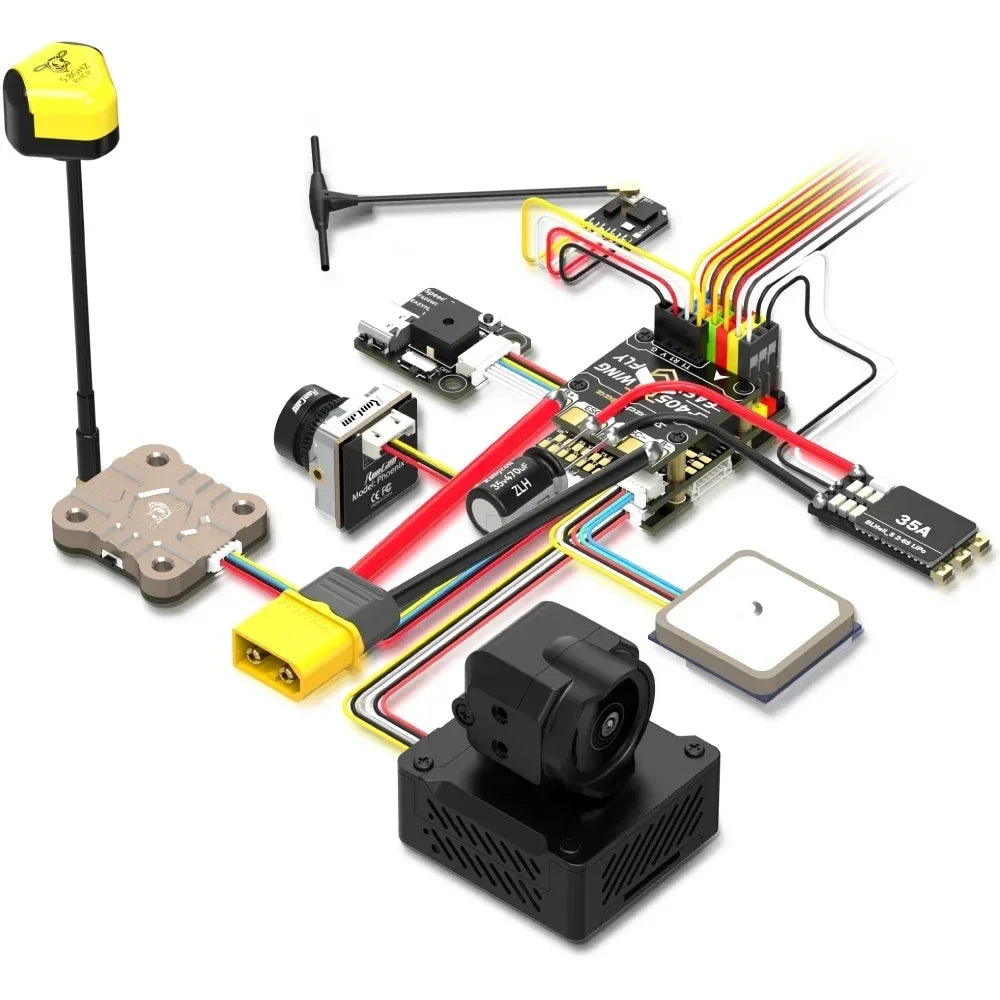

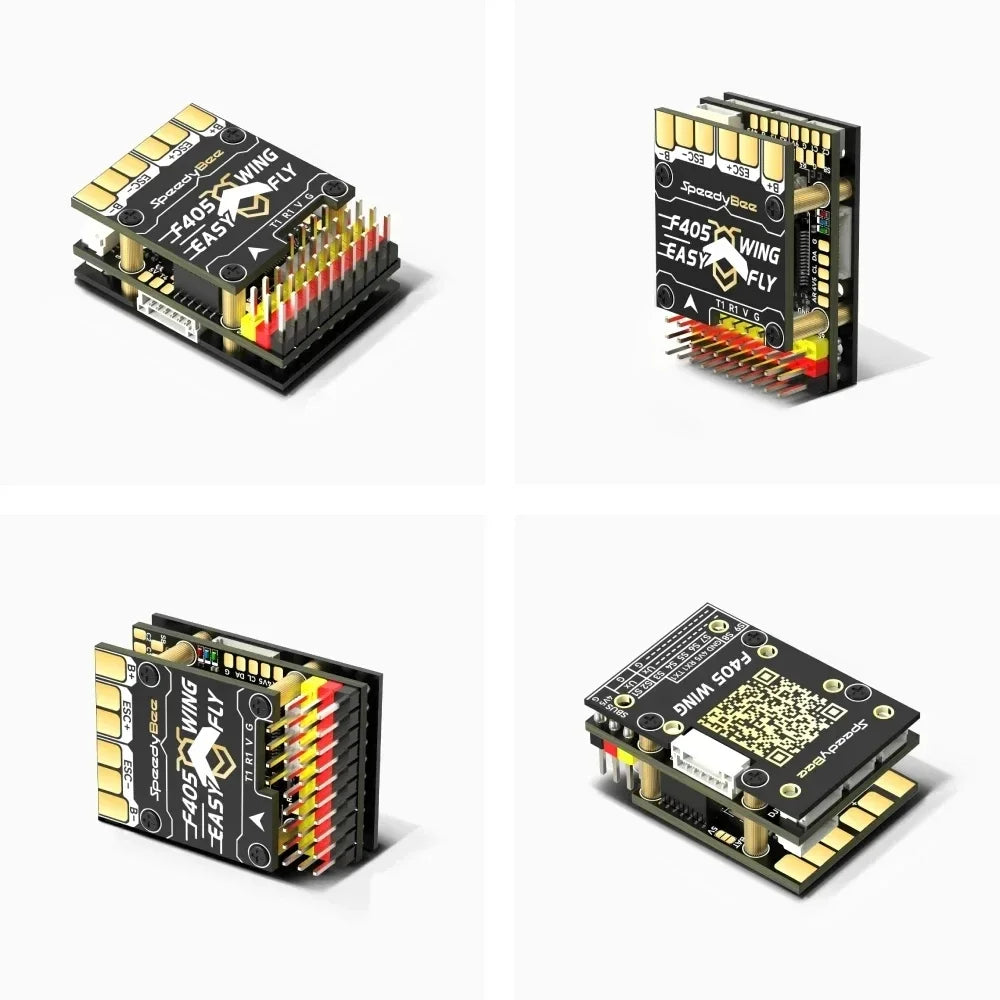

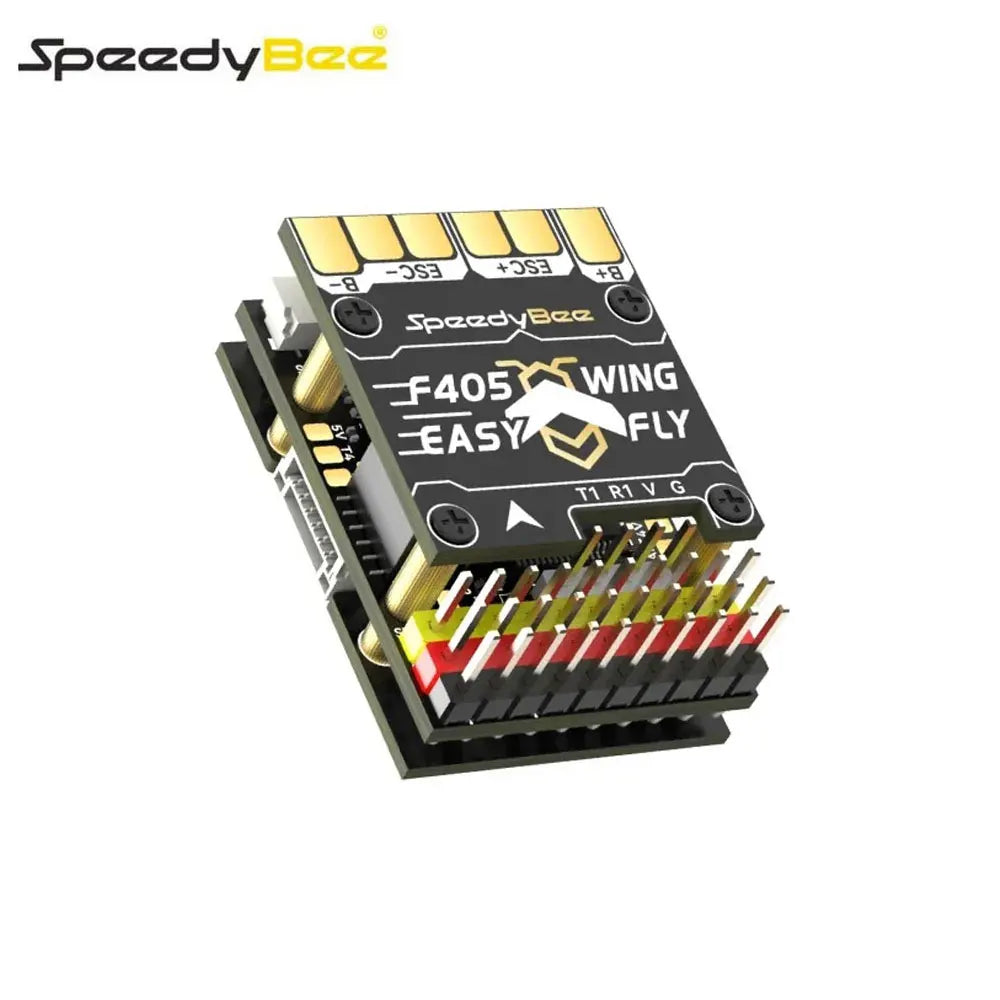

SpeedyBee F405 WING MINI Fixed Wing Flight Controller 2-6S LiPo for RC Fixed Wing Model Airplane Drone

Product Name

SpeedyBee F405 WING MINI FC board

MCU

STM32F405, 168MHz, 1MB Flash

IMU(Gyro&Accelerometer)

ICM-42688-P

Barometer

SPL006-001

OSD Chip

AT7456E

Blackbox

MicroSD Card Slot

UART

6 sets (USART1, USART2, USART3, UART4, UART5,
UART6 - Dedicated for Wireless board Telemetry connection)

I2C

1x Used for magnetometer, digital airspeed sensor

ADC

4x (VBAT, Current, Analog RSSI, Analog AirSpeed)

PWM

12x (9x pin headers + 2x solder pads + 1x "LED" pad)

ELRS/CRSF Receiver

Supported, connected to UART1

SBUS

Built-in inverter for SBUS input (UART2-RX)

LED

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)

Analog RSSI

Supported, Named as "RS"

Dual Analog Camera Switching

Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER.
Both cameras should have the same video format, either PAL or NTSC.

Supported FC Firmware

INAV: SpeedyBeeF405WING (default)
ArduPilot: SpeedyBeeF405WING

Weight

5.6g

Product Name

SpeedyBee F405 WING MINI PDB board

Input voltage range

7~26V (2~6S LiPo)

Battery Voltage Sensor

Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)

Battery Current Sensor

80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot)

TVS Protective diode

Yes

FC BEC output

Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module

VTX & Camera power supply

The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage)
By default, it is set to battery voltage
(Ensure the VTX and camera input voltage range is compatible)
Switching to 5V power supply is possible via pad jumper (using Servo BEC output)
(If using this method, ensure the current requirements for both servo and VTX are sufficient)

Servo BEC output

Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos.

Weight

5.5g

Product Name

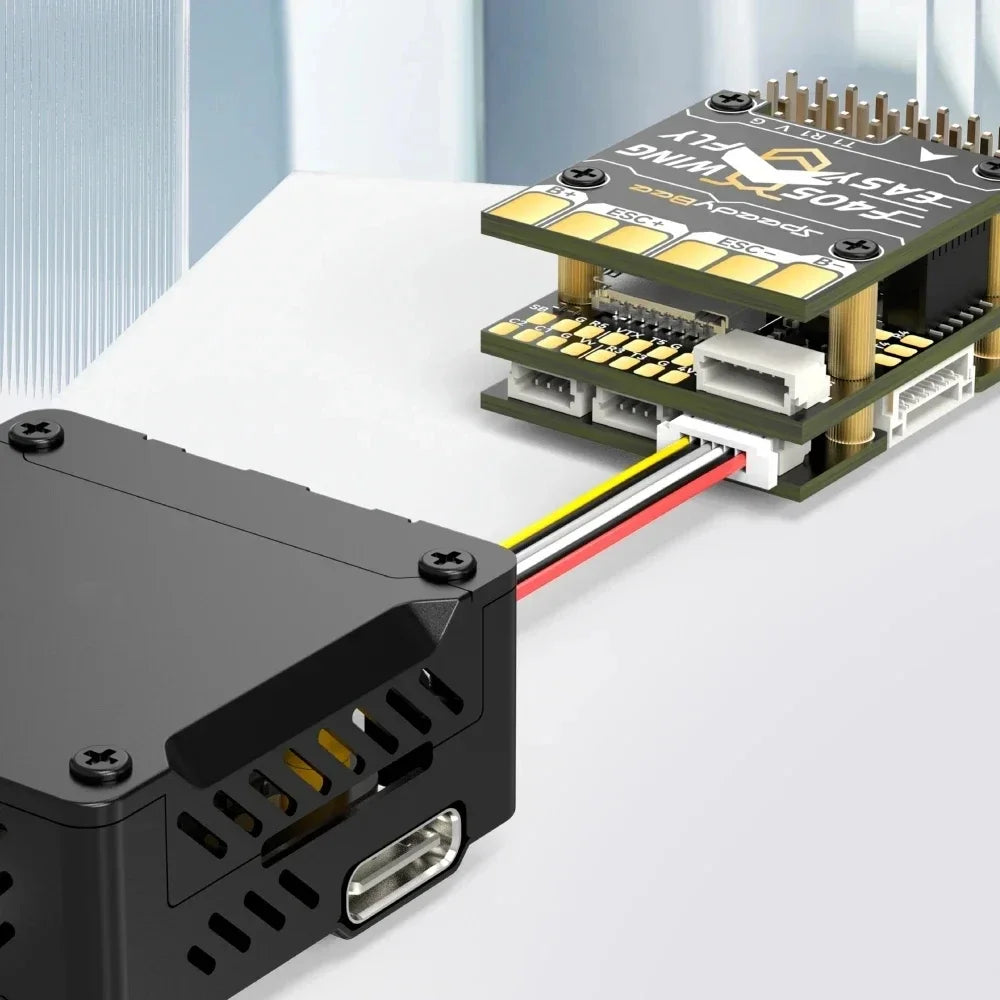

SpeedyBee F405 WING MINI Wireless USB Extender

Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
INAV:Please make sure the MSP switch on UART 6 is turned on and set to a baud rate of 115200 ArduPilot:Please make sure the Serial 6 is set to baud rate 115200 and protocol Mavlink2

BLE mode, connect to Speedybee APP

Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. WiFi: Speedybee eFLY-WIFI Password: 88888888

Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc.
Step 1: turn on Personal Hotspot;
Step 2: Set hotspot, locate NAME/Device Name/Hotspot name/etc.
Step 3: change the current name to eFLY and the password is, 88888888

Wireless off mode

USB Port Type

Type-C

Buzzer

5V Active Buzzer

Weight

3.2g
