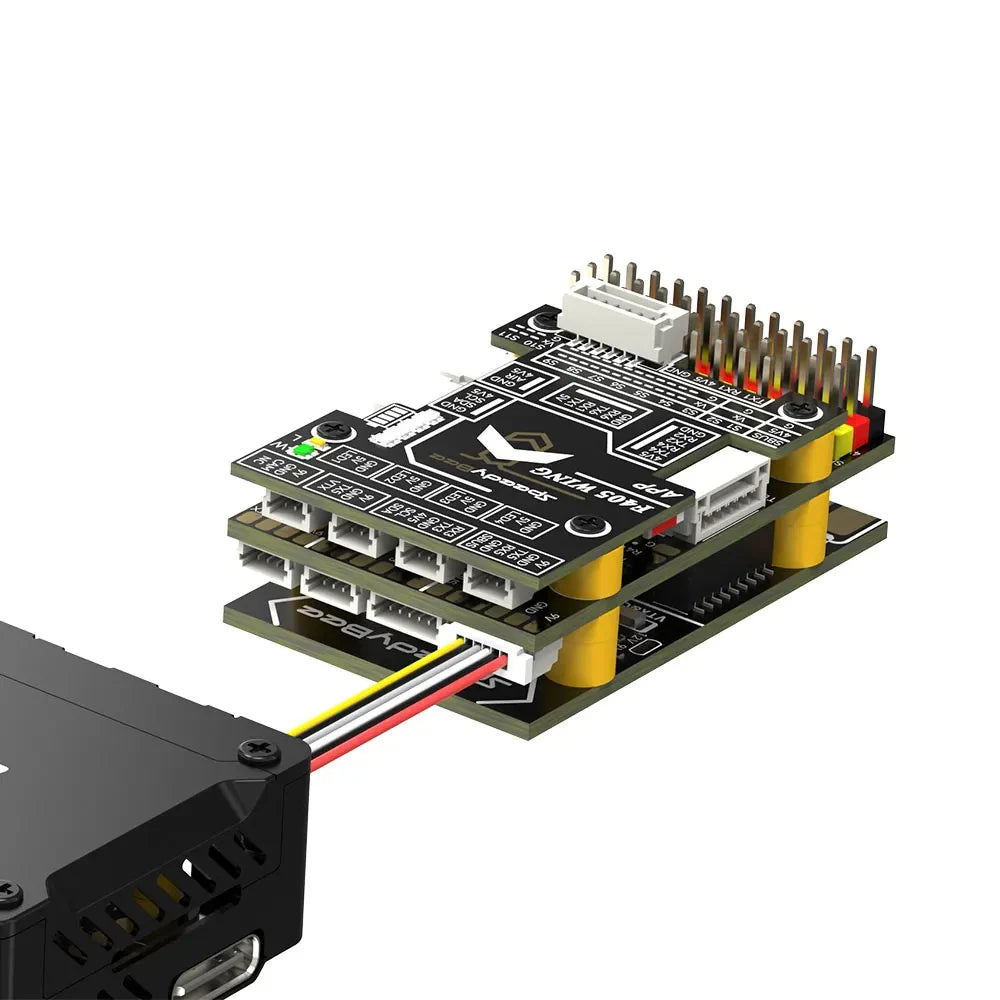

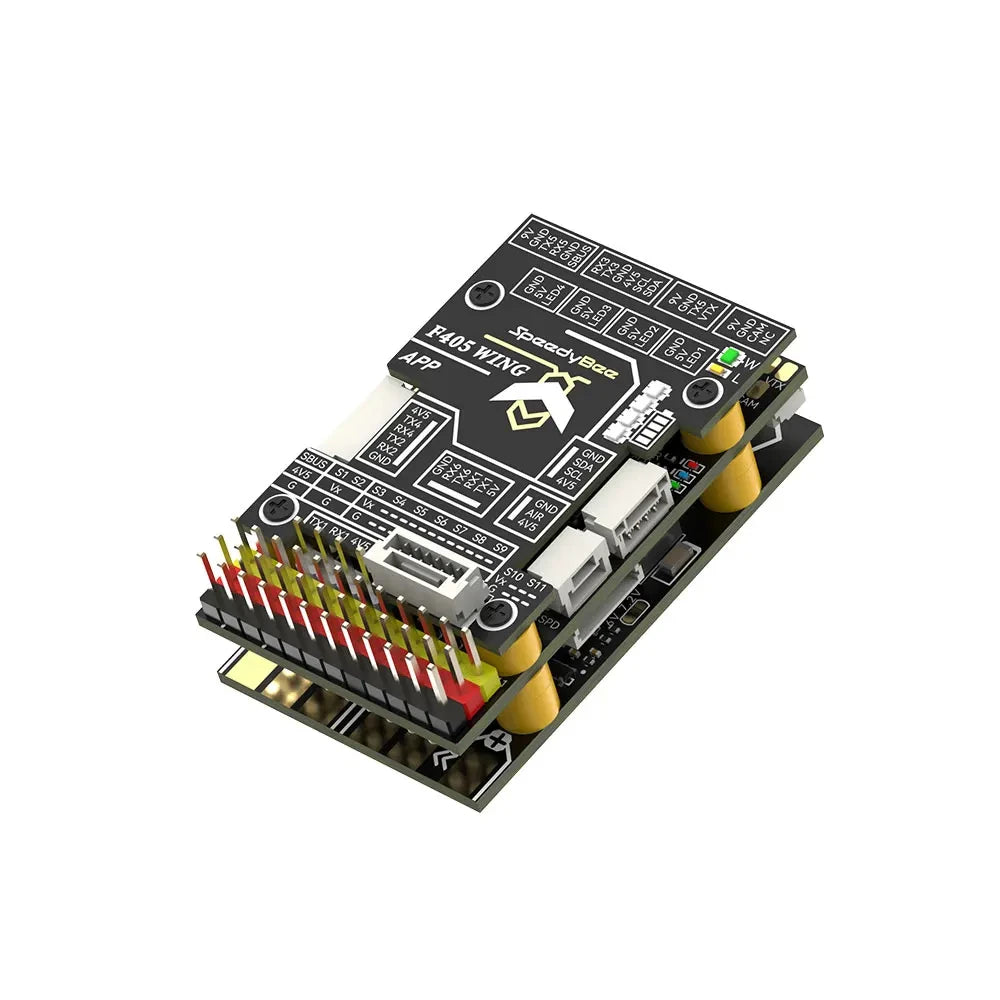

SpeedyBee F405 WING APP ArduPilot INAV 2-6S Flight Controller for RC Multirotor Airplane Fixed-Wing Drone
Specifications Product Name SpeedyBee F405 WING FC board MCU STM32F405,168MHz,1MB Flash IMU(Gyro&Accelerometer) ICM-42688-P Barometer SPL006-001 OSD Chip...
- $257.00
$257.00- $257.00
- Unit price
- per
Specifications
|
Product Name |

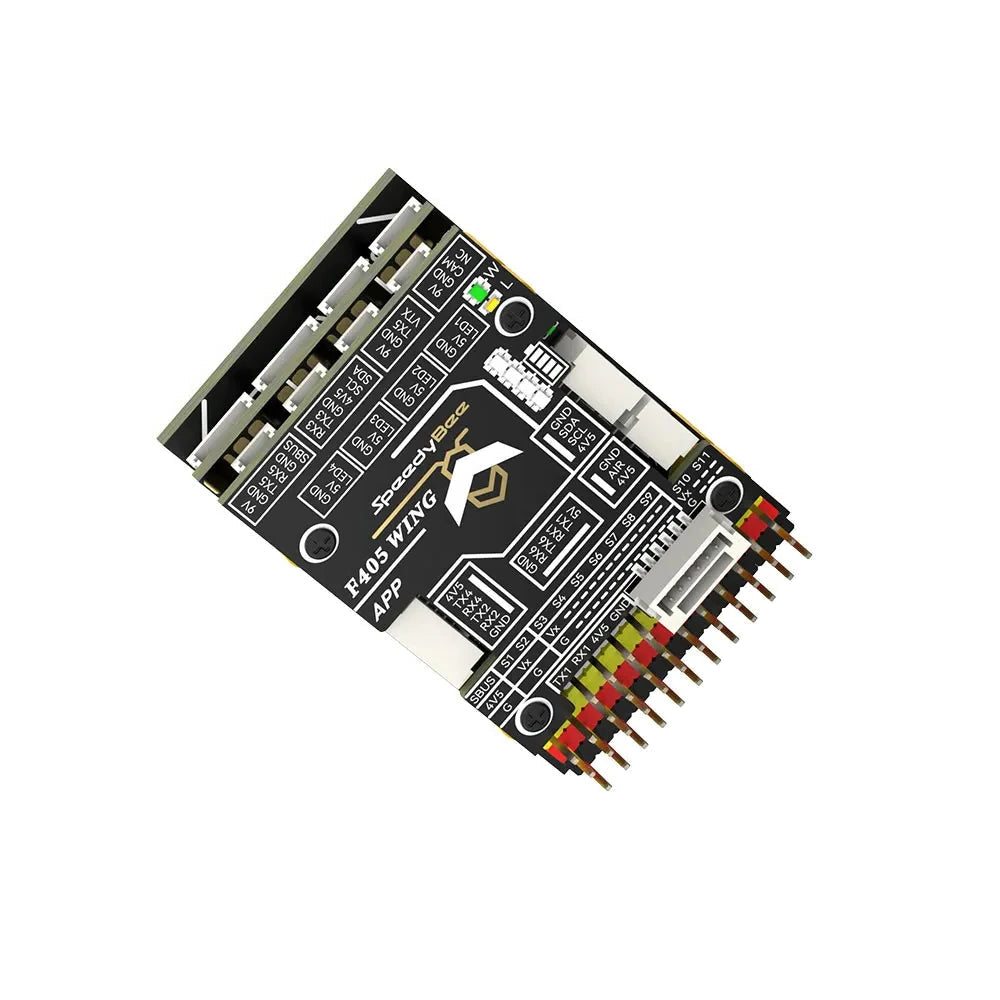

SpeedyBee F405 WING FC board |
|
MCU |
STM32F405,168MHz,1MB Flash |
|
IMU(Gyro&Accelerometer) |
ICM-42688-P |
|
Barometer |
SPL006-001 |
|
OSD Chip |
AT7456E |
|
Blackbox |
MicroSD Card Slot |
|

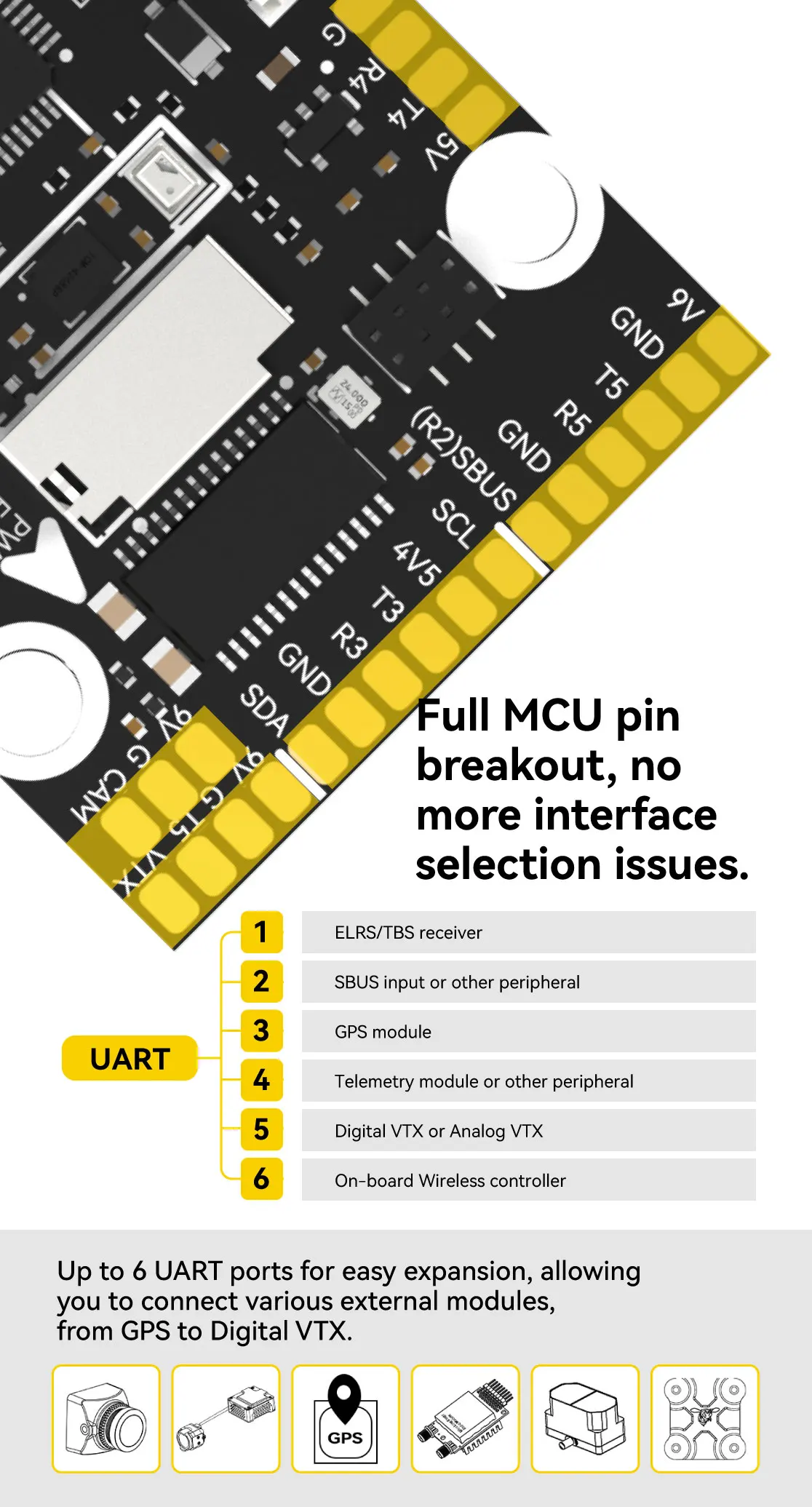

UART |
6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
|
I2C |
1x Used for magnetometer, digital airspeed sensor |
|
ADC |
4x (VBAT, Current, RSSI, Analog AirSpeed) |
|

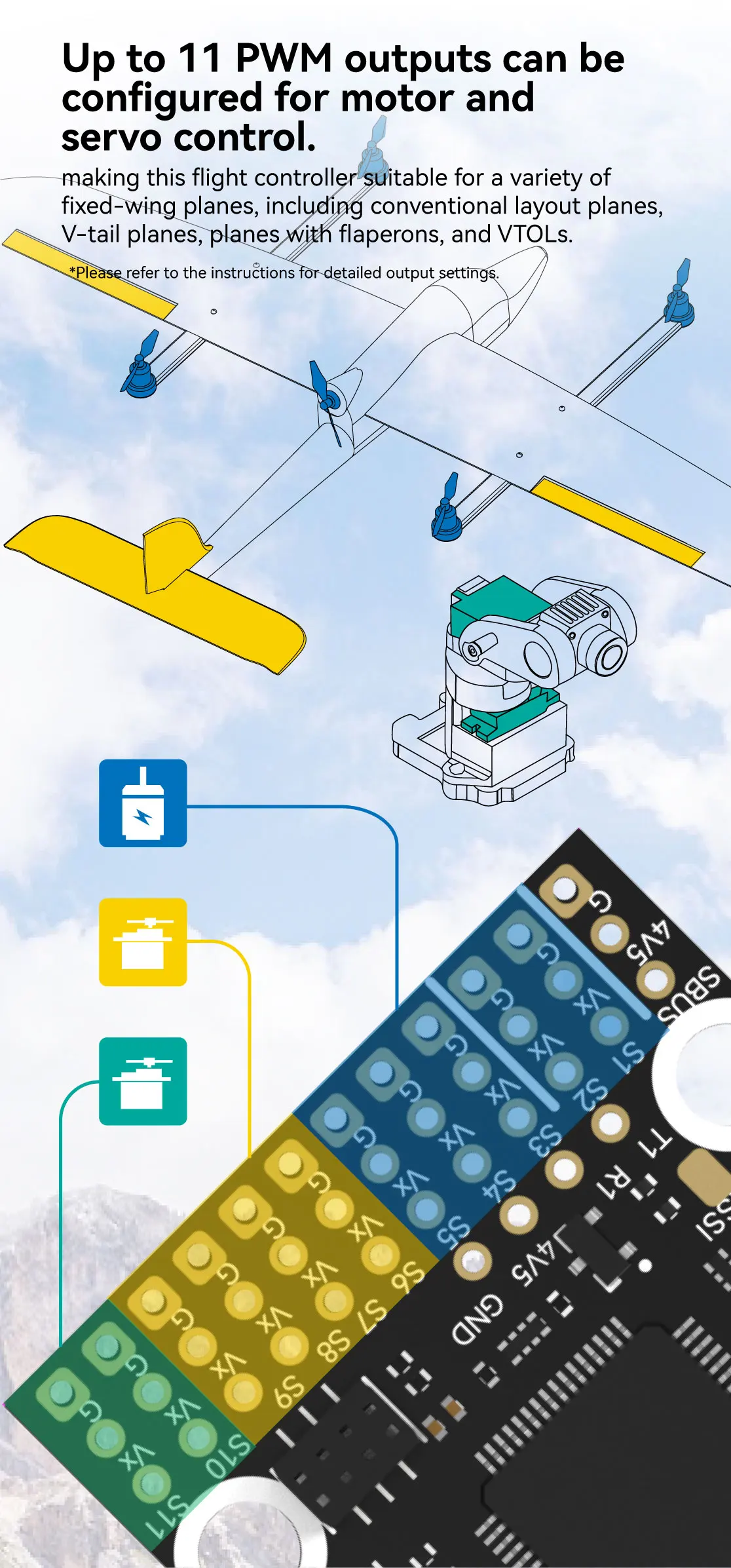

PWM |
12x (11+1“LED”pad) |
|

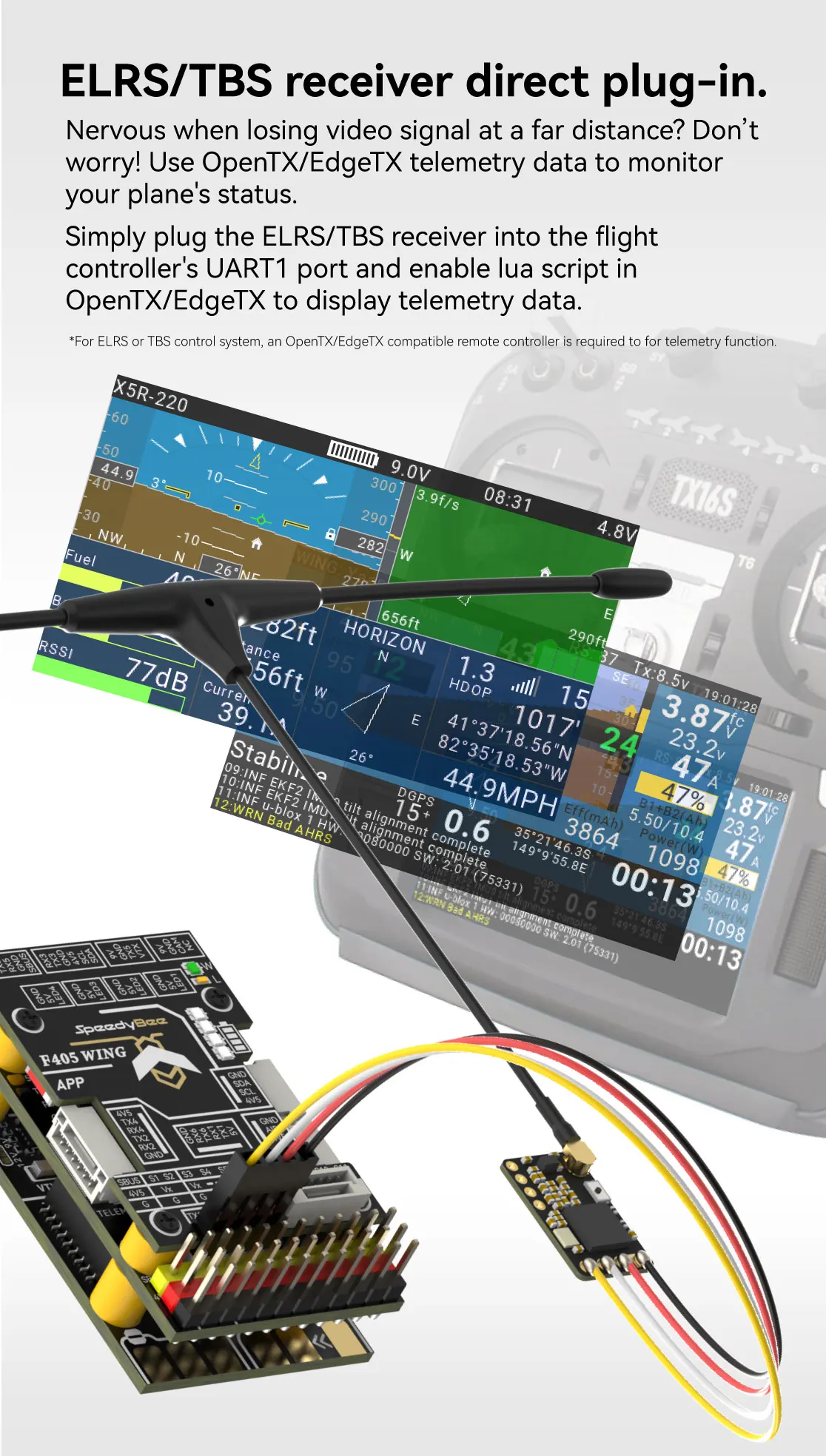

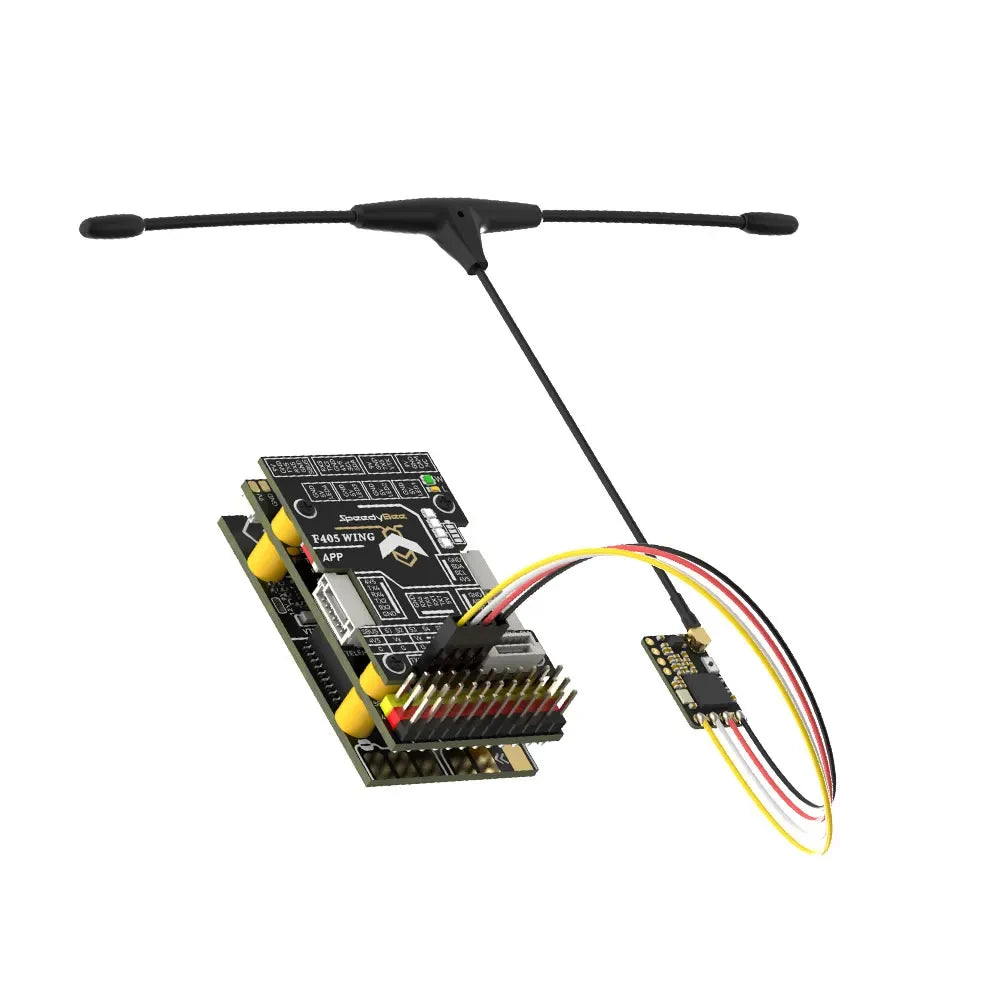

ELRS/CRSF receiver |
Supported,connected to UART1 |
|
SBUS |
Built in inverter for SBUS input (UART2-RX) |
|
LED |
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
|
RSSI |
Supported,Named as RS . |
|
Supported FC Firmware |
INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING |
|
Product Name |

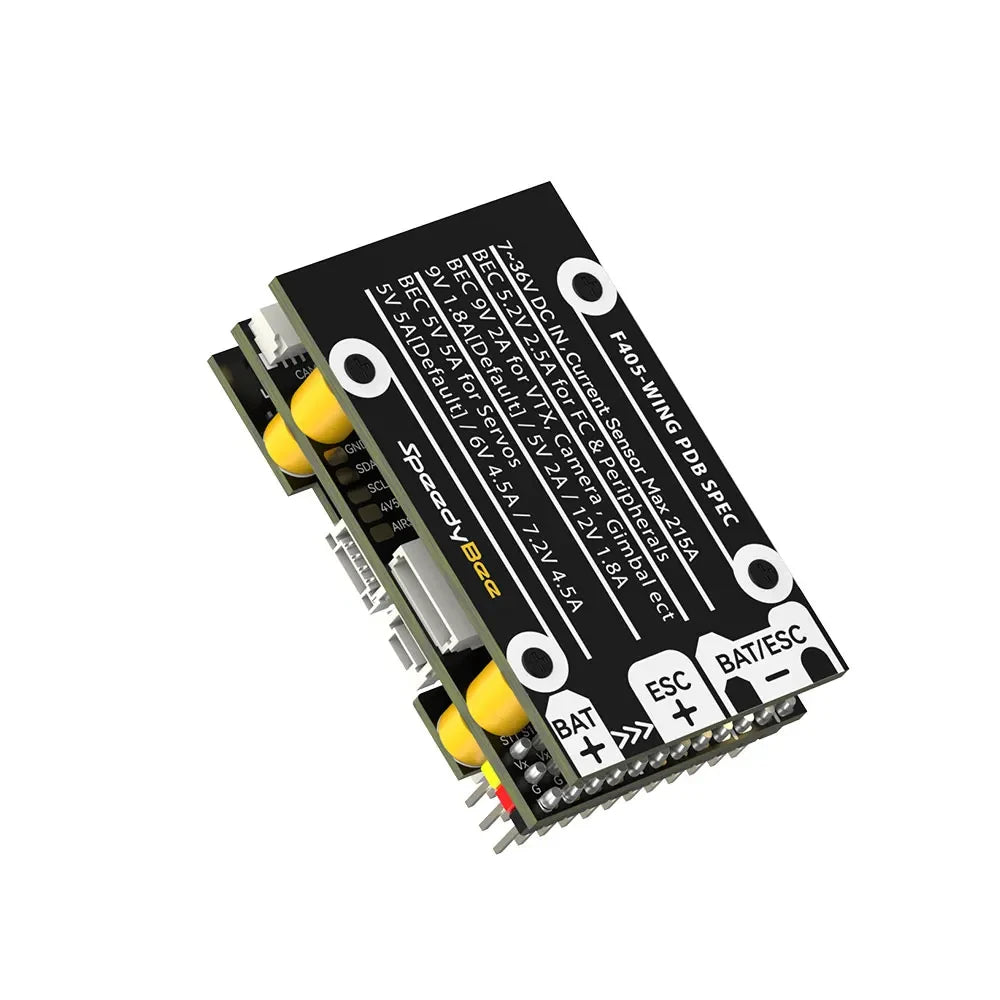

SpeedyBee F405 WING PDB board |
|
Input voltage range |
7~36V (2~6S LiPo) |
|
Battery Voltage Sensor |
Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) |
|
Battery Current Sensor |
90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) |
|
TVS Protective diode |
Yes |
|
FC BEC output |
Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip |
|
VTX BEC output |
Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. |
|
Servo BEC output |
Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. |
|
Product Name |
SpeedyBee F405 WING Wireless board |
|

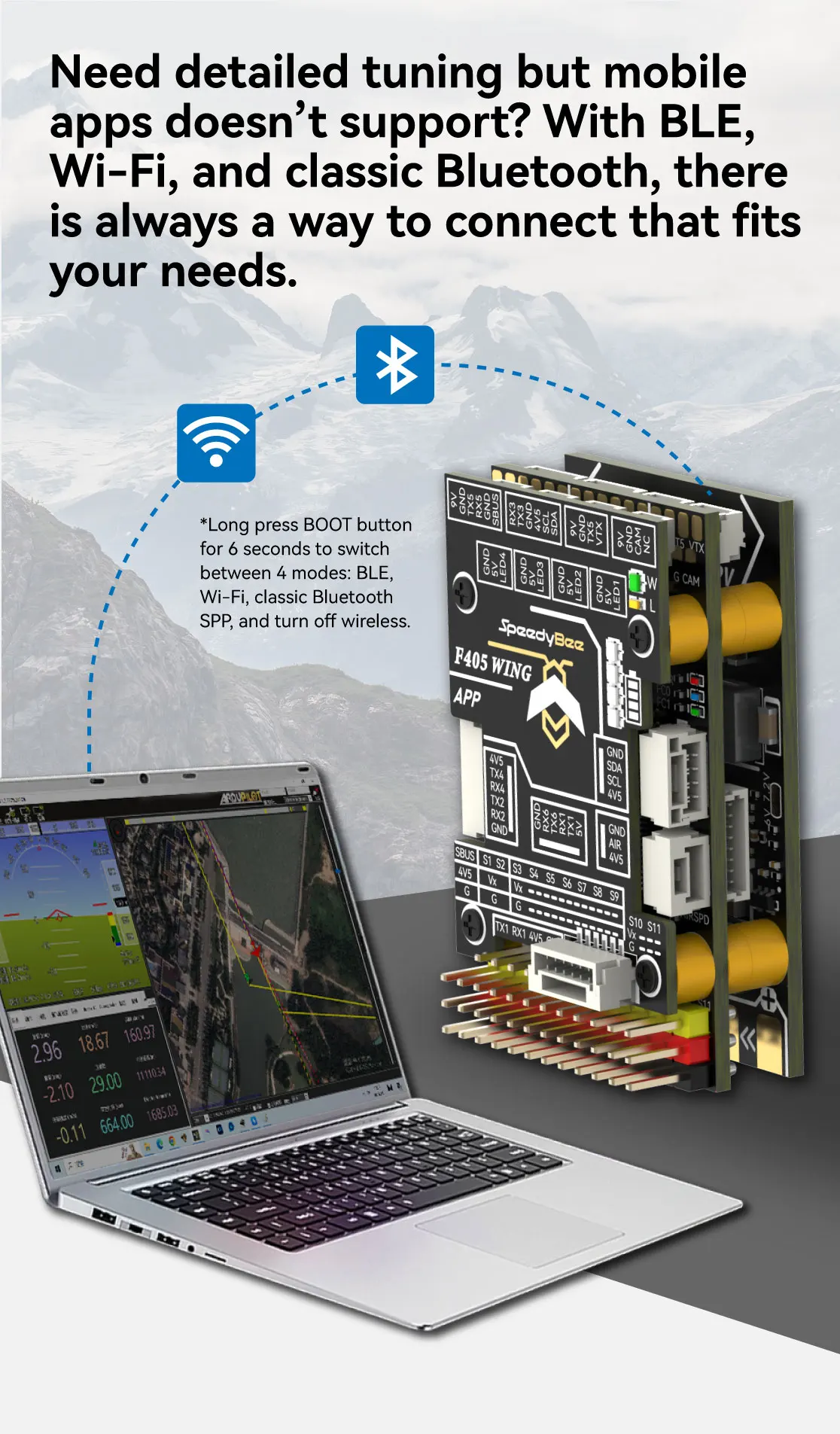

Wireless Configuration (long press BOOT button for 6 seconds to switch modes) |
BLE mode, connect to Speedybee APP |
|

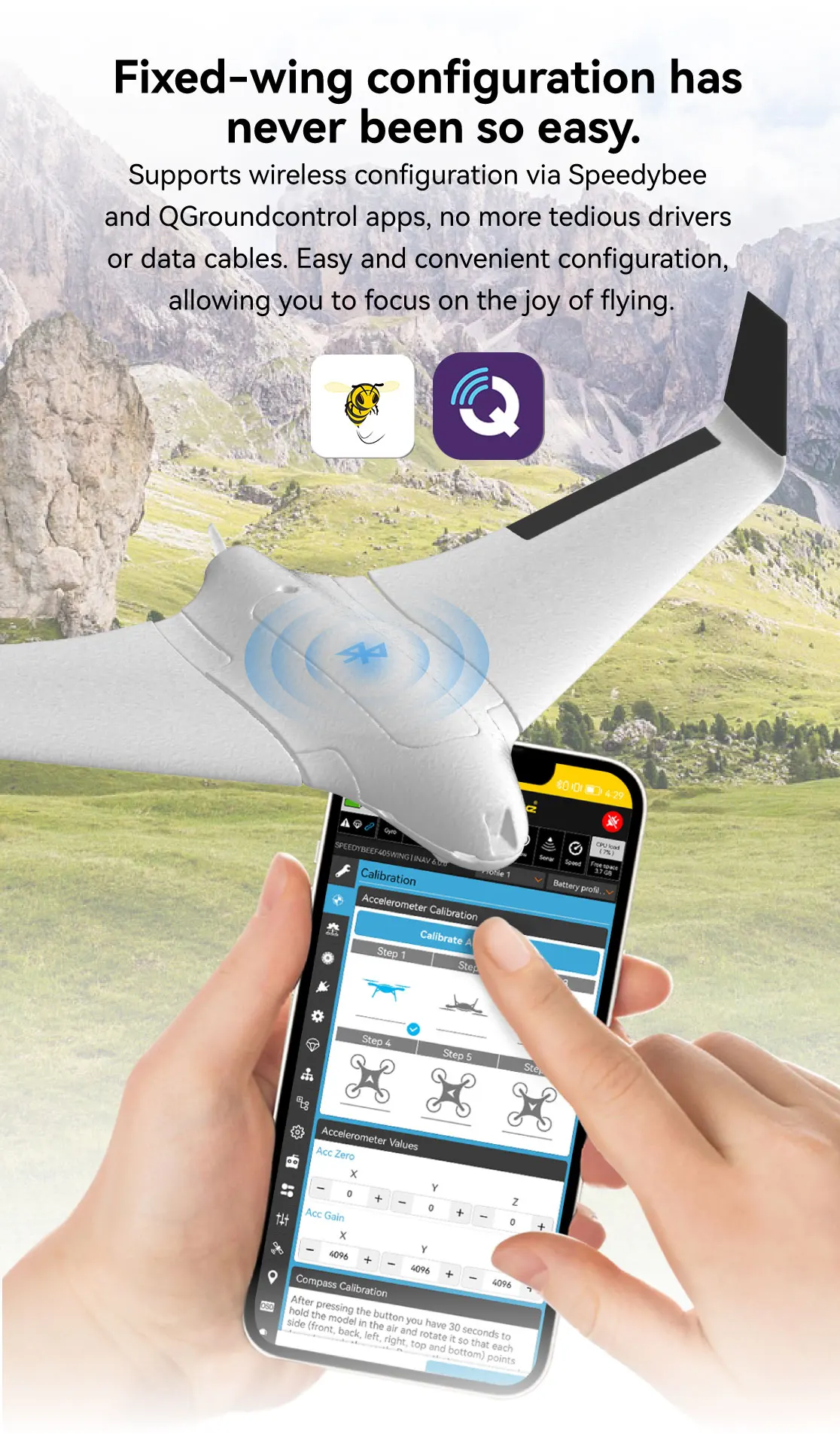

Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. |
|
|
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner |
|
|
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) |
4x WS2812 LED strip connectors, adjustable colors and flashing modes |
|
4x WS2812 LED strip connectors, adjustable colors and flashing modes |
|
|

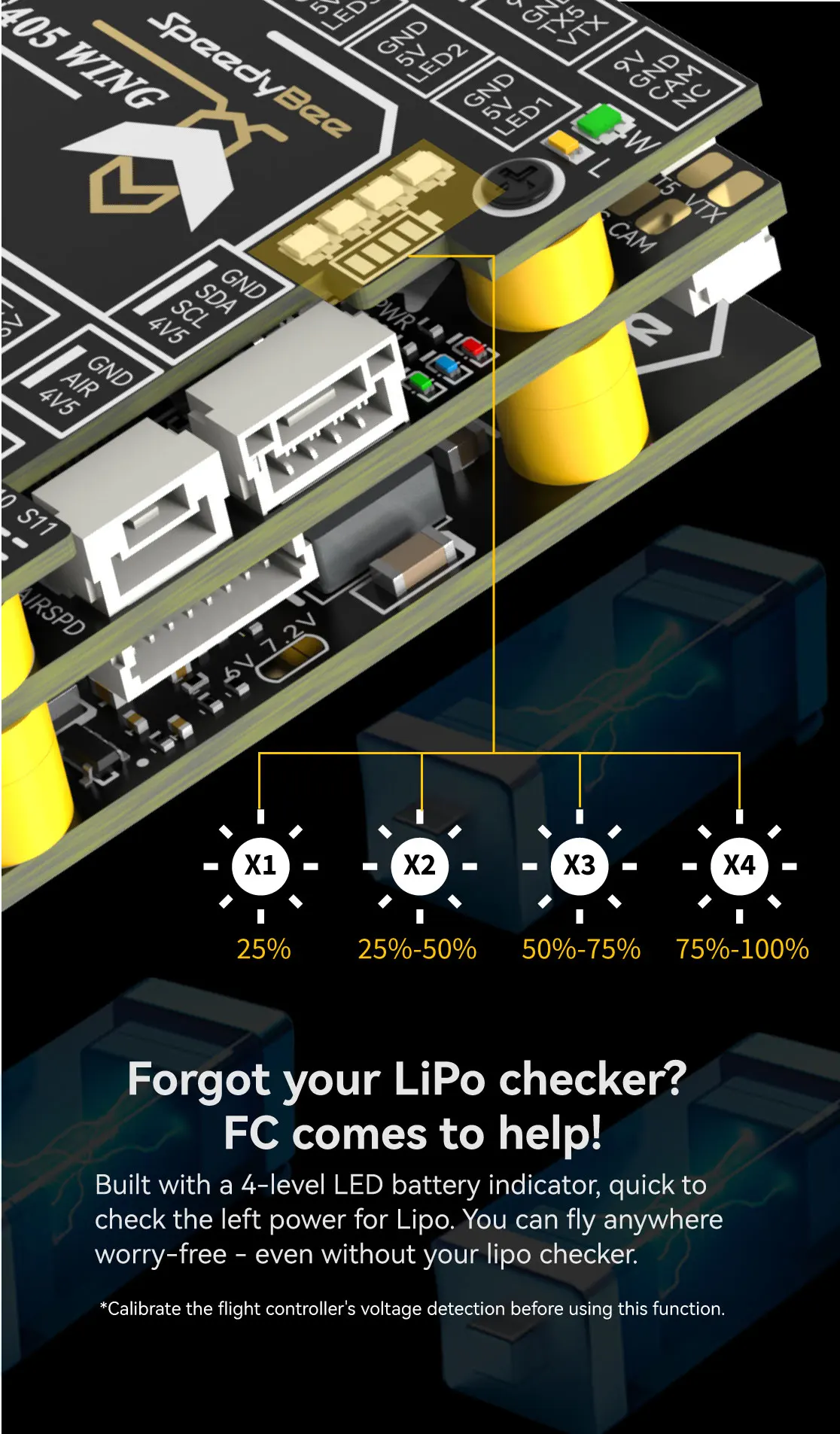

On-board battery level indicator |
4x RGB indicator LED for battery level display by number of lights |
