Skystars Talon32 Slim40A 40A Brushless ESC 3-6S LiPo BLHeli_32 128K with RGB LED Support Telemetry for 110-330 Multirotor Drones
Item Name:Skystars Talon32 Slim40A Brushless ESC Product Parameters: Brand Name: Skystars Item Name: Talon32 Slim40A ESC Firmware:...
- $69.00
$69.00- $69.00
- Unit price
- per

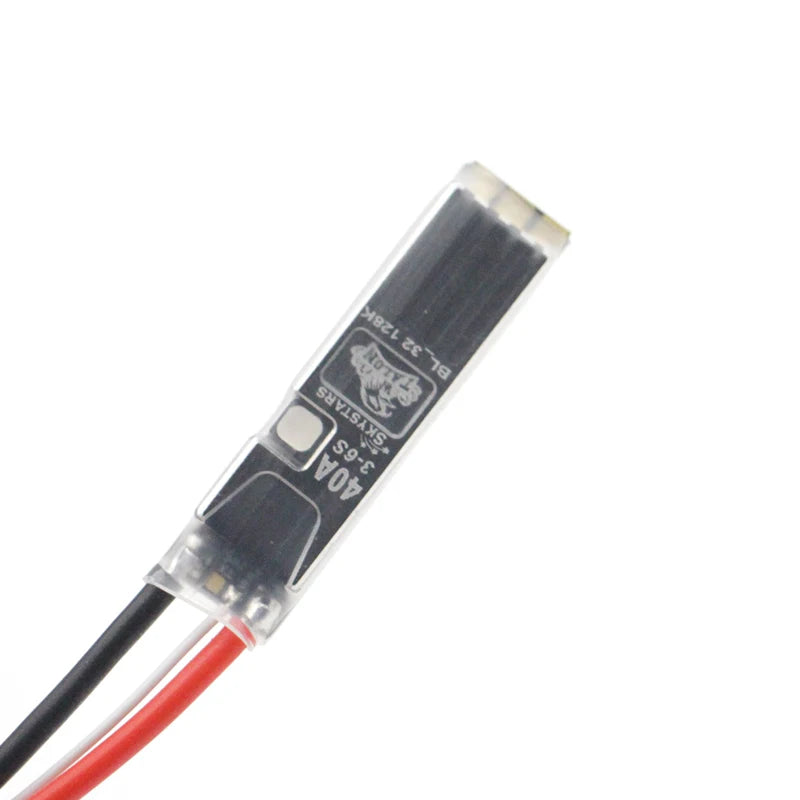

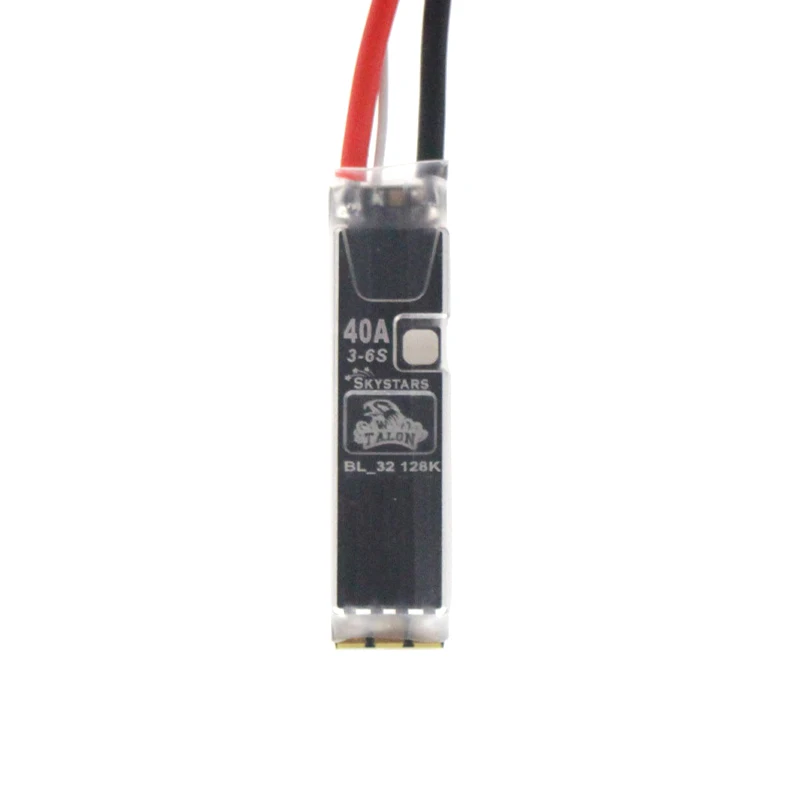

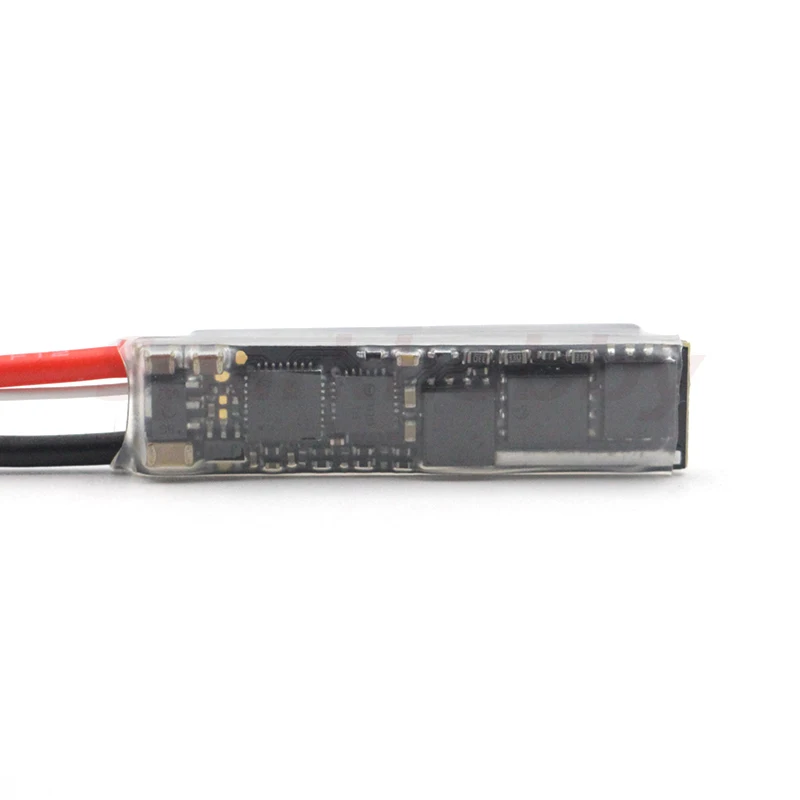

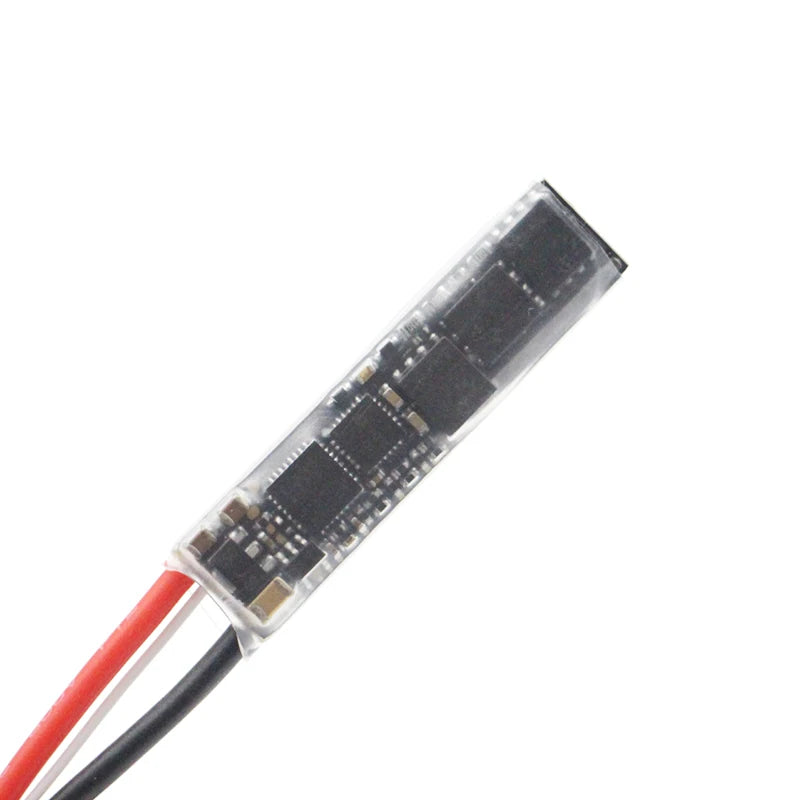

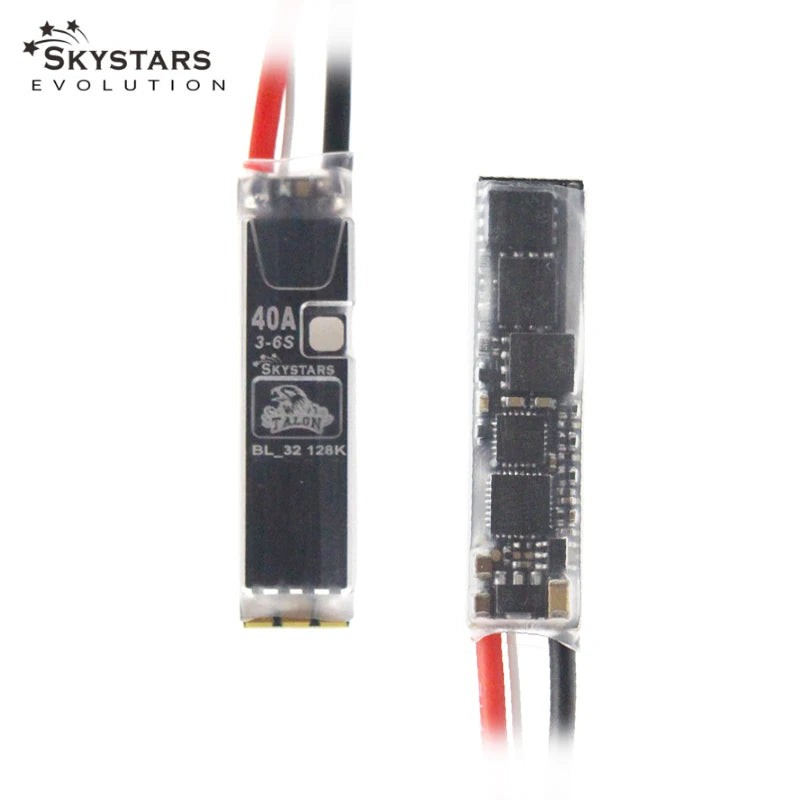

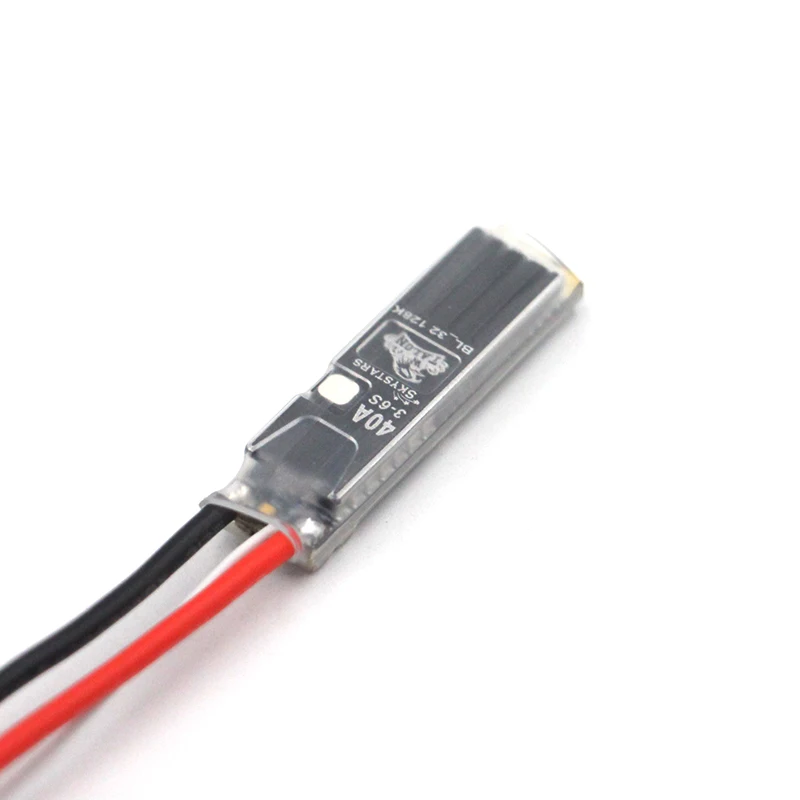

Item Name:Skystars Talon32 Slim40A Brushless ESC
Product Parameters:
Brand Name: Skystars
Item Name: Talon32 Slim40A ESC
Firmware: BLHeli_32 128K
Input: 3-6S LiPo
Continuous current: 40A
ESC Telemetry: Yes
BEC: No
Current detection of:NO
Size: 9 x 37.5 x 5.8mm

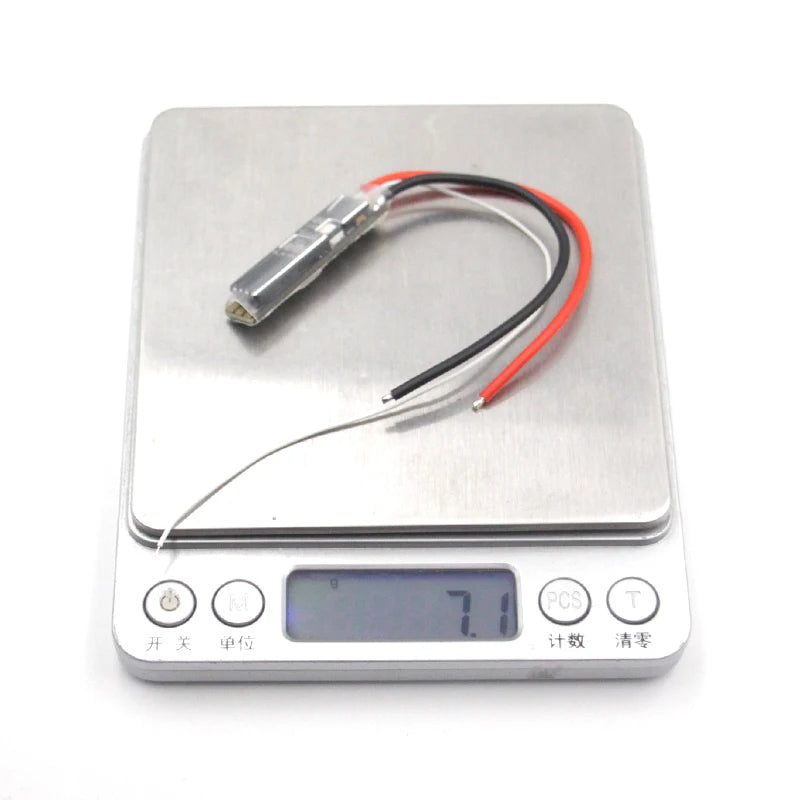

Weight: 6.8g
Feture:
- Slim wide and light, application for racing frame with slim arm width.
- Telemetry support
-With 128k MCU main chip, 50% faster than normal 32bit ESC.
-BLheli_32 firmware, support one shot, multishot, Dshot
-Onboard RGB LED (WS2812 LED)

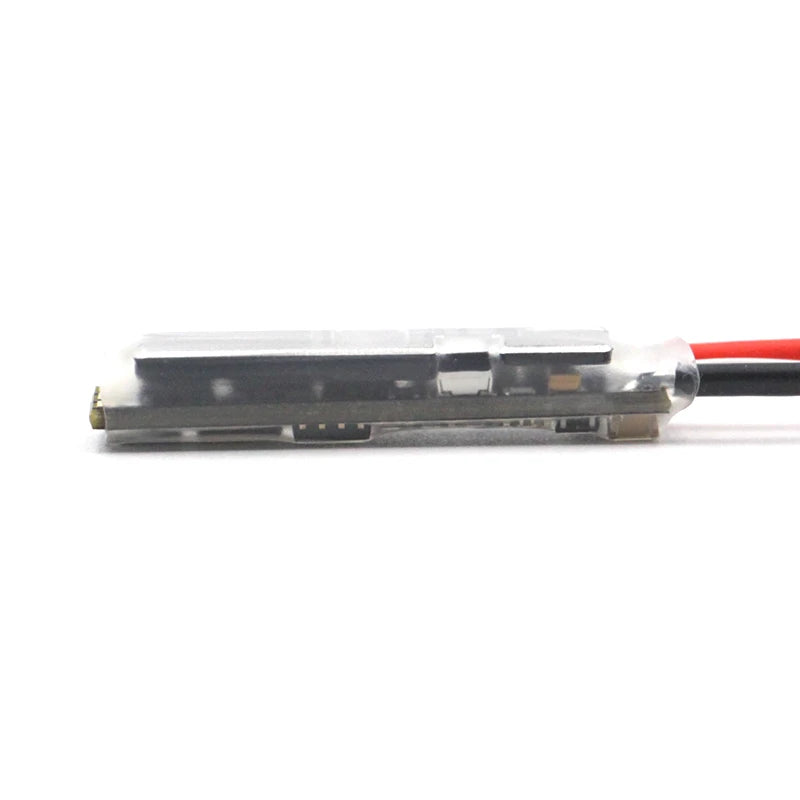

- CNC protective case, enhanced heat dissipation effect and protect esc well.

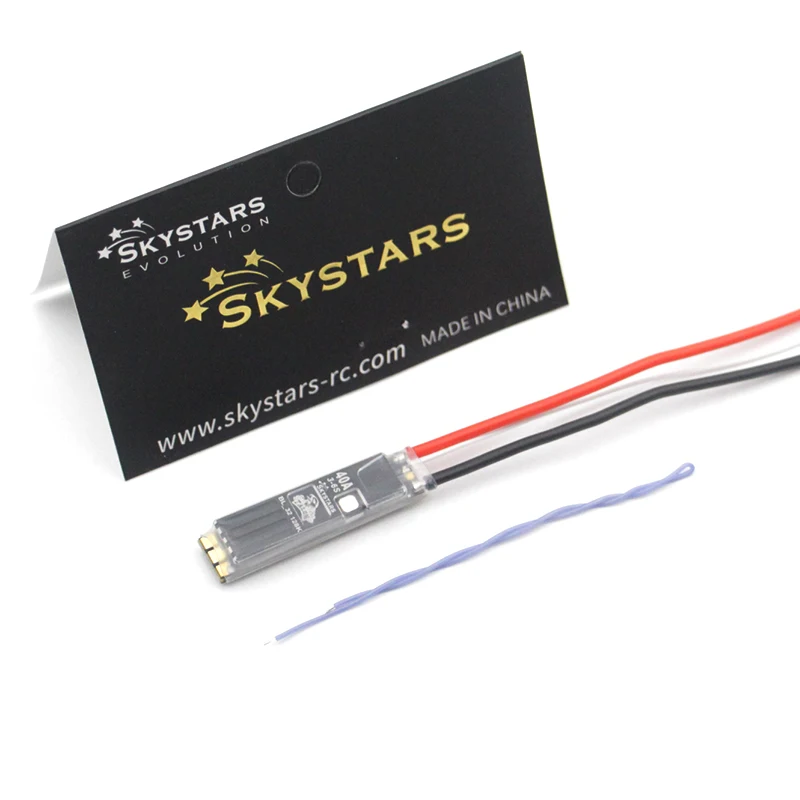

- Package Included:
- Skystars Talon32 Slim40A Brushless ESC x 1
or

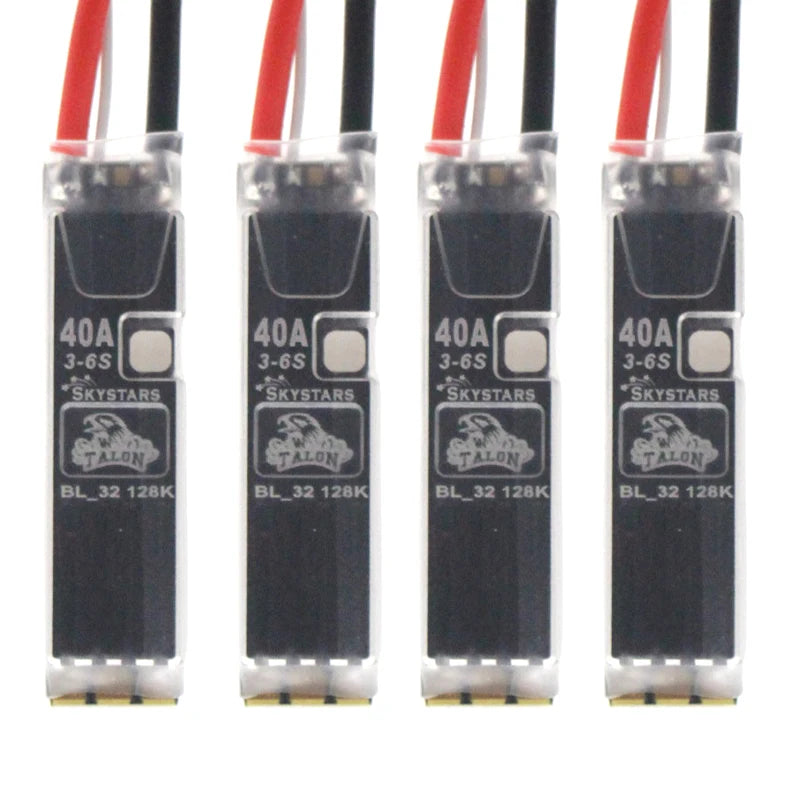

Skystars Talon32 Slim40A Brushless ESC x 4
----------------------------------------------------------------------------------------------
1. 3oz copper foil, 4-layer board PCB, to ensure high current .
2. Suitable for X shape or H shape frame.
3. the ESC PDB can withstand current 60A cont, 120A burst (10S) .
4. Specially made for a single ESC with two groups of external BEC solder pads, you'll need an independent power supply module for the BEC (BEC module not included).
5. 8P socket design, You don't have to solder anything to connect the flight control.

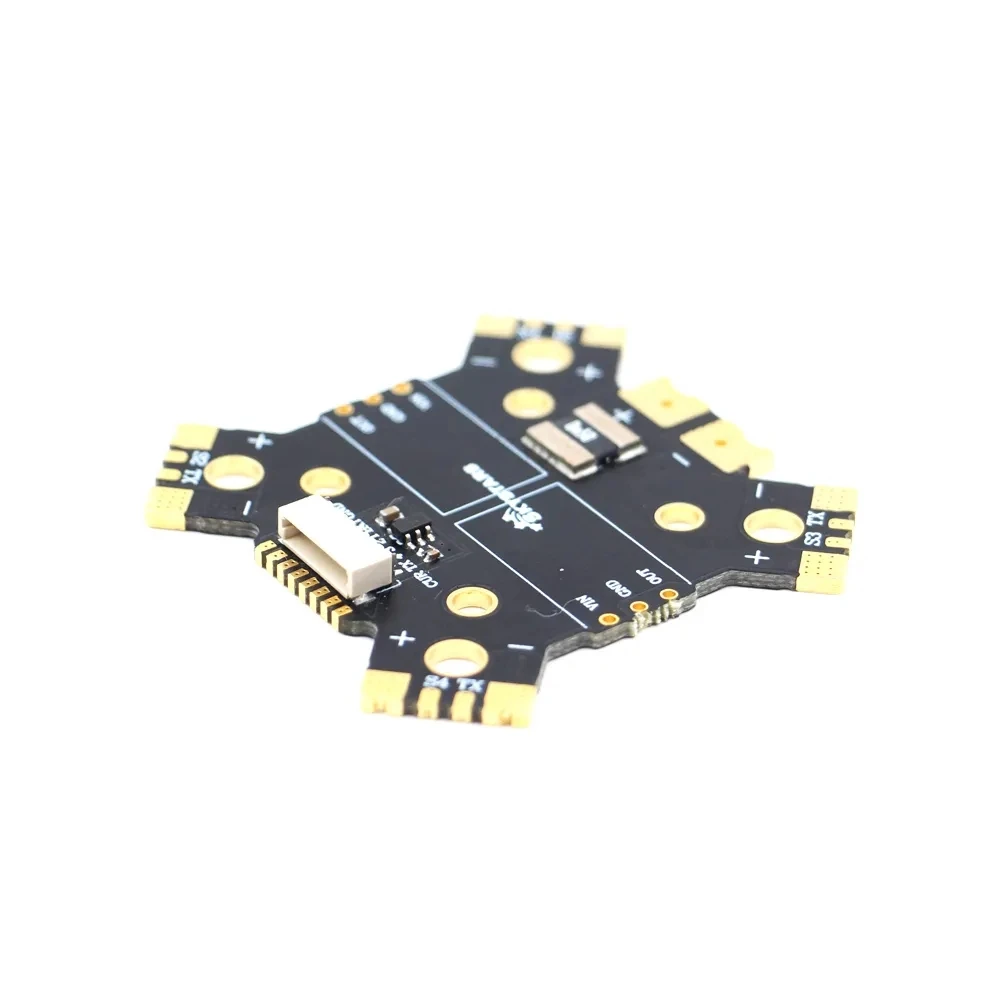

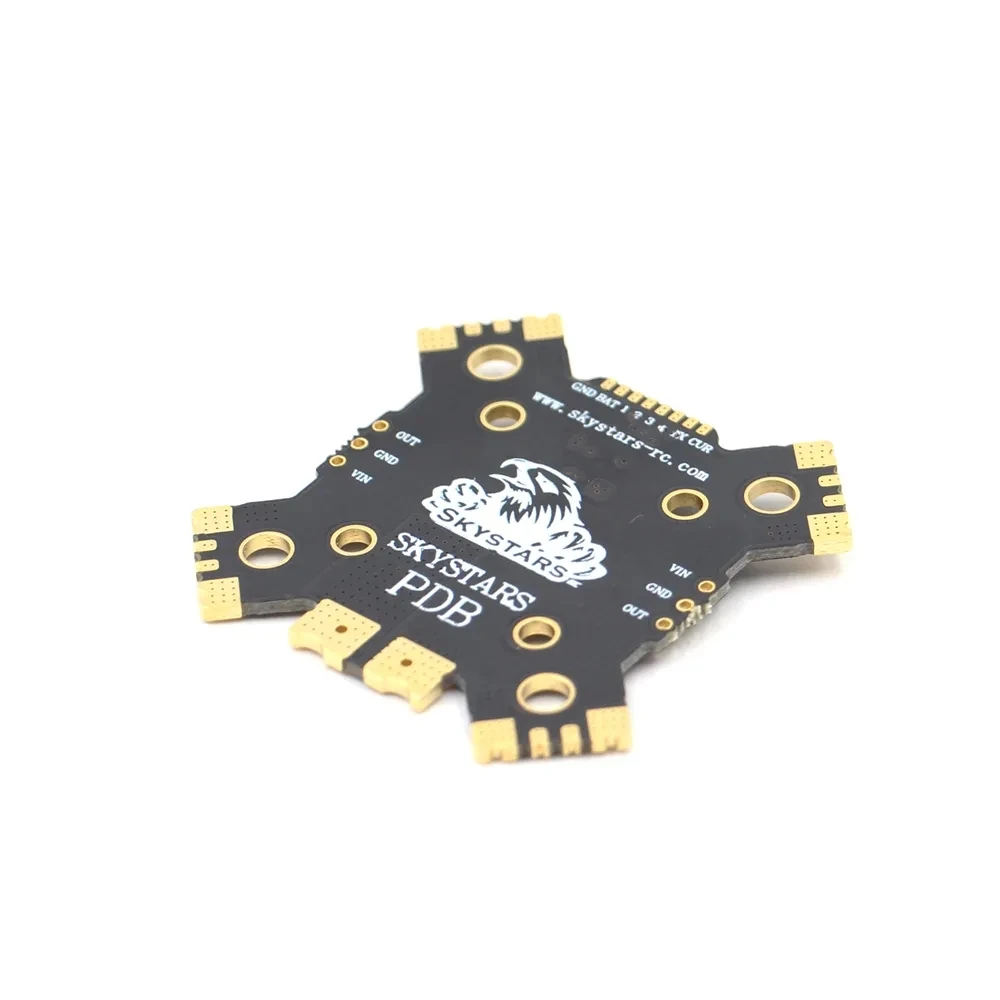

PDB
Input voltage range: 6~33.6V (2~8S LiPo)
ESC power pads: 4*25A cont. 120A burst
4XESC power pads
Current Scale 290(INAV/BF)
Mounting: 30.5 x 30.5mm,Φ4mm ; 20 x 20mm, Φ3mm
Size:48*48*mm,
Weight: 8.9g
JST-SH-8P Connector and Pads
GND: ground
BAT: Battery voltage
S1/S2/S3/S4/S5/S6: ESC signal
TX: Duplicates Tlm pads for ESC telemetry
Cur: current signal
VIN: Regulator input(excluding BEC module)
OUT: Regulator output(excluding BEC module)

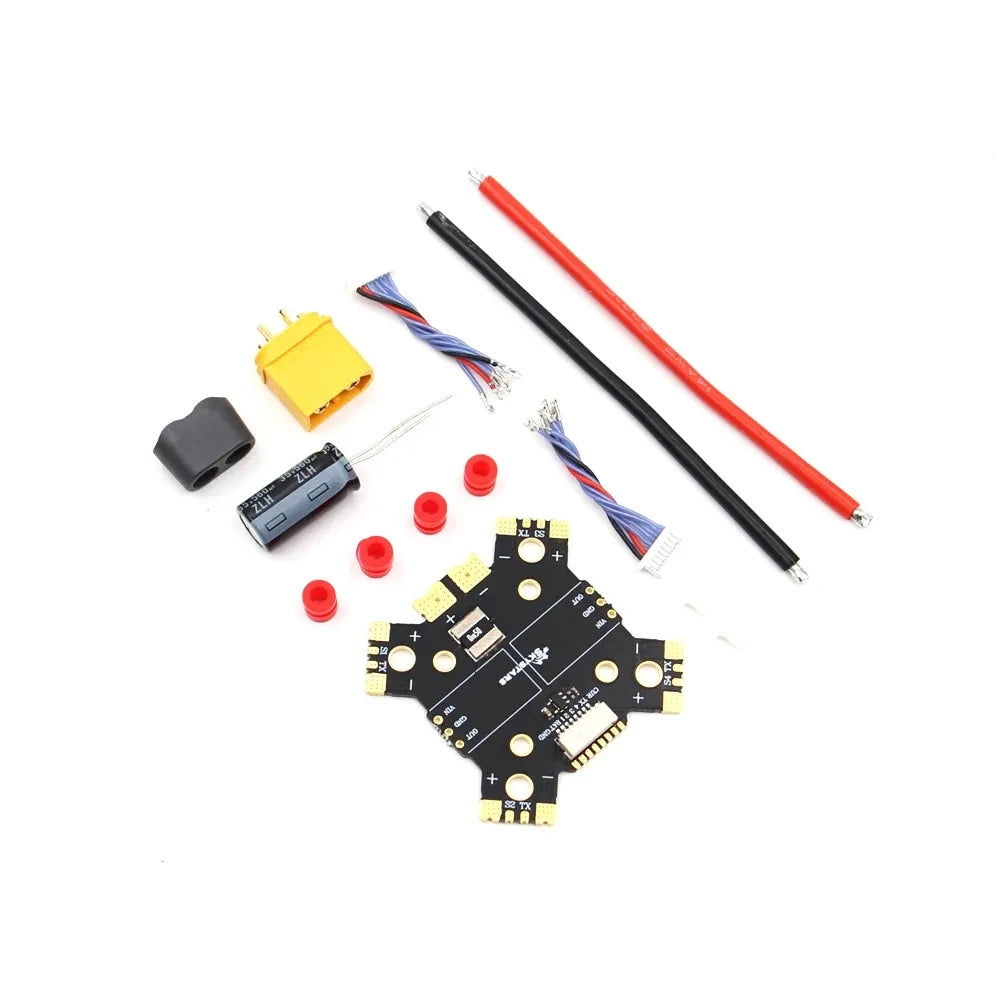

Including
1x PDB
1x Rubycon 35V 560uF
2x JST-SH1.0_8pin cable, 4cm
2x JST-SH1.0_8pin connectors
1x XT60 with cable
4x silicon grommets M4 to M3
