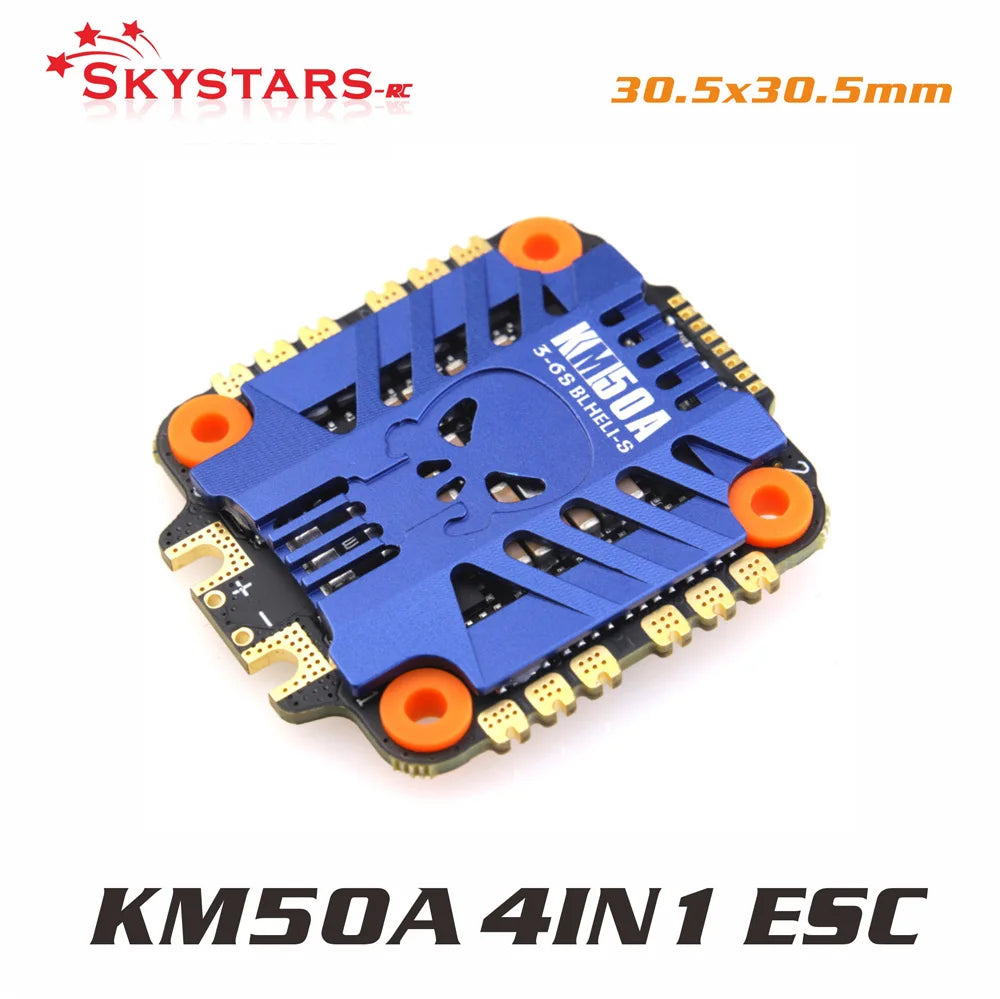

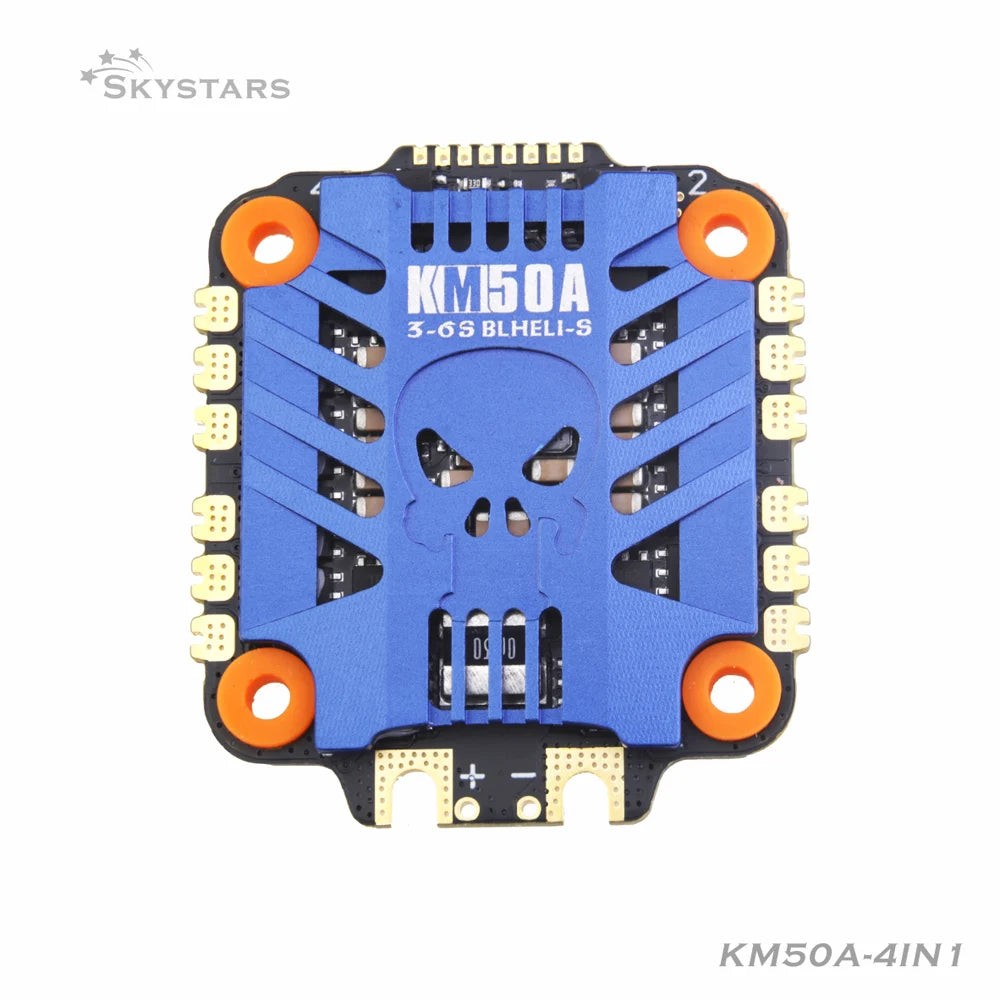

Skystars KM50 50A Blheli_s ESC sales points
1. Excellent over-current capability.

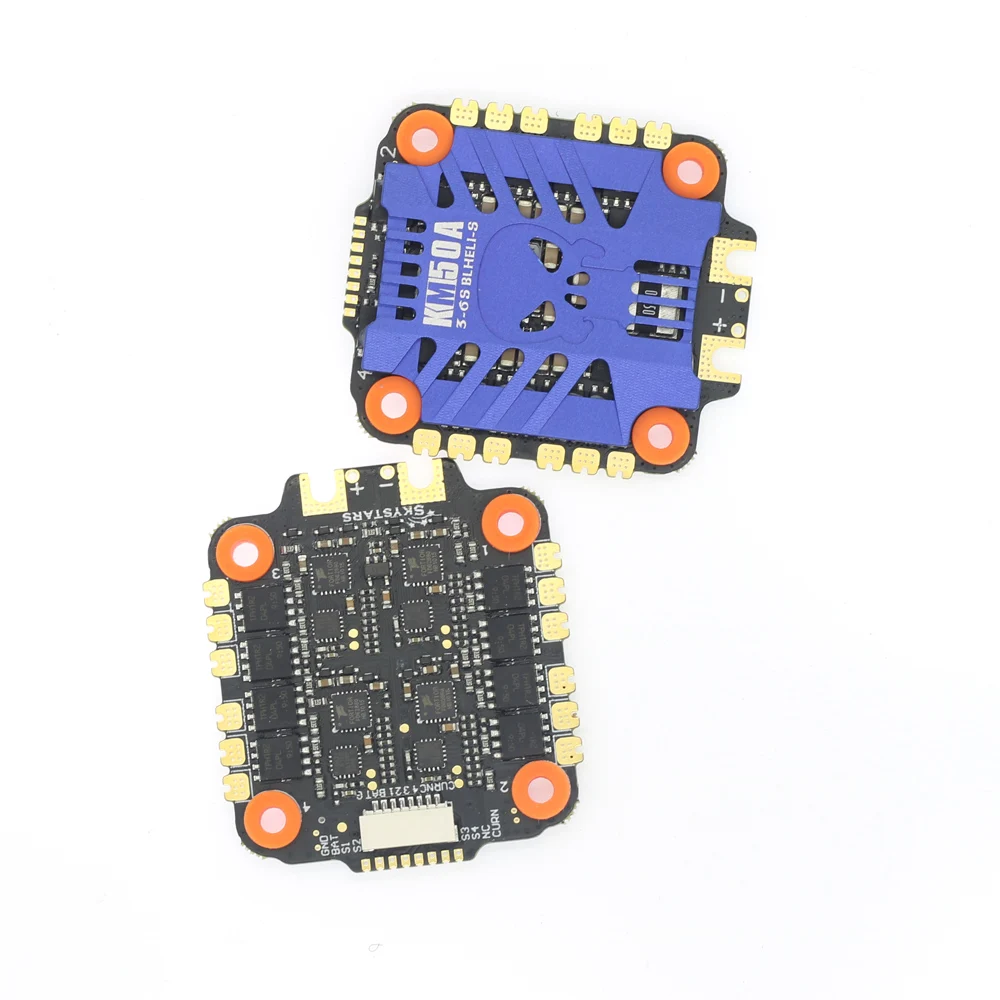

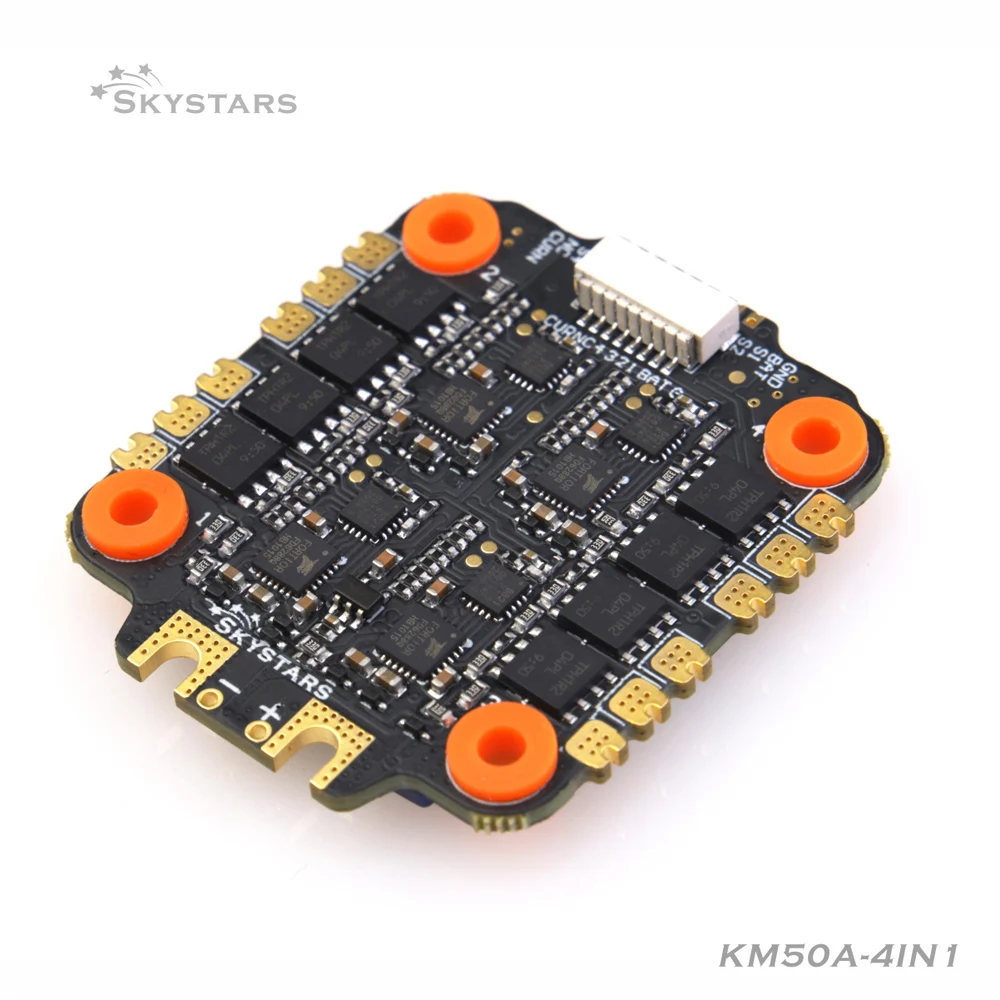

By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
2. Extreme stably support 6S LiPo battery

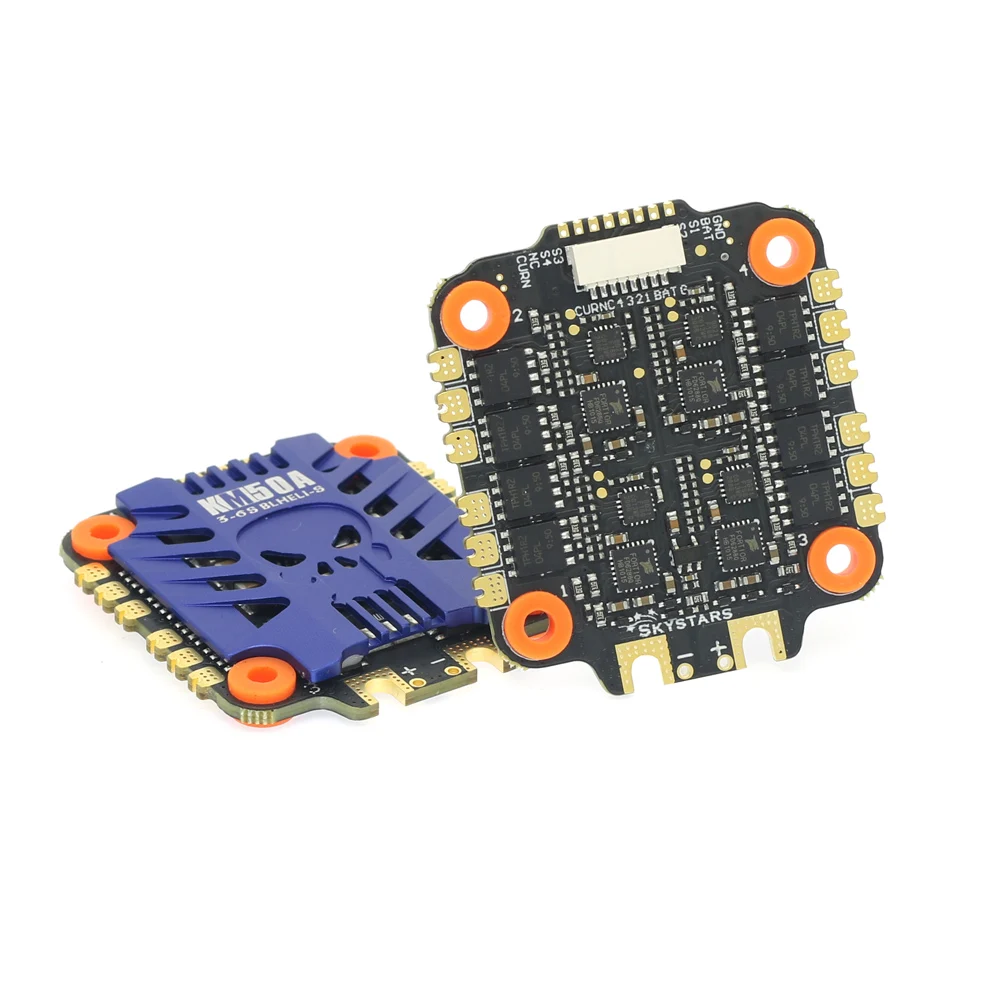

By use of 24 pcs of new standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.
3. Excellent heat dissipation performance

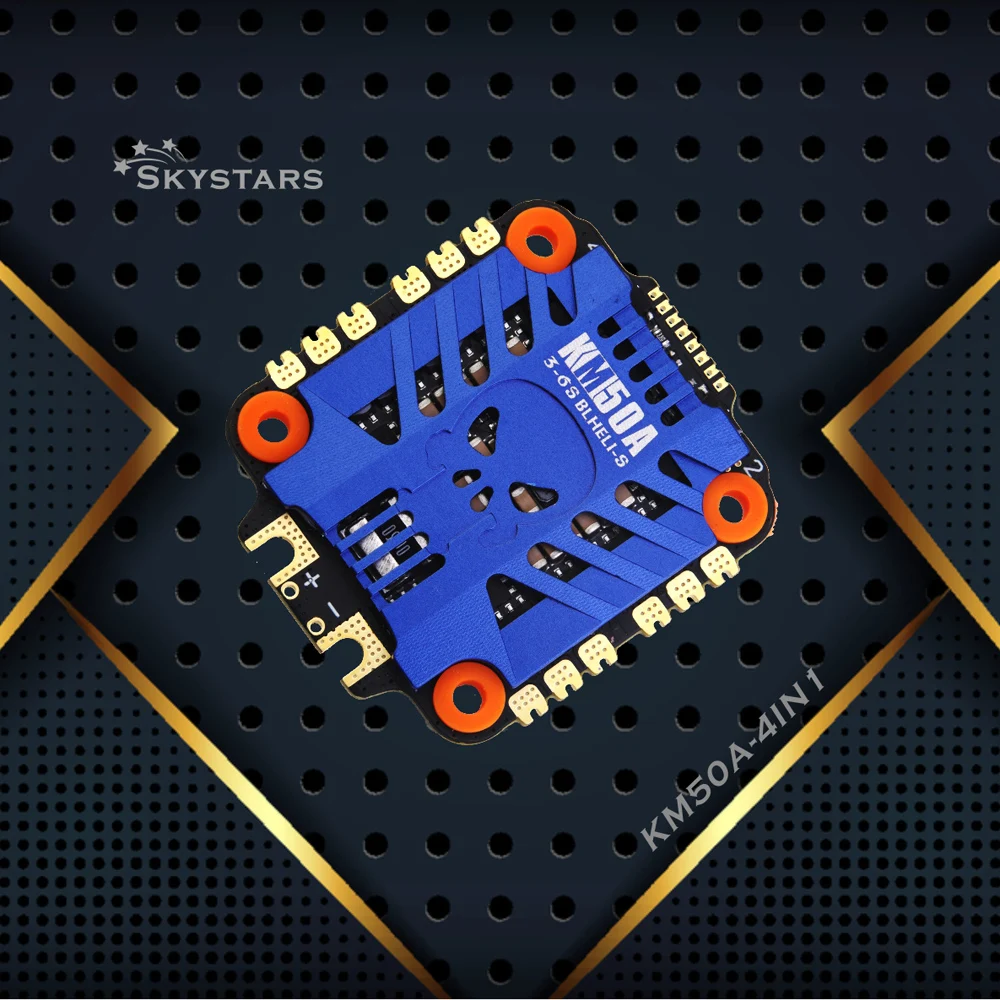

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.
4. Better control performance
Flashed with Blheli_S 16.72 firmware in factory, support reversed Dshot 300 /600, make ESC have smooth control feel.

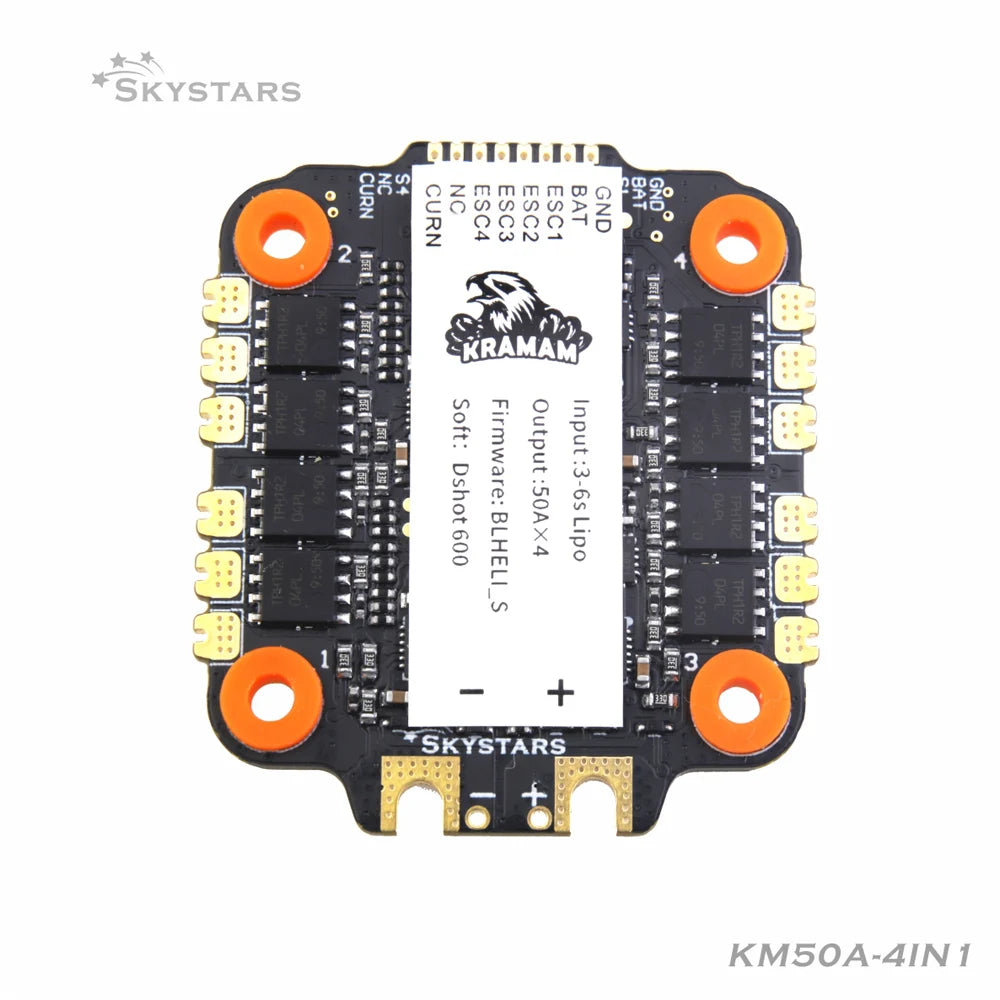

Specifications:
Input voltage: 3-6S LiPo
Con.Current: 50A
Peak Current: 60A≥ 10S
Firmware: BLHeli_S
Support : Reversed Dshot 300/600
Firmware version:16.72(Q_H_25)

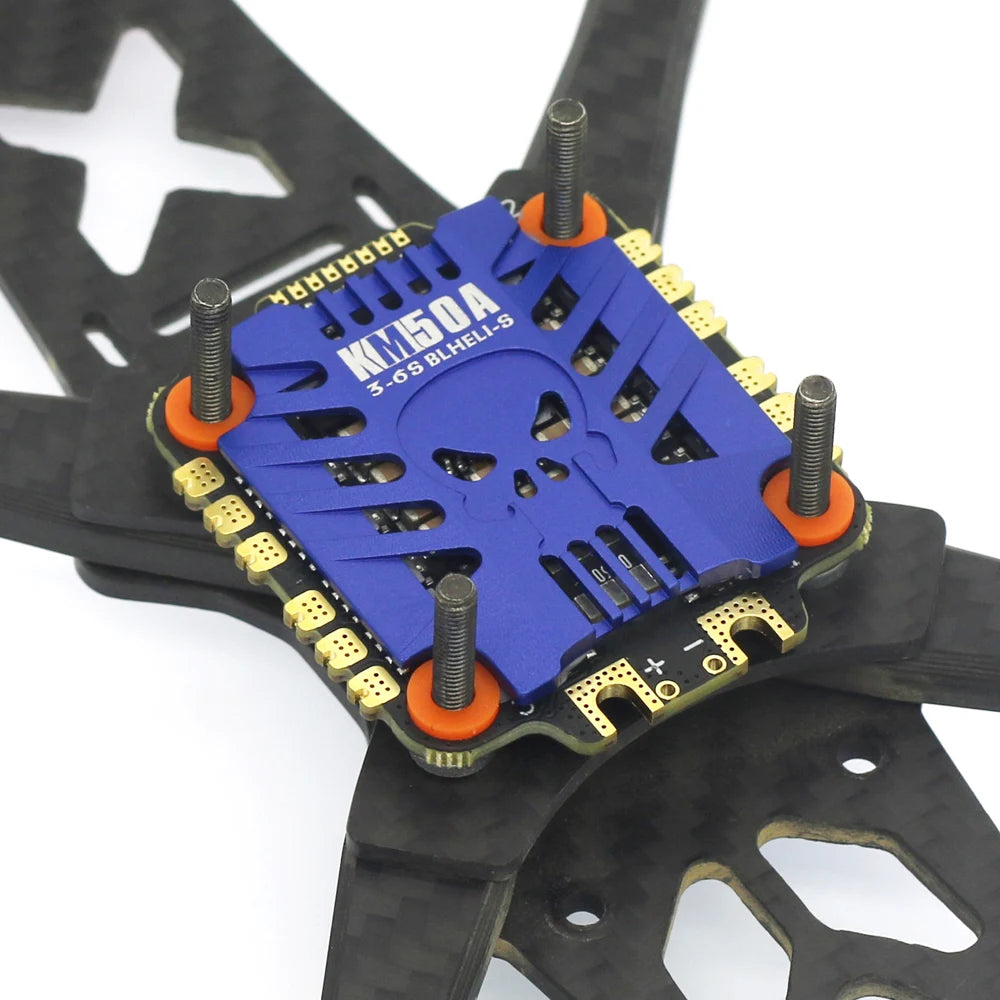

Mounting hole : 30.5mm/M3
BEC: No
Product size: 41*46*7.6mm

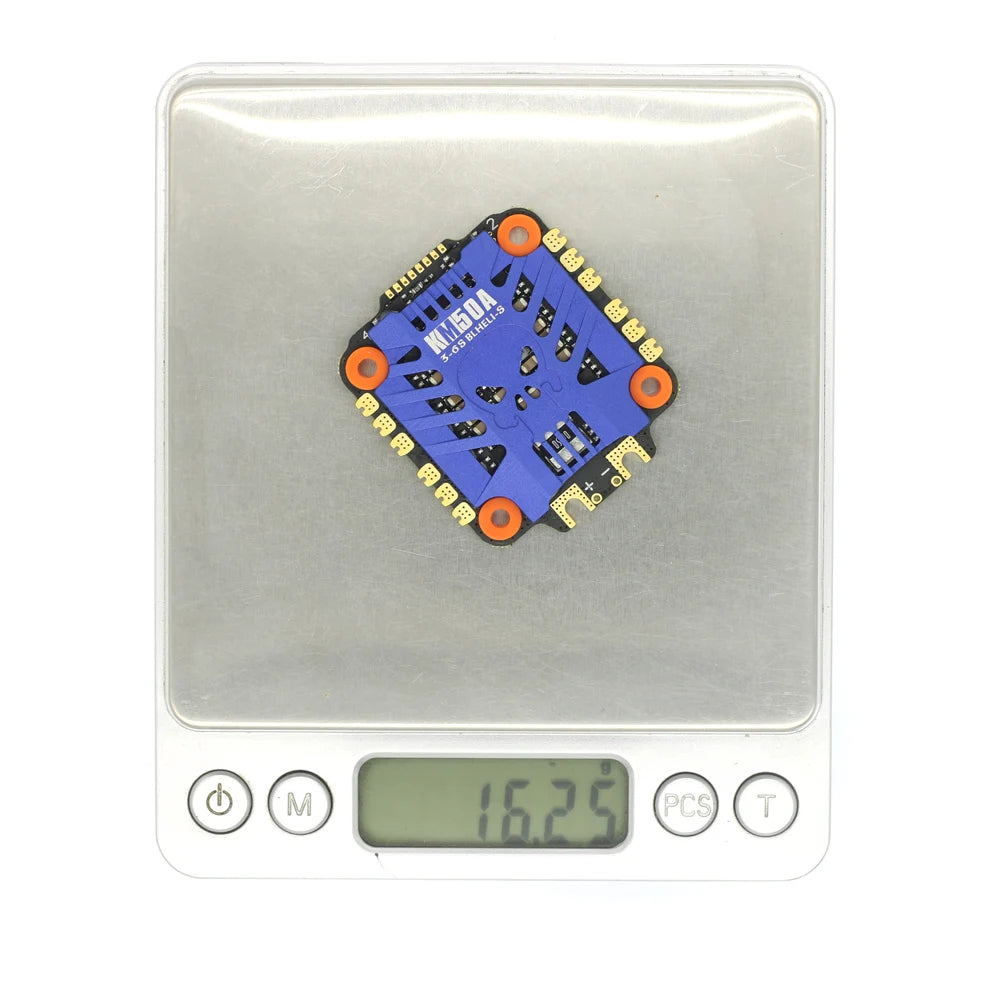

Weight: 17g

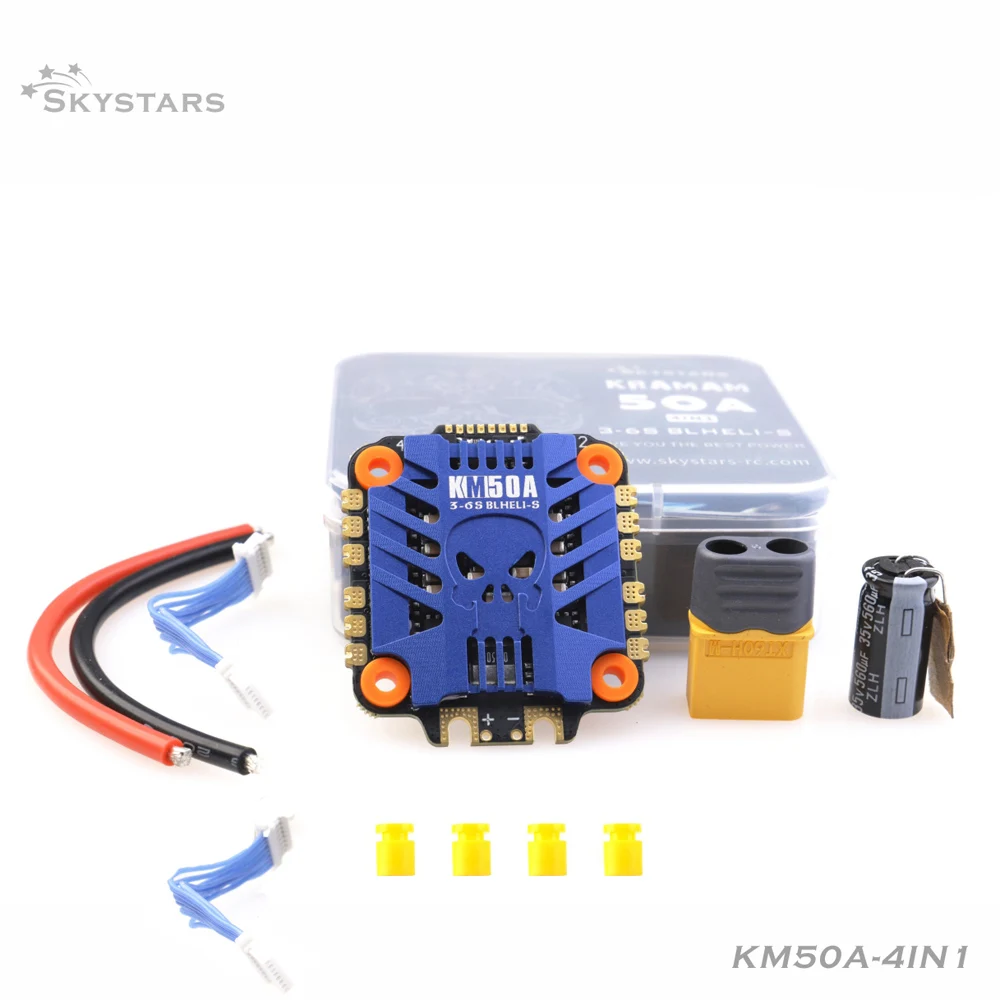

Included:
1 x Skystar Kramam 50A 3-6S 4 in 1 ESC
4 x Damping Rubbers (M3x8mm)
4 x Damping Rubbers (M3x3.5mm)
1 x XT60 lead
1 x 8pin wiring harness (1x 70mm,1x 50mm)
1 x 35v 560uf Capacitor
