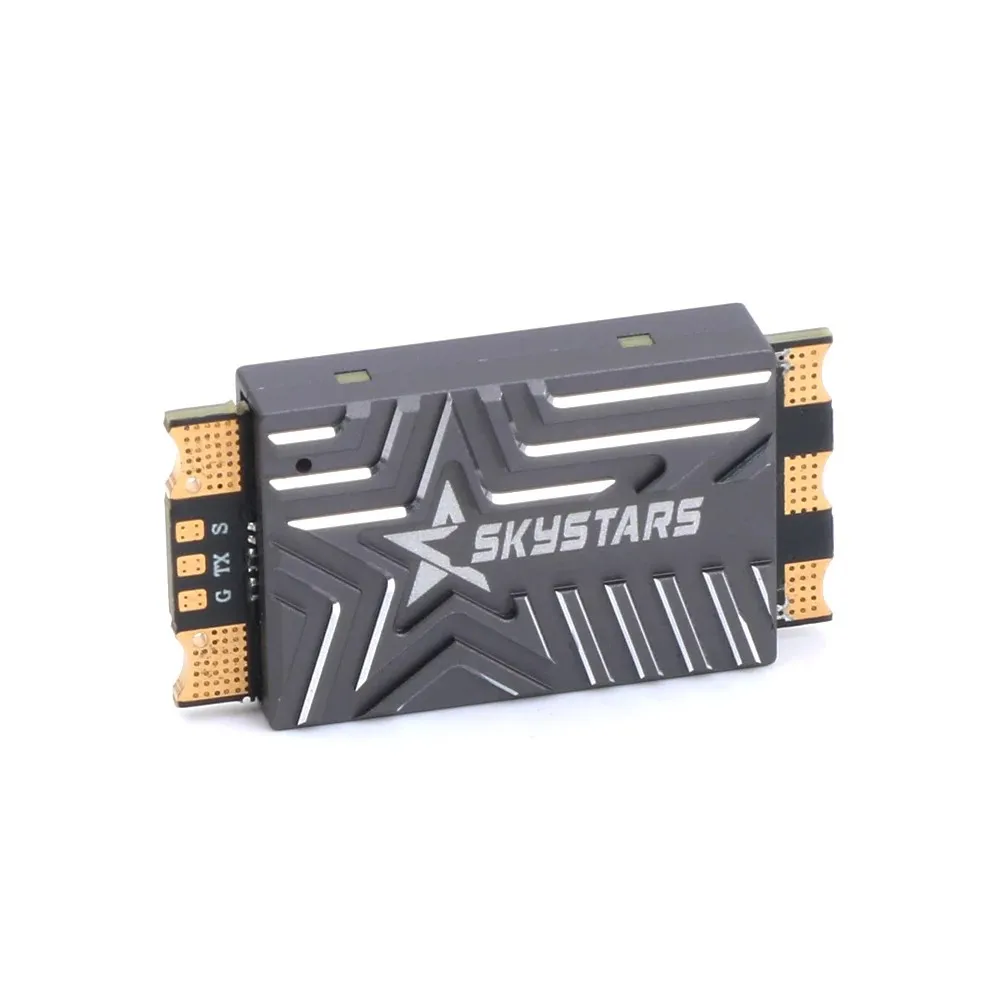

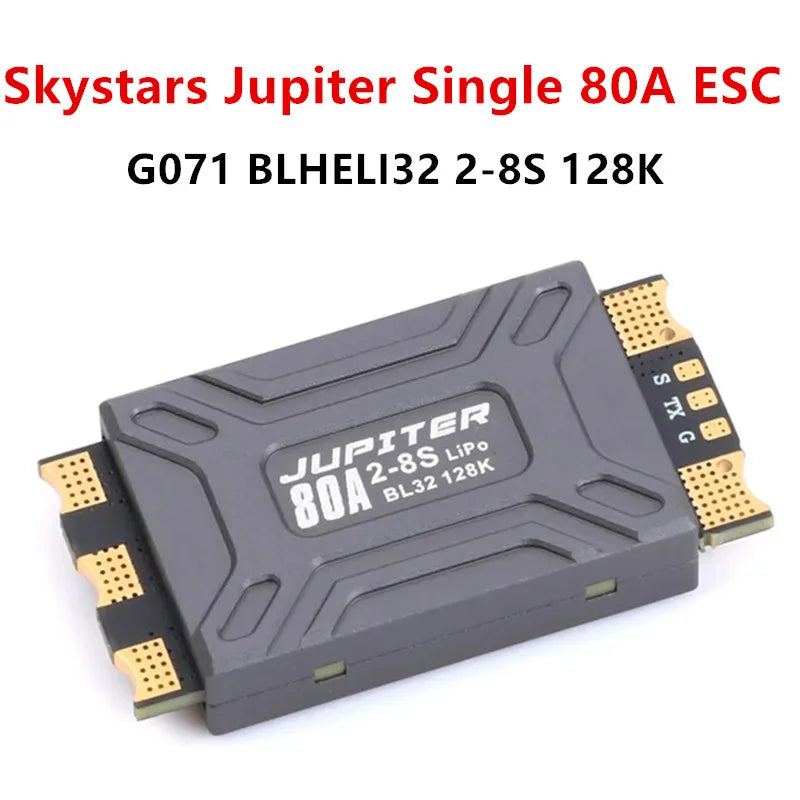

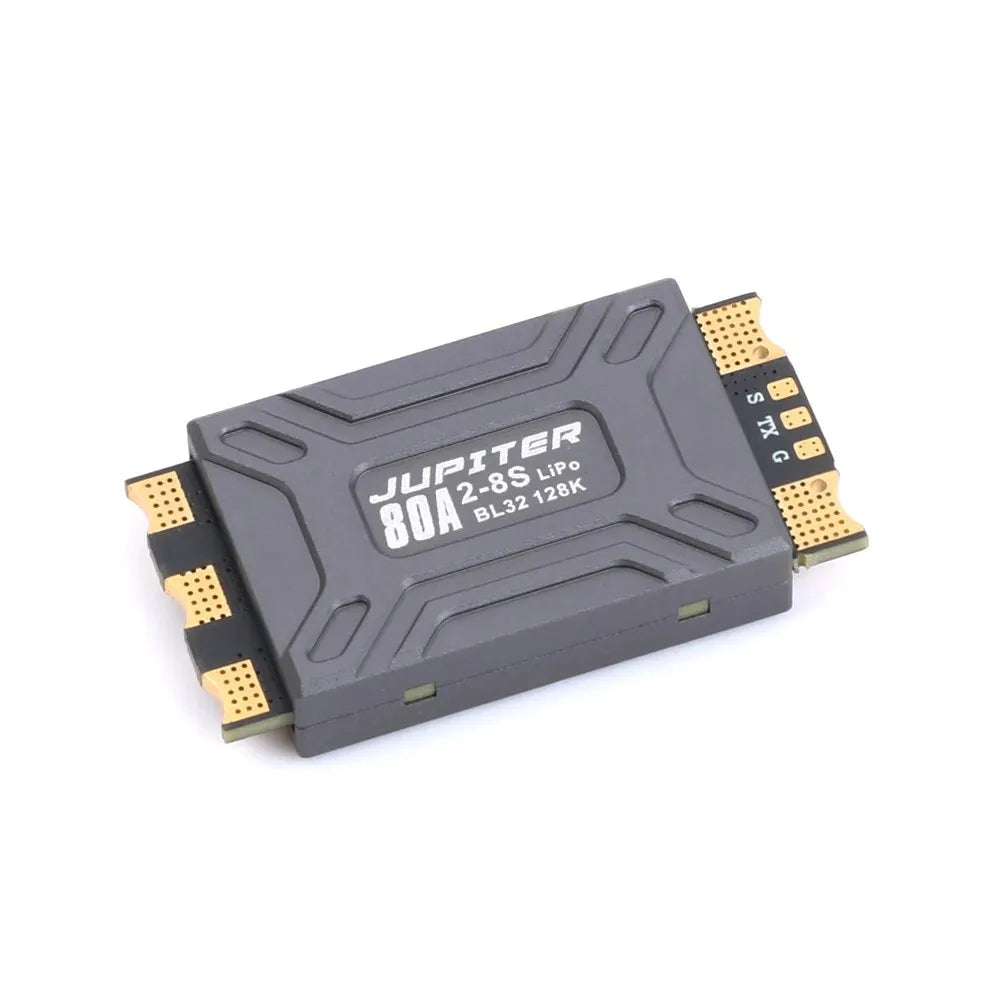

Skystars Jupiter SL80A Single 80A ESC G071 BLHELI32 2-8S LIPO NO BEC for FPV Freestyle X-Class Drones DIY Parts
JUPITER SL80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit G071 MCU and 12 PCS Low ESR MosFets bring faster-responding speed and smoother flying experience.
Features:
2-8S input (max 8S)
80A 8 layers 4OZ copper PCB, better operating load capacity;
14 pieces TDK MLCC Low ESR capacitors, lower ripple and more stable;
Top grade 40V MOSFET, stable and reliable;
1*RGB LED for power- on display;
Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.
Specification:
Dimension: 42.6*22mm
Weight: 15g(±2g)
Supports 2-8S lipo input
STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware
Capacitance: total 300UF Low ESR
Telemetry output
BEC: No
Supports: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
Target: SKYSTARS_SL80A
BLHeliSuite download :https://github.com/blheli-configurator/blheli-configurator/releases
Support:
Current Sensor
Telemetry output
Motor Timing
Brake on Stop
Package Included:
JUPITER SL80 Single ESC *1pcs
63V 390UF capacitor * 2pcs
Power cables & ESC signal wires *1set
