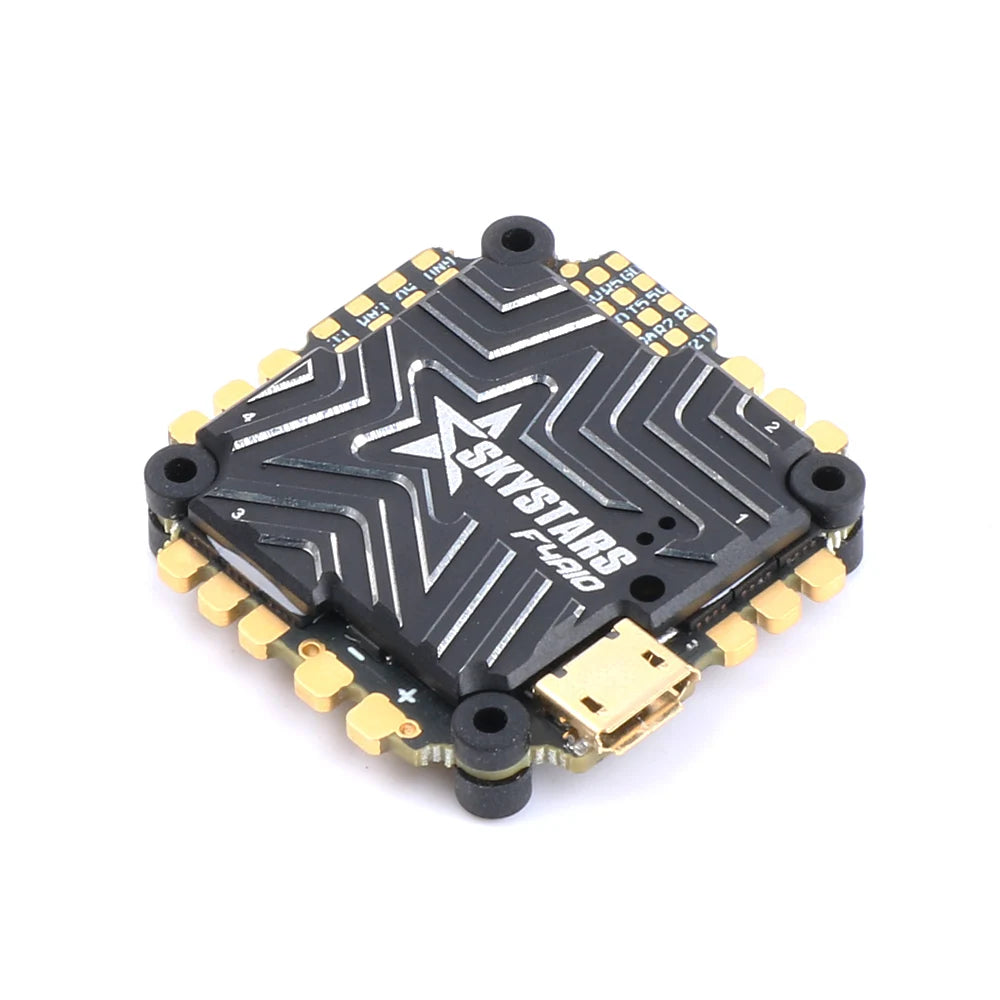

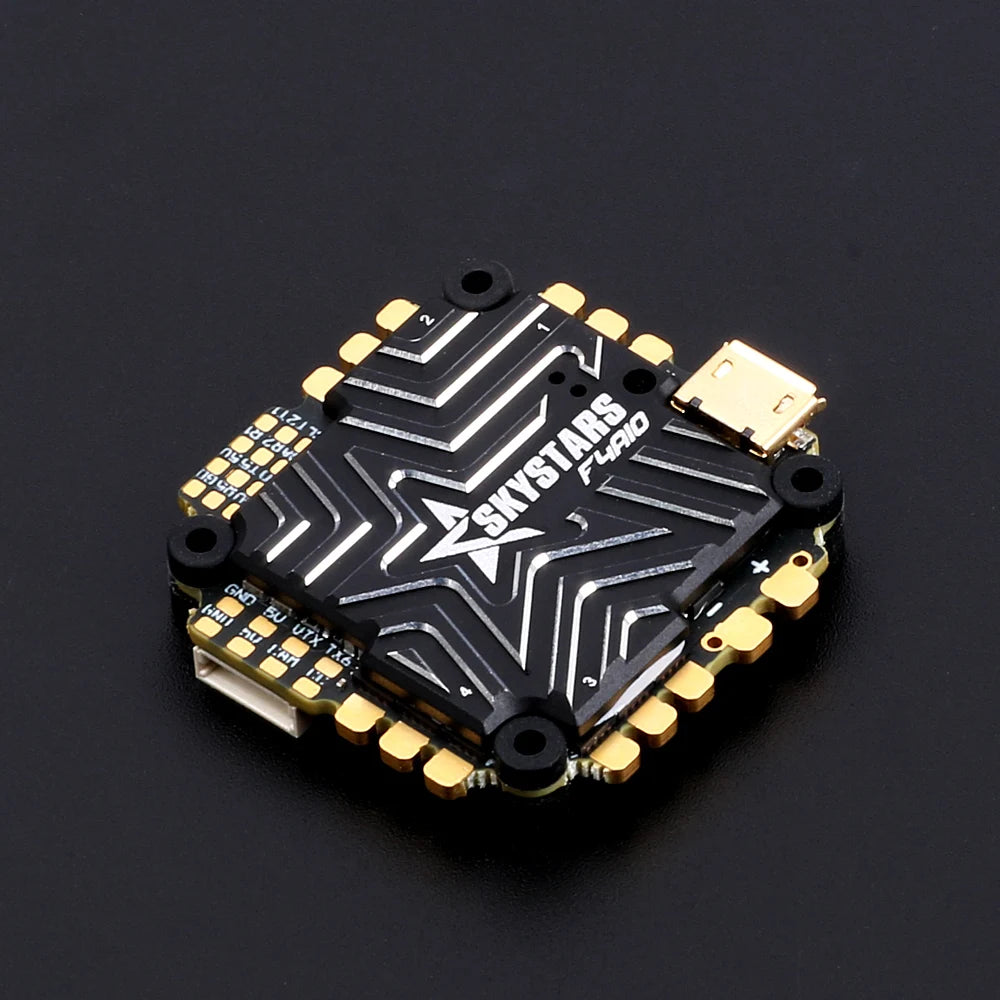

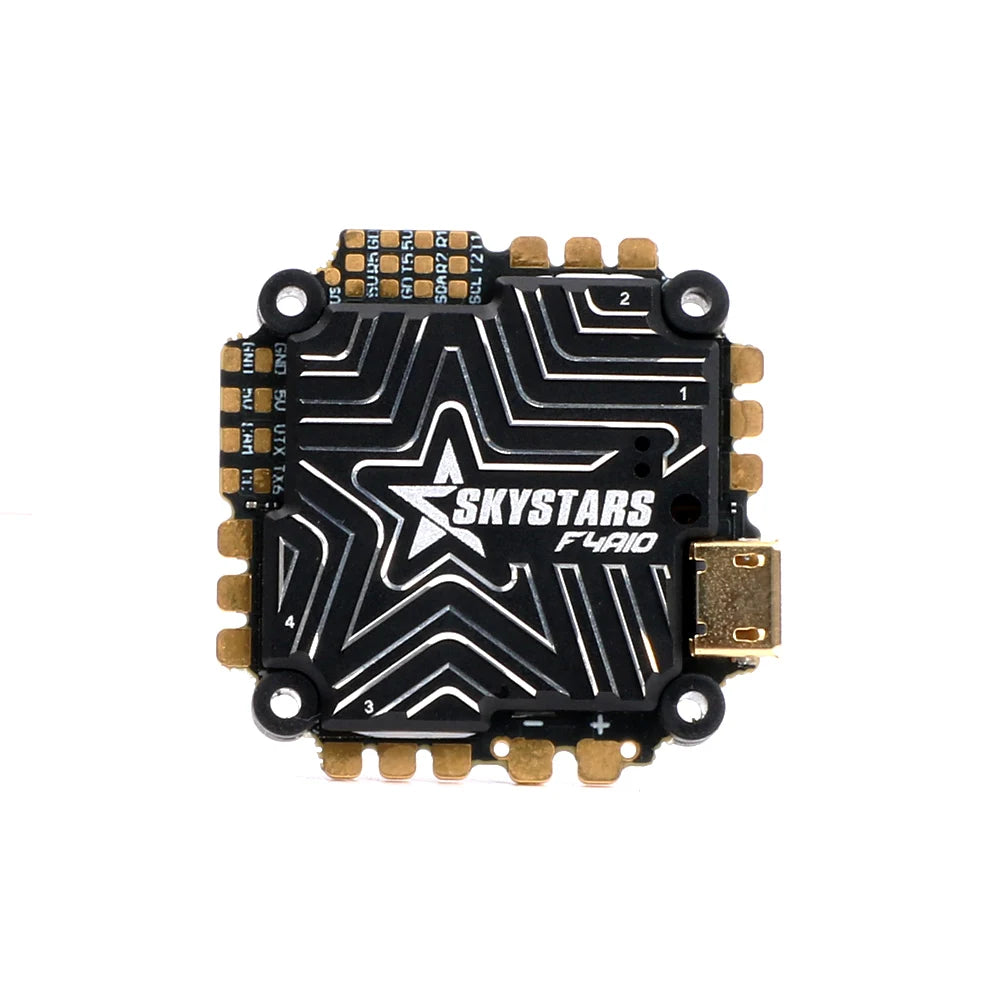

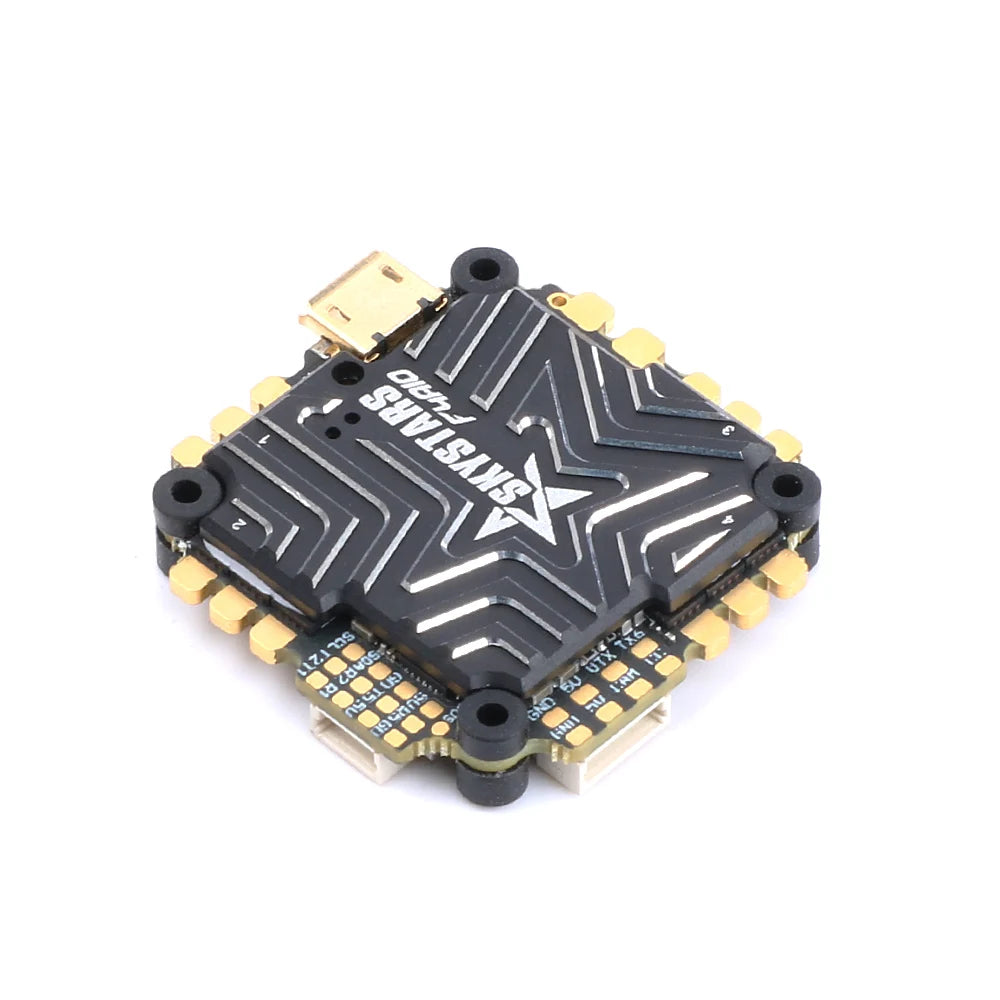

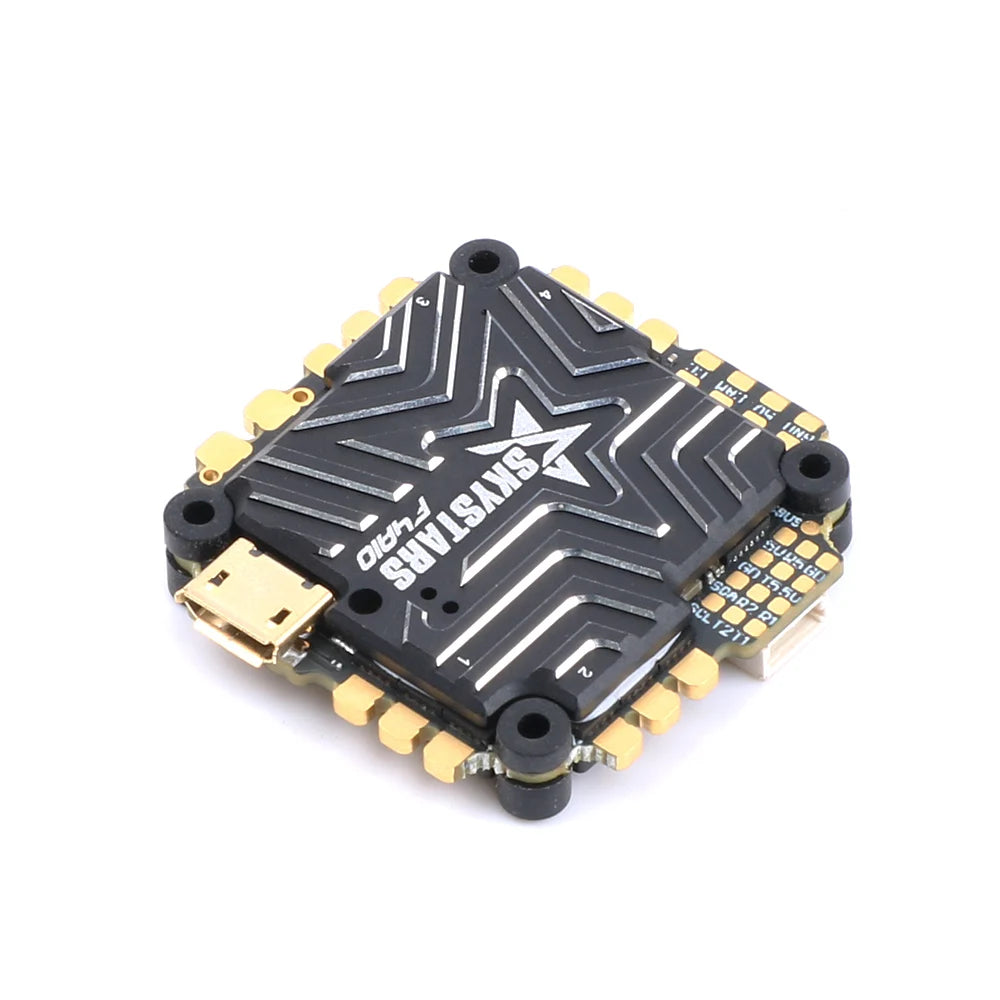

Skystars Jupiter F405 40A AIO BLS
Skystars F405 40A AIO is a solid board containing flight controller and ESCs in one. The board has a 25.5×25.5mm mount....
- $538.00
$538.00- $538.00
- Unit price
- per
Skystars F405 40A AIO is a solid board containing flight controller and ESCs in one. The board has a 25.5×25.5mm mount. The board can be powered by 3-6S Lipo batteries and can handle current up to 40A. It is suitable for smaller 3-4″ drones and lightweight 5″ drones. The board features an aluminum heat sink on both sides to help dissipate heat while protecting components from damage and dirt. The flight controller uses a F405 processor complemented by a MPU6000 gyro. The board has an integrated barometer, 5V 3A BEC as well as 16MB memory for the blackbox. Also included are I2C pins for compass connection. Connectors for connecting a digital video transmission and an RC receiver are on the bottom of the board. The board also has pins for connecting an external USB-C connector, which is included in the package. The external USB connector will be especially appreciated on Cinewhoops, where the board tends to be hard to reach. The ESCs on the board can handle current up to 40A and use the BlHeli_S firmware. The board also includes a current sensor.
Key Features
Power supply: 3-6S
MCU: F405
IMU: MPU6000
Blackbox: 16MB
BEC: 5V@3A
Connector: integrated Micro USB, USB-C External
Current sensor
Current: 40A
Integrated barometer
I2C pads
Mounting holes: 25.5×25.5mm M2
Weight: 12.6g

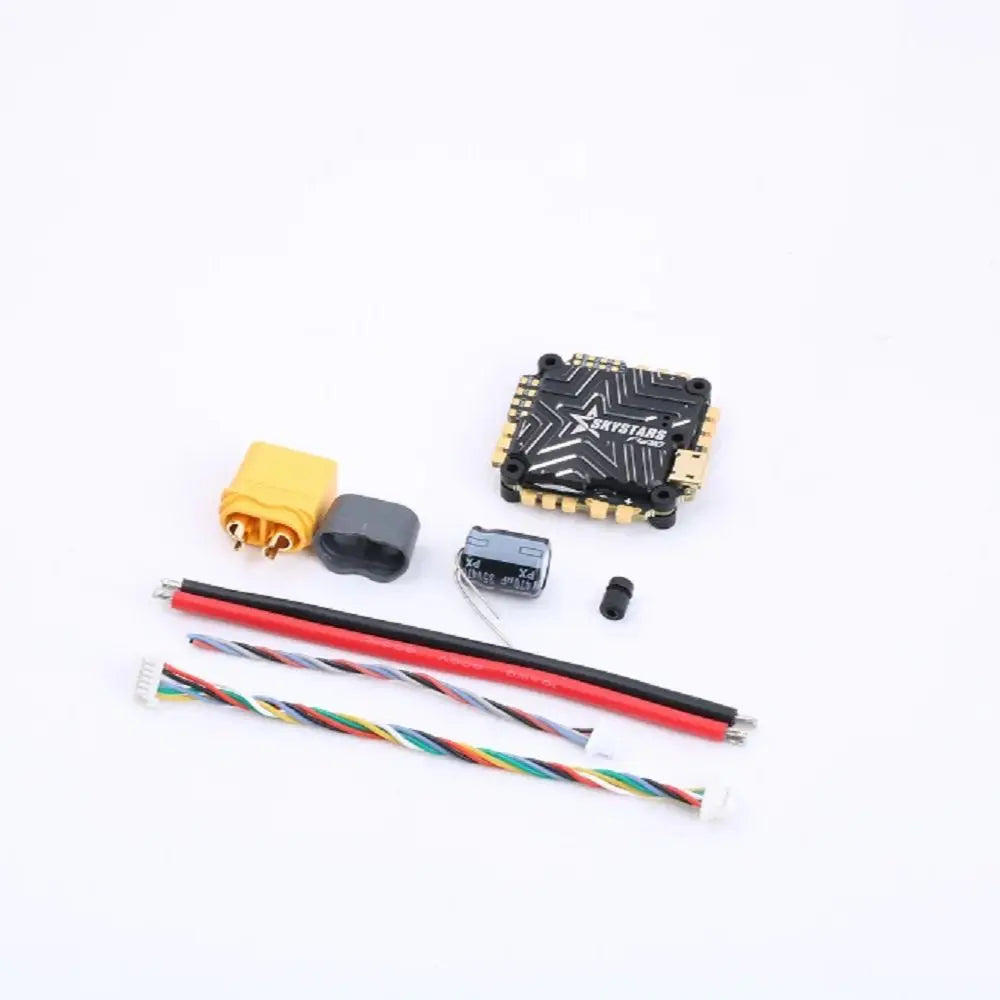

Package Includes
1x AIO board
1x Capacitor
1x XT60
1x 16AWG Cable
1x External USB-C
1x Cable Kit
