Skystars 5.8G 2.5W 40CH VTX PIT/25mW/400mW/1000mW/2500mW 5.8G Image Transmission For RC Fixed Wing FPV Long Rang Racing Drones

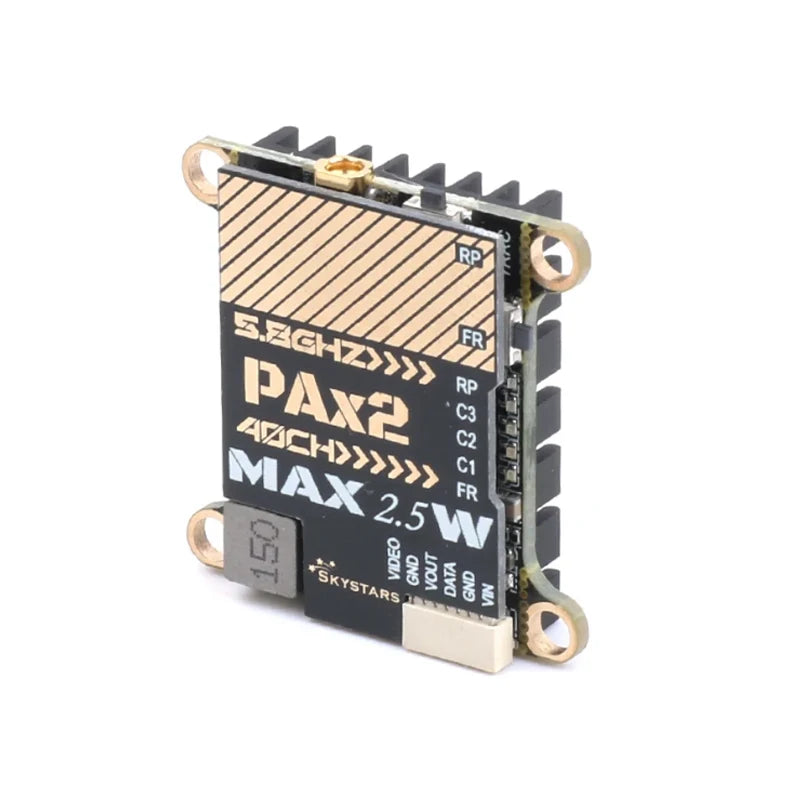

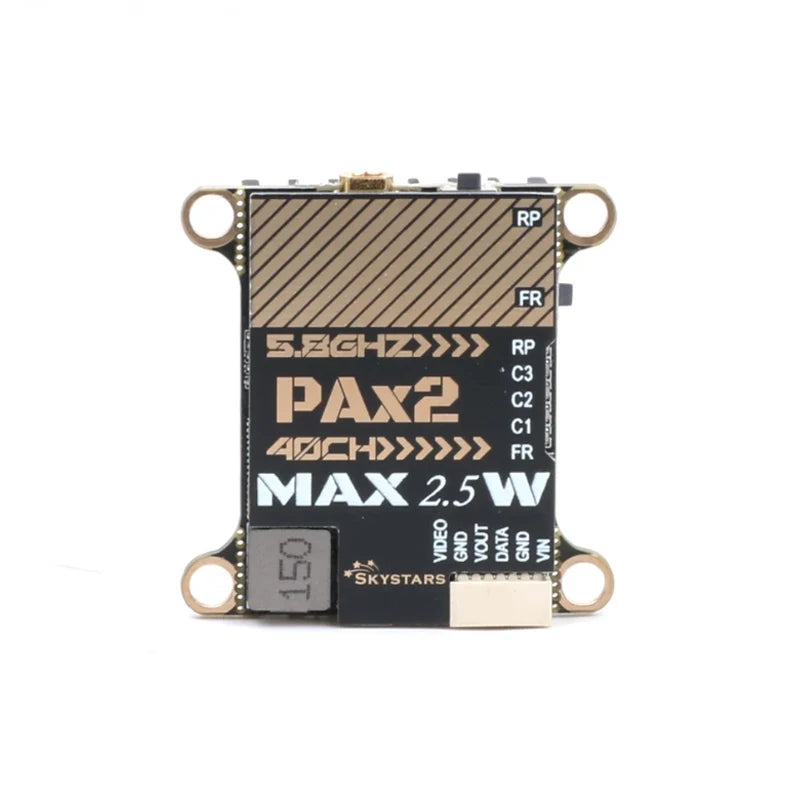

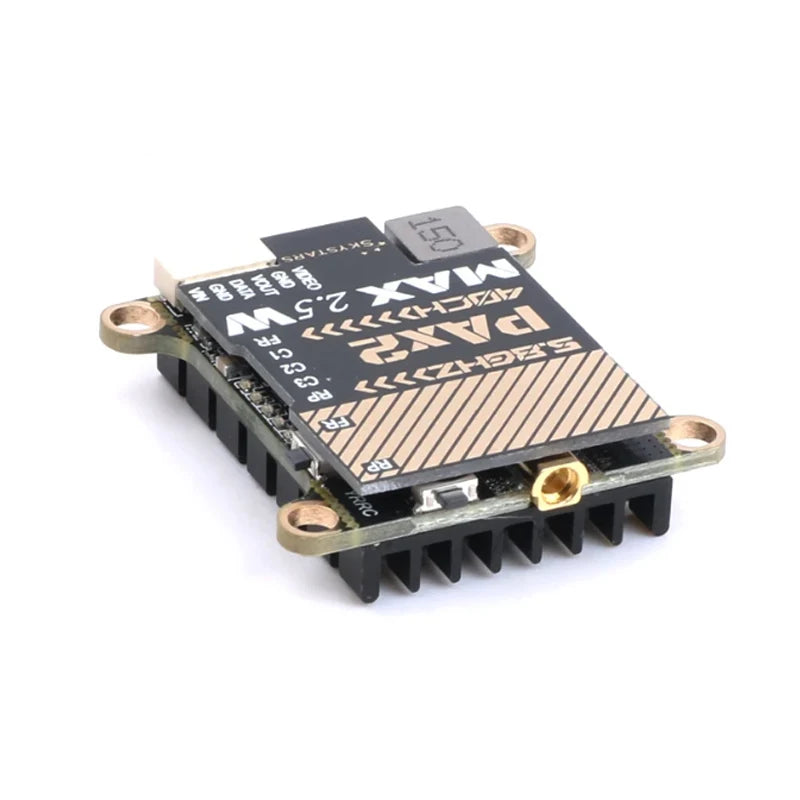

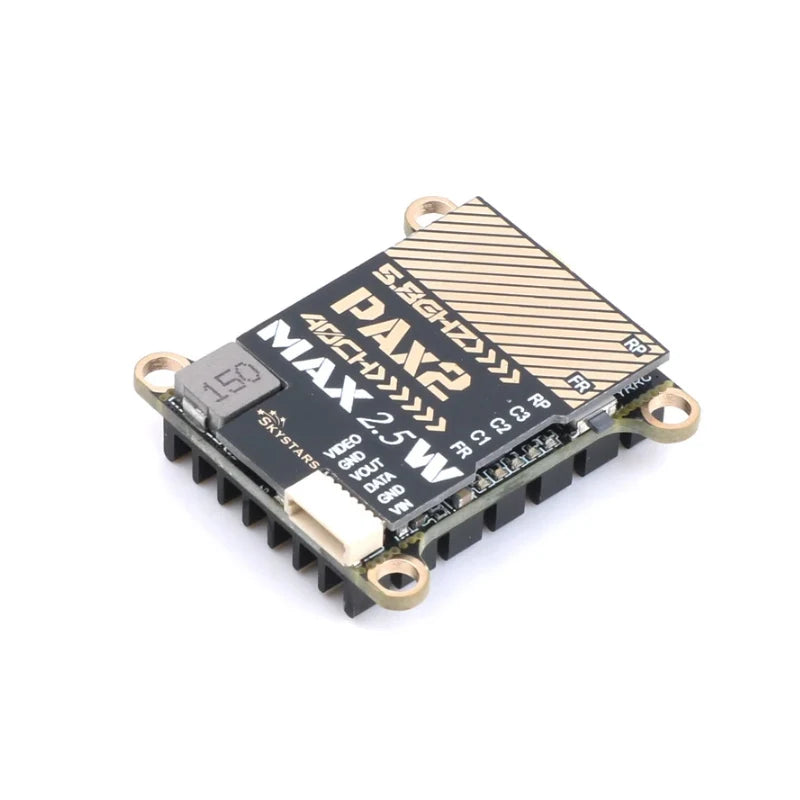

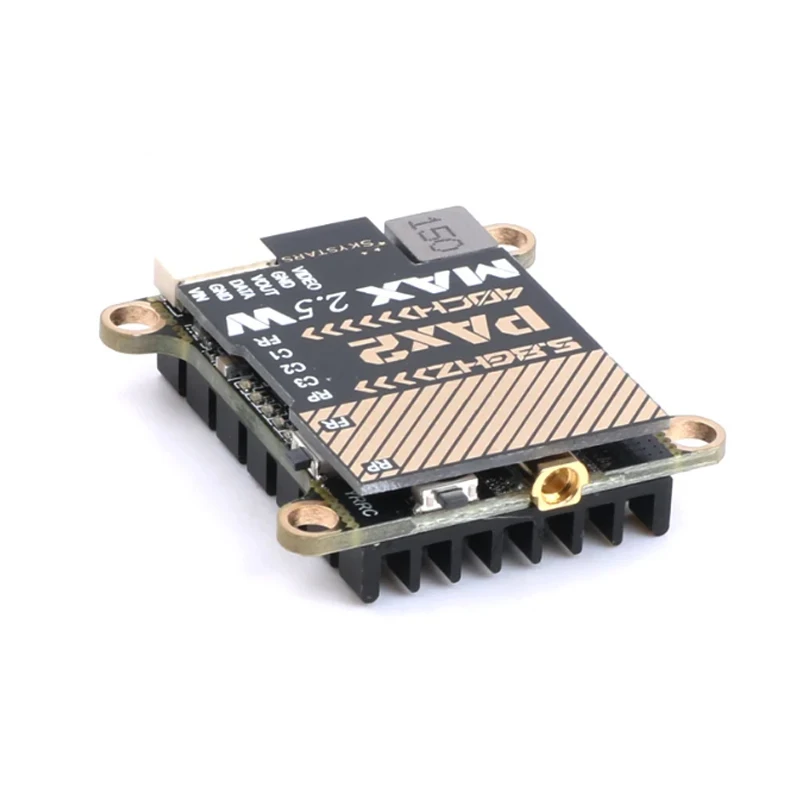

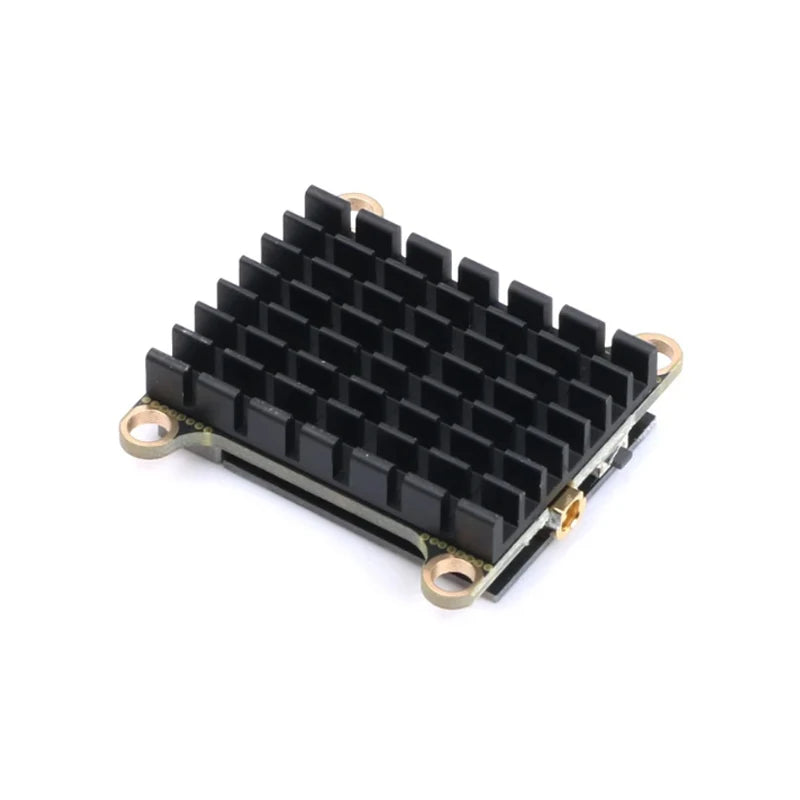

Item: Skystars 5.8G 2.5W 40CH VTX
Parameters:
Input voltage: 9V~35V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 32g (excluding antenna)
VTX telemetry: IRC Tramp
RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW
Size:37*35.5*10mm

Features:
1. Self-check Function of Power Supply Can Quickly Check Whether The image Transmission is Normal.
2. Frequency Locking Function, Which Will not Interfere With the Companion When Starting The Machine.
3. 0-2.5W Power is adjustable, Allowing you to Switch Seamlessly in Different Environments.

Stable output power
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol

Manuals:
● Frequency setting: Every short press KEY_FR spread once, the frequency will be progressive between CH1-CH8, ring switch and save. Quantity Band setting: Long press the KEY FR key for 3 seconds, the rate setting switches to the band setting state, and the LEDFR light will blink quickly. At this time, every ya press KEY_FR once, Band Chiang will be in A-B-E-F-moon speed forward, thunder ring switch, LEDFR light corresponding to wind Shuo 1-2-3-4-5 times. Press and hold KEYF day clock again (>3 seconds month <10 seconds) Wave timeout (>10 seconds If no key is pressed, this setting mode will be displayed, and the system will automatically update the frequency and frequency parameter Settings and save them.
● Power string setting;
Every time you press KEY_PW once, the power level will change from low to high pass and brain ring in 1-2-3-4-5, and the LEDPW lamp will blink 1-2-3-4-5 times accordingly. The system will update the setting but not save the setting parameter. Double-click KEY_PW key at any time (interval <0.5 seconds). Power Settings directly set to the 5th level maximum power)LED PV lamp net shutoff 5 times in order to prevent high power will burn the efficiency module, this product does not save the user's power Settings parameters and will always start from the 1st level when powering on.
● Restore factory Settings: press LED_FR at any state for more than 10 seconds, the system restores to factory setting parameters and saves.
Warning: Please be sure to plug in the antenna before power, otherwise it will burn the product!

Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

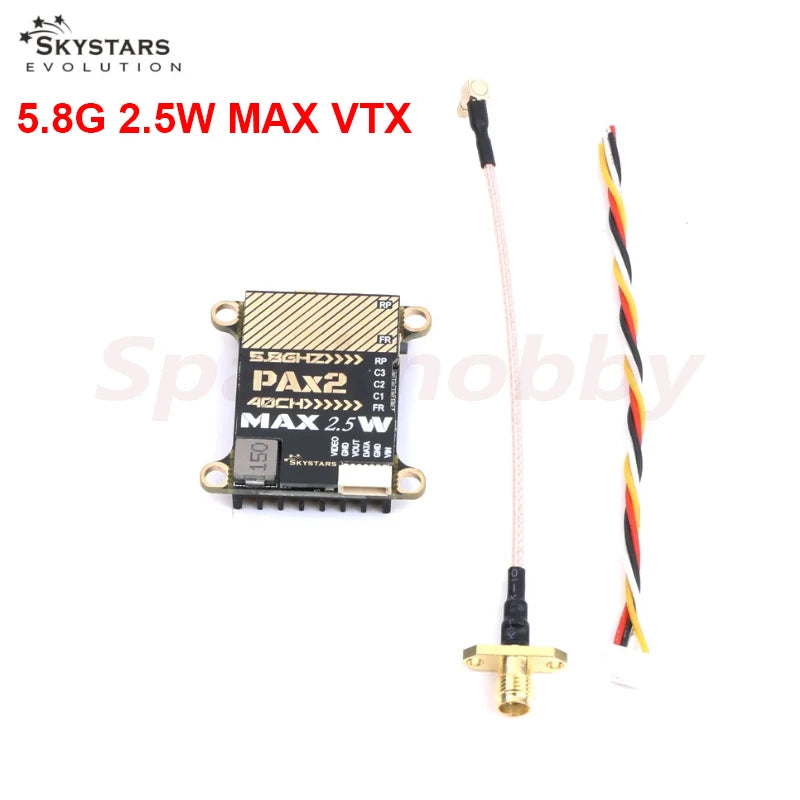

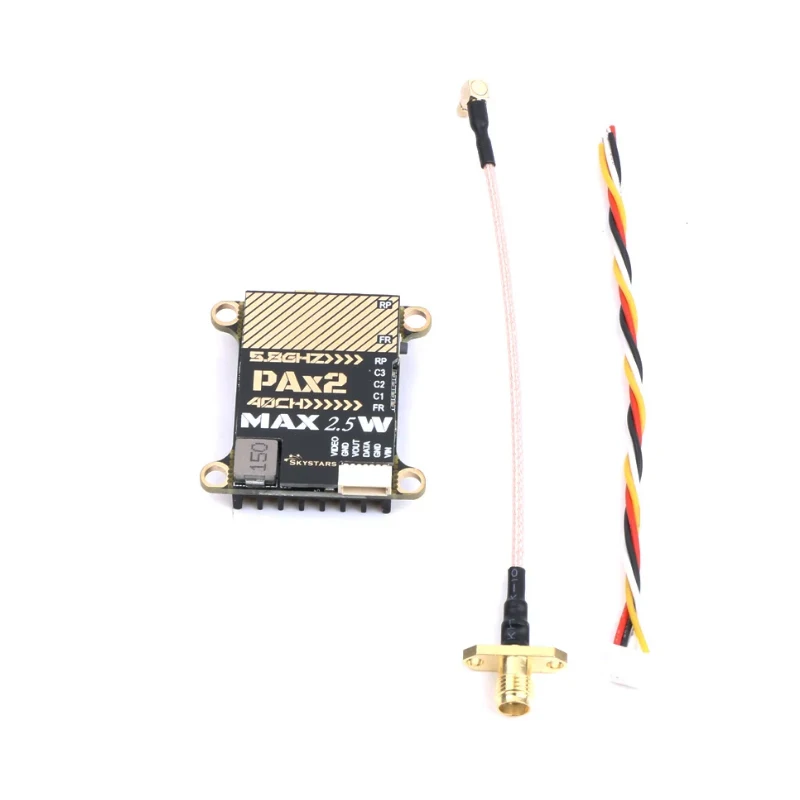

• Package Included:
• Skystars 5.8G 2.5W 40CH VTX x 1
