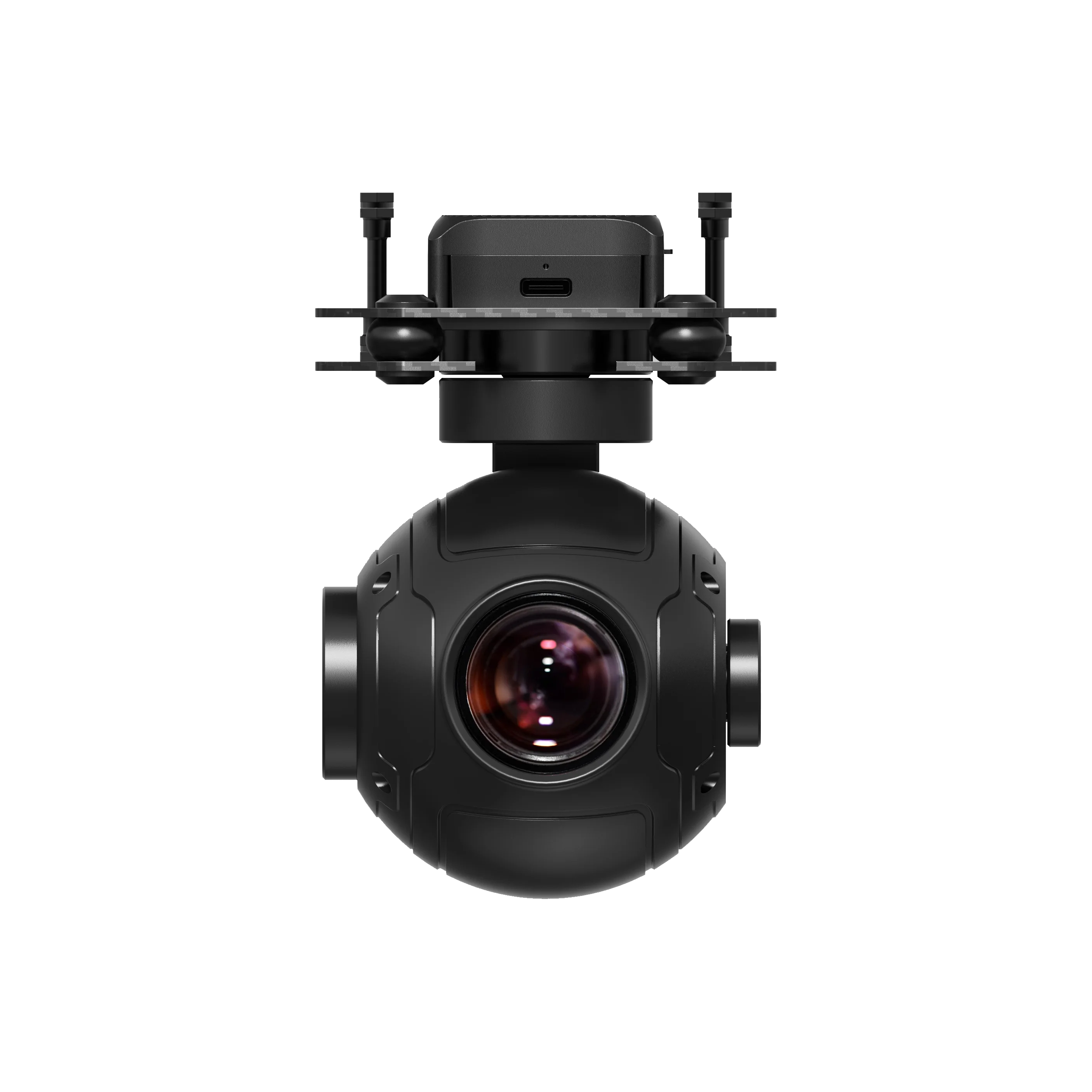

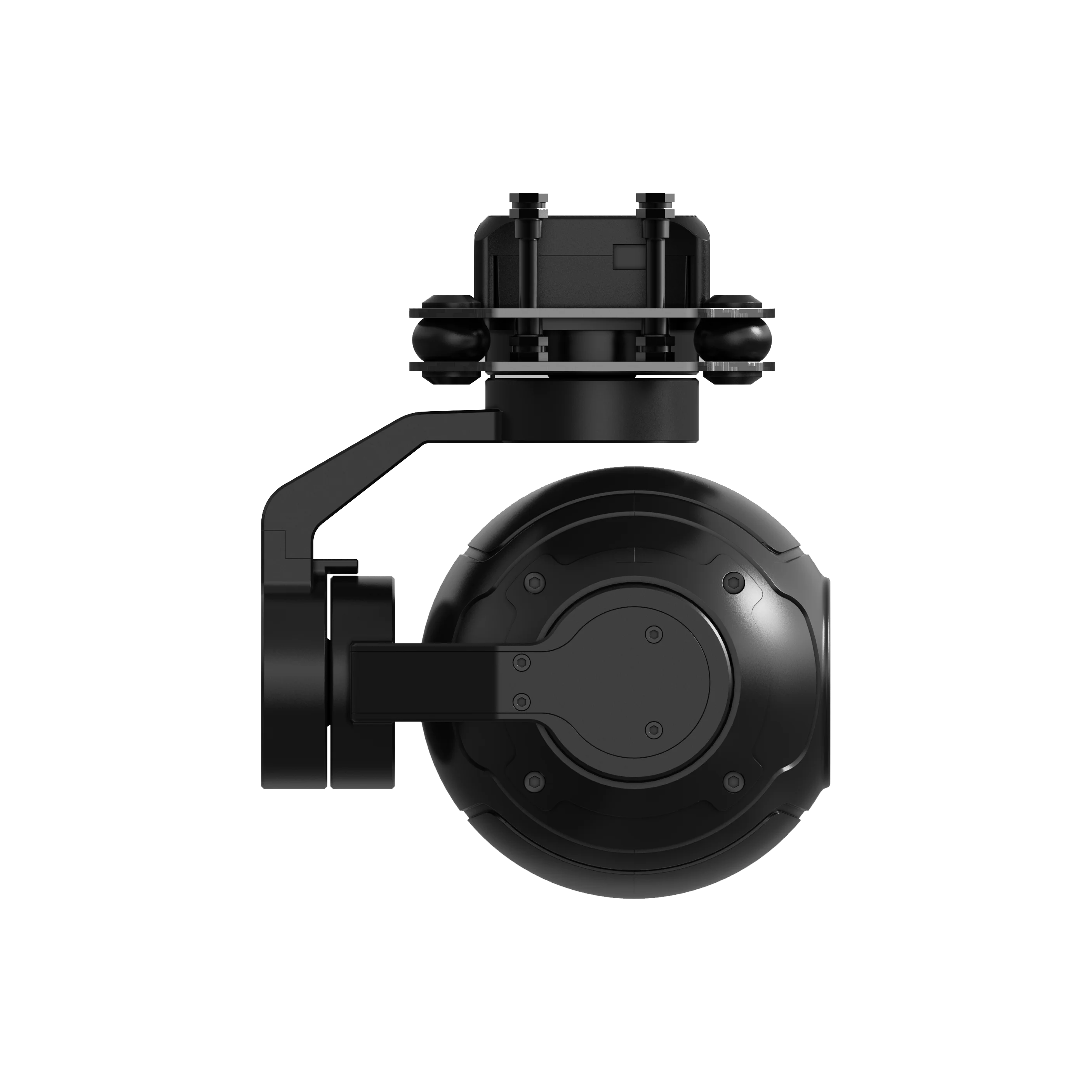

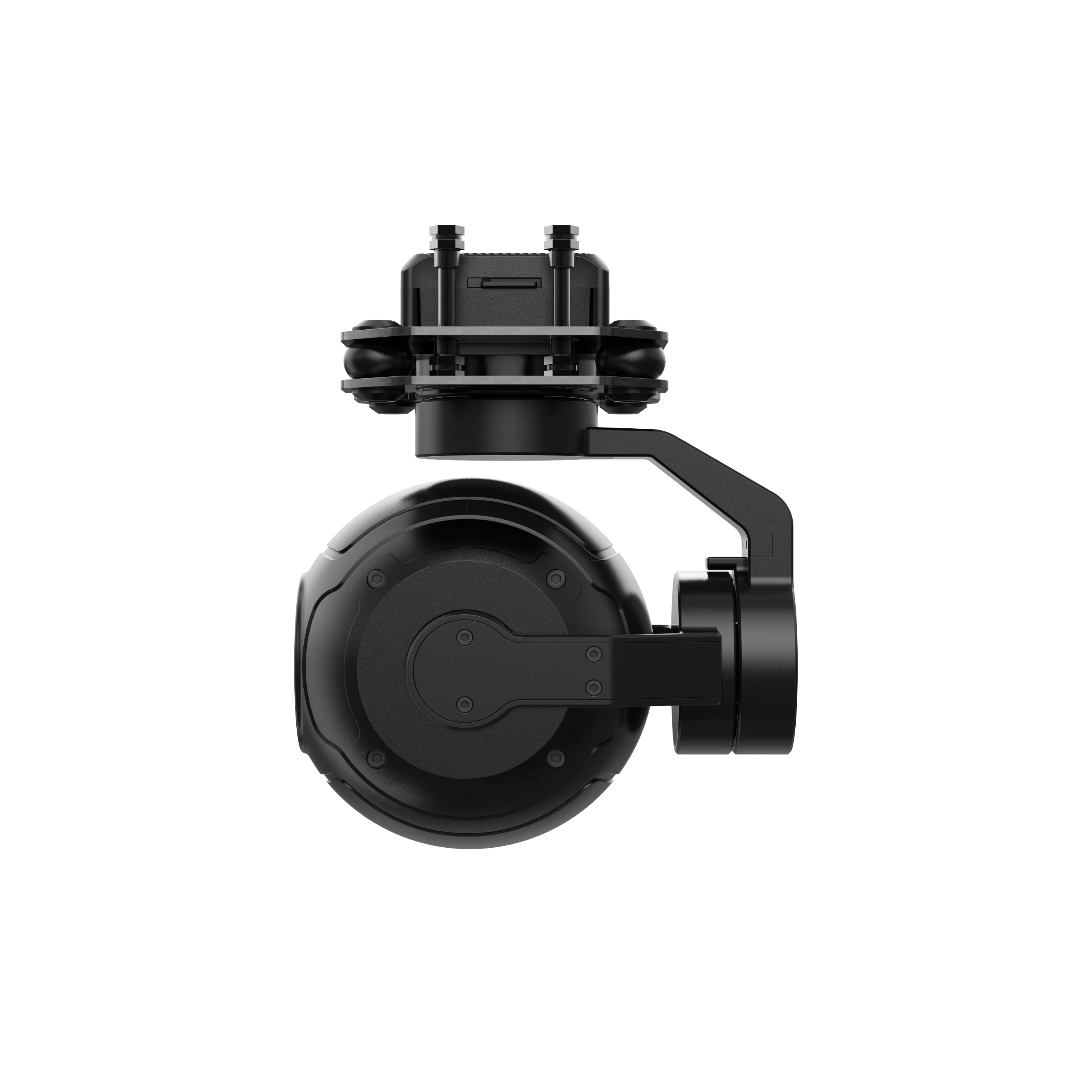

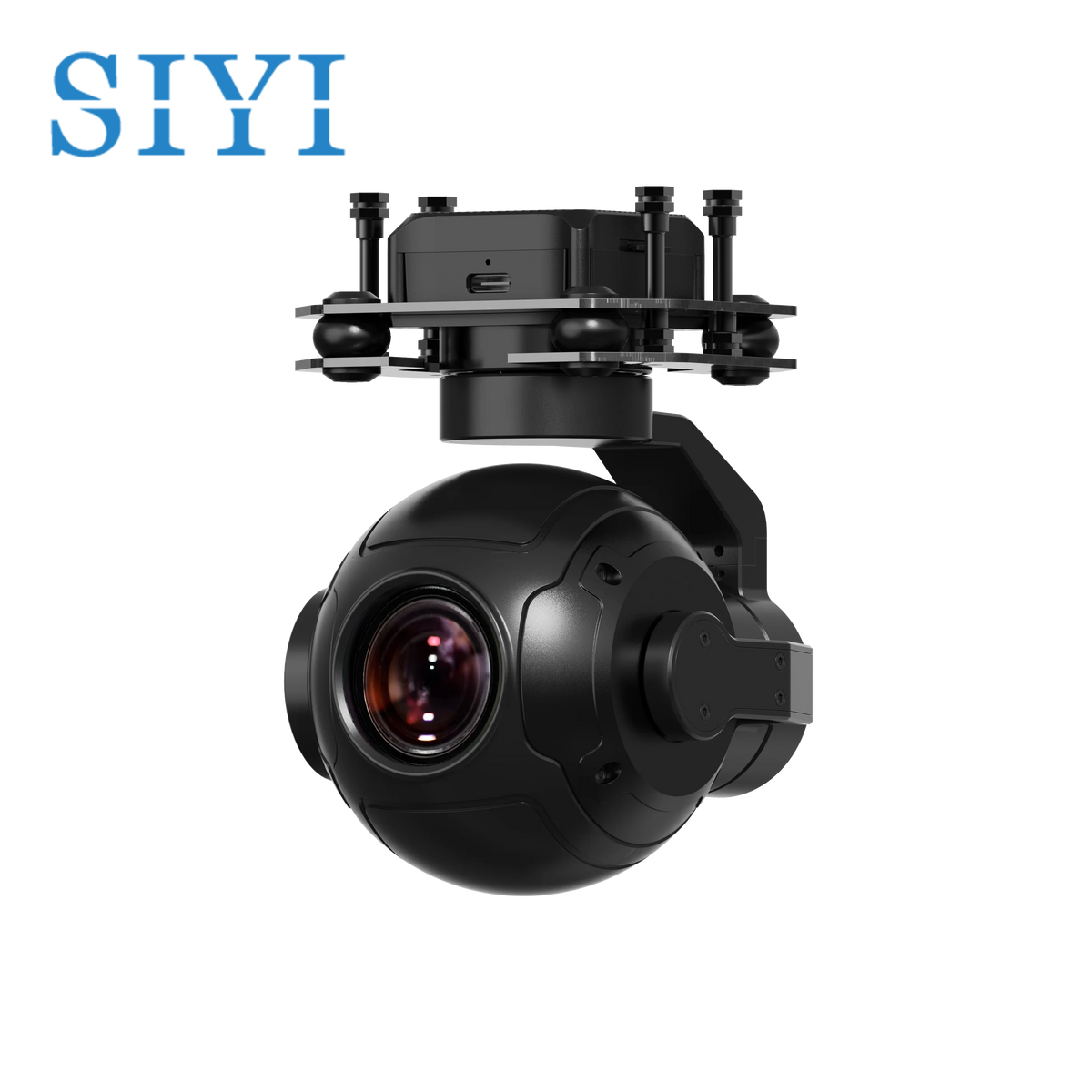

SIYI ZR10 2K 4MP 30X Hybrid Zoom Gimbal Camera with Starlight Night Vision 3-Axis Stabilizer Lightweight Cinematographic Cameras
Product Description OverallModel: ZR30 Video Output Port: Ethernet, Micro-HDMI Control Signal Input Port: - S.Bus, UART -...
- $4,317.00
$4,317.00- $4,317.00
- Unit price
- per
Product Description
Overall

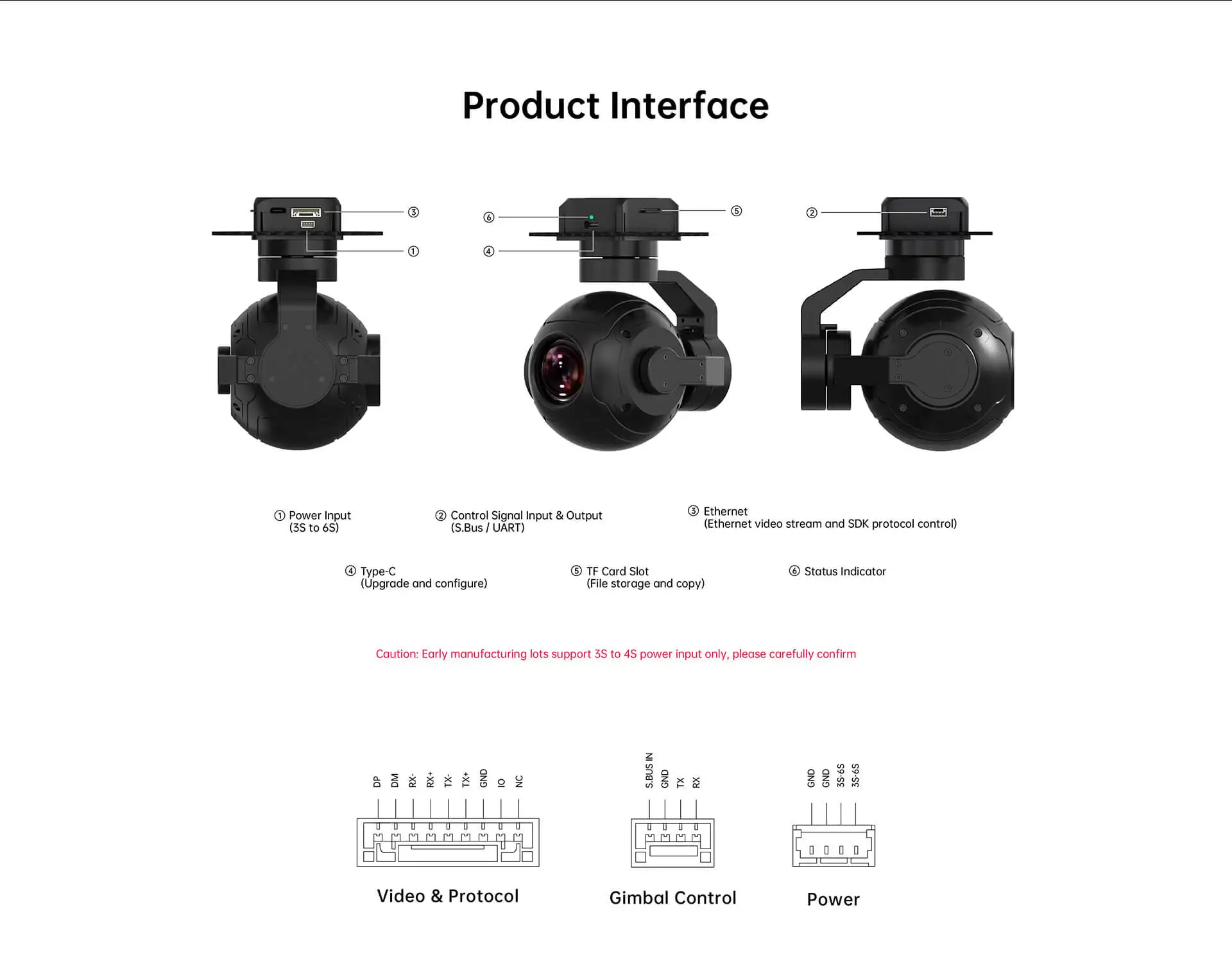

Model: ZR30 Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
Working Voltage: 11 to 25.2 V
Power Consumption: Summit 20 W
Working Temperature: -10 ~ 50 ℃
Dimension: 132*100*159 mm (including the quick release board)
Weight: 628 g (including the quick release board)
Quick Release Board
Dimension: 82*65*18 mm
Weight: 38 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45°
to +45°
Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.5±5% to 148.4±5% mm
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3±5% to F2.8±5%
FOV: Diagonal 65.4°, Horizontal 58.1°
TF Recording Resolution:
- 4K (4096 x 2160) @ 25 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x720) @ 30 fps
Video Storage Bitrate: 12 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Model: ZR30 Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
Working Voltage: 11 to 25.2 V
Power Consumption: Summit 20 W
Working Temperature: -10 ~ 50 ℃
Dimension: 132*100*159 mm (including the quick release board)
Weight: 628 g (including the quick release board)
Quick Release Board
Dimension: 82*65*18 mm
Weight: 38 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45°
to +45°
Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.5±5% to 148.4±5% mm
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3±5% to F2.8±5%
FOV: Diagonal 65.4°, Horizontal 58.1°
TF Recording Resolution:
- 4K (4096 x 2160) @ 25 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x720) @ 30 fps
Video Storage Bitrate: 12 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Specification
|
Model
|

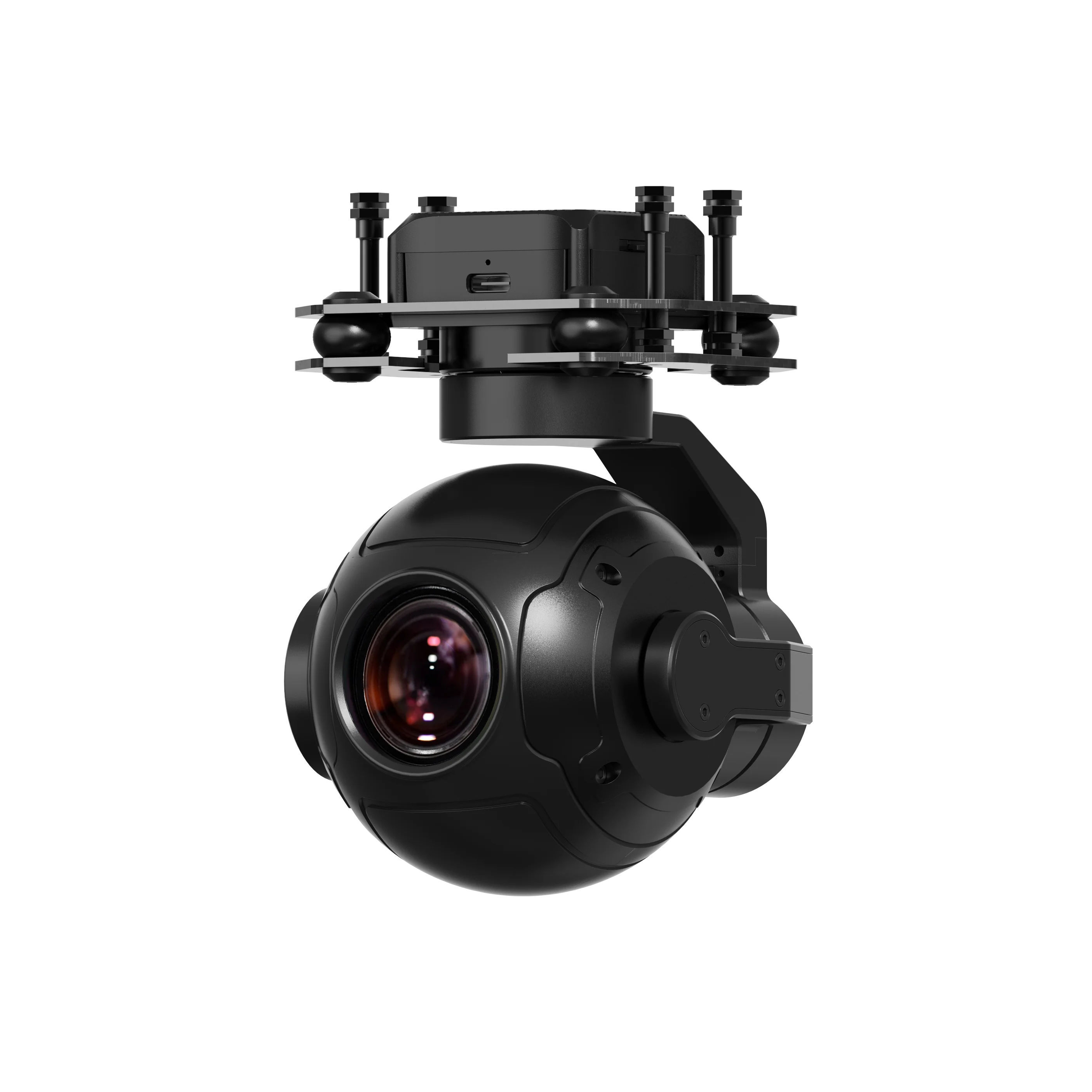

SIYI ZR10 Gimbal Camera
|
|
|

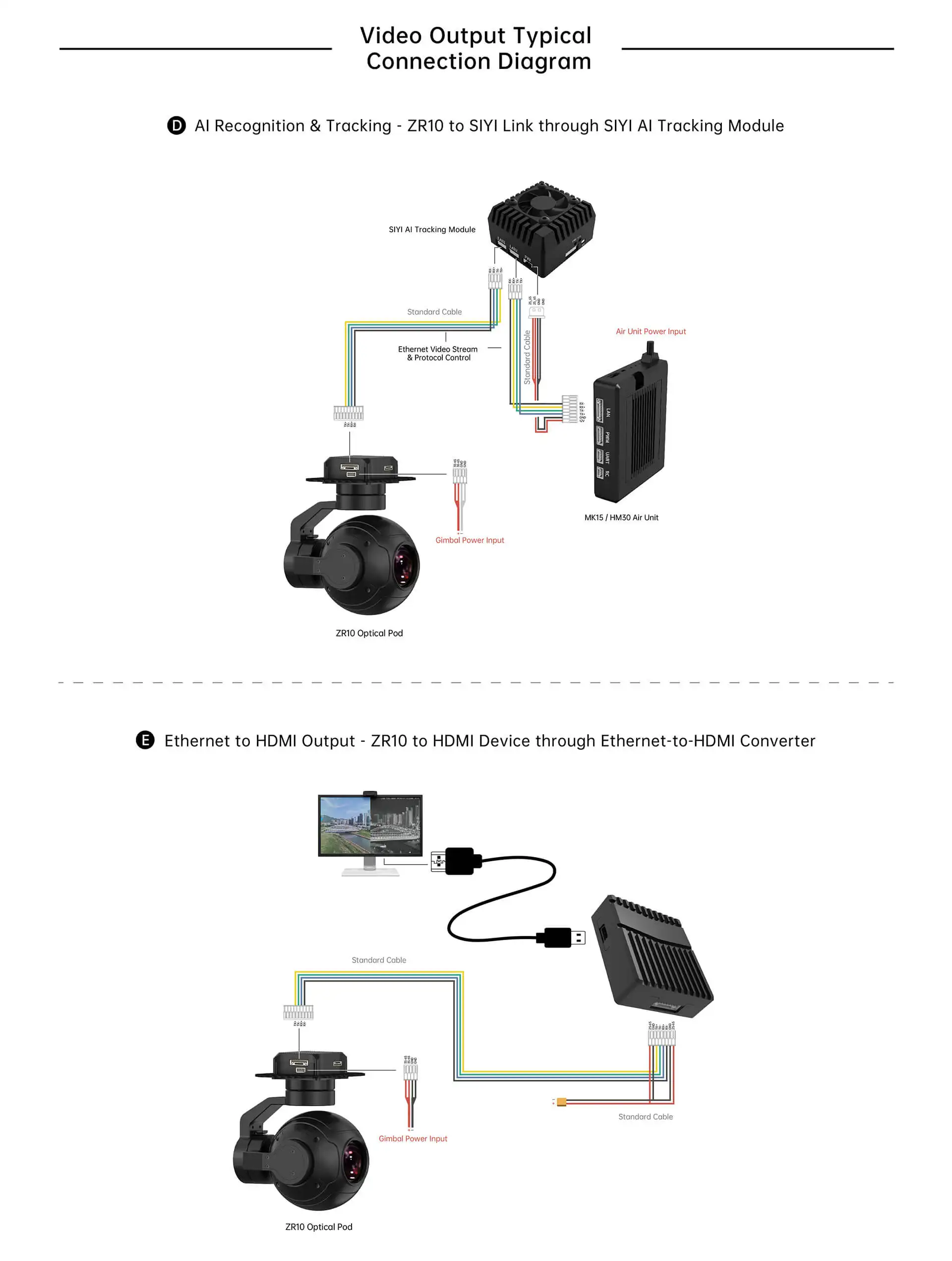

Video Output Port
|
Ethernet
|
|
|

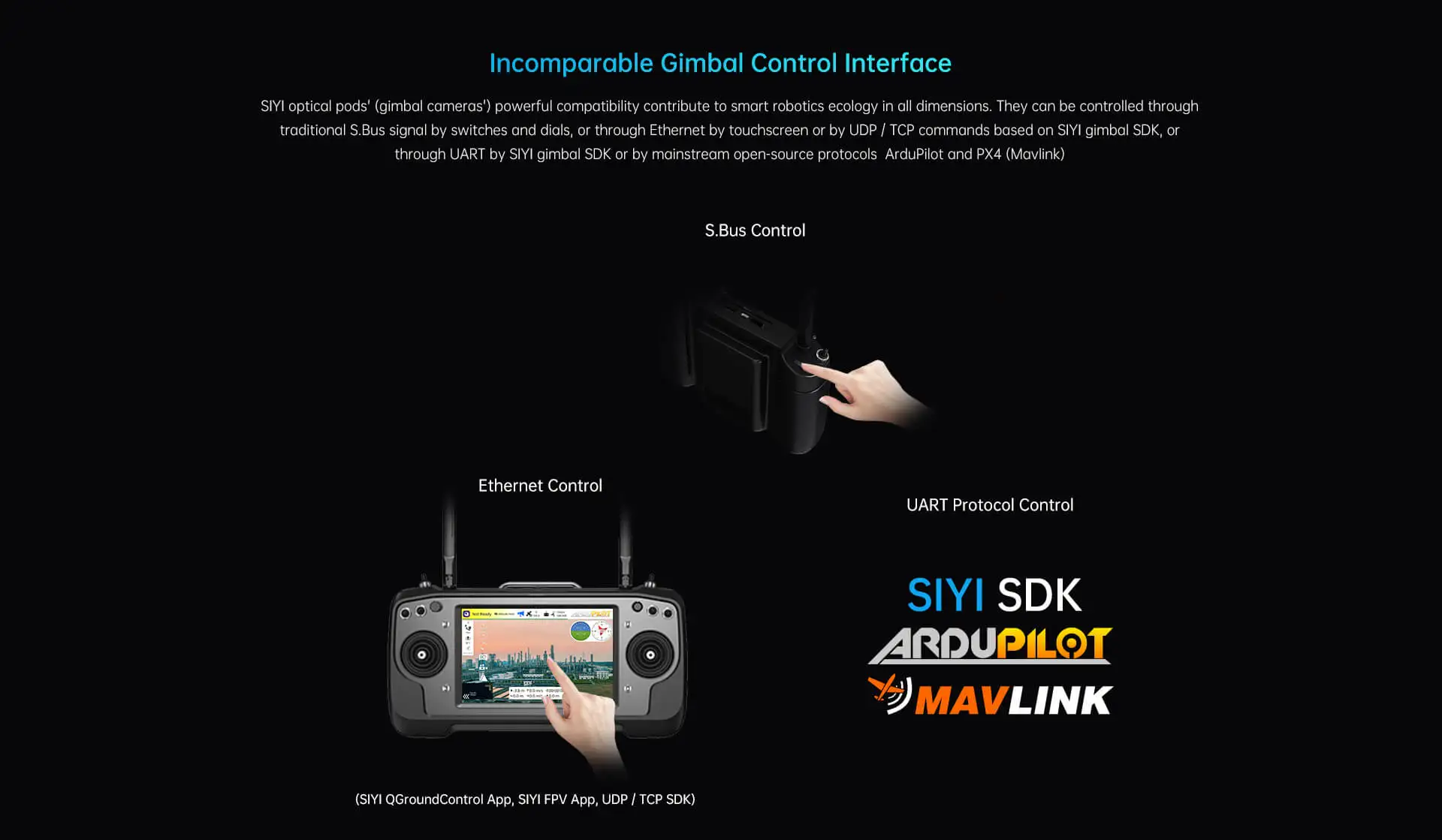

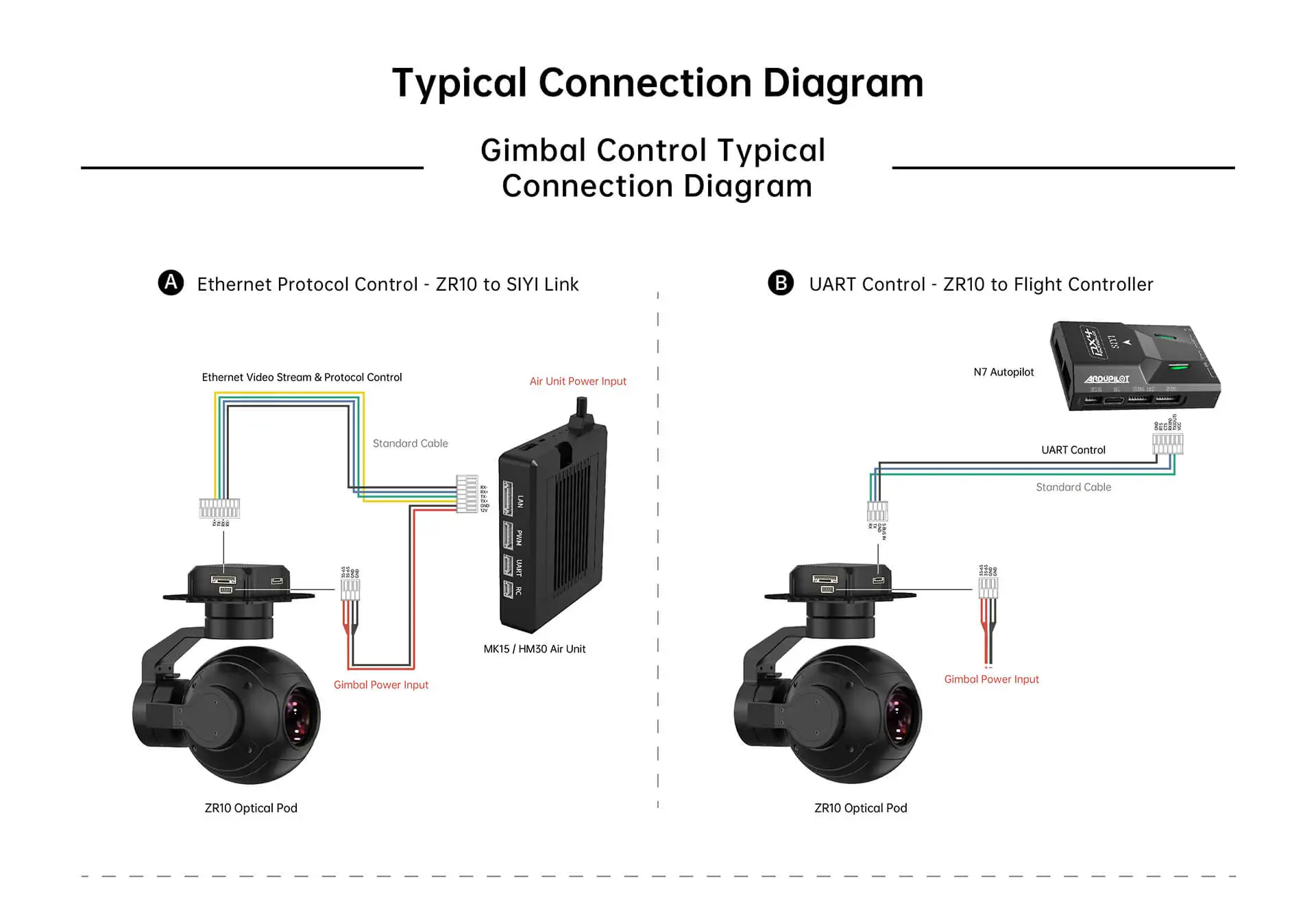

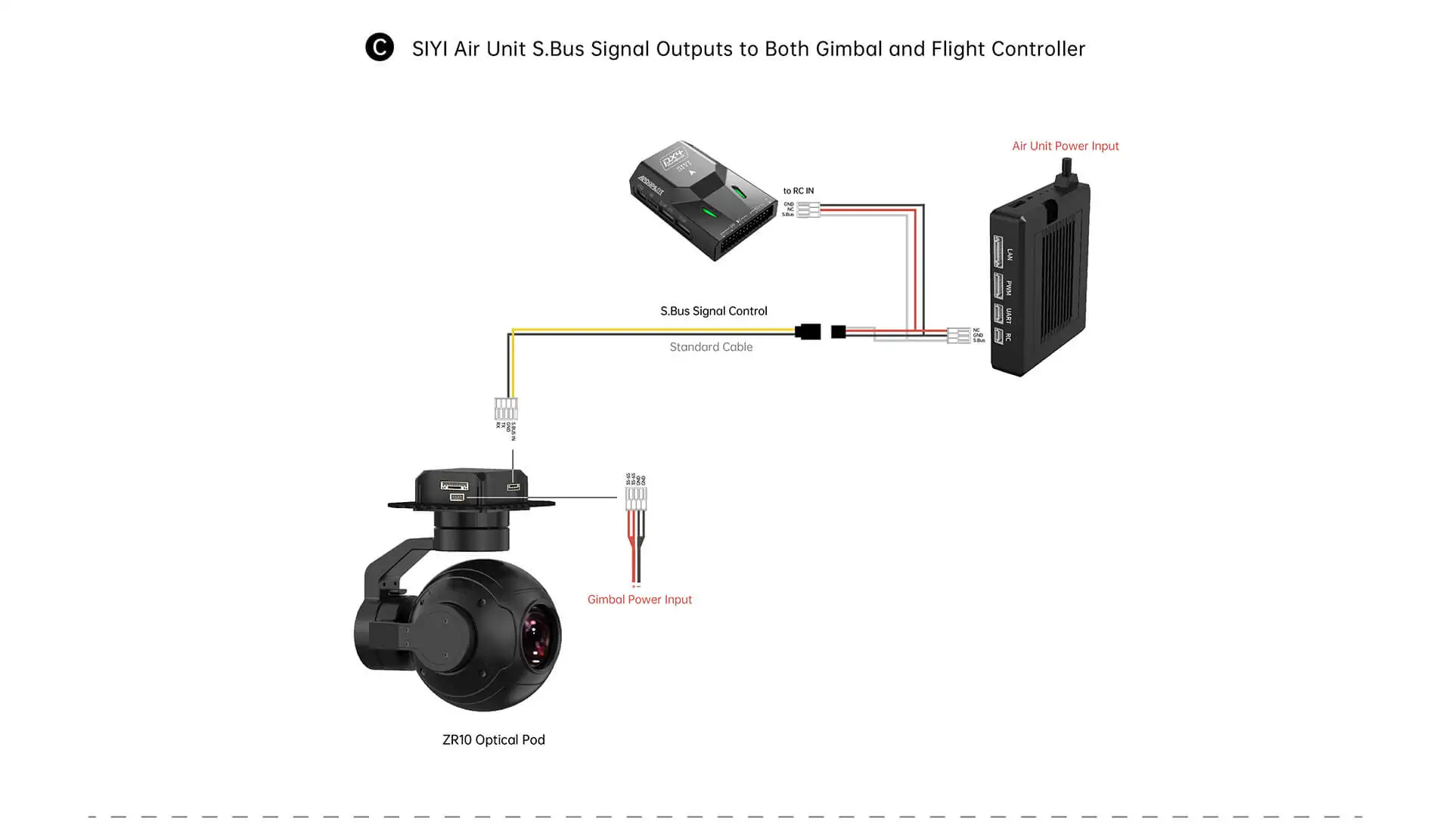

Control Signal Input Port
|
S.Bus / PPM / UART / UDP
|
|
|
Power Consumption
|
5 W
|
|
|
Dimension
|
121*101*78 mm
|
|
|
Weight
|
381 g
|
|
|
Waterproof Level
|
IP53
|
|
|
Angular Vibration Range
|
±0.01°
|
|
|
Working Voltage
|
Working Voltage
|
|
|
Working Temperature
|
-10 ~ 50 ℃
|
|
|
Lens
|
10X Optical Zoom, 3X Digital Zoom
|
|
|
Focal Length
|
5.15±5% ~ 47.38±5% mm
|
|
|
Aperture
|
F1.8 ~ F2.5
|
|
|
Focus
|
0.2 m to ∞
|
|
|
FOV
|
Diagonal 79.5°, Horizontal 71.5°
|
|
|
CMOS
|
1/2.7”, 4 MP
|
|
|
TF Recording Resolution
|
2560*1440 @ 30 fps
|
|
|
Video Storage Bitrate
|
12 Mbps
|
|
|
File Storage Format
|
FAT32
|
|
|
Still Photography Mode
|
Single
|
|
|
Image Format
|
JPEG
|
|
|
Video Format
|
MP (Originally recorded in H.265 file, converted to MP4 file after reboot)
|
|
|
Metering Mode
|
Evaluative metering
|
|
|
White Balance
|
Auto
|
|
|
Supported MicroSD Cards: MicroSD Class10 (Max 32GB, will support 128GB by firmware update)
|
||
