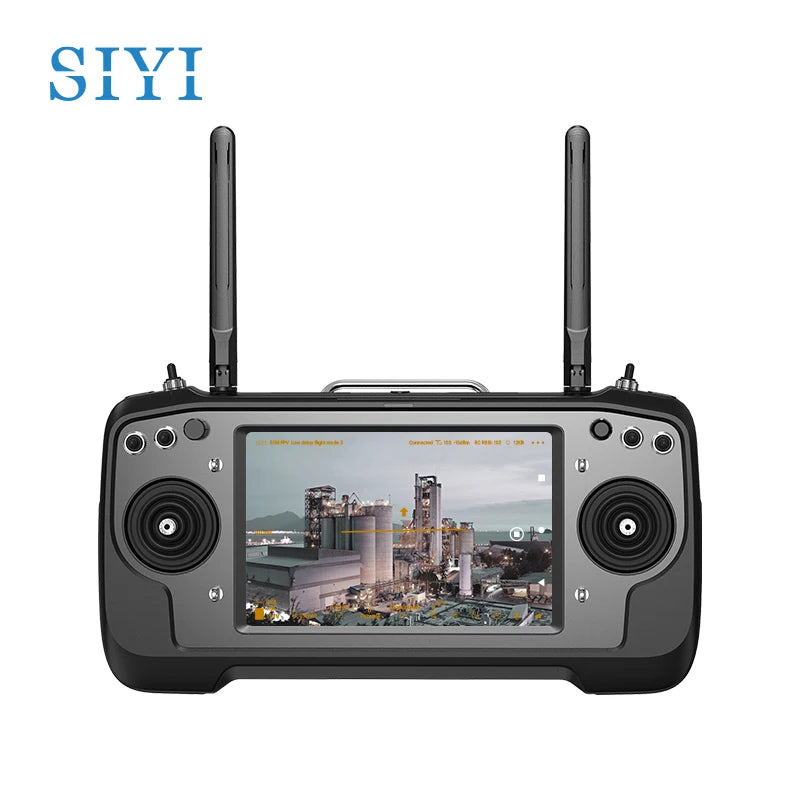

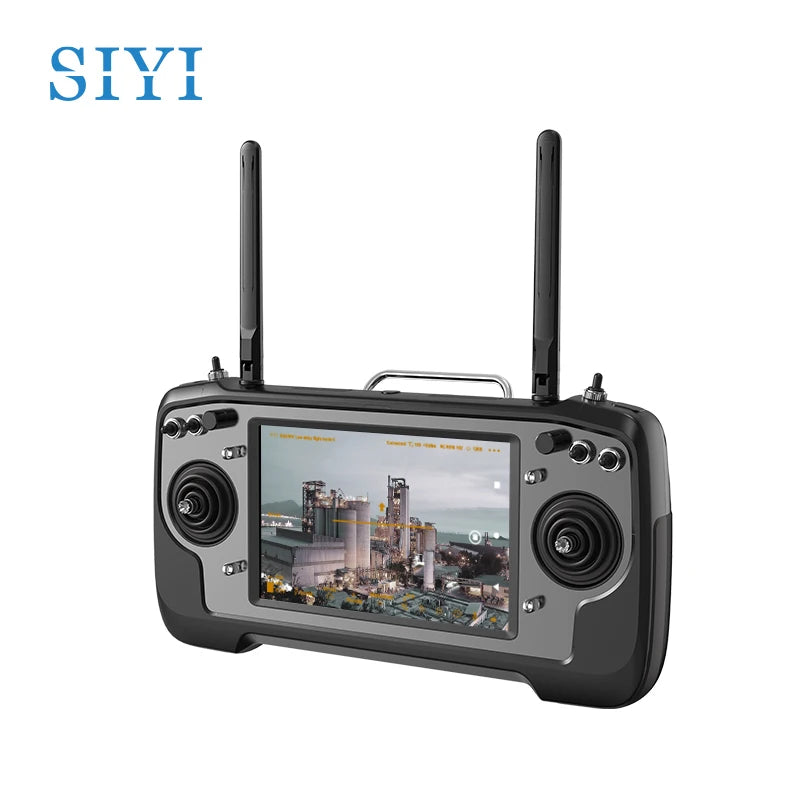

SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

TechnicalOverallModel: MK32Max Transmission Range: 15 kilometers (unobstructed, free of interference)Channels: 16 physical channels, 16 communication channelsDatalink Compatible...
Vendor: SIYI
Availability: Out Of Stock
Product Type: Remote Controllers
$4,670.00
$4,670.00
$4,670.00
Subtotal: $4,670.00
SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

$4,670.00

SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

$4,670.00
Compatible Brand: SIYI
color: SIYI MK32
Compatible Model: For FPV
Technical

Overall
Model: MK32

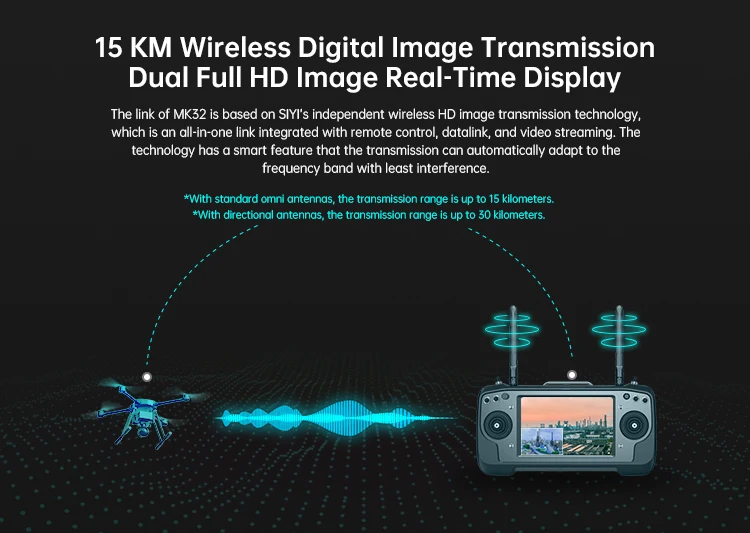

Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

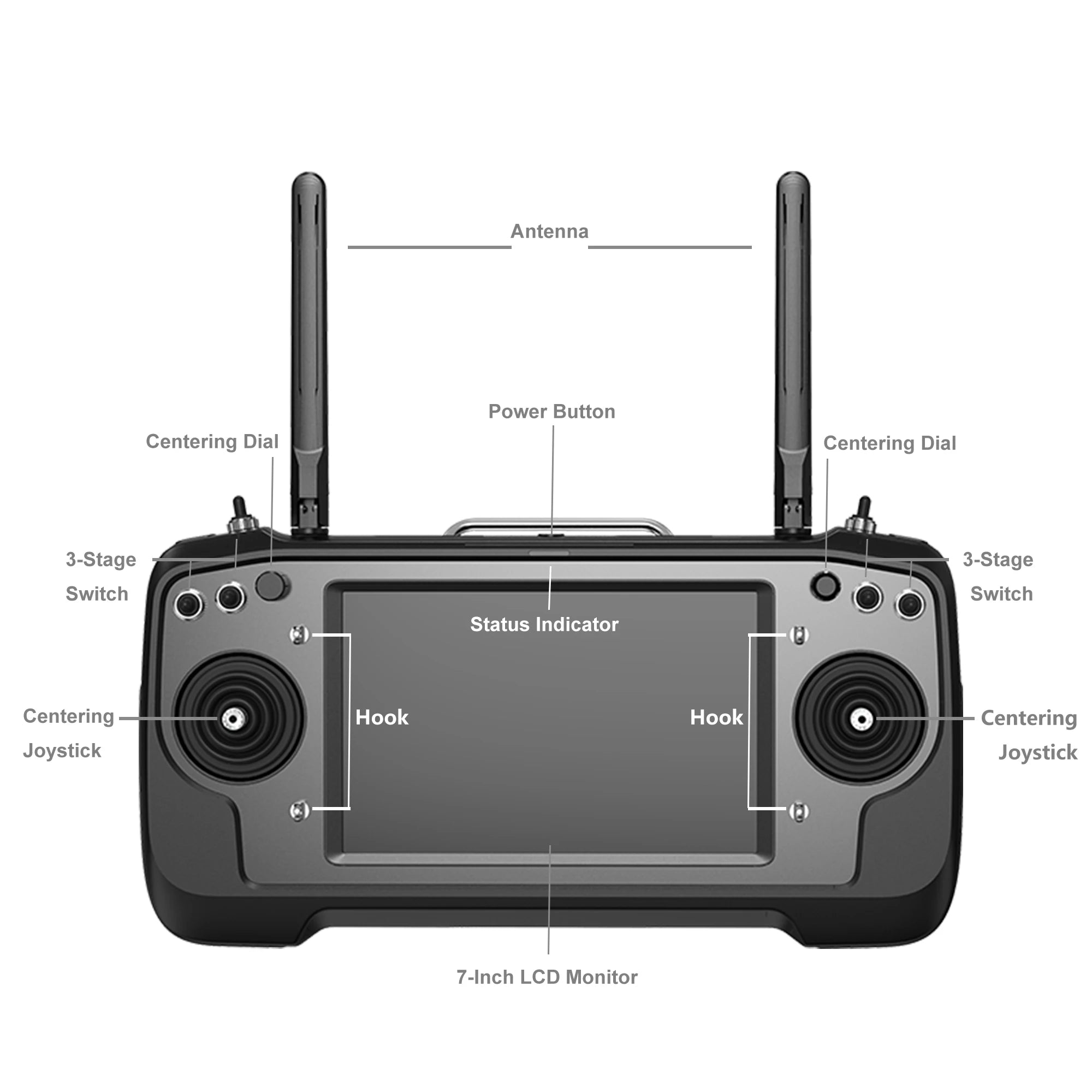

Ground Station

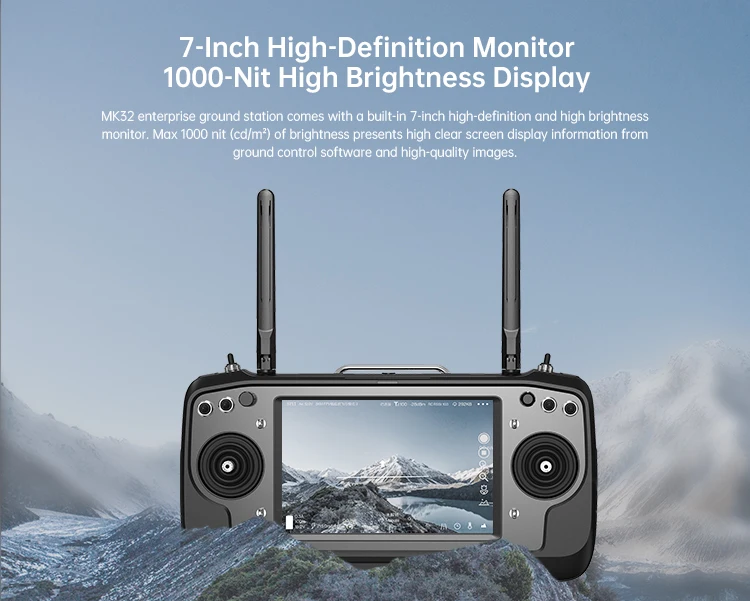

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen

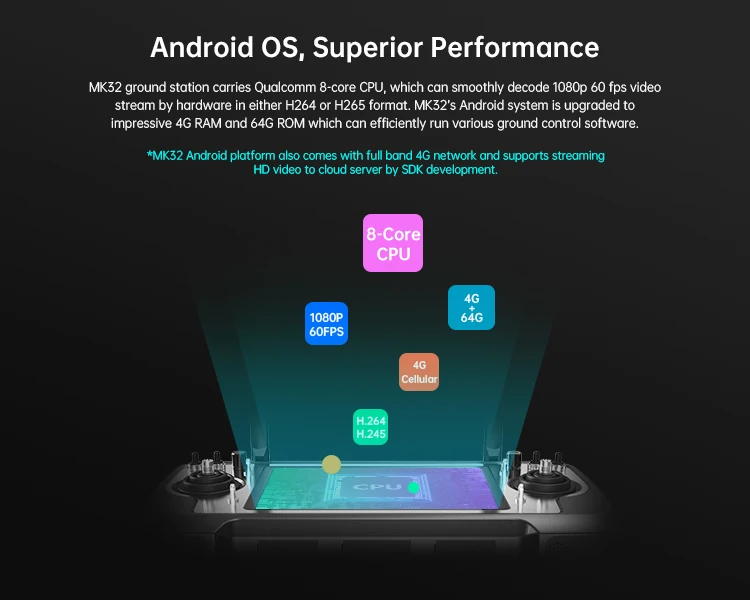

System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g

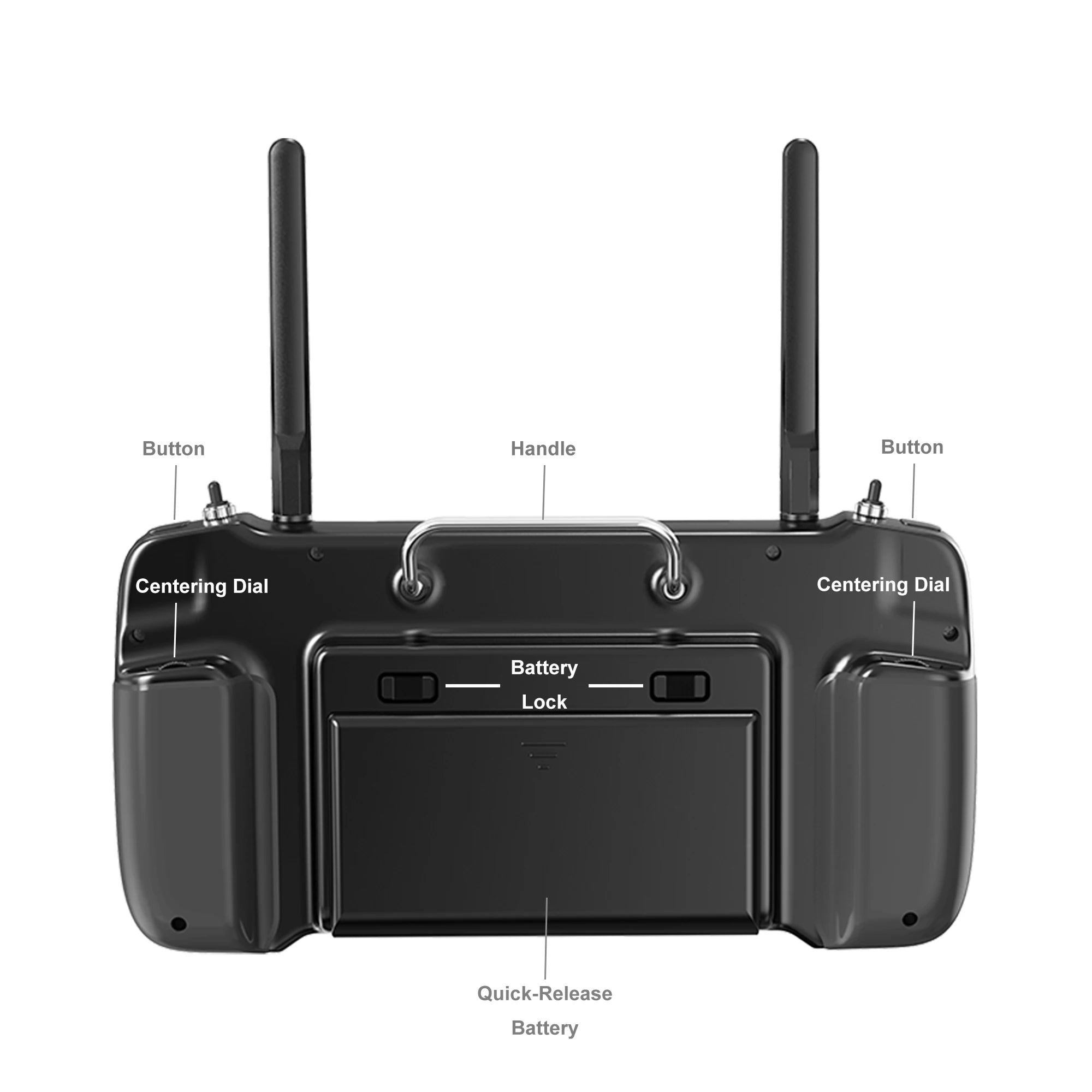

Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

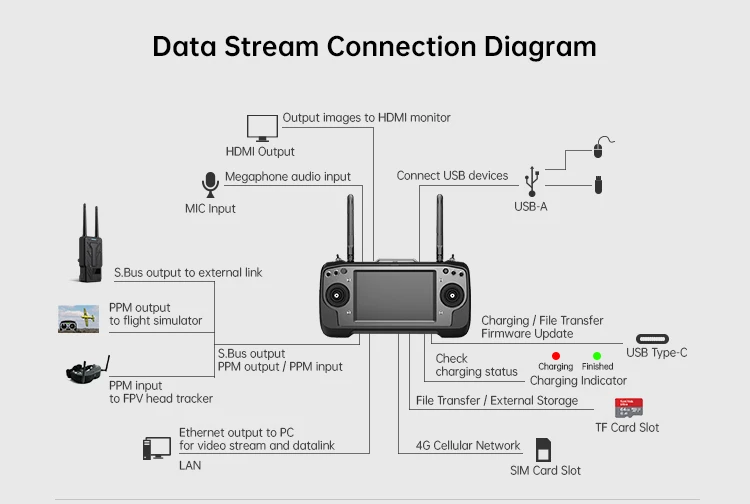

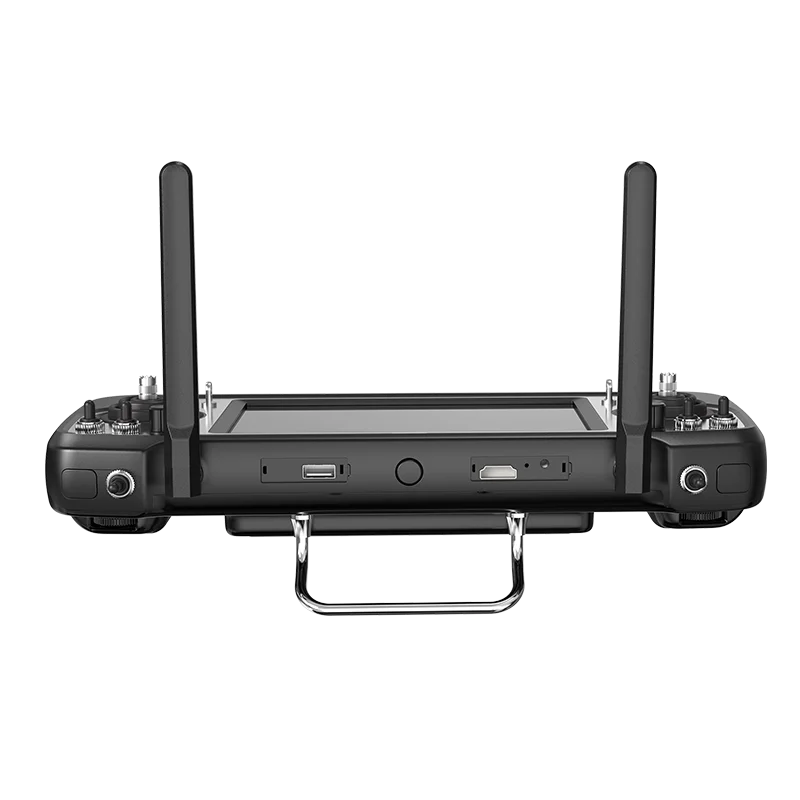

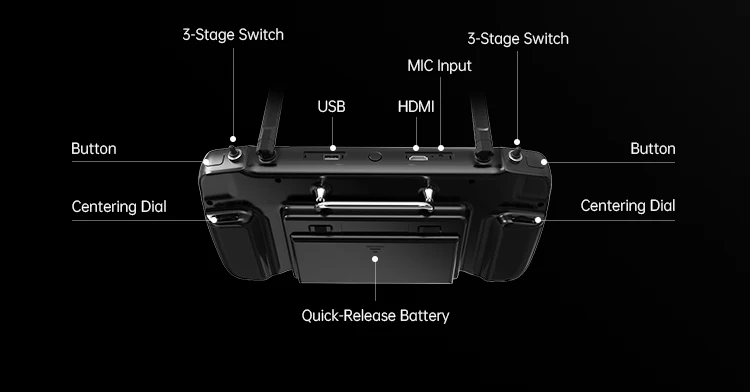

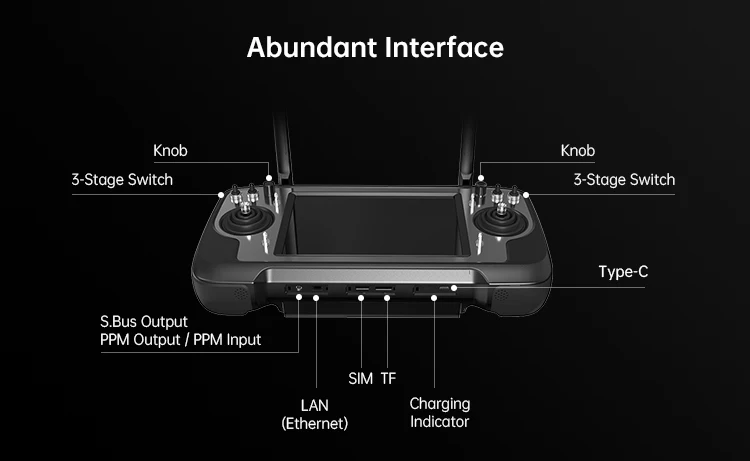

Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

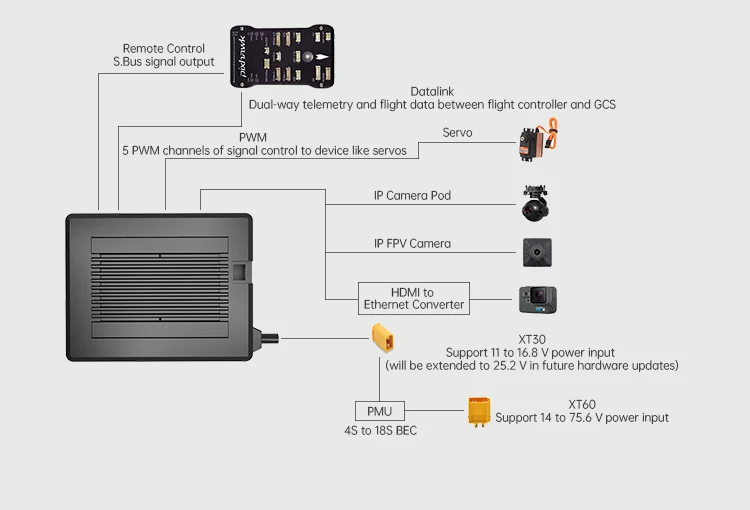

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

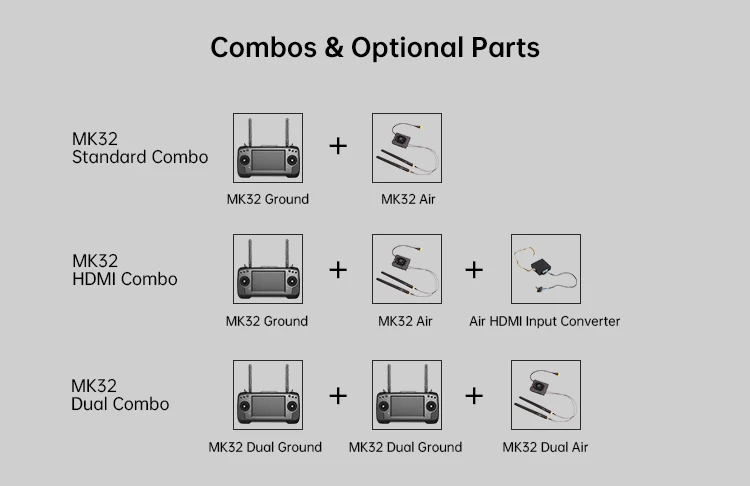

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)

Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃
Dimensions: 42 x 41 x 11 mm
Weight: 26 g
