SIYI HM30 Full HD Digital Image Transmission System Long Range RC Radio System 1080p 150ms Mavlink Telemetry OSD 30KM Range
Products Description OverallModel: HM30Max Transmission Range: 30 kilometers (unobstructed, free of interference)Channels: 16 communication channelsCompatible Flight Controllers:-...
- $2,646.00
$2,646.00- $2,646.00
- Unit price
- per
Products Description
Overall
Model: HM30

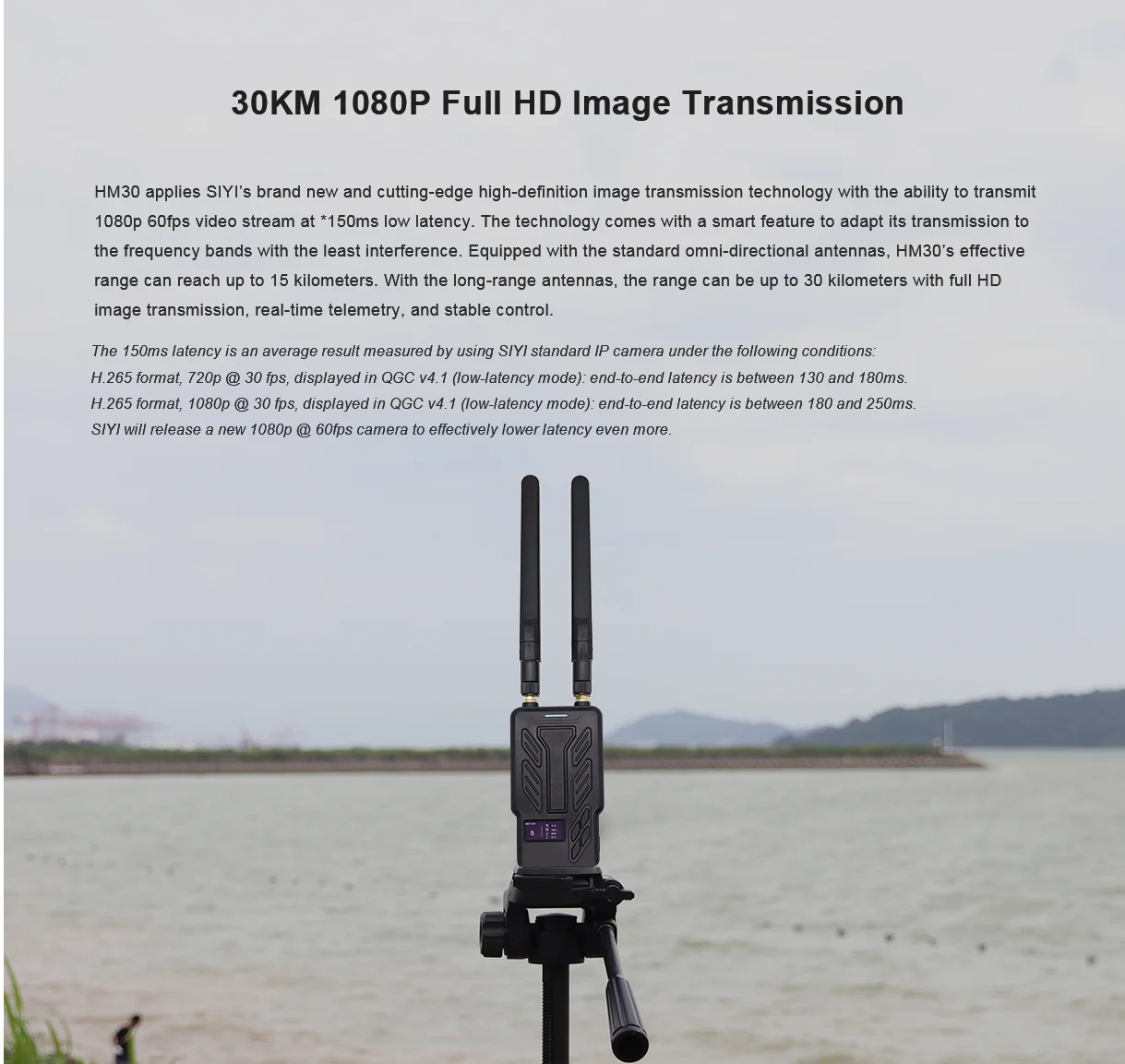

Max Transmission Range: 30 kilometers (unobstructed, free of interference)
Channels: 16 communication channels
Compatible Flight Controllers:
- Pixhawk Based Flight Controller or APM
- SN-L+ Fixed Wing Flight Controller
- MATEK H743 / F405
or any flight controllers with UART datalink output
Compatible Android GCS (standard RTSP video stream):
- SIYI FPV
- QGroundControl
Compatible Windows GCS (standard RTSP video stream):
- QGroundControl
- Mission Planner
Ground Unit

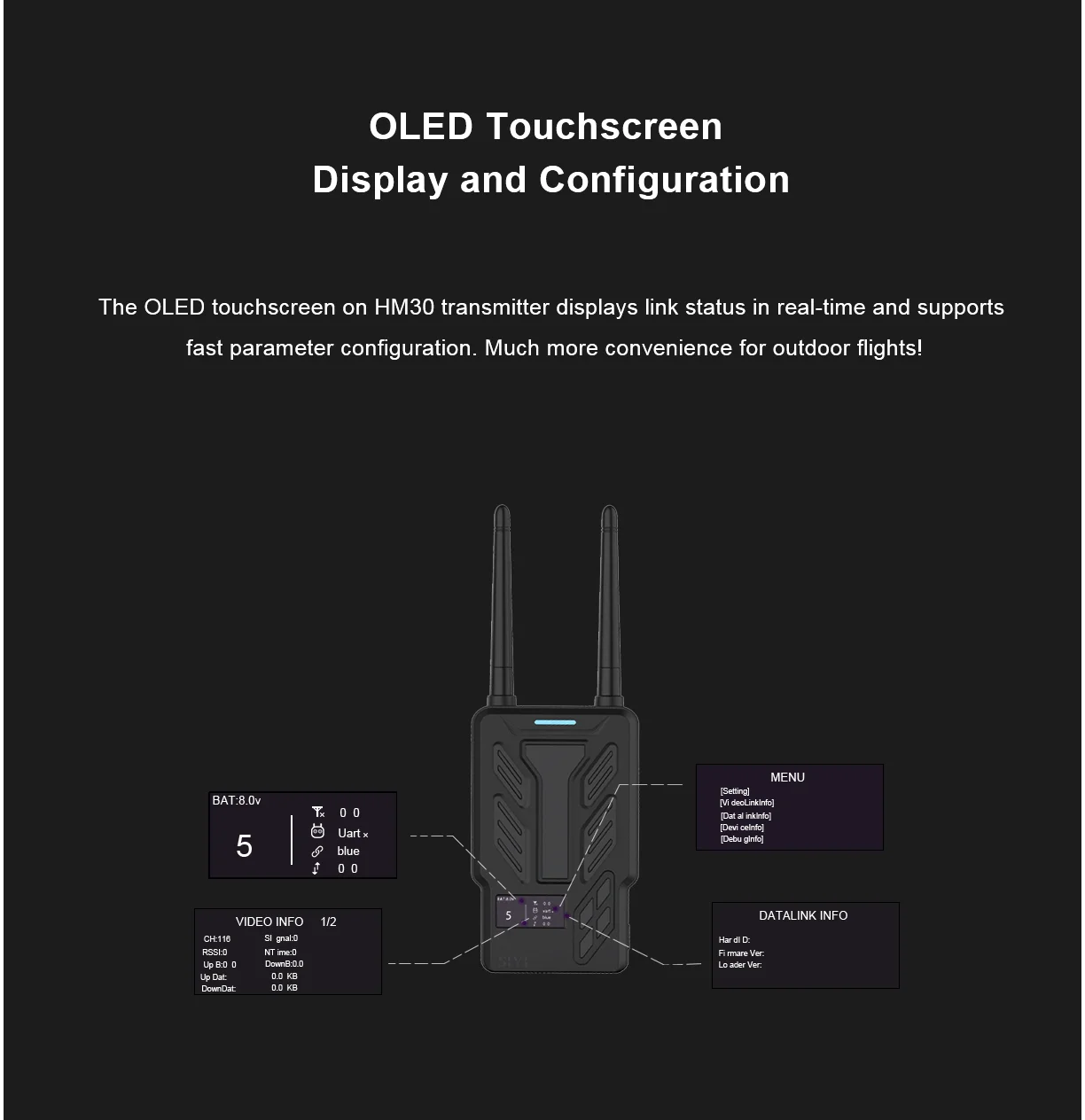

Monitor Display: 0.96-inch OLED Screen
Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
Weight (antenna and battery excluded): 132 g

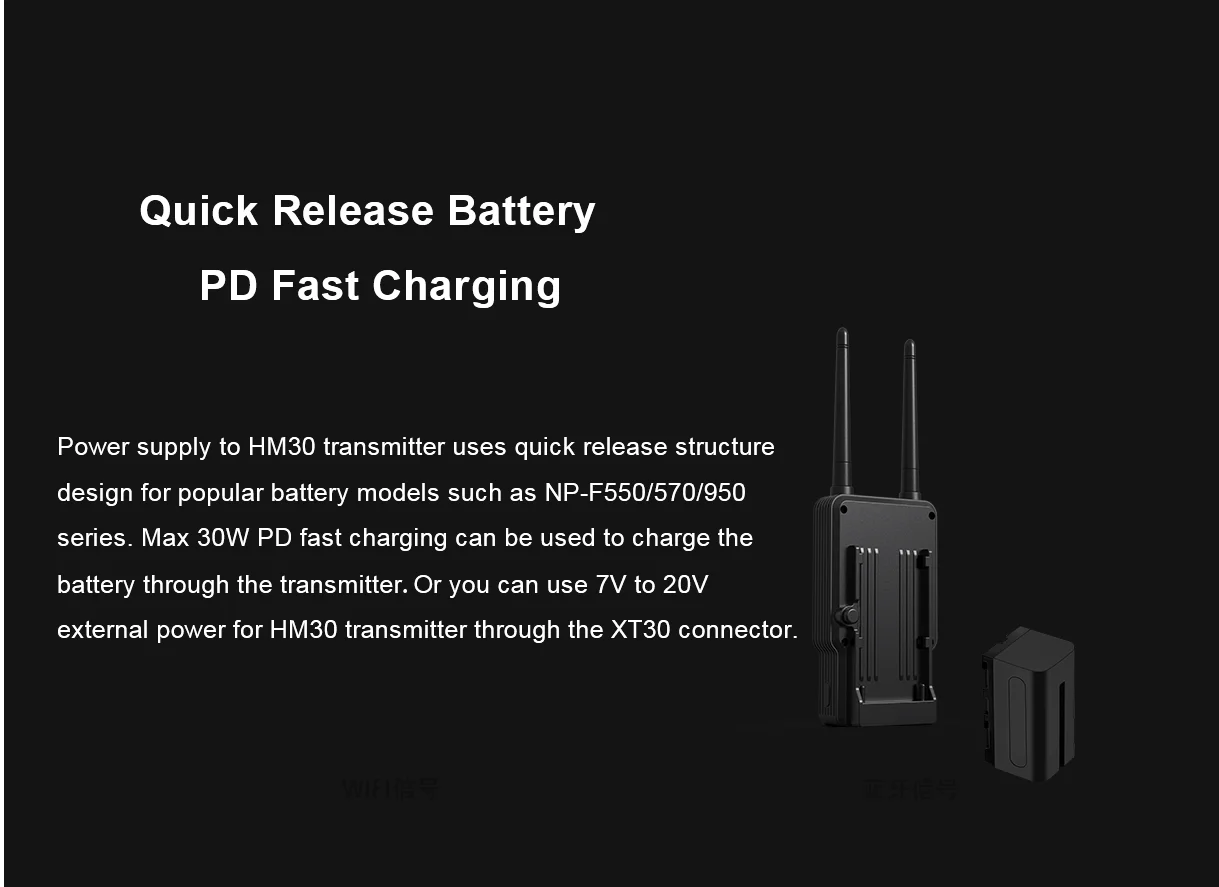

Compatible Battery Type:
- NP-F550 / F750 / F770 / F950 / F970 series quick release batteries
(HM30 Fly More Combo comes with NP-F750 battery)
Fast Charging Protocol: PD 30W
Antenna Gain:
- Standard Omni Antennas: 5 dBi
- Standard Long Range Antennas: 11 dBi
Power Consumption: 5 W

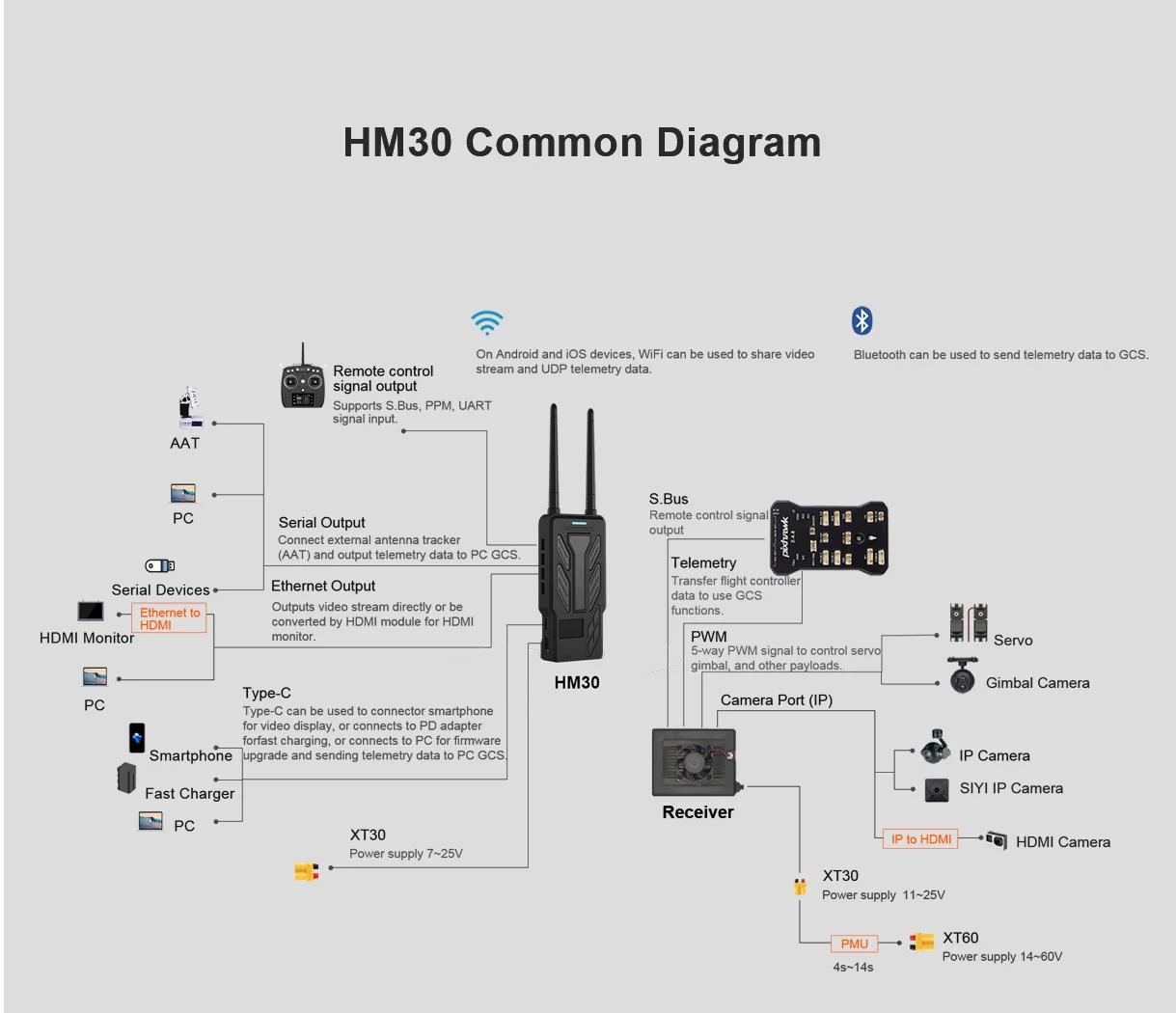

Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
- Datalink Output: UART (GH1.25 4-Pin)
- Ethernet Port: LAN (GH1.25 4-Pin)
- Power Output: VCC (GH1.25 4-Pin)
- USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
- Power Input: PWR (XT30)
- Tripod Connector: 1/4-inch Screw Hole
Waterproof Level: IP53
Working Temperature: -10 to 50℃
Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃
FPV Camera
Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
Sensor: 1/2.9" CMOS
Effective Reolution: 3 MP
Lens: 3.2 mm, F/2.8
Camera Angle: FOV 105°
Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Cable Lens: 1000 mm
Working Temperature: -10 to 55℃
Ground Unit HDMI Output Converter (Optional)
HDMI Port Type: Standard HDMI
Power Consumption: 2.5 W
Dimensions: 52 x 52 x 16 mm
Weight: 150 g
Working Temperature: -10 to 55℃
Model: HM30
Max Transmission Range: 30 kilometers (unobstructed, free of interference)
Channels: 16 communication channels
Compatible Flight Controllers:
- Pixhawk Based Flight Controller or APM
- SN-L+ Fixed Wing Flight Controller
- MATEK H743 / F405
or any flight controllers with UART datalink output
Compatible Android GCS (standard RTSP video stream):
- SIYI FPV
- QGroundControl
Compatible Windows GCS (standard RTSP video stream):
- QGroundControl
- Mission Planner
Ground Unit
Monitor Display: 0.96-inch OLED Screen
Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
Weight (antenna and battery excluded): 132 g
Compatible Battery Type:
- NP-F550 / F750 / F770 / F950 / F970 series quick release batteries
(HM30 Fly More Combo comes with NP-F750 battery)
Fast Charging Protocol: PD 30W
Antenna Gain:
- Standard Omni Antennas: 5 dBi
- Standard Long Range Antennas: 11 dBi
Power Consumption: 5 W
Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
- Datalink Output: UART (GH1.25 4-Pin)
- Ethernet Port: LAN (GH1.25 4-Pin)
- Power Output: VCC (GH1.25 4-Pin)
- USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
- Power Input: PWR (XT30)
- Tripod Connector: 1/4-inch Screw Hole
Waterproof Level: IP53
Working Temperature: -10 to 50℃
Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃
FPV Camera
Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
Sensor: 1/2.9" CMOS
Effective Reolution: 3 MP
Lens: 3.2 mm, F/2.8
Camera Angle: FOV 105°
Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Cable Lens: 1000 mm
Working Temperature: -10 to 55℃
Ground Unit HDMI Output Converter (Optional)
HDMI Port Type: Standard HDMI
Power Consumption: 2.5 W
Dimensions: 52 x 52 x 16 mm
Weight: 150 g
Working Temperature: -10 to 55℃
Company Profile
SIYI assembled its core R&D team in 2013, dedicated to making radio technologies applied and accepted by more users by making advanced and elegant commercialized radio systems. SIYI serves open system users, enterprises, and manufacturers. And we are trying to be a part of the RC world since the beginning.
Exhibition
FAQ
1. What is HM30?

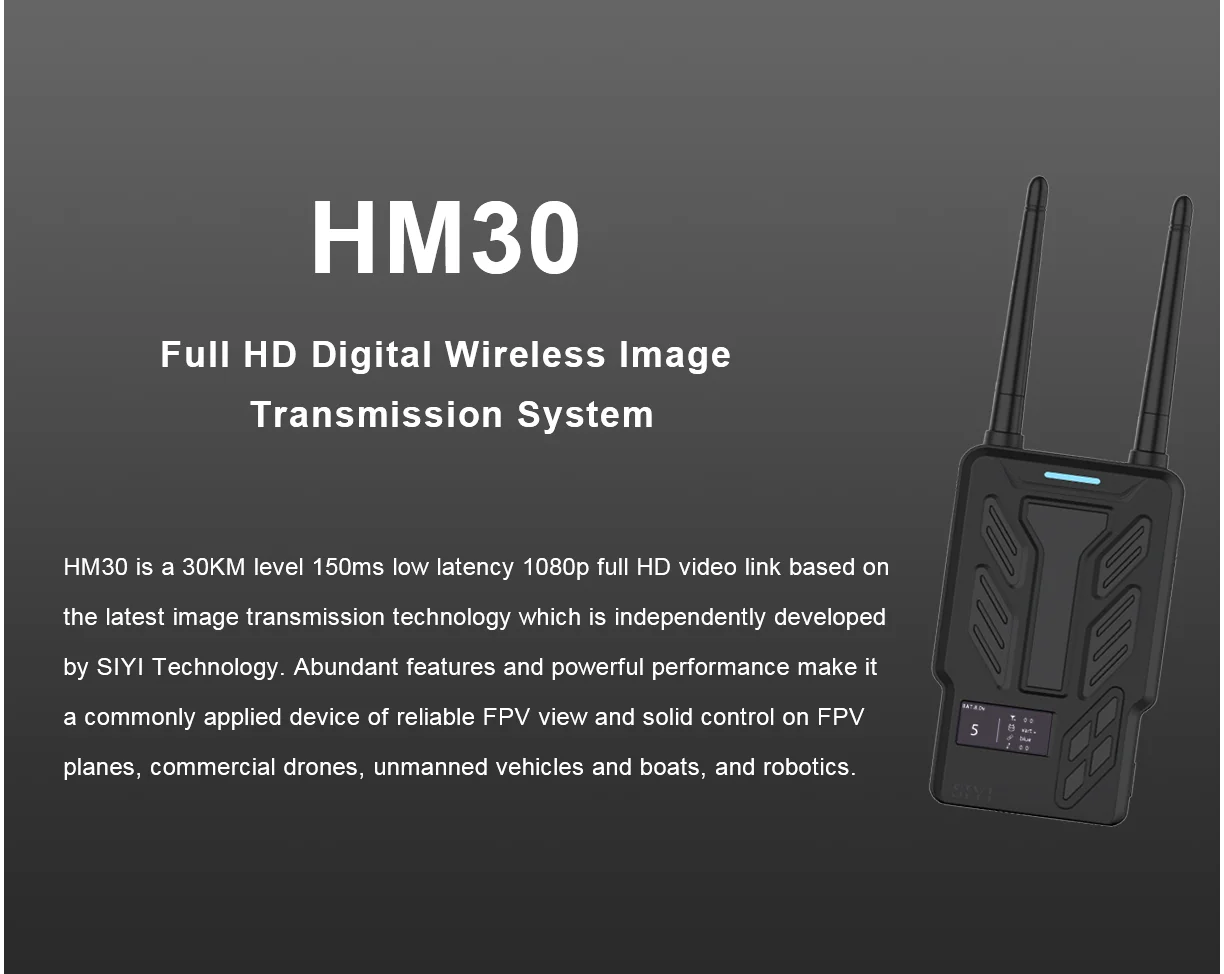

A long range full HD image transmission system with remote control, telemetry, and built-in OSD.
2. What frequency bands do HM30 use?
5100 to 5825 MHz, centering at 5550 MHz.
3. Can I replace the antennas on HM30?
Yes, of course.
Both the ground unit and the air unit are using SMA connectors for antenna installation.
SIYI original antennas are:
4 x Omni Antennas (2 for ground, 2 for air)
2 x Directional Antennas (for ground)
SIYI optional antenna choices are:
- Air Unit Lollipop Antenna
- Ground Unit 17 dB High Gain Antenna
- Ground Unit 21 dB High Gain Antenna
- Ground Unit 26 dB High Gain Antenna
4. How much transmitting power in HM30?
Around 25 dBm / 320 mW
5. What is the effective range?
The latest record is 50 km.
With different antenna setup and in different wireless mode, the range limit is different.
26 KM Range Test Full Video - SIYI HM30 Full HD Image Transmission System
Amazing Record 42 KM Range Test Full Video - SIYI HM30
6. What flight controllers are compatible with HM30?

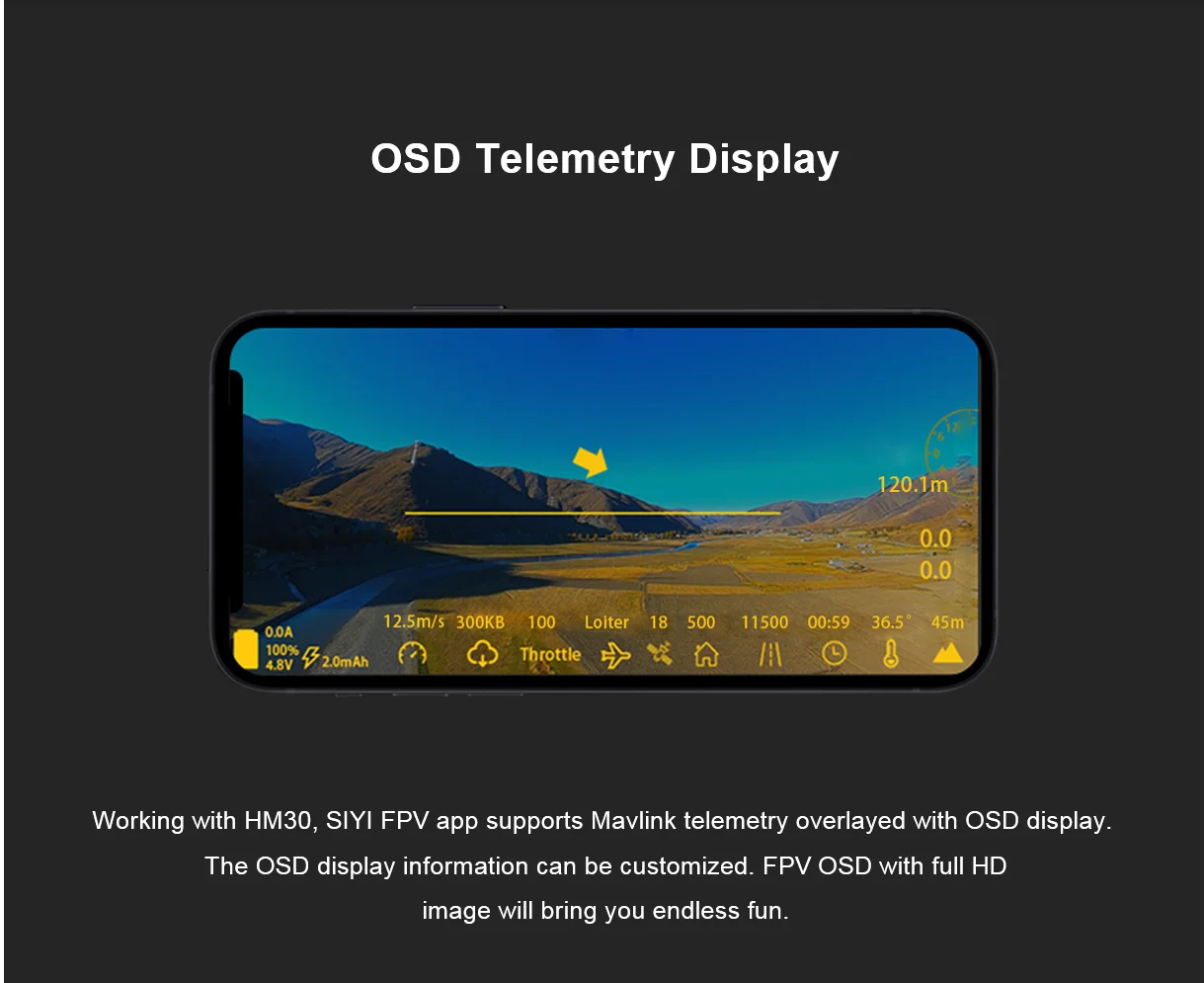

To use the OSD overlay, the flight controllers should support Mavlink output, such as Ardupilot, PX4, INAV, etc.
If the OSD overlay is not necessary, then any flight controllers are compatible with HM30.
7. What remote controllers are compatible with HM30?
Any remote controllers which support S.Bus output, or their receivers supports S.Bus output.
8. What interfaces to output video stream on HM30 ground unit?
- USB-C
- LAN (UDP telemetry simultaneously)
- Internal WiFi (UDP telemetry simultaneously)
- USB WiFi (UDP telemetry simultaneously)
9. Does HM30 ground unit support HDMI output?
Yes with a sold-alone Ground Unit LAN-HDMI Output Converter Module.
10. Does HM30 air unit support HDMI input?
Yes with a sold-alone Air Unit HDMI-Ethernet Input Converter Module.
11. What are the dimensions and the weight of the HM30 unit and the FPV camera?
Air Unit
- Dimension: 70x55x24 mm (antenna detached, fan height included)
- Weight: 74 g (antenna detached)
FPV Camera
- Dimension: 42x42x25 mm
- Weight: 23 g
12. What kind of models are the most suitable for HM30?
FPV wings, multirotors, and VTOLs.
A long range full HD image transmission system with remote control, telemetry, and built-in OSD.
2. What frequency bands do HM30 use?
5100 to 5825 MHz, centering at 5550 MHz.
3. Can I replace the antennas on HM30?
Yes, of course.
Both the ground unit and the air unit are using SMA connectors for antenna installation.
SIYI original antennas are:
4 x Omni Antennas (2 for ground, 2 for air)
2 x Directional Antennas (for ground)
SIYI optional antenna choices are:
- Air Unit Lollipop Antenna
- Ground Unit 17 dB High Gain Antenna
- Ground Unit 21 dB High Gain Antenna
- Ground Unit 26 dB High Gain Antenna
4. How much transmitting power in HM30?
Around 25 dBm / 320 mW
5. What is the effective range?
The latest record is 50 km.
With different antenna setup and in different wireless mode, the range limit is different.
26 KM Range Test Full Video - SIYI HM30 Full HD Image Transmission System
Amazing Record 42 KM Range Test Full Video - SIYI HM30
6. What flight controllers are compatible with HM30?
To use the OSD overlay, the flight controllers should support Mavlink output, such as Ardupilot, PX4, INAV, etc.
If the OSD overlay is not necessary, then any flight controllers are compatible with HM30.
7. What remote controllers are compatible with HM30?
Any remote controllers which support S.Bus output, or their receivers supports S.Bus output.
8. What interfaces to output video stream on HM30 ground unit?
- USB-C
- LAN (UDP telemetry simultaneously)
- Internal WiFi (UDP telemetry simultaneously)
- USB WiFi (UDP telemetry simultaneously)
9. Does HM30 ground unit support HDMI output?
Yes with a sold-alone Ground Unit LAN-HDMI Output Converter Module.
10. Does HM30 air unit support HDMI input?
Yes with a sold-alone Air Unit HDMI-Ethernet Input Converter Module.
11. What are the dimensions and the weight of the HM30 unit and the FPV camera?
Air Unit
- Dimension: 70x55x24 mm (antenna detached, fan height included)
- Weight: 74 g (antenna detached)
FPV Camera
- Dimension: 42x42x25 mm
- Weight: 23 g
12. What kind of models are the most suitable for HM30?
FPV wings, multirotors, and VTOLs.
