SIYI FT24 Transmitter 2.4G Remote Controller with Long Range Mavlink Telemetry Datalink Mini Receiver Option 15KM

Product Description Specification Technical OverallModel: FT24Frequency Band: 2400 to 2483 MHzControl Range: 15 Kilometers / 9.3 Miles...
Vendor: SIYI
Availability: Out Of Stock
Product Type: Remote Controllers
$1,066.00
$1,066.00
$1,066.00
Subtotal: $1,066.00
SIYI FT24 Transmitter 2.4G Remote Controller with Long Range Mavlink Telemetry Datalink Mini Receiver Option 15KM

SIYI FT24 Transmitter 2.4G Remote Controller with Long Range Mavlink Telemetry Datalink Mini Receiver Option 15KM

$1,066.00

SIYI FT24 Transmitter 2.4G Remote Controller with Long Range Mavlink Telemetry Datalink Mini Receiver Option 15KM

$1,066.00
Compatible Brand: SIYI
color: SIYI FT24
Compatible Model: For FPV
Product Description
Specification

Technical

Overall
Model: FT24
Frequency Band: 2400 to 2483 MHz
Control Range: 15 Kilometers / 9.3 Miles (unobstructed, free of interference)
Channels: 12 physical channels, 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

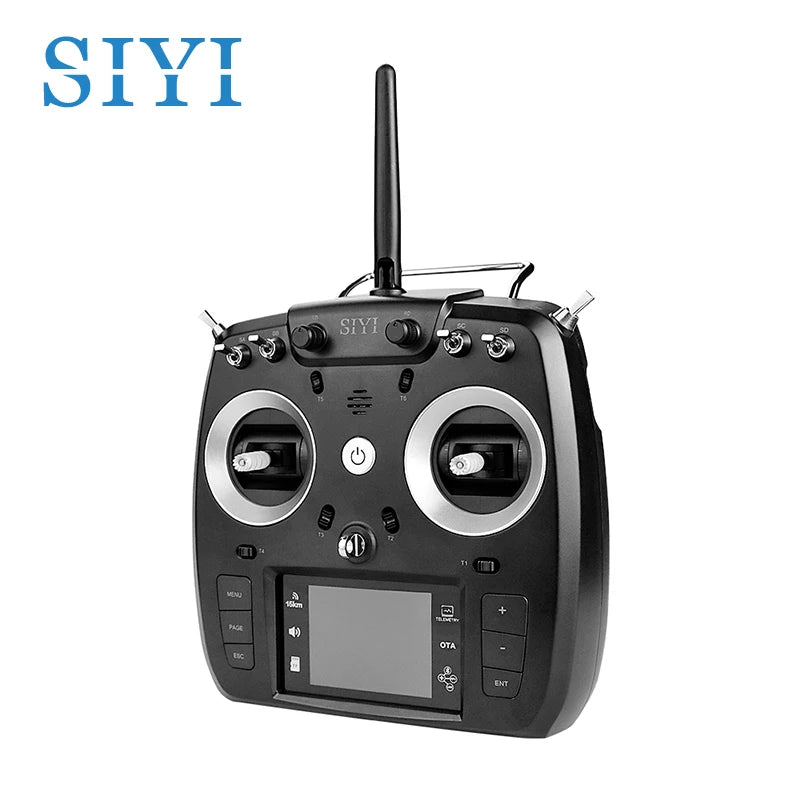

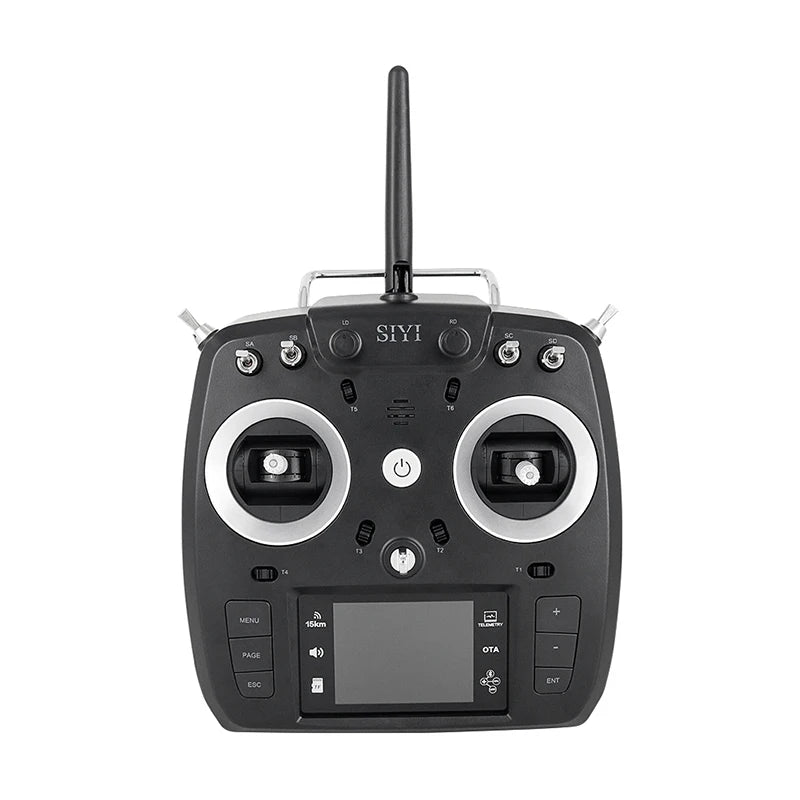

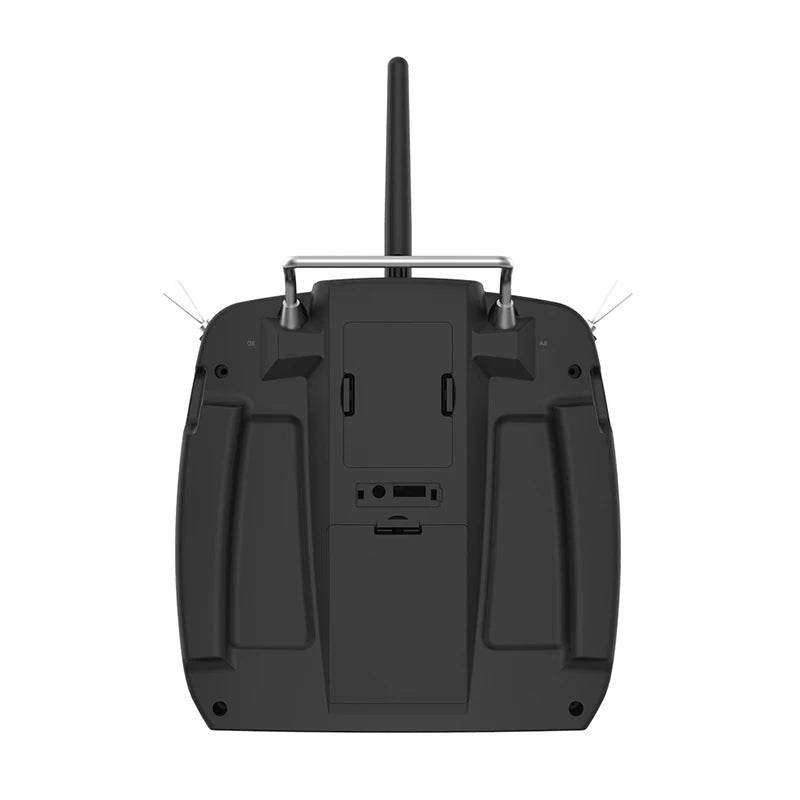

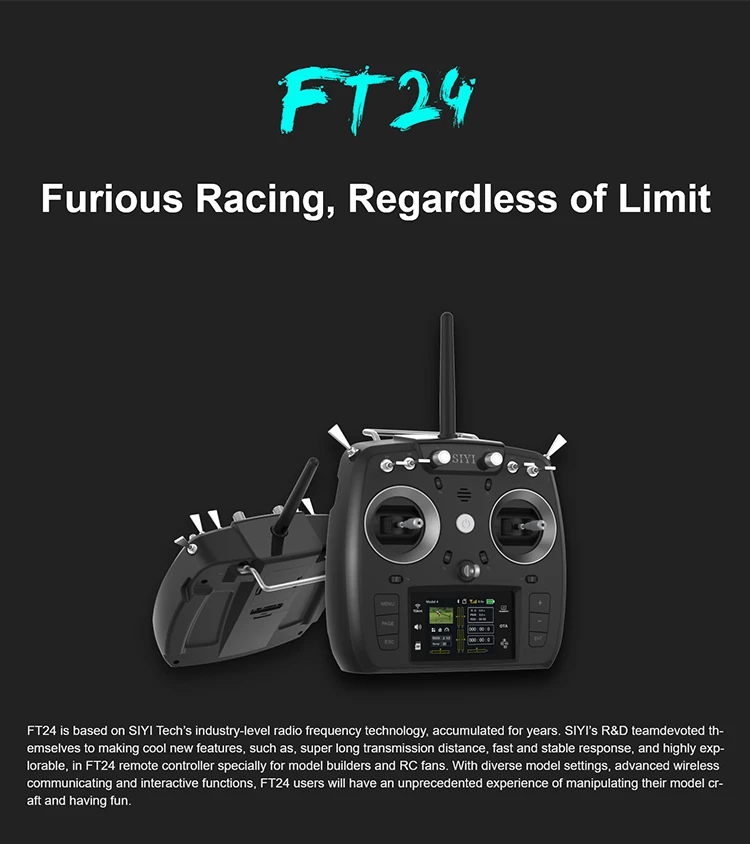

Transmitter
Monitor: 2.8-inch LCD Screen
Language Display: Chinese / English
Dimensions (antenna folded): 191 x 175 x 64 mm
Weight: 586 g
Compatible Battery Type:
- 2 x 18650 Li-ion (battery life 22 hours)
or
- 1 x 2S LiPo Battery (XH 2.54 3-Pin Port)
Working Temperature: 0 to 55℃

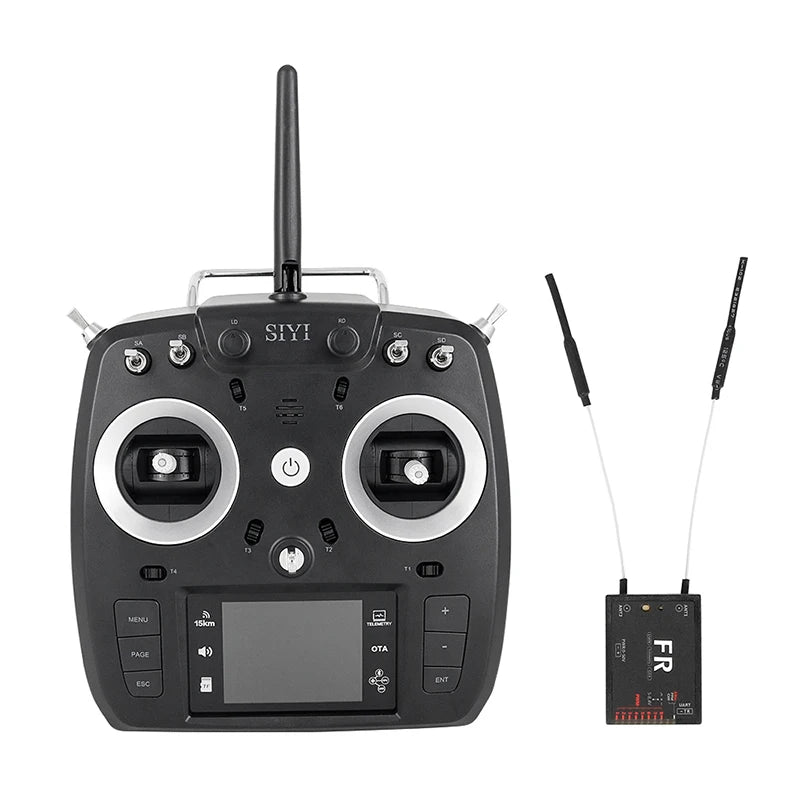

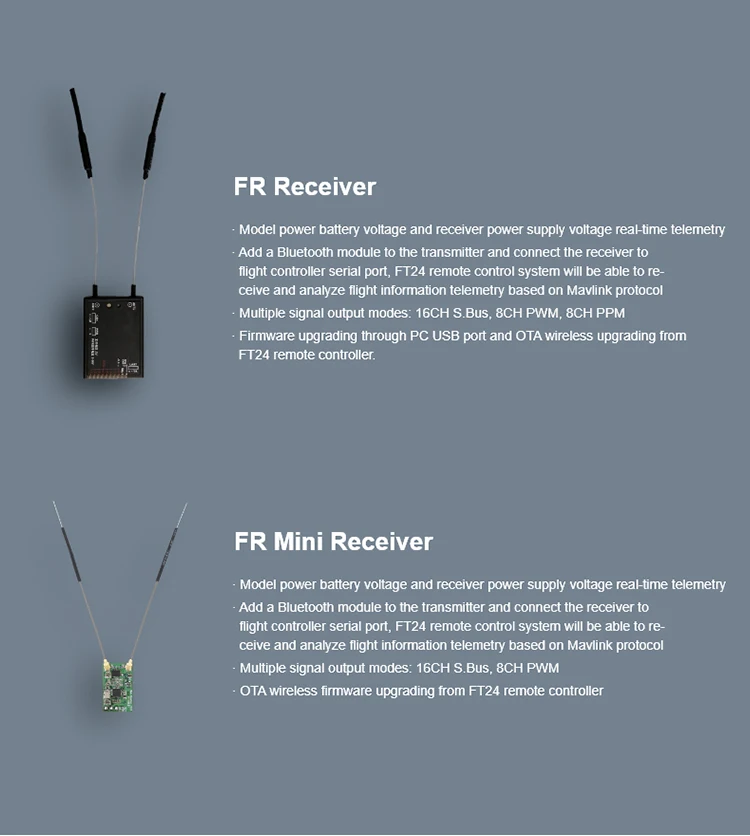

FR Receiver
Signal Output: 16 channels of S.BUS, 8 channels of PPM, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 51.5 x 38 x 13 mm
Weight (antenna excluded): 20 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 to 8.4 V

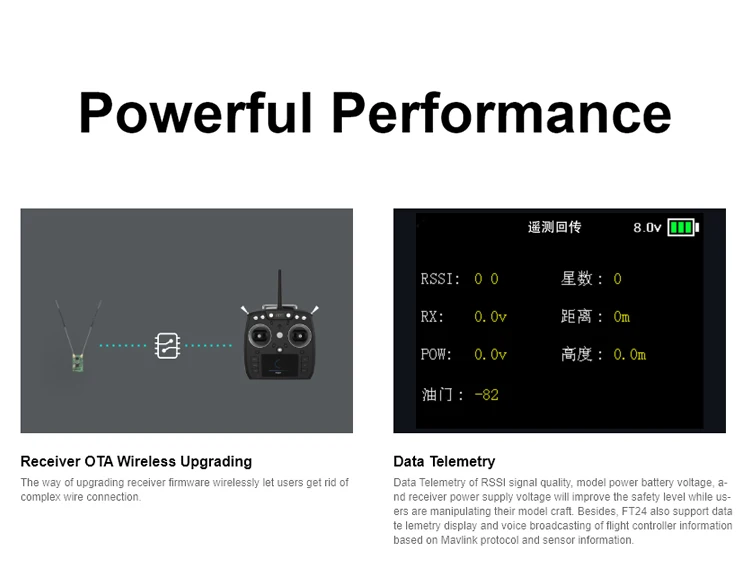

Voltage Telemetry Range: 0 ~ 50 V
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃

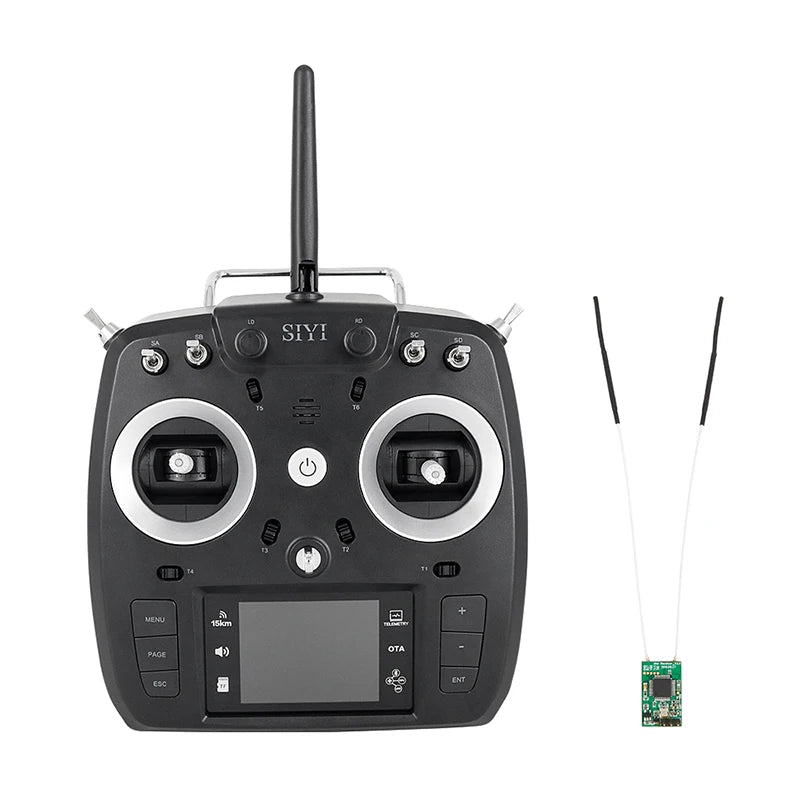

FR Mini Receiver
Signal Output: 16 channels of S.BUS, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 24 x 15 x 3 mm
Weight: 1.5 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 V
Voltage Telemetry Range: 0 ~ 26 V
Working Temperature: -10 to 55℃
Company Profile
SIYI assembled its core R&D team in 2013, mostly known as a hardware company focus on integrated remote controller and image transmission technologies for commercial drones. SIYI product team is always seeking for an edge both in applied technologies and in customer experience. SIYI serves open system users, enterprises, and manufacturers. And we are trying to be a part of the RC world since the beginning.
