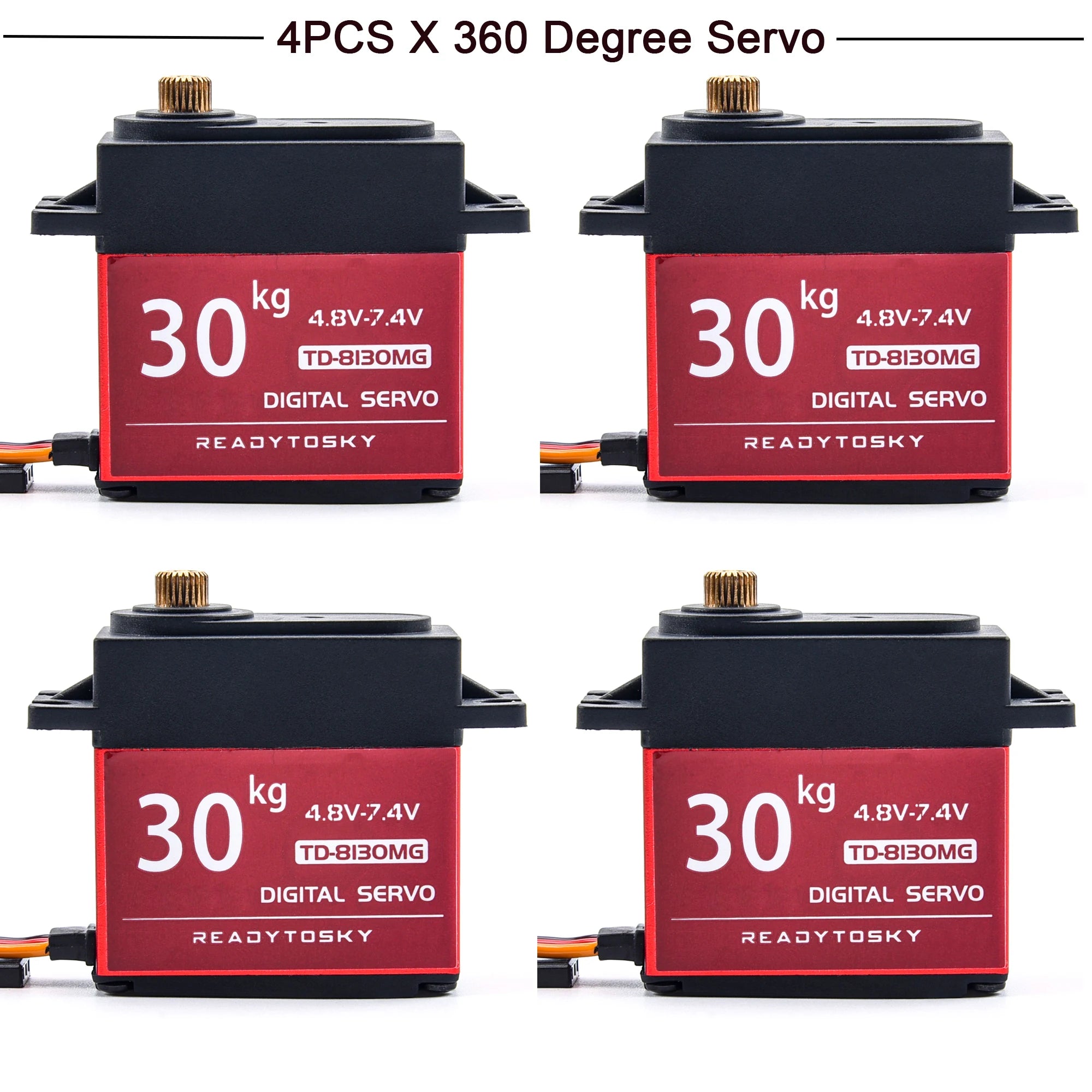

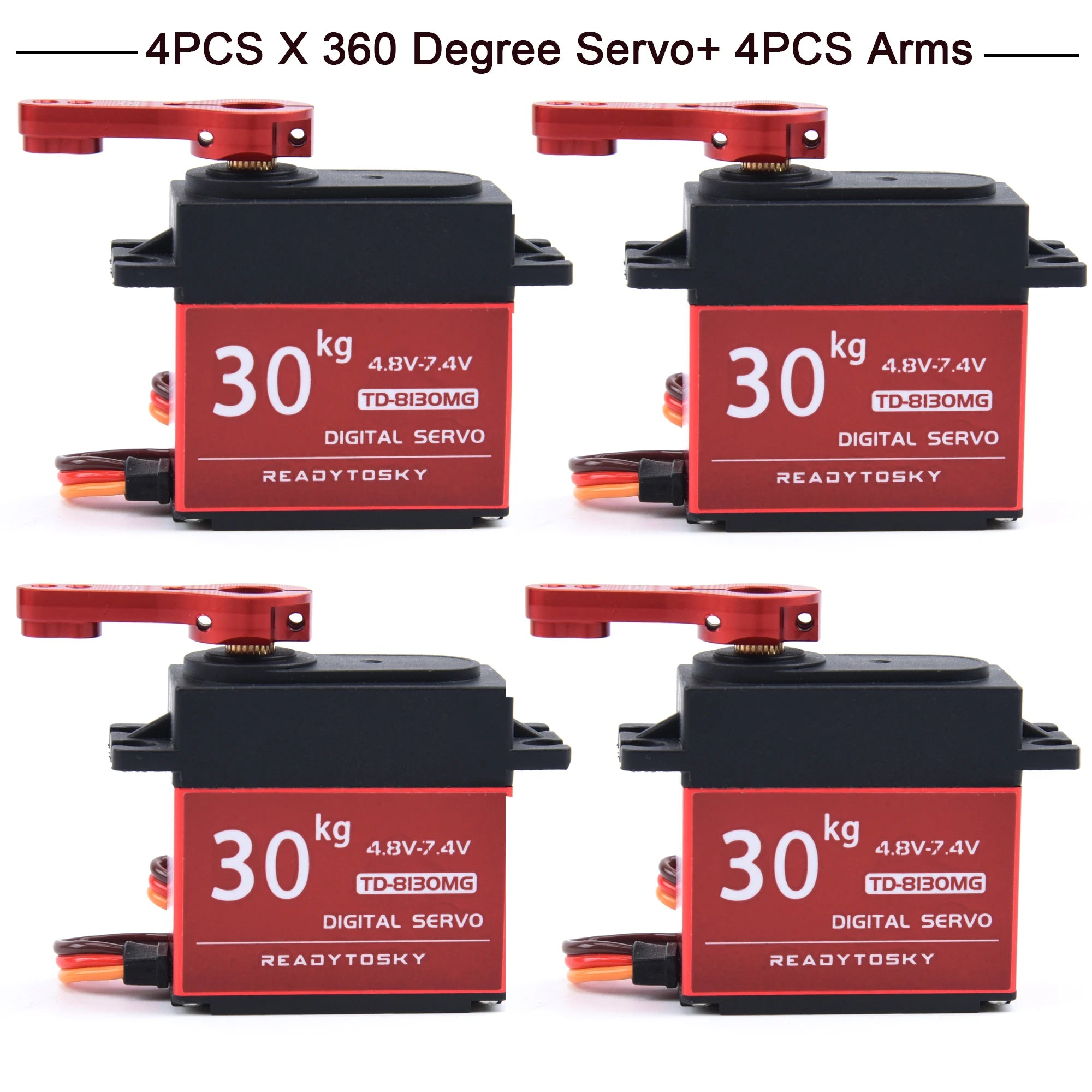

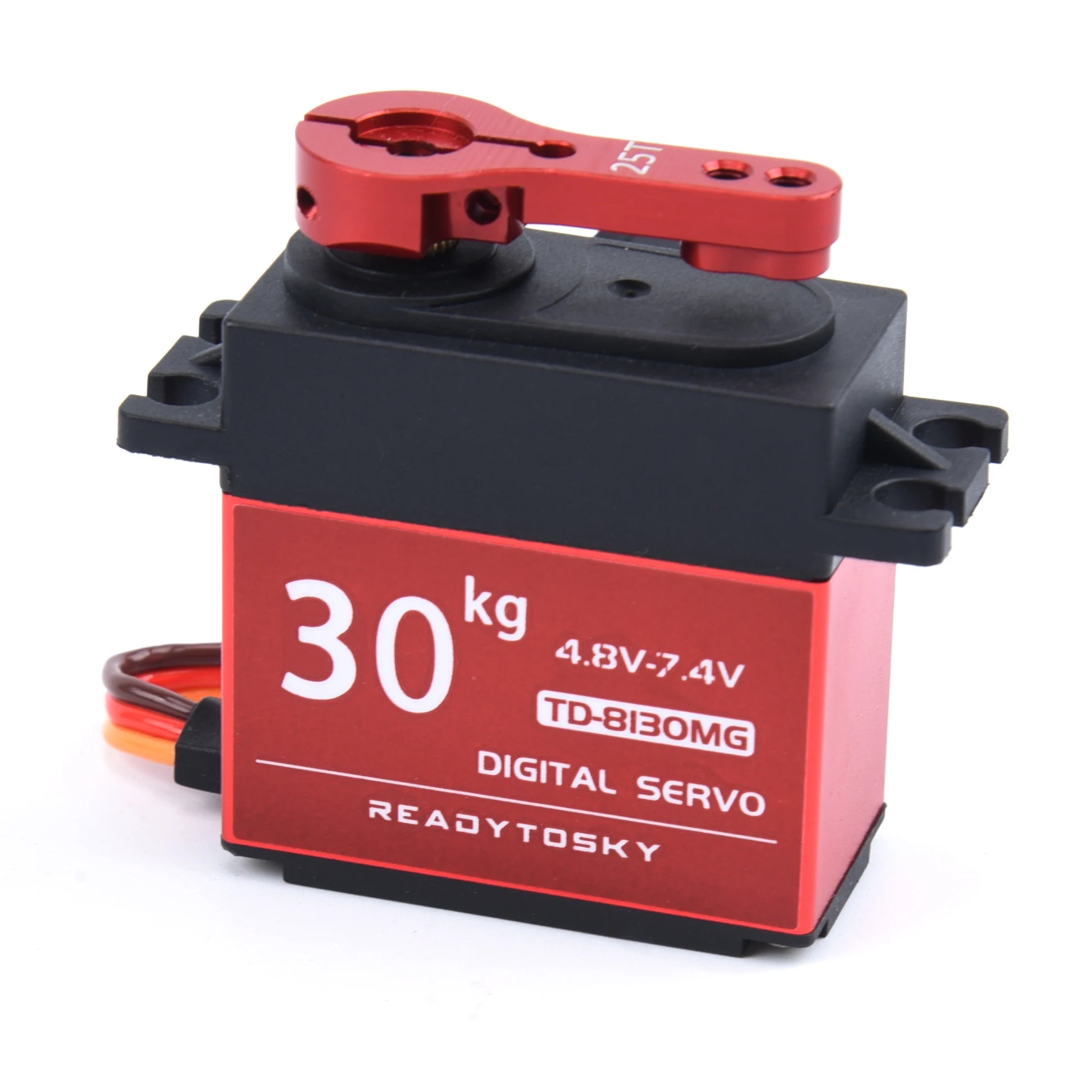

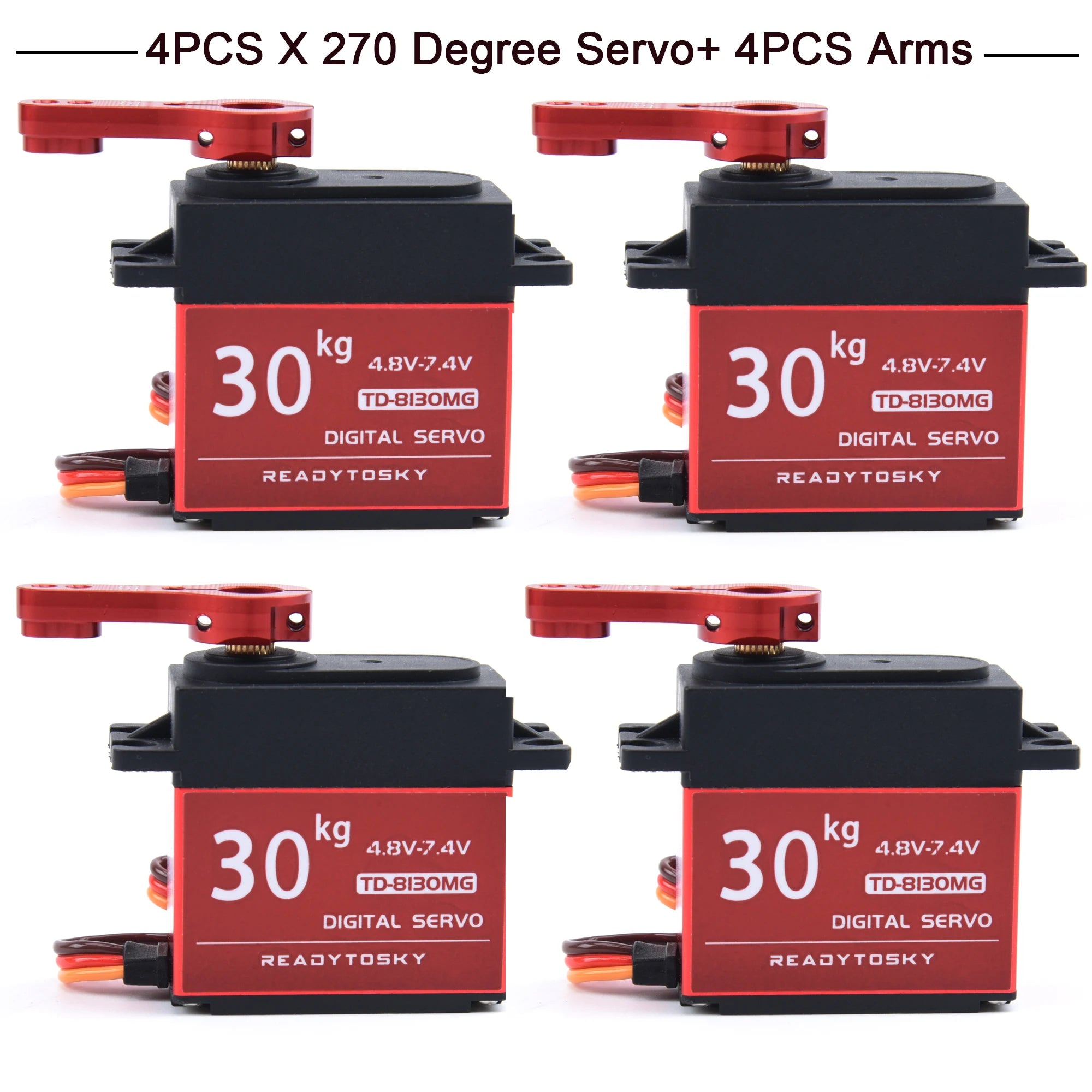

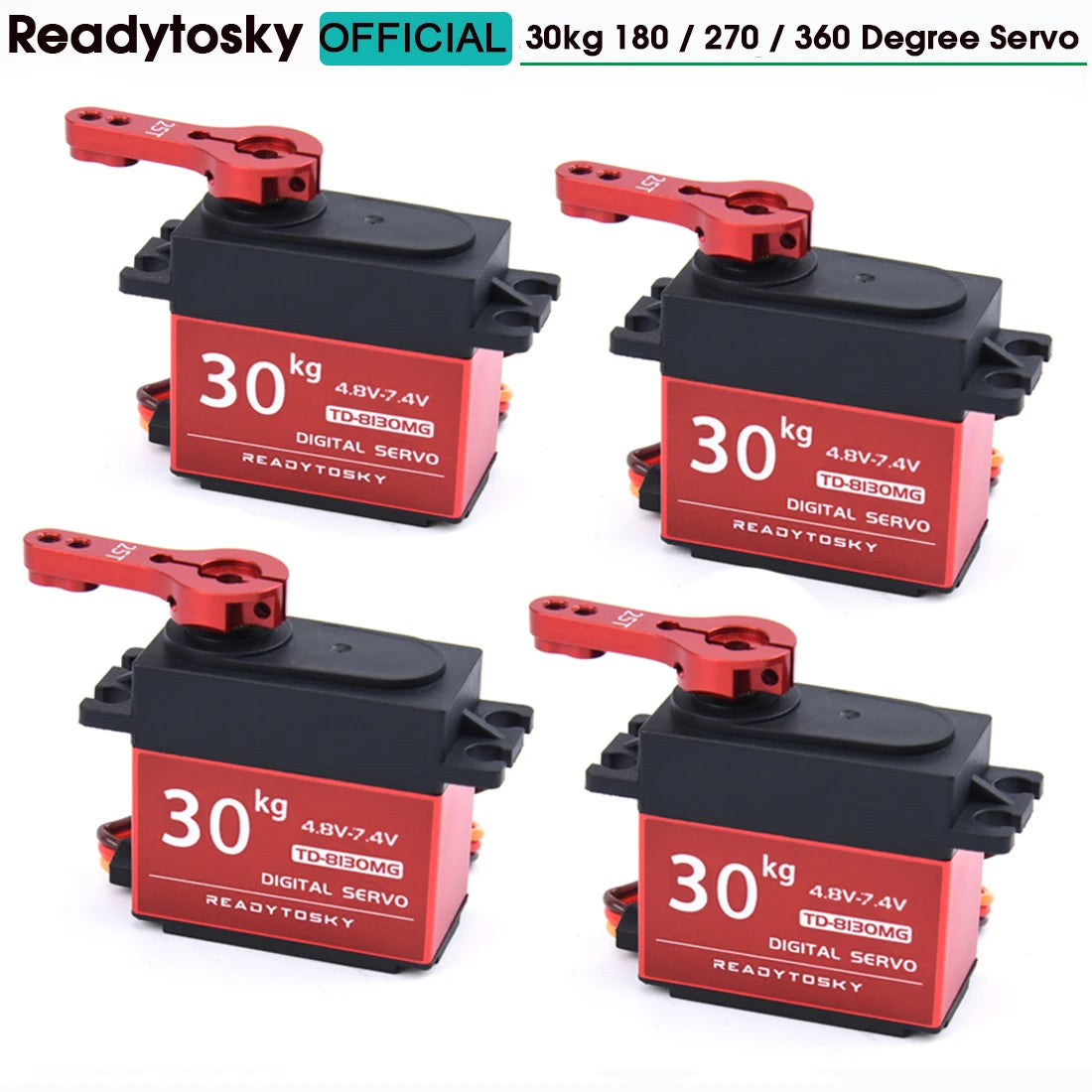

Readytosky 30KG Servo TD-8130MG 90~180 / 270 / 360 Degree Update Metal Gear Digital Servo 25T Arm for 1/8 1/10 Scale RC Car Toy
30KG Servo 180 / 270 / 360 Degree: Apply Environmental Conditon: 1. Storage Temperature Range: -30°C～80°C 2....
- $43.00
$43.00- $43.00
- Unit price
- per
30KG Servo 180 / 270 / 360 Degree:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: 25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm

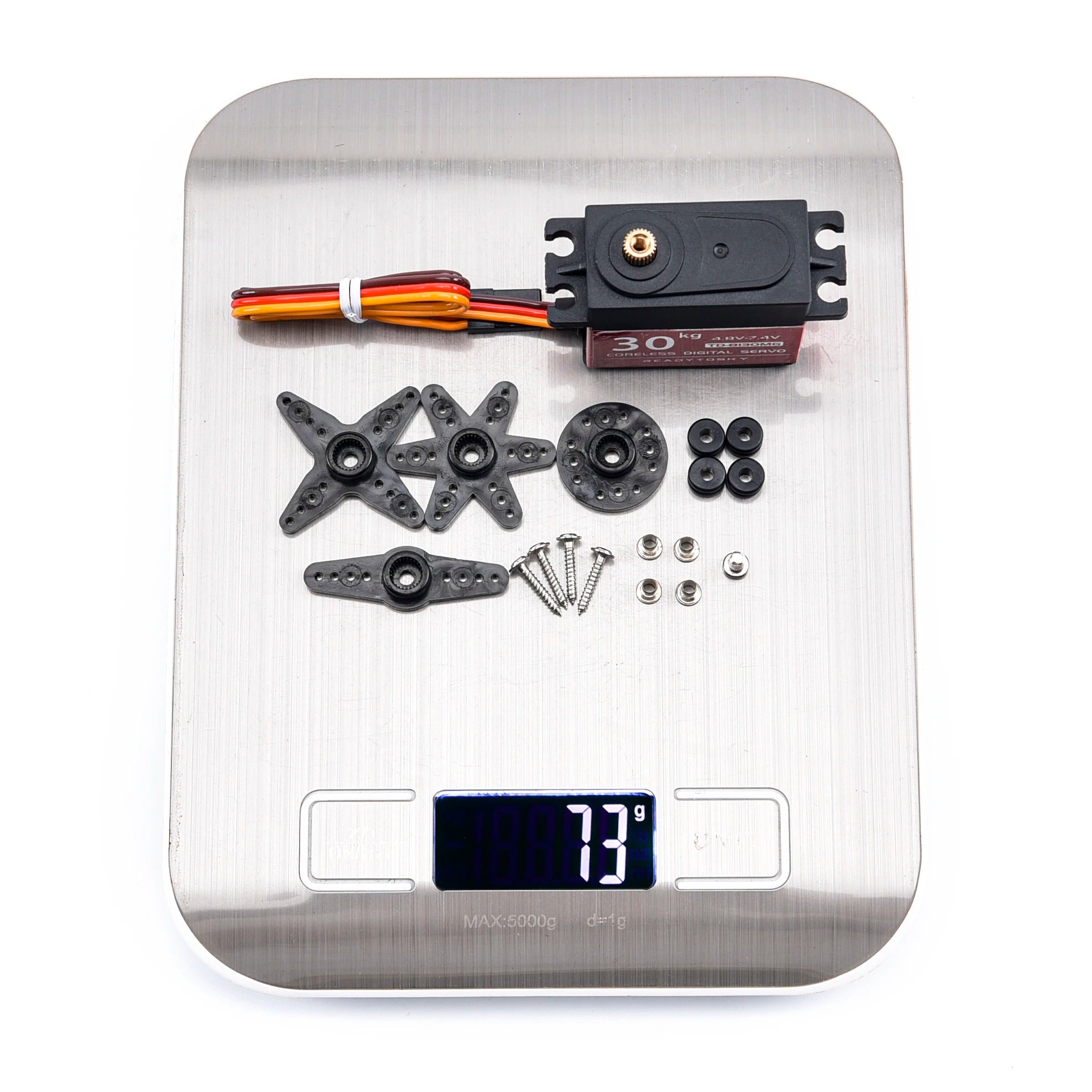

2. Weight: 56g±2g

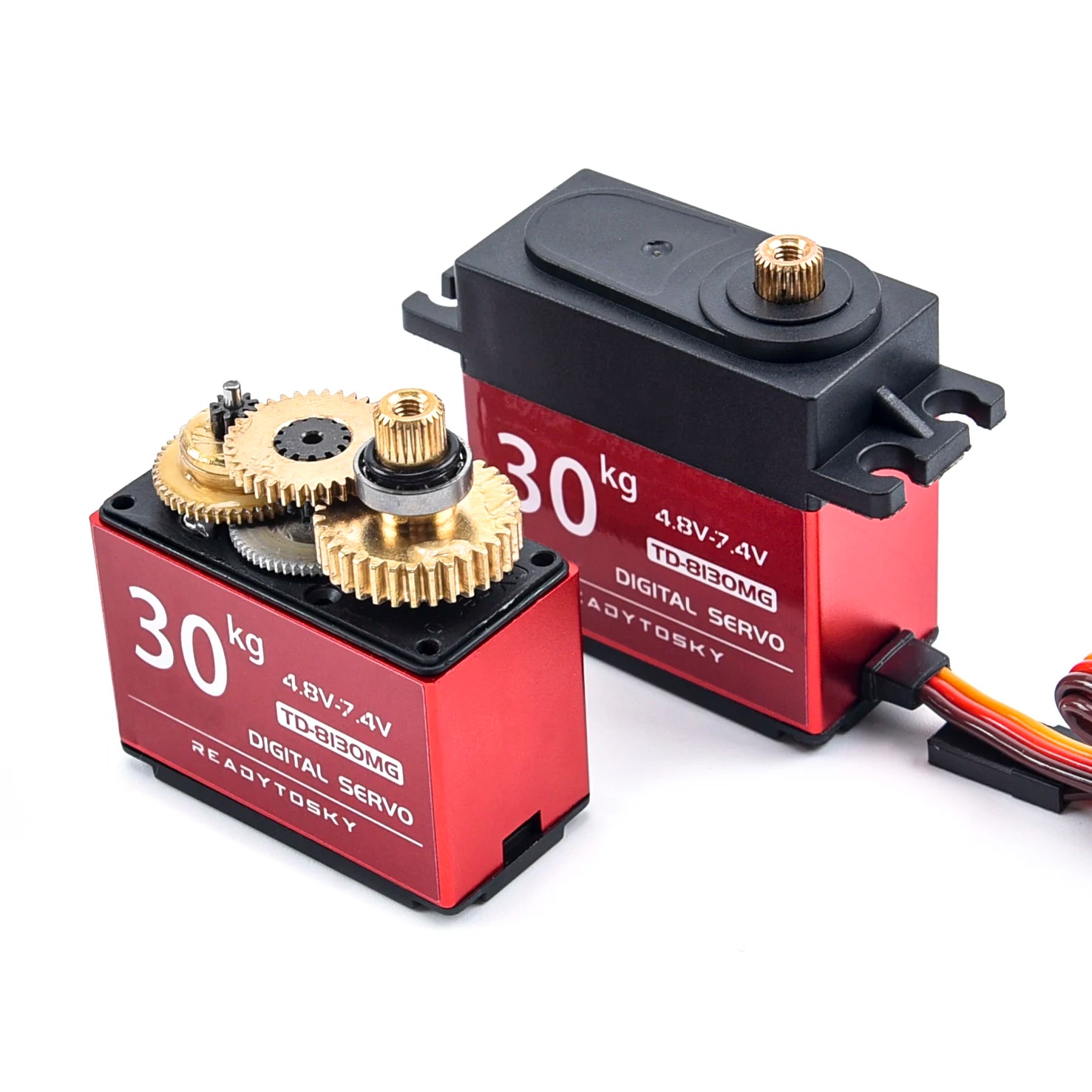

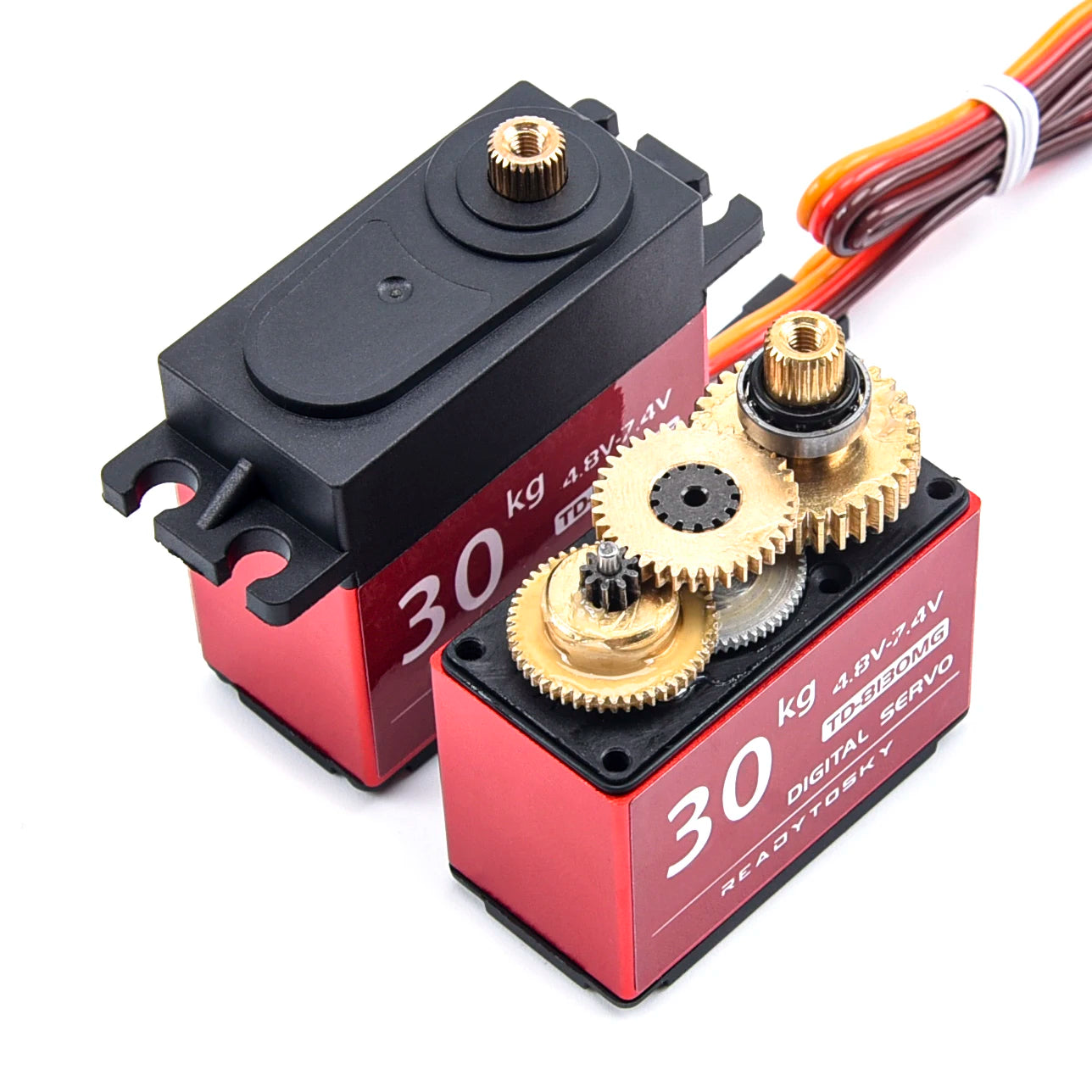

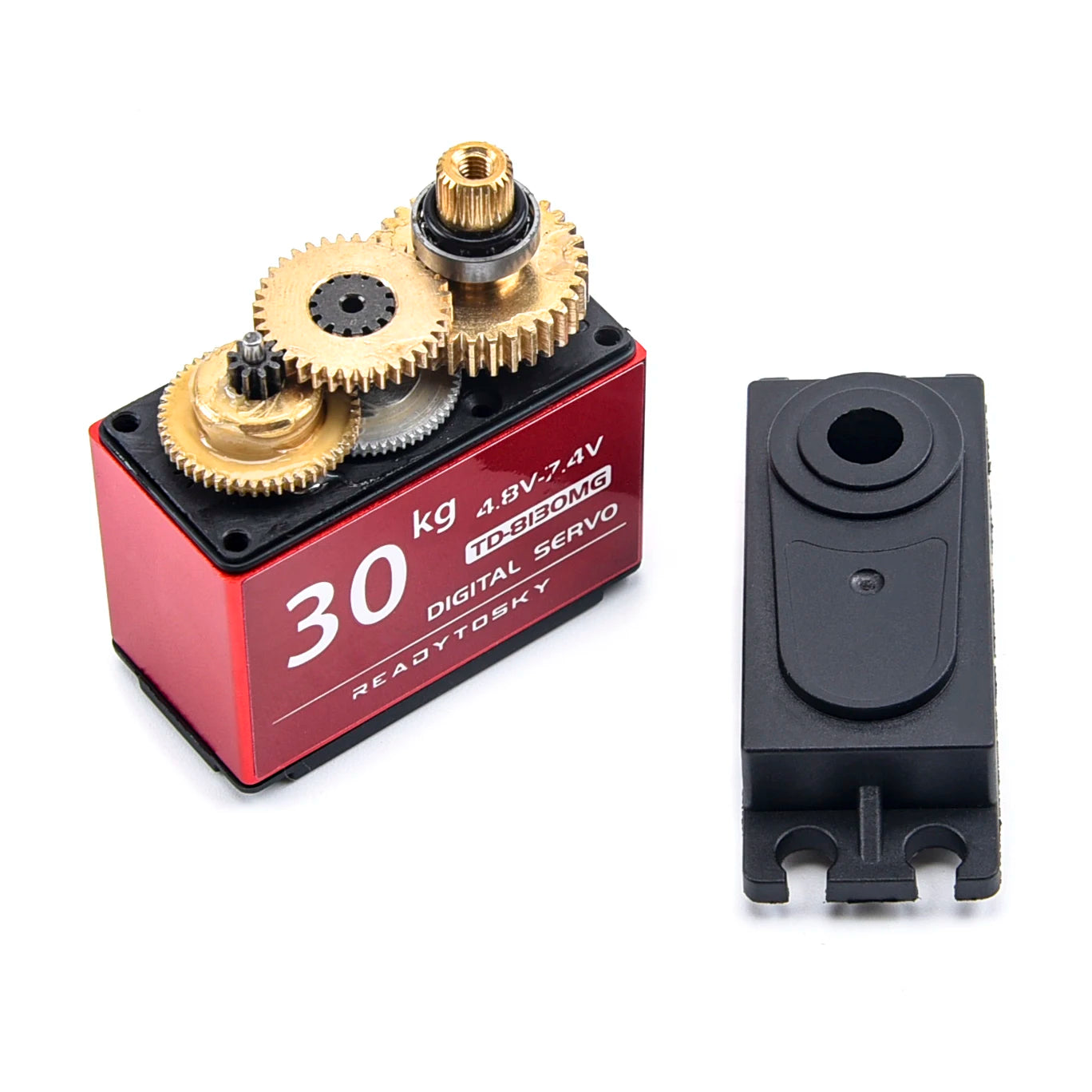

3. Gear type: 5 Metal
4. Limit angle:360°
5. Bearing:2BB

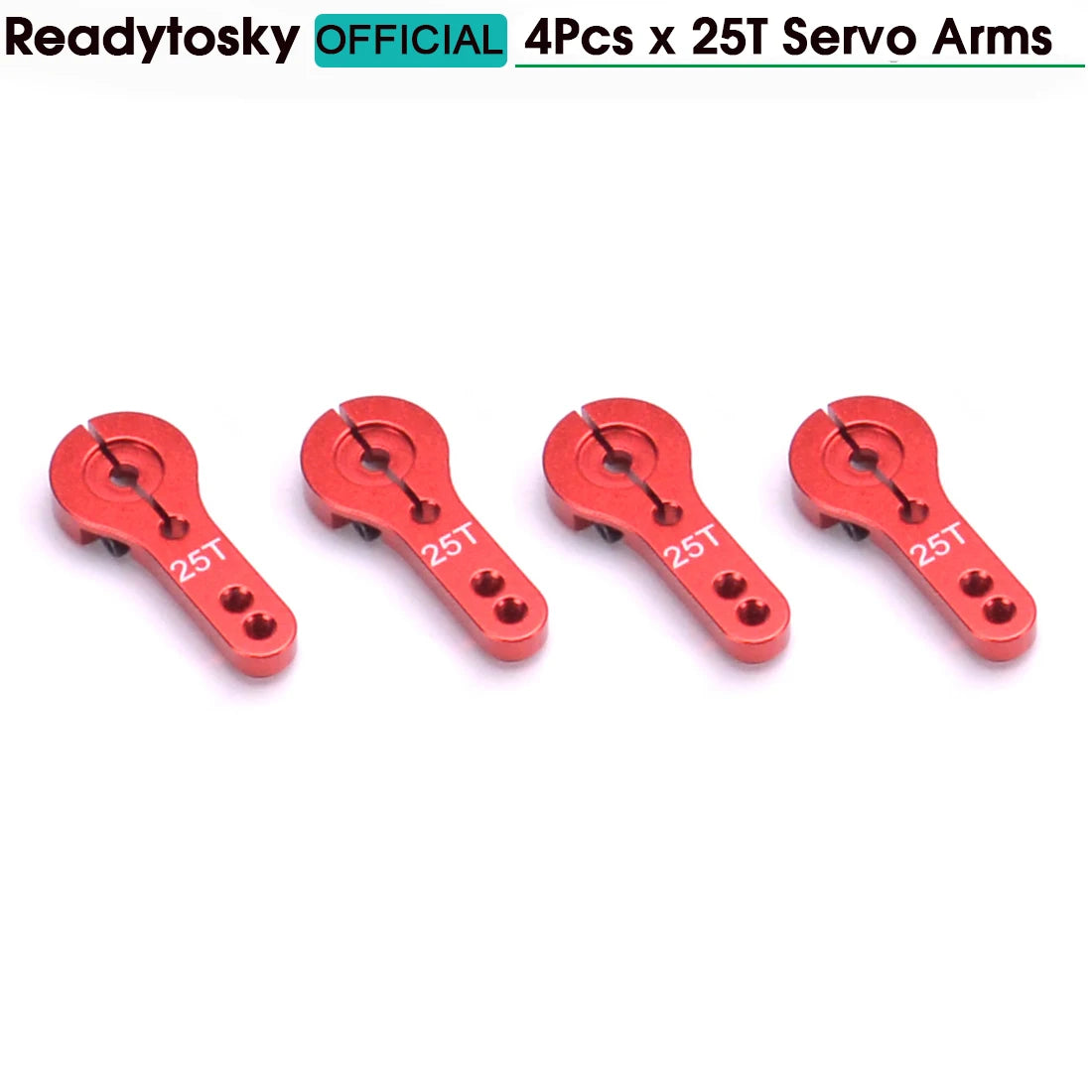

6. Horn gear spline: 25T Diameter: 5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire320mm±5mm
10. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.24sec/60° - 0.17sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque:29.5kg.cm - 32kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)
Special Notice:
The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.
Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.
The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.
