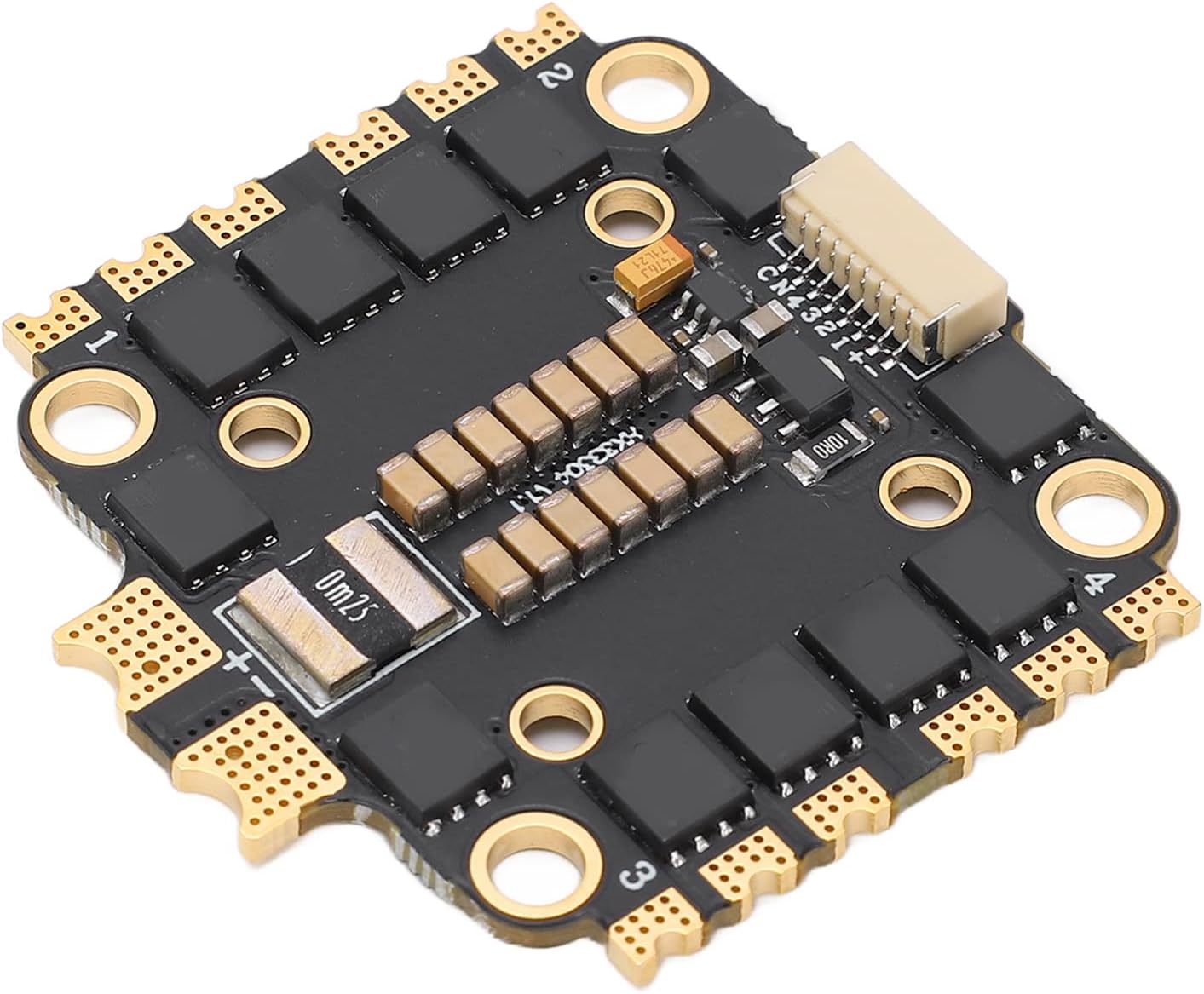

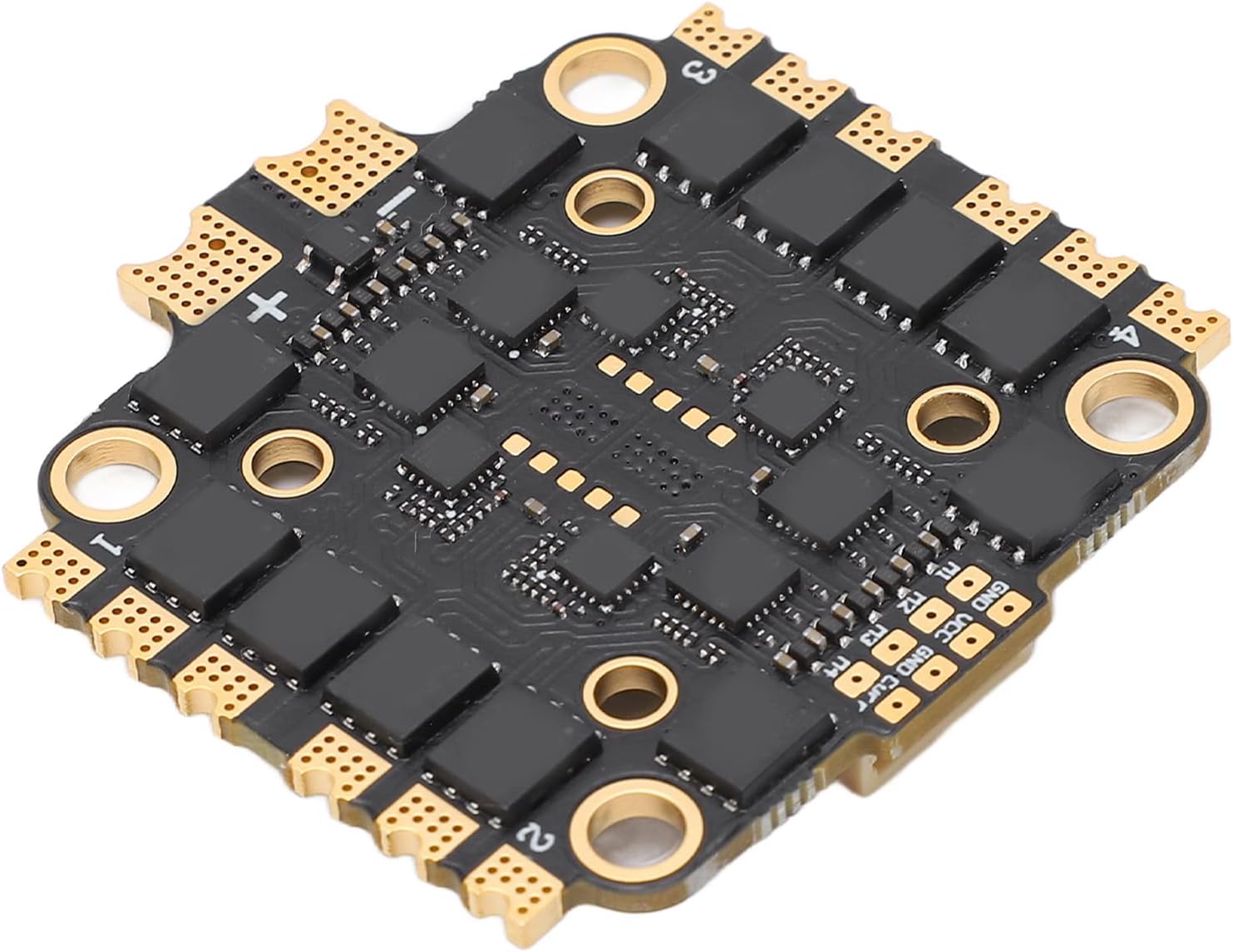

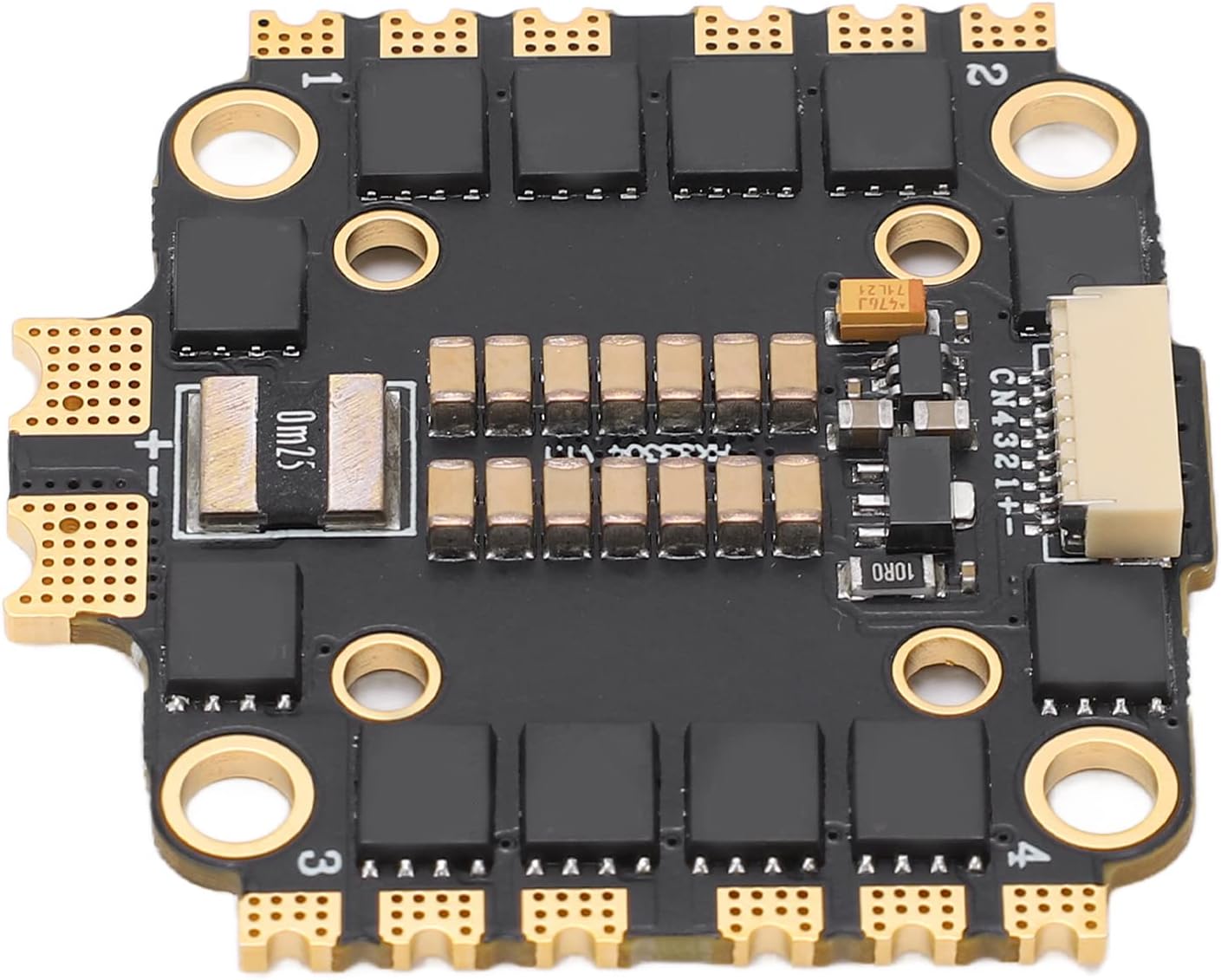

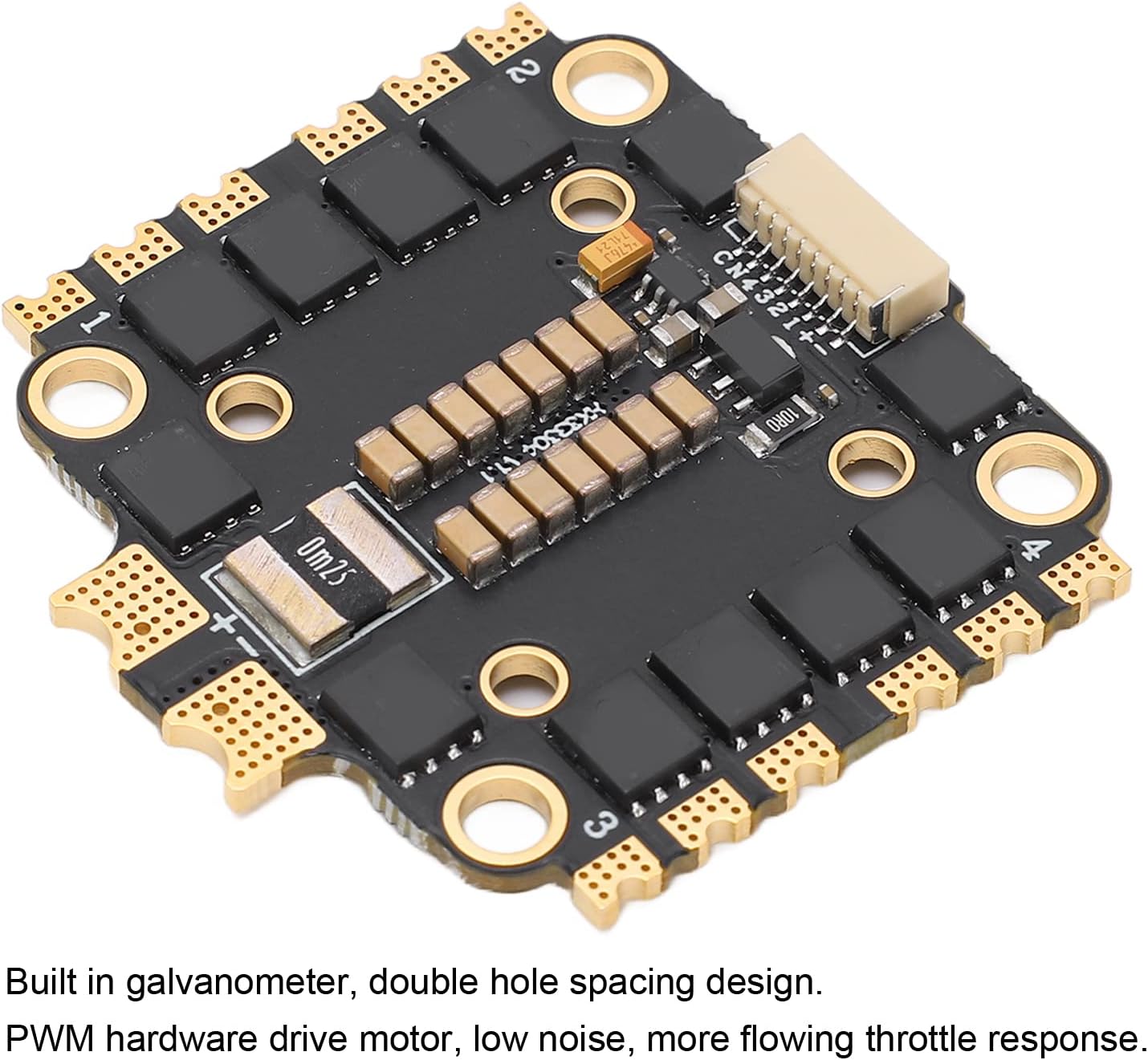

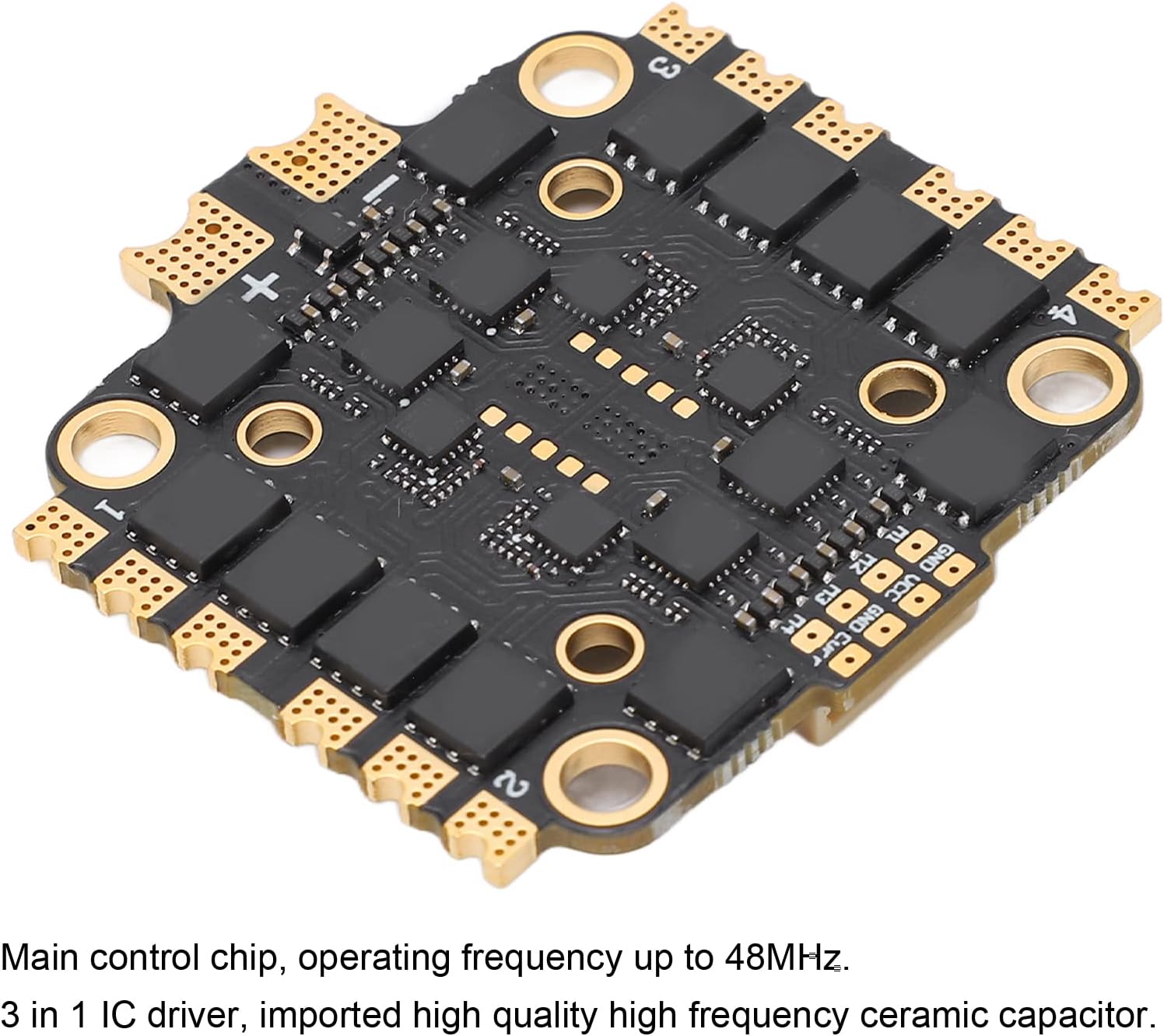

RC Drone Electronic Speed Controller, 4 in 1 ESC 45A Electronic Speed Controller with Double Hole Spacing for FPV RC Drone
Product Description 4 in 1 45A ESC --- PWM hardware drive motor, low noise, more flowing throttle...
- $353.00
$353.00- $353.00
- Unit price
- per
Product Description
4 in 1 45A ESC --- PWM hardware drive motor, low noise, more flowing throttle response. Damped Light technology and regenerative braking function make motor deceleration more sensitive and effective, and control more accurate. Active continuation technology, so that the battery recovery power, prolong the duration of navigation. Support not only ordinary PWM throttle mode, Oneshot125, Oneshot42 and Multshot ultra high speed throttle , but also the latest dshot 150, 300, 600 digital throttle for anti interference and quick response. Input and output lines using soft silicone wire, very , and high temperature resistance, easy to weld.
Specification:
Item Type: 4 in 1 45A ESC
Weight: Approx.46g / 1.6oz
Material: Electronic Components
Color: Black

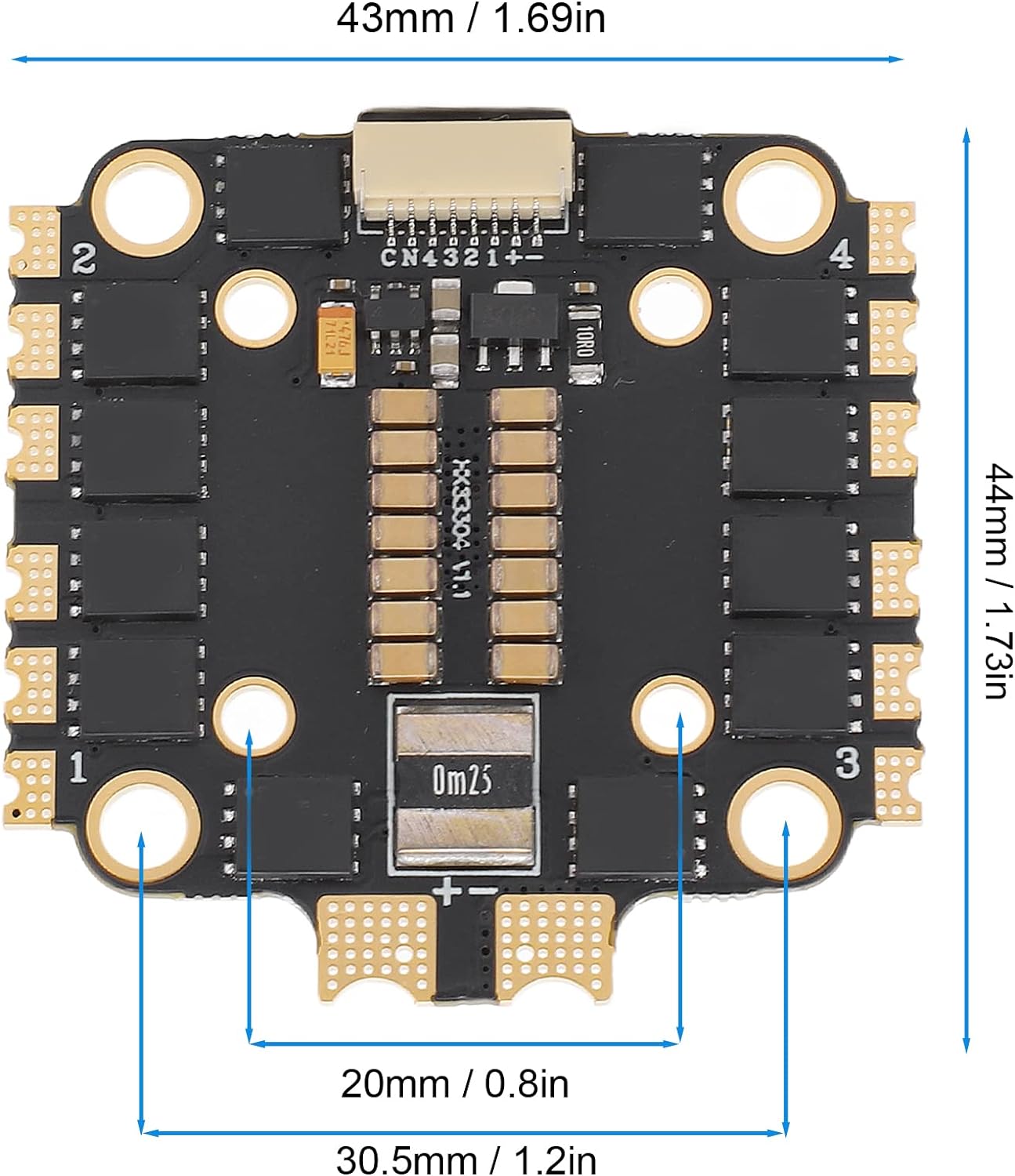

ESC Size: Approx.44 x 43mm / 1.73 x 1.69in
Fixed Hole: Approx.20 x 20mm / 0.8 x 0.8in, Approx.30.5 x 30.5mm / 1.2 x 1.2in
Fixed Aperture: M4
Working Voltage: 2-6s
Maximum Continuous Operating Current: 45A
Maximum Instantaneous Current: 50A
Support: DSHOT150, 300, 600, PWM, Oneshot125, Oneshot42 And Multshot
Software: BLHeliSuite
Firmware Version: BL16.7
Application: Fit For Unmanned RC Drone And For FPV Traversing Machine, Etc
How to Use:
Speed controller programming instructions.
1. Enter the PROM, connect the throttle on the emitter using the simple option M, and move the throttle rod to the full throttle position without moving it.
2. Connect the battery, program initialization after the 3 seconds, the controller will start to beep, after completion, move the throttle lever to the lowest position.
Package List:
1 x ESC
3 x Wiring
1 x Capacitance
1 x Plug
8 x Rubber Mat
1 x Wiring Diagram
