Product Description
Features:
DShot150/300/600/1200 Ready
It not only supports ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports the latest DShot150/300/600/1200 digital throttle, with strong anti-interference ability and fast response. The input and output wires use soft silicone wires, which are very durable, resistant to high temperatures and convenient for welding.
Native support for BLHeli-32
Use BLHeli-32 firmware, which has powerful performance and rich functions. and supports multiple ways to set ESC parameters, or upgrade the ESC firmware (such as through the throttle signal cable, use other development boards, or use cleanflight or betaflight firmware to connect to the flight controller Set up or upgrade).
Specifications:
HAKRC HK32 BIT 60A 4 in 1 ESC
Working voltage: 2-6S
Maximum continuous working current: 40A
Maximum instantaneous working current: 45A
Support communication mode: DShot150/300/600/1200 PWM?Oneshot125, Oneshot42 and Multshot
Assistant Software: BLHeli 32
Firmware version: BL32.7
Installation hole distance: 20*20mm
Product size: 31*30*6mm
Packing size: 42*39*19mm
Product net weight: 6g
Package weight: 15g

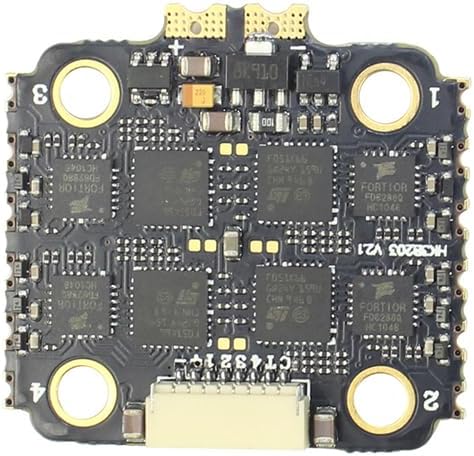

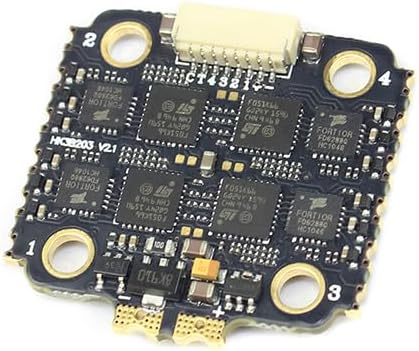

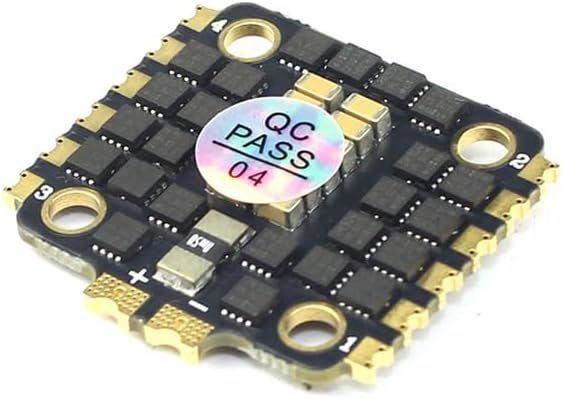

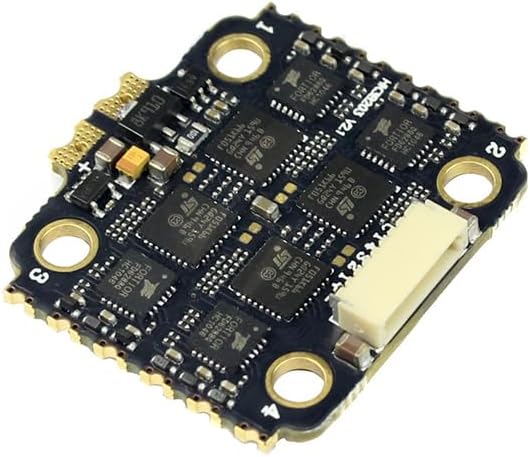

High-quality hardware
STM32F051 main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all metalized edging, so that you can avoid the pads from falling off duR1ng use. 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
It integrates 4 high-performance 40A ESCs, built-in galvanometers, and purchases a new advanced SMT. After such a high degree of integration, the volume is only the same size as the flight control of the rider, and the installation and
