Newest Original Hobbywing SkyWalker 2312 2316 2320 Brushless Motor For Rc Airplane / fixed-wing
2312: Skywalker 2312 SL 980KV Recommended Battery：3-4S LIPO KV Rating：980KV No-load Current：1.3A/14.8V Resistance：75.6mΩ Number of slot poles：12N14P...
- $179.00
$179.00- $179.00
- Unit price
- per
2312:
Skywalker 2312 SL 980KV
Recommended Battery：3-4S LIPO
KV Rating：980KV
No-load Current：1.3A/14.8V
Resistance：75.6mΩ
Number of slot poles：12N14P
Maximum continuous current：24A/180s
Maximum continuous power：340W/10min
Motor Size：Φ28.8 *46mm
Motor Weight：65g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 30A
propeller：
3S：10x6E，11x5.5E
4S：8x6E，9x4.5E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2312 SL 1250KV
Recommended Battery：3-4S LIPO
KV Rating：1250KV
No-load Current：1.5A/14.8V
Resistance：51.6mΩ
Number of slot poles：12N14P
Maximum continuous current：38A/35s
Maximum continuous power：563W/35s
Motor Size：Φ28.8 *46mm
Motor Weight：65g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 30A-40A
propeller：
3S：8x6E，9x4.5E,10X6E
4S：8x4E，8x6E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2312 SL 1400KV
Recommended Battery：3-4S LIPO
KV Rating：1400KV
No-load Current：1.8A/14.8V
Resistance：39.9mΩ
Number of slot poles：12N14P
Maximum continuous current：37A/65s
Maximum continuous power：550W/65s
Motor Size：Φ28.8 *46mm
Motor Weight：65g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 30A-40A
propeller：
3S：7x6E，8x6E
4S：7x5E，8x4E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3

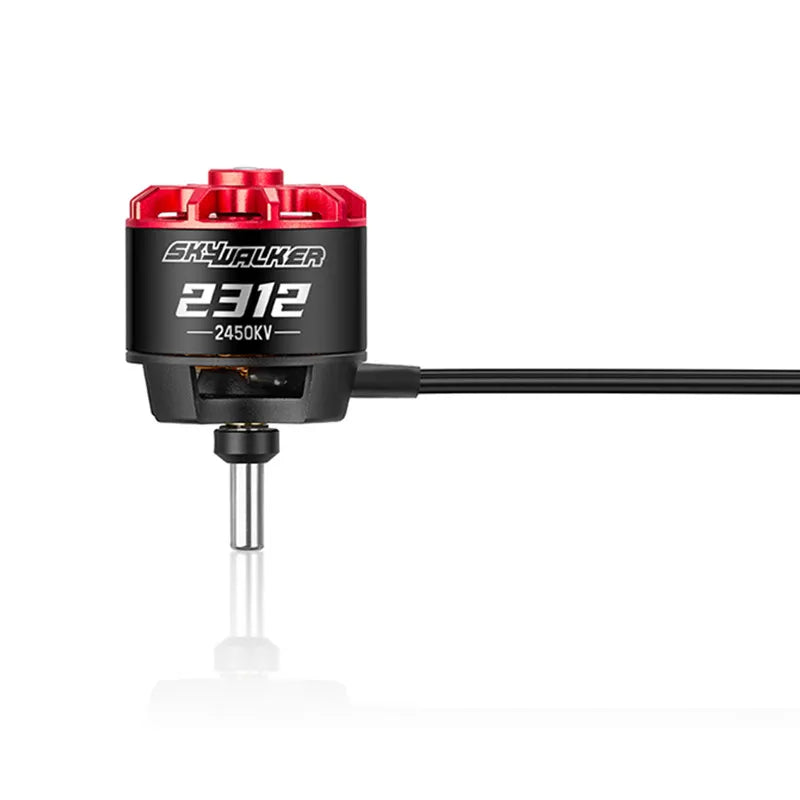

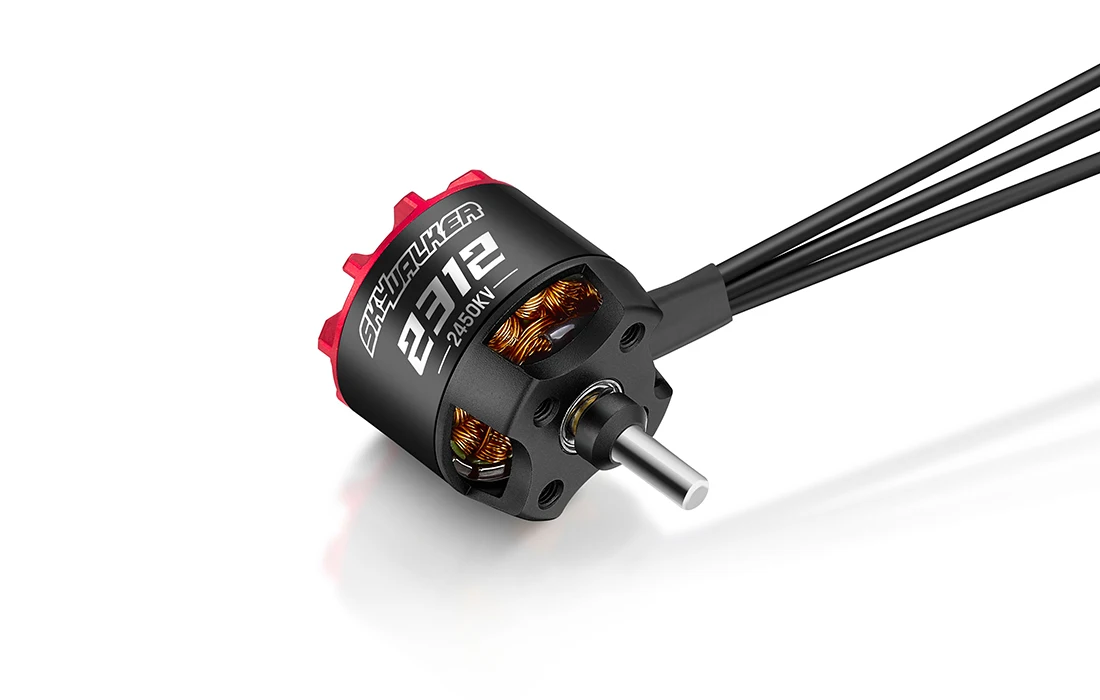

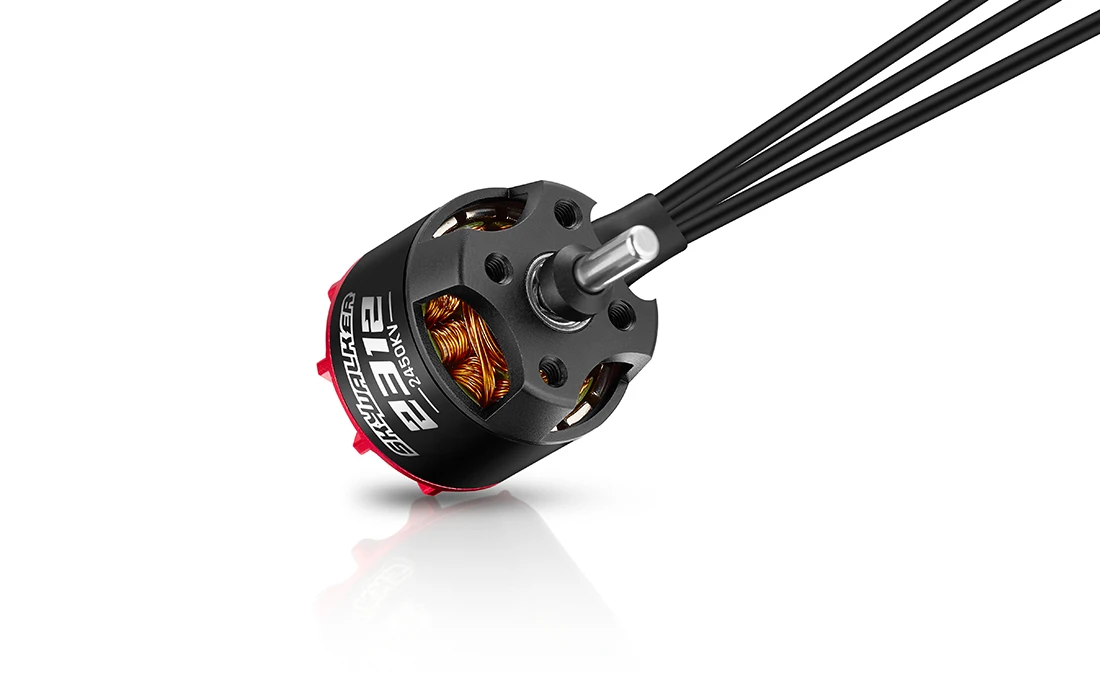

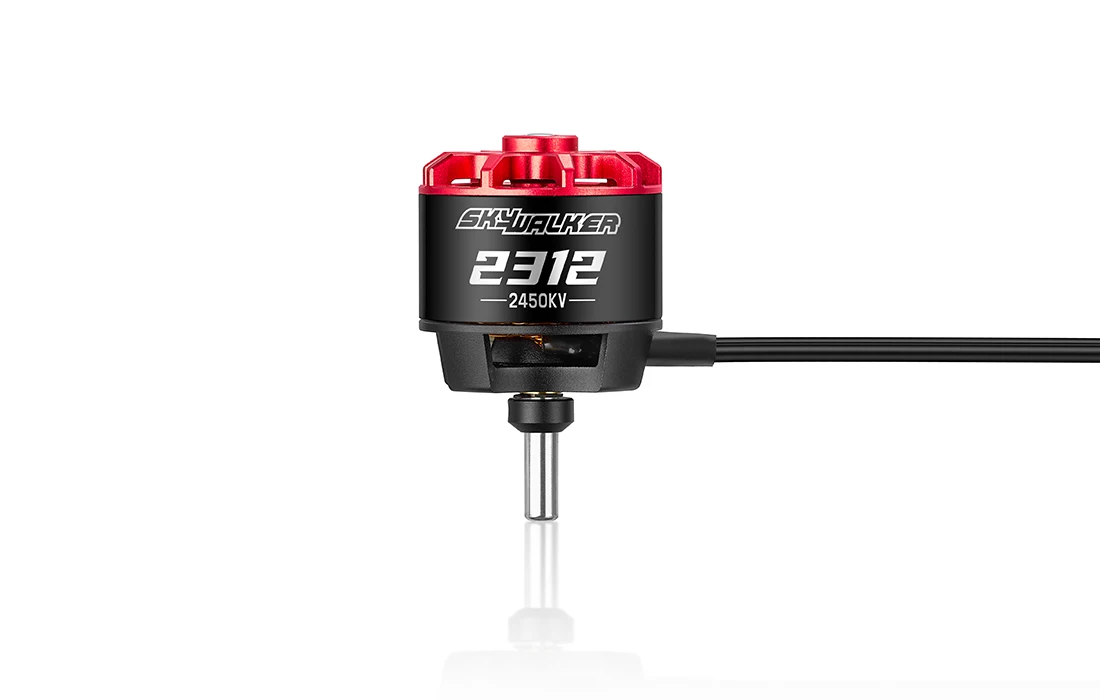

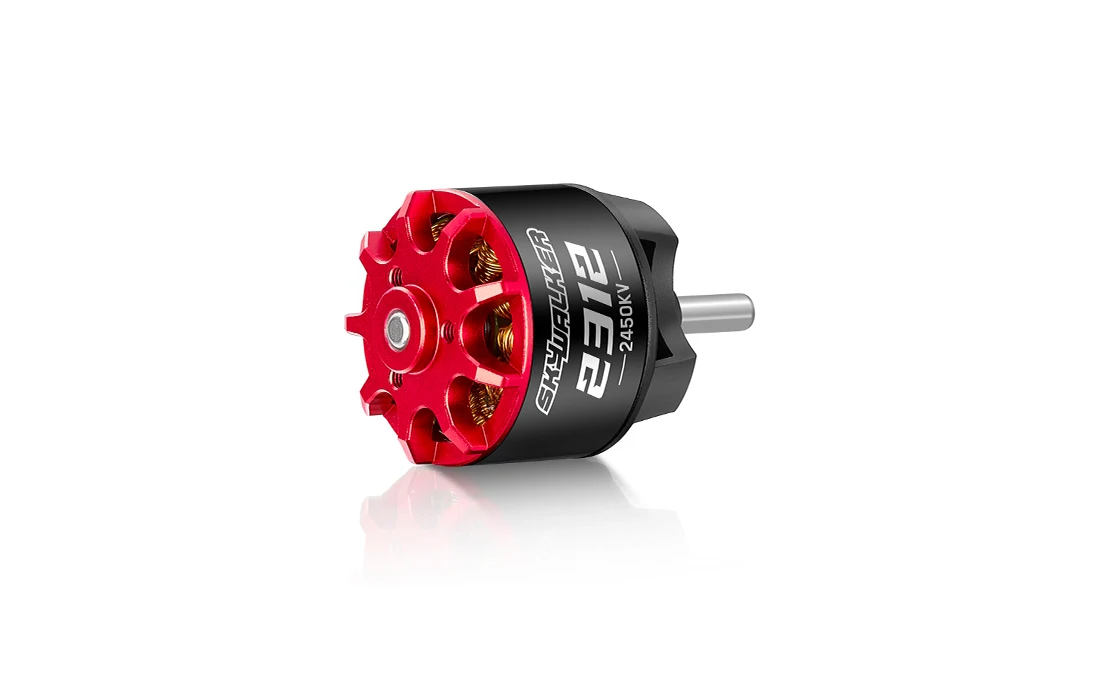

Skywalker 2312 SL 2450KV
Recommended Battery：3S LIPO
KV Rating：2450KV
No-load Current：4.1A/11.1V
Resistance：19.3mΩ
Number of slot poles：12N14P
Maximum continuous current：47A/10min
Maximum continuous power：520W/10min
Motor Size：Φ28.8 *46mm
Motor Weight：65g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 20A-50A
propeller：
3S：5x3E，6x6E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
2316
Skywalker 2316 SL 980KV
Recommended Battery：3-4S LIPO
KV Rating： 980KV
No-load Current：1.5A/14.8V
Resistance：53.6mΩ
Number of slot poles：12N14P
Maximum continuous current：31A/240s
Maximum continuous power：455W/240s
Motor Size：Φ28.8 *50mm
Motor Weight：79g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 30A-40A
propeller：
3S：10x6E，11x5.5E
4S：9x4.5E，9x6E，10x5E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2316 SL 1400KV
Recommended Battery：3-4S LIPO
KV Rating： 1400KV
No-load Current：2.3A/14.8V
Resistance：28.4mΩ
Number of slot poles：12N14P
Maximum continuous current：42A/135s
Maximum continuous power：618W/135s
Motor Size：Φ28.8 *50mm
Motor Weight：79g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 40A-50A
propeller：
3S：7x6E，8x6E
4S：7x5E，8x4E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
2320
Skywalker 2320 SL 860KV
Recommended Battery：3-4S LIPO
KV Rating： 860KV
No-load Current：1.5A/14.8V
Resistance：48.4mΩ
Number of slot poles：12N14P
Maximum continuous current：36A/90s
Maximum continuous power：540W/90s
Motor Size：Φ28.8 *54mm
Motor Weight：93g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 30A-40A
propeller：
3S：12x6E，13x6.5E
4S：10x5E，10x6E，11x5.5E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3

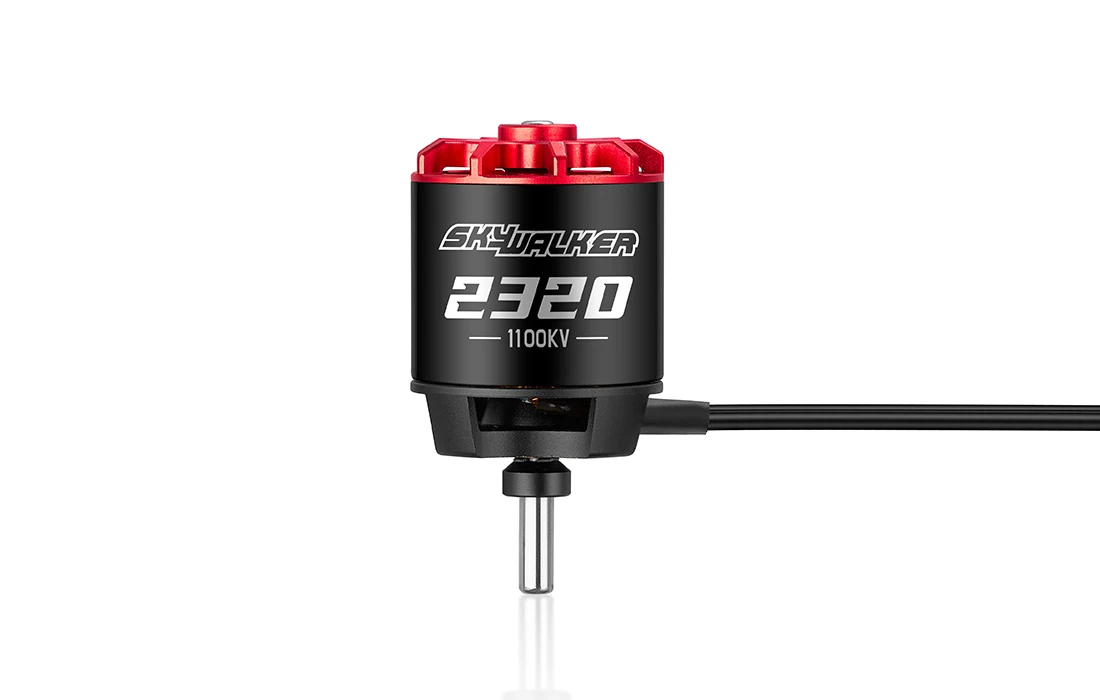

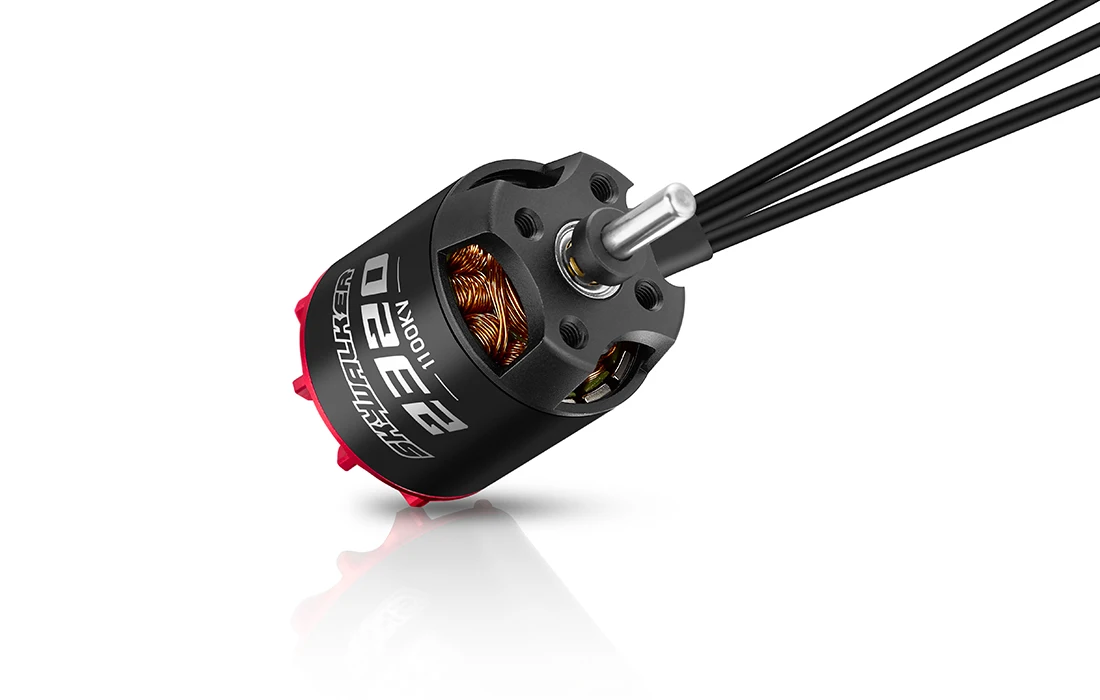

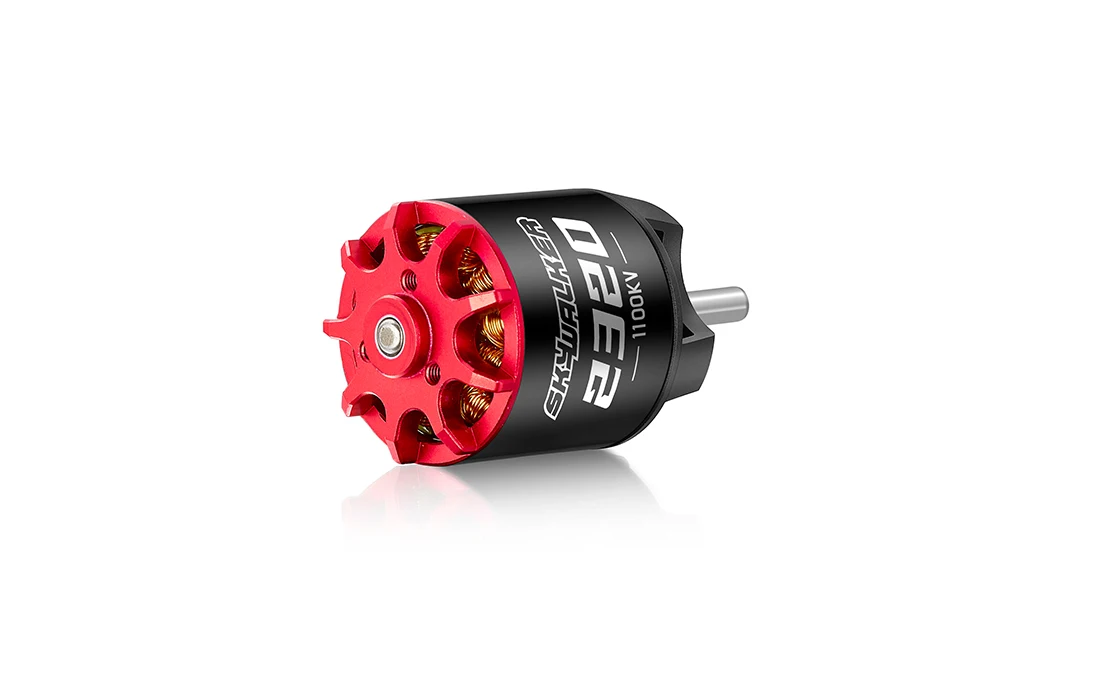

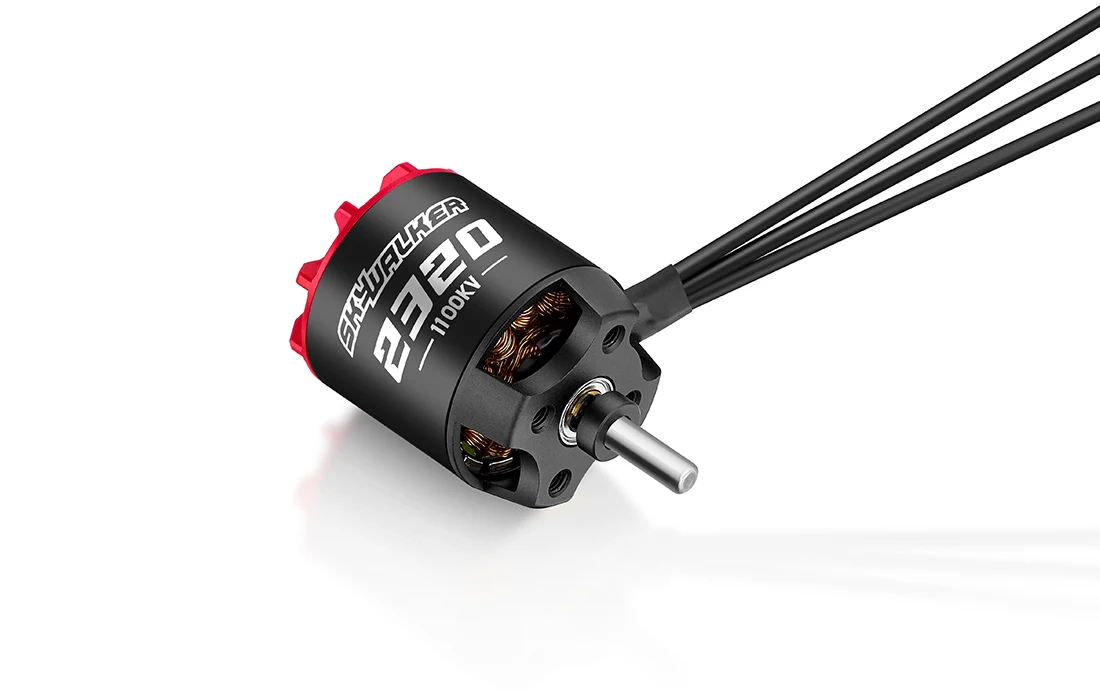

Skywalker 2320 SL 1100KV
Recommended Battery：3-4S LIPO
KV Rating： 1100KV
No-load Current：1.8A/14.8V
Resistance：33mΩ
Number of slot poles：12N14P
Maximum continuous current：41A/180s
Maximum continuous power：580W/194s
Motor Size：Φ28.8 *54mm
Motor Weight：92g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 40A-50A
propeller：
3S：10x5E，10x6E，11x5.5E
4S：8x6E，9x4.5E
Clip mounting hole thread：Φ12mm-3*M2.5
Skywalker 2320 SL 1250KV
Recommended Battery：3-4S LIPO
KV Rating： 1250KV
No-load Current：2.3A/14.8V
Resistance：28.9mΩ
Number of slot poles：12N14P
Maximum continuous current：50A/94s
Maximum continuous power：740W/94s
Motor Size：Φ28.8 *54mm
Motor Weight：92g
Shaft Diameter：4mm
Bearing model：684ZZ（D9*d4*4）
Phase cable：18AWG
Cable length：100mm
Recommend ESC：Skywalker-V2 40A-50A
propeller：
3S：9x4.5E，9x6E，10x6E
4S：8x4E，9x4.5E
Clip mounting hole thread：Φ12mm-3*M2.5
Base thread：Φ16mm-2*M3/Φ19mm-2*M3
