MATEKSYSSYS H743-MINI V3 Flight Controller
Product Description The Matek H743-Mini V3 FC is a powerful flight controller using the HSTM32H743VIT6 MCU running...
- $1,233.00
$1,233.00- $1,233.00
- Unit price
- per
Product Description

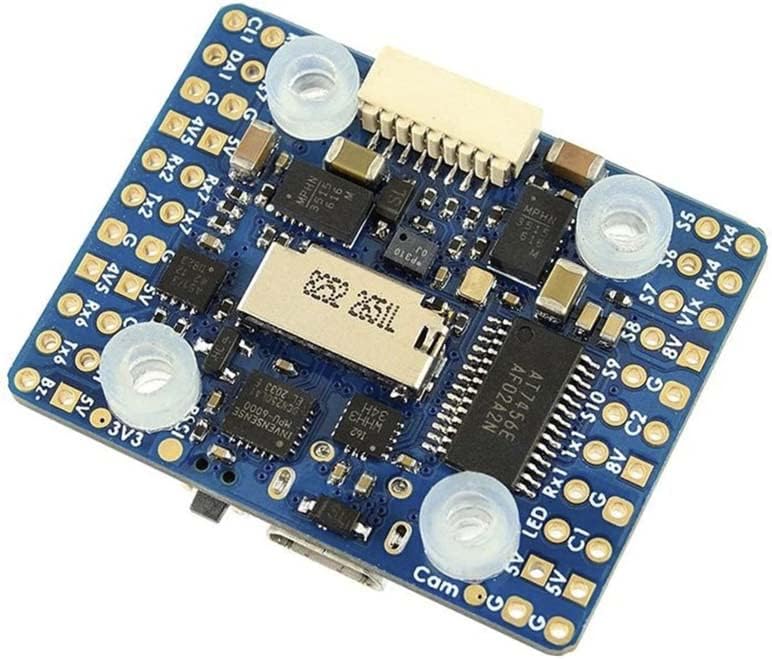

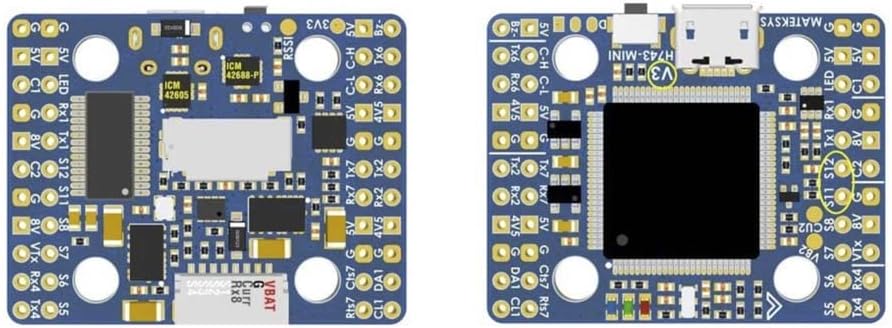

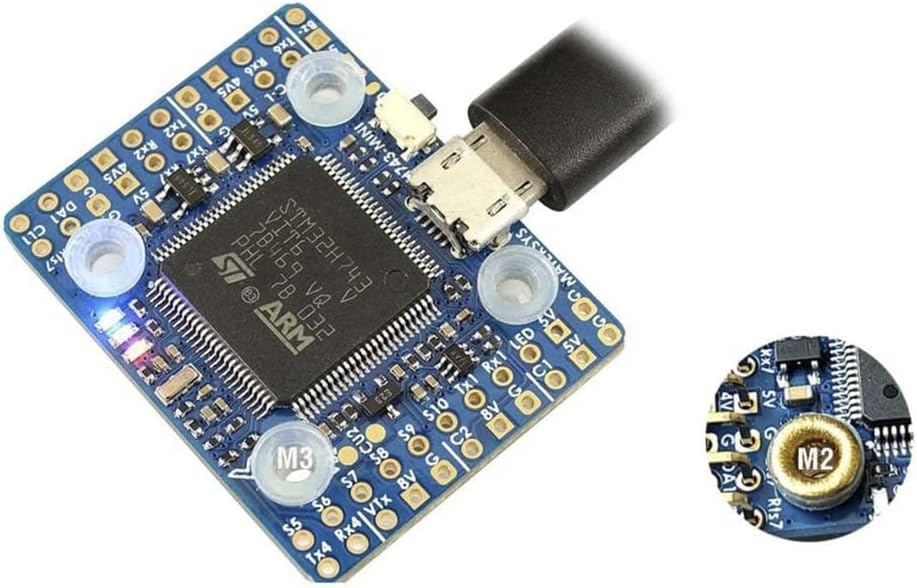

The Matek H743-Mini V3 FC is a powerful flight controller using the HSTM32H743VIT6 MCU running at 480MHz. It is matched with dual gyros ( ICM42688P & ICM42605 ), an Infineon DPS310 barometer, and 11 PWM outputs. Measuring 36x28x6.5mm, this is a full-featured and very worthy choice for anyone looking for a flight controller that can work on quads or wings. UPDATEIMU ICM42688P, ICM42605, PWM 1~8, 10~11Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)VIDEO: (Insert Video Title here in Bold)Features Suitable for both quads and wingsUses HSTM32H743VIT6 MCU running at 480MHzUSE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.USE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.SpecificationsMCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB FlashBoard V3 IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)Baro: Infineon DPS310 (I2C2)OSD: AT7456E (SPI2)Blackbox: MicroSD card socket (SDIO)5.5x Uarts (1,2,4,6,7, Rx8)11x PWM outputs2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)1x CAN (C-H, C-L pads)5x ADC (VBAT, Current, RSSI, VB2, CU2)3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)Dual Camera Inputs switch8V power ON/OFF switchMounting20 x 20mm/Φ3mm with Silicon Grommets20 x 20mm/Φ2mm with Silicon & Brass GrommetsDimensions: 36 x 28 x 6.5mmWeight: 7gPOWERVbat Input: 6.3~36V (2~8S LiPo)BEC: 5V 1.5A cont. (Max.2A)BEC: 8V 1.5A cont. (Max.2A), 8V outputs stable when Vbat>=10V, 8V outputs 80% of Vbat when Vbat<10VLDO 3.3V: 200mAVB2 pad supports Max. 69V (voltage divider 1K:20K)Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilotFC FirmwareArduPilot(ChiBiOS): MATEKSYSH743BetaFlight: MATEKSYSH743INAV: MATEKSYSH743IMPORTANT NOTESInsert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger fo
