MATEKSYSSYS F405-VTOL Flight Controller - 25x25/35x35
Product Description The MATEKSYSSYS F405-VTOL Flight Controller features 25x25 and 35x35 mounting patterns and weighs 25g. It...
- $720.00
$720.00- $720.00
- Unit price
- per
Product Description

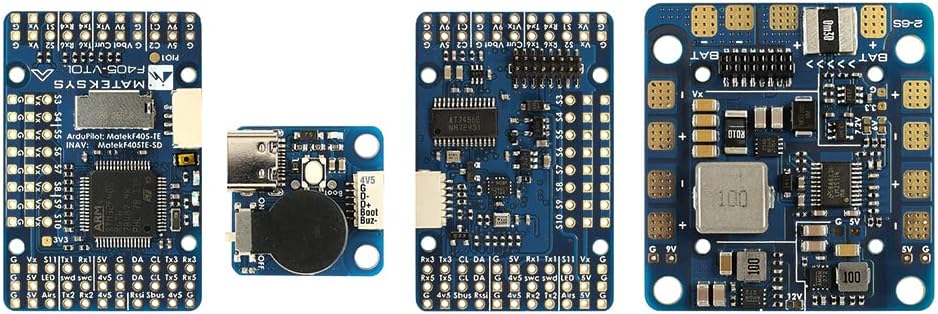

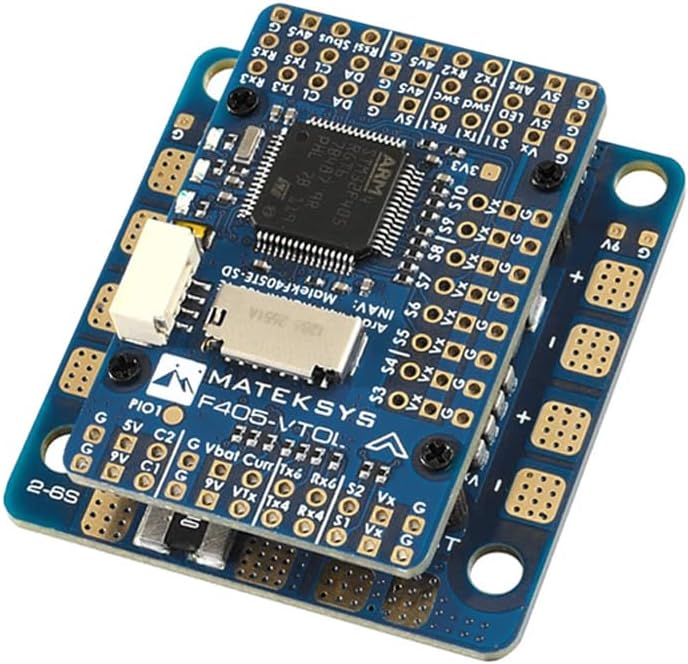

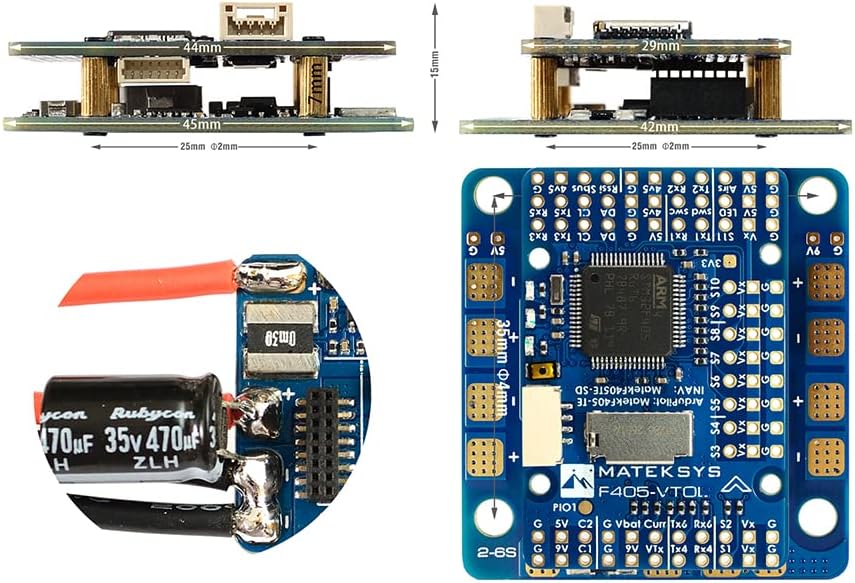

The MATEKSYSSYS F405-VTOL Flight Controller features 25x25 and 35x35 mounting patterns and weighs 25g. It features a Barometer, BlackBox MicroSD, 6x UARTS, 4x ADC, 12x PWM outputs, 2x PINIO (Camera switch, P101 pad), PDB for 5x individual ESC/Motors, 6.8-30V DC IN (2-6S LiPo), 220A High-precision current sensor, BEC 5V 2A for FC and peripherals, BEC 9V 2A (12V options for Camera/VTX), BEC VX 8A cont. 10A Peak for servos.Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)VIDEO: (Insert Video Title here in Bold)FeaturesBEC VX 8A cont. 10A Peak for servos (5V,6V,7.2V option)BEC 9V 2A, 12V option for Camera/VTX2x PINIO (Camera switch, P101 pad)25x25 and 35x35 mounting patterns220A High-precision current senseBEC 5V 2A for FC and peripheralsPDB for 5x individual ESC/Motors6.8-30V DC IN (2-6S LiPo)MCU STM32F405RGT6Barometer SPL06-001BlackBox MicroSD12x PWM outputsIMU ICM42688-POSD AT7456E6x UARTS4x ADCUSE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.USE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.SpecificationsMounting: 25 x 25mm-Φ2mm, 35 x 35mm- Φ4mmBuilt in inverter on UART2-RX for SBUS inputMCU: STM32F405RGT6, 168MHz , 1MB FlashUSB/Beep Extender with Type-C(USB2.0)6x UARTs, 1x Softserial_Tx option(INAV)4x ADC (VBAT, Current, RSSI, Airspeed)Weight: 25g w/ USB/buzzer adapterSwitchable Dual Camera Input1x spare PINIOOSD: AT7456EDimensions: 45 x 42 x 15mmBlackbox: MicroSD card slot12x PWM outputsIMU: ICM42688-PBaro: SPL06-0011x I2CFC FirmwareINAV: MATEKSYSF405TE_SD (INAV 5.0 or newer)ArduPilot: MatekF405-TEPDBBattery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)Support continuous load of up to 30A & peak of 50A on each ESC pad of QuadcopterSupport continuous load of up to 100A on ESC pad near the current sensor resistorCurrent Senor: 220A, 3.3V AD
