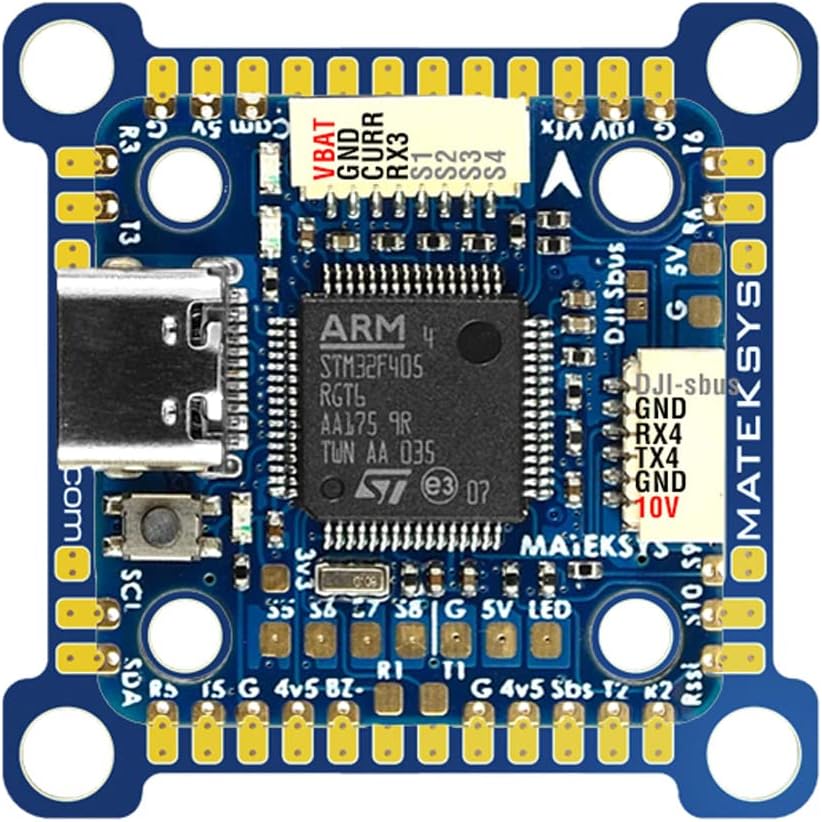

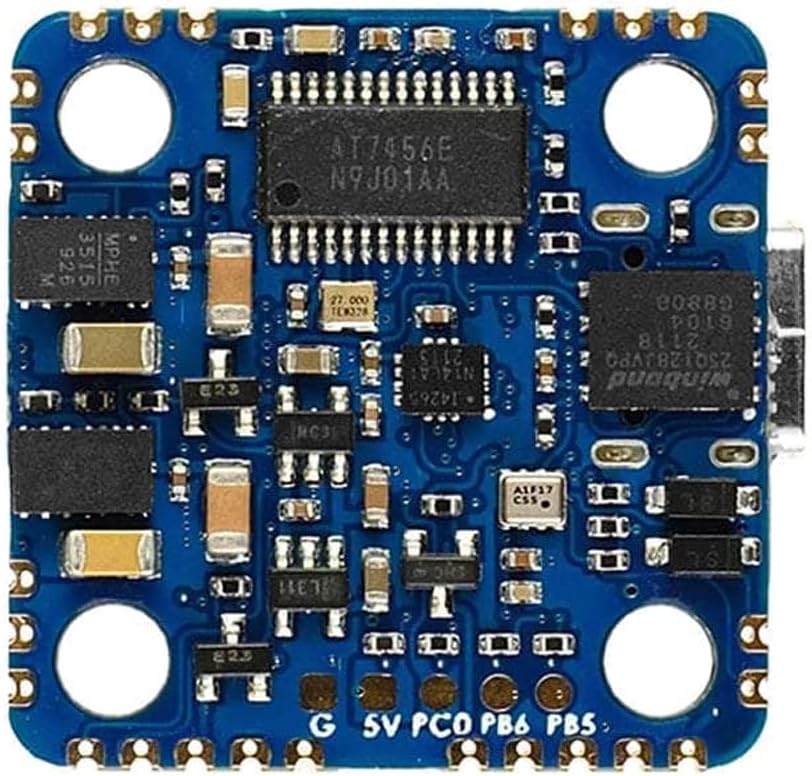

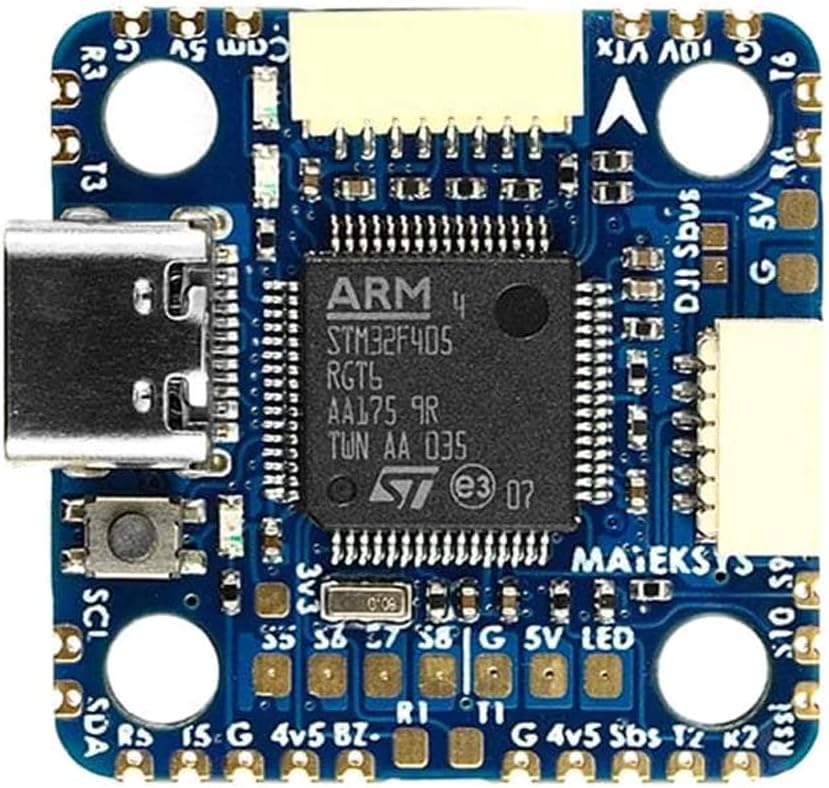

MATEKSYSSYS F405-MiniTE Flight Controller - Mini 20x20
Product Description The F405 MiniTE Flight Controller was designed to be smaller and lighter than its bigger...
- $617.00
$617.00- $617.00
- Unit price
- per
Product Description
The F405 MiniTE Flight Controller was designed to be smaller and lighter than its bigger brother, and the 20x20mm mount allows for more space to work with on your build. Features Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE supports 8motors+3servos in INAV/BF multirotor mixer Redesigned target MATEKF405TE support 8x bi-directional DSHOT. Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX F405 Mini has a 1MB flash which can run with ArduPilot. Convertible 20mm to 30.5mm mounting InvenSense GEN3 IMU ICM42605 Specifications Mounting Pattern: 20x20 M2/M3, 30X30 M3 ADC: 4 (VBAT, Current, RSSI, Airspeed) Blackbox: 16M-byte Flash memory Baro: Goertek SPL06-001 (I2C) PWM outputs: 12 (8 Dshot) BEC: 5V 1.7A & 10V 1.4A Dimensions: 28x28mm Input: 6~30V (2~6S LiPo) MCU: STM32F405RGT6 Current Sensor: No IMU: ICM42605 OSD: AT7456E Weight: 5g UARTs: 6 PINIO: 2 I2C: 1 Firmware ArduPilot hwdef MatekF405-TE Copter latest Plane latest Rover latest INAV Target MatekF405TE inav_3.0.2_MATEKF405TE inav_4.0.0_MATEKF405TE BetaFlight Target MatekF405TE set dshot_bitbang = ON when using X6 and X8 DSHOT betaflight_4.3.0RC1_MATEKF405TE betaflight_4.3.0RC2_MATEKF405TE betaflight_4.2.10_MATEKF405TE Includes 1x MATEKSYS F405-MiniTE Flight Controller - Mini 20x20 1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC 1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit 1x 20mm to 30mm conversion plate(blue PCB) 6x Silicon grommets M4 to M3 6x Brass
