Description

Product Description

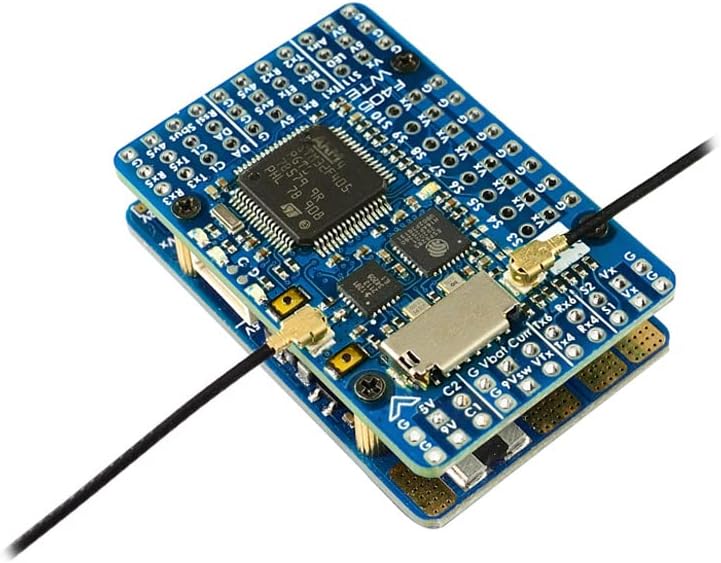

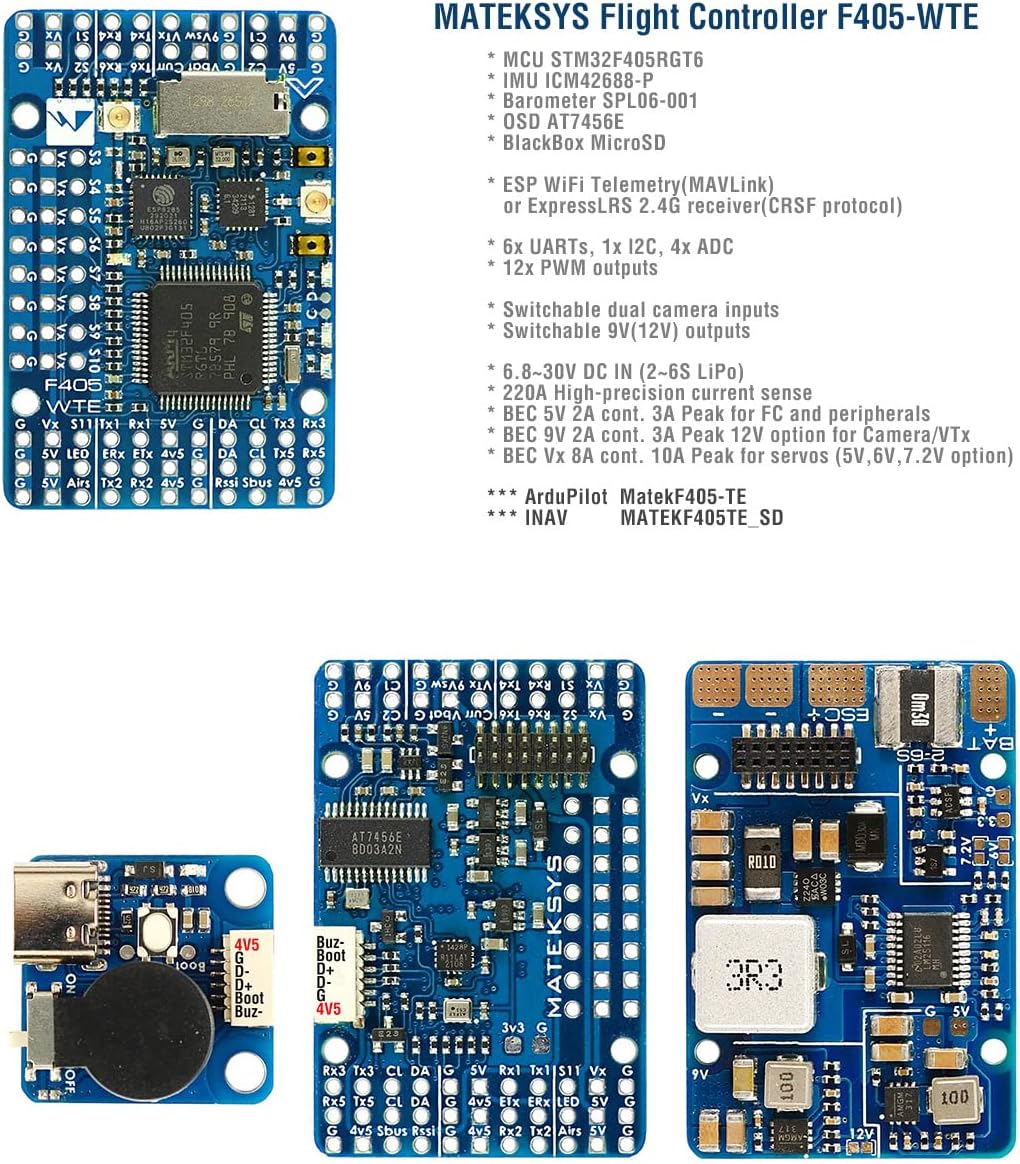

  • FC Specifications：
  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: MicroSD card slot
  • ESP WiFi Telemetry(MAVLink, 14dBm)
  • ExpressLRS 2.4G receiver(CRSF protocol, Telemetry 12dBm)

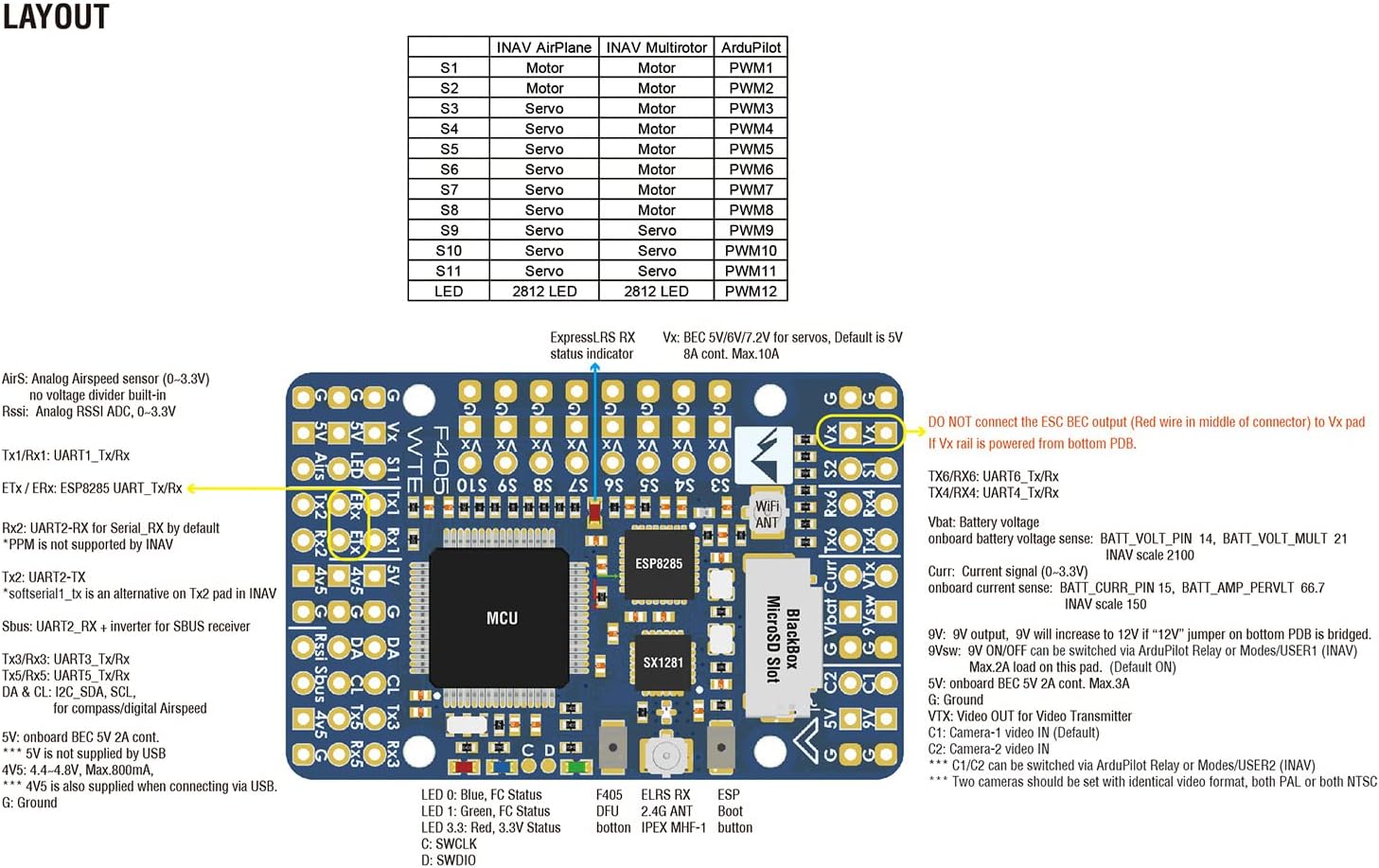

  • 6x UARTs, 1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • USB/Beep Extender with Type-C(USB2.0)
  • Dual Camera Inputs switch
  • 9V(12V) for VTX power switch
  • FC Firmware：
  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)
  • PDB：
  • Input voltage range: 6.8~30V (2~6S LiPo)
  • 1x ESC power pads
  • Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
  • Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
  • Sense resistor: 90A continuous, 220A peak
  • BEC 5V output：
  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps, Max.3A

  • BEC 9V /12V output：
  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad
  • for stable 9V/12V output, input voltage should > output voltage +1V
  • BEC Vx output：
  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps, Max.10A
  • for stable Vx output, input voltage should > Vx voltage +1V

  • BEC 3.3V output：
  • Designed for Baro / Compass module and external 3.3V peripherals
  • Linear Regulator
  • Continuous current: 200mA

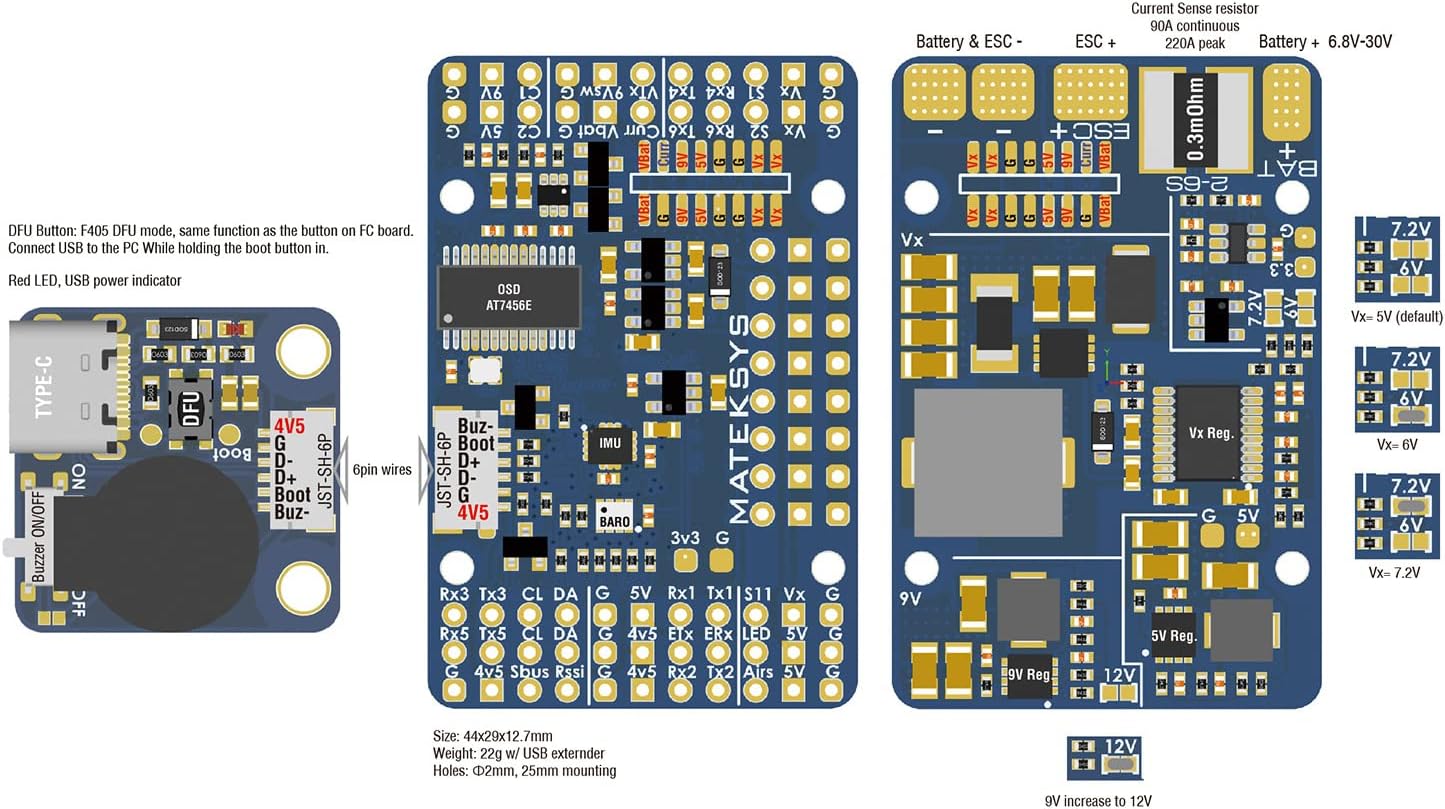

  • Physical：

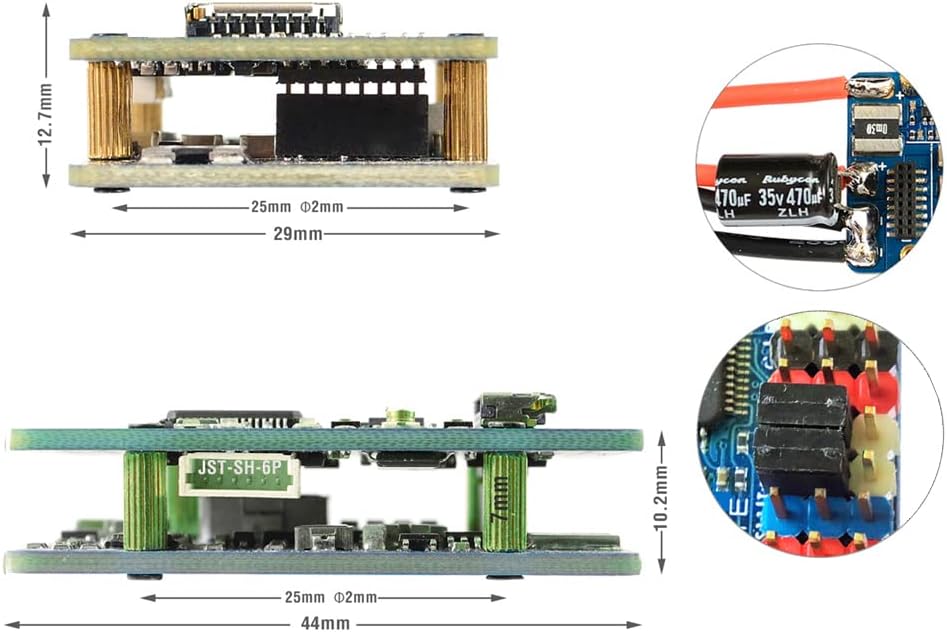

  • Mounting: 25 x 25mm, Φ2mm
  • Dimensions: 44 x 29 x 12.7mm
  • Weight: 22g w/ USB/buzzer adapter
  • Including：
  • 1x F405-WTE
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 2x IPEX-MHF1 2.4G Antennas
  • 1x Rubycon ZLH 35V 470uF capacitor
  • Dupont 2.54 pins (Board is shipped unsoldered)

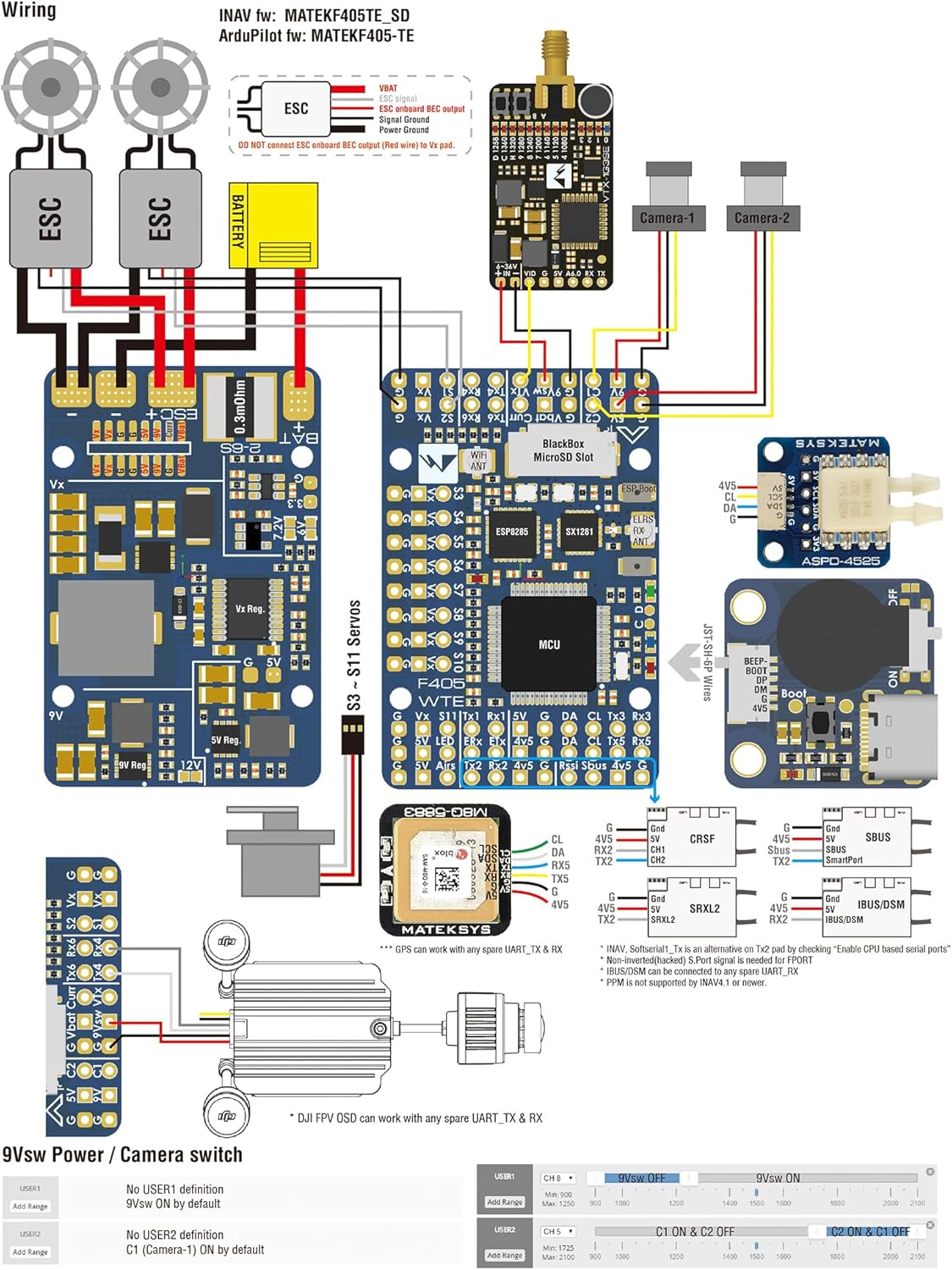

  • ArduPilot ESP8266 wifi telemetry：
  • Tool: ESP_NodeMCU-PyFlasher.exe
  • Firmware: firmware-esp01_1m.bin
  • Flashing with ESP_NodeMCU-PyFlasher
  • 1、Wire the ESP8285(ETx, ERx) into the USB-TTL adapter, with ETx on F405-WTE connected to the Rx on the USB-TTL, and ERx connected to the Tx of the USB-TTL. Wire 4v5 and GND of F405-WTE to 5V and GND of the USB-TTL
  • 2、Connect USB-TTL Adapter to PC while pressing and holding the ESP8285 boot button in.
  • 3、 open ESP_NodeMCU-PyFlasher
  • 4、select Serial port of USB-TTL module, load firmware, select “Dual Output(DOUT)” and “Yes.wipes all data“
  • 5、click “Flash NodeMCU“
  • 6、after flashing, Power off , then power on F405-WTE by USB or Battery.
  • 7、Wait a few seconds, search WiFi SSID “ArduPilot”, and password is “ardupilot”
  • 8、Tips: Red LED for ELRS receiver will not turn on if MAVESP8266 firmware is flashed in.
  • ExpressLRS 2.4G Receiver：
  • ExpressLRS AUX1-AUX8 are not full resolution CH.
  • Flashing via WiFi
  • 1、Power on F405-WTE by USB, Receiver’s LED(Red) will blink slow at first, and after 30s, it should blink fast indicating it’s on WiFi Hotspot Mode.
  • 2、Target: DIY 2.4GHz / DIY_2400_RX_ESP8285_SX1280
  • Flashing via UART:
  • 1、 Wire the ESP8285(ETx, ERx) into the USB-TTL adapter, with ETx on F405-WTE connected to the Rx on the USB-TTL, and ERx connected to the Tx of the USB-TTL. Wire 4v5 and GND of F405-WTE to 5V and GND of the USB-TTL.
  • 2、Connect USB-TTL Adapter to PC while pressing and holding the ESP8285 boot button in.
  • 3、Select the target DIY 2.4GHz / DIY_2400_RX_ESP8285_SX1280 and “UART” for Flashing Method, set your bind phrase and Firmware Options and once done, click on Build and Flash.

  • Frsky Smartport Telemetry:
  • non-inverted (hacked) S.Port signal
  • any spare Uart_TX
  • SERIALx_BAUD 57
  • SERIALx_OPTIONS 7
  • SERIALx_PROTOCOL 4 or 10(for yaapu)
  • Relay(PINIO):
  • PINIO1, 9Vsw power switch, On by default
  • PINIO2, Camera switch, C1 ON by default
  • # GPIOs
  • PA4 PINIO1 OUTPUT GPIO(81) LOW //9Vsw pad power switch
  • PB5 PINIO2 OUTPUT GPIO(82) LOW //camera switch
  • # RCx_OPTION: RC input option
  • 28 Relay On/Off
  • 34 Relay2 On/Off
  • 35 Relay3 On/Off
  • 36 Relay4 On/Off
  • e.g.
  • RELAY_PIN 81 //9Vsw GPIO
  • RC7_OPTION 28 //Relay On/Off, Use CH7 of Transmitter to control 10V ON/OFF
  • RELAY_PIN2 82 //Camera switch GPIO
  • RC8_OPTION 34 //Relay2 On/Off, Use CH8 of Transmitter to control high/low level on PB5 pad
  • The configured feature will be triggered when the auxiliary switch’s pwm value becomes higher than 1800. It will be deactivated when the value falls below 1200.
  • Check the pwm value sent from the transmitter when the switch is high and low using the Mission Planner’s Initial Setup >> Mandatory Hardware >> Radio Calibration screen. If it does not climb higher than 1800 or lower than 1200, it is best to adjust the servo end points in the transmitter.
  • Tips:
  • F405-WTE has INAV fw 4.1.0 preloaded for QC
  • Target MATEKF405TE_SD is not listed in INAV configurator 4.x.x, It will be supported by INAV5.0.
  • ESP8285 has ExpressLRS fw 2.x preloaded with binding phrase “123456”, the Receiver will never enter binding mode if using the traditional binding procedure. It must be flashed without a binding phrase to do traditional binding OR flashed with your binding phrase.
  • ArduPilot fw, set LOG_BACKEND_TYPE = 1 (File) for SD card logging
1 1 1 1 1

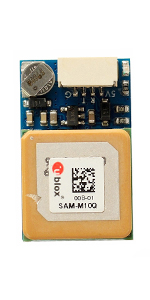

M10Q-5883 GPS F411-WTE Flight Controller F405-MiniTE Flight Controller SAM-M10Q GPS H743-WLITE Flight Controller
