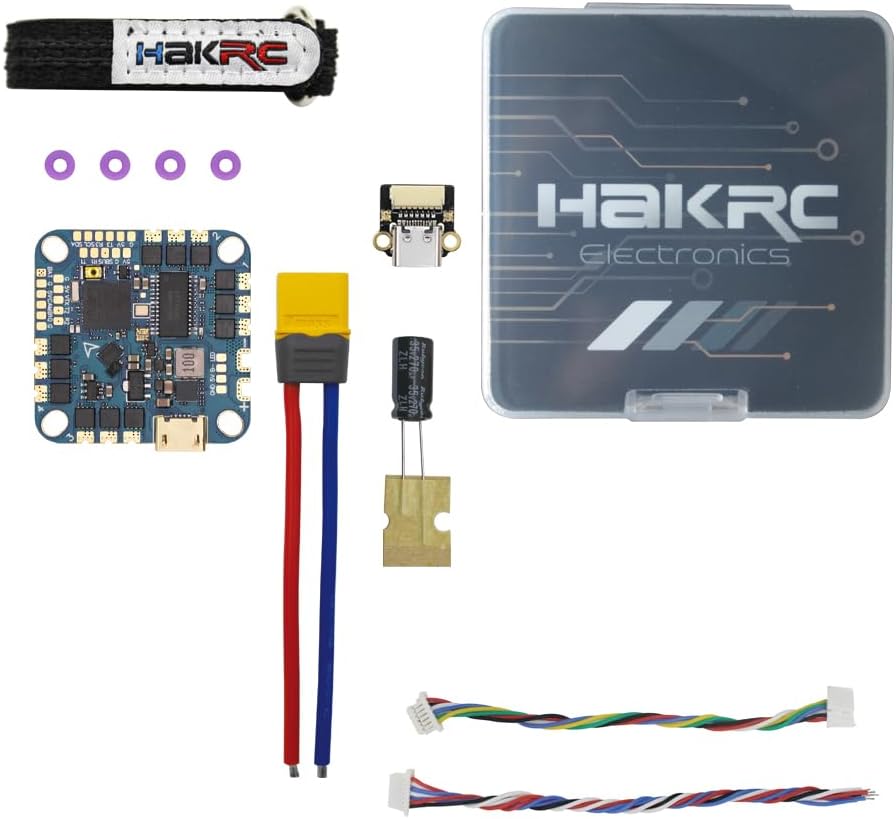

Lubosi HAKRC F4126 20A AIO 32 * 32 2-5S Lipo BLHELI S LED Light Flight Control System RC FPV Racing Drone - (Color: HAKRC F4126 20A AIO)

Product Description Features: 1. The PCB adopts high-end 8-layer 2OZ thickened copper sheet, which has stronger overcurrent...
Vendor: Hakrc
Availability: Out Of Stock
Product Type: Flight Controller
$0.00
$0.00
$0.00
Subtotal: $0.00
Lubosi HAKRC F4126 20A AIO 32 * 32 2-5S Lipo BLHELI S LED Light Flight Control System RC FPV Racing Drone - (Color: HAKRC F4126 20A AIO)

Lubosi HAKRC F4126 20A AIO 32 * 32 2-5S Lipo BLHELI S LED Light Flight Control System RC FPV Racing Drone - (Color: HAKRC F4126 20A AIO)

$0.00

Lubosi HAKRC F4126 20A AIO 32 * 32 2-5S Lipo BLHELI S LED Light Flight Control System RC FPV Racing Drone - (Color: HAKRC F4126 20A AIO)

$0.00

Product Description

Features:
1. The PCB adopts high-end 8-layer 2OZ thickened copper sheet, which has stronger overcurrent ability and good heat dissipation.
2. MOS adopts imported 30V high current withstand MOS, with long lifespan and strong load capacity.
3. Using industrial grade LDO, resistant to high temperatures.
4. Adopting high-quality Japanese Murata capacitors with strong filteR1ng performance
Size: 32 * 32mm (25.5mm-26.5mm mounting hole)
Packaging size: 63 * 32mm
Net weight of product: 7g
Packaging weight: 25g
Flight control parameters:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer: Integrated
Black box: 16M
BEC: 5V/3A
LED: Adjustable LED light
Sensor: Built in current sensor
Firmware version: HAKRCF411D
Receiver: Lubosi/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver
Electrical adjustment parameters:
Firmware version: BLHELI-S (G-H-30)
Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-5S Lipo
Continuous current: 20A
Peak current: 25A
