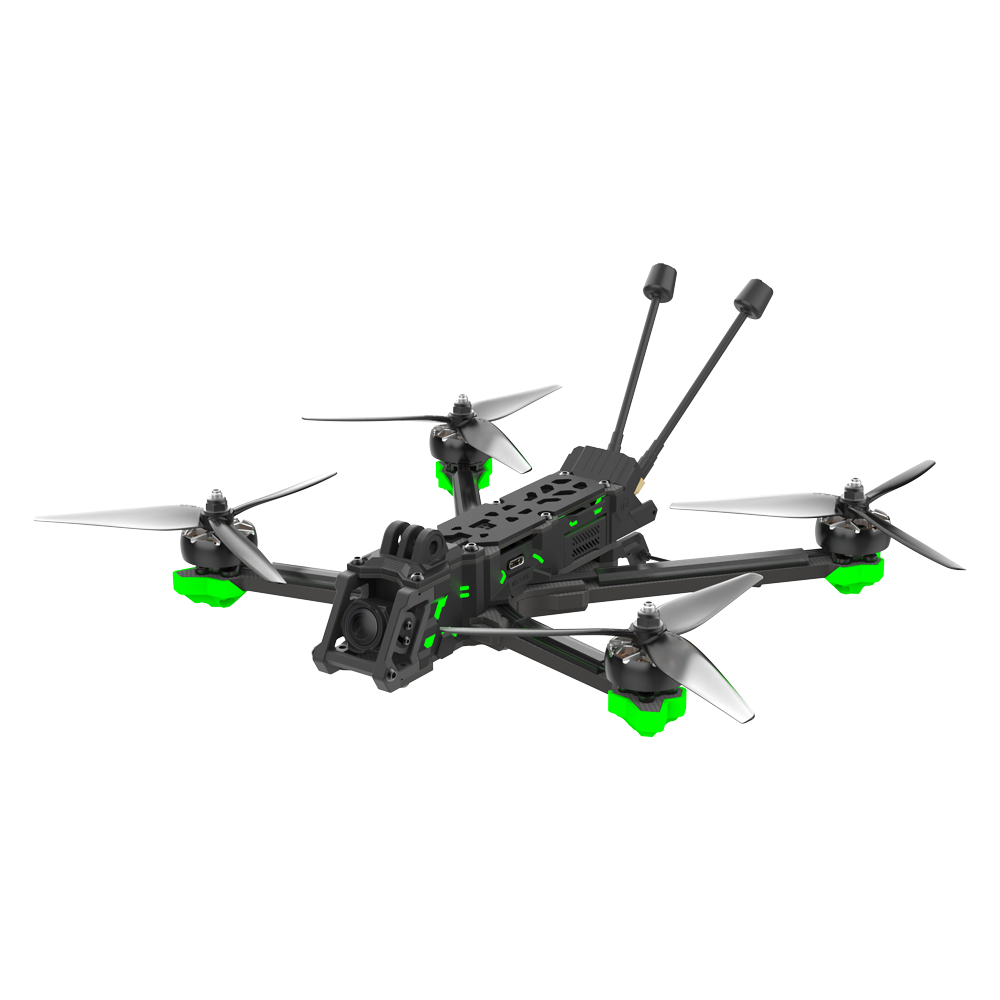

iFlight Nazgul Evoque F6D (DJI O3) V2 HD BNF
Description Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our...
- $5,434.00
- $5,434.00
- Unit price
- per
Description
Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!
A 6 inch drone features longer flight time with bigger battery and more efficiency with the lower KV motors.
Highlights
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.
Specification
Product Name: Evoque F6 V2
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame: 245mm wheelbase
Motor: XING2 2506 motors
Prop: 6 inch propellers
Weight：475grams
Takeoff Weight：Approx. 680 g
Dimensions (L×W×H)：180×180×80 mm
Diagonal Distance：120 mm
Max Speed：135 Km/H (Manual Mode)
Maximum Takeoff Altitude：5000 m
Max Hover Time：Approx. 8 mins
Max Flight Distance：5 km
Max Wind Speed Resistance：10.7 m/s (Level 5)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas：Dual Antennas
GNSS：GPS + Galileo
Vidieo Transmission
Product Name：DJI O3 Air Unit
Weight：Approx. 290 grams（headband included）
Dimensions (L×W×H)：L167 * W1039 * H 813mm
Screen Size (single screen)：0.49-inch
Resolution (single screen)： 1920×1080
Refresh Rate： Up to 100 Hz
Interpupillary Distance Range：56-72 mm
Diopter Adjustment Range：-8.0 D to +2.0 D
FOV (single screen)：51°
Communication Frequency：2.400-2.4835 GHz；5.725-5.850 GHz
Transmission Power (EIRP)：
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Max Video Transmission Bitrate ：50 Mbps
Operating Temperature Range：0° to 40° C (32° to 104° F)
Power Input：7-9 V (1.5 A)
Packing List
1 x Evoque F6 6S HD BNF
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
