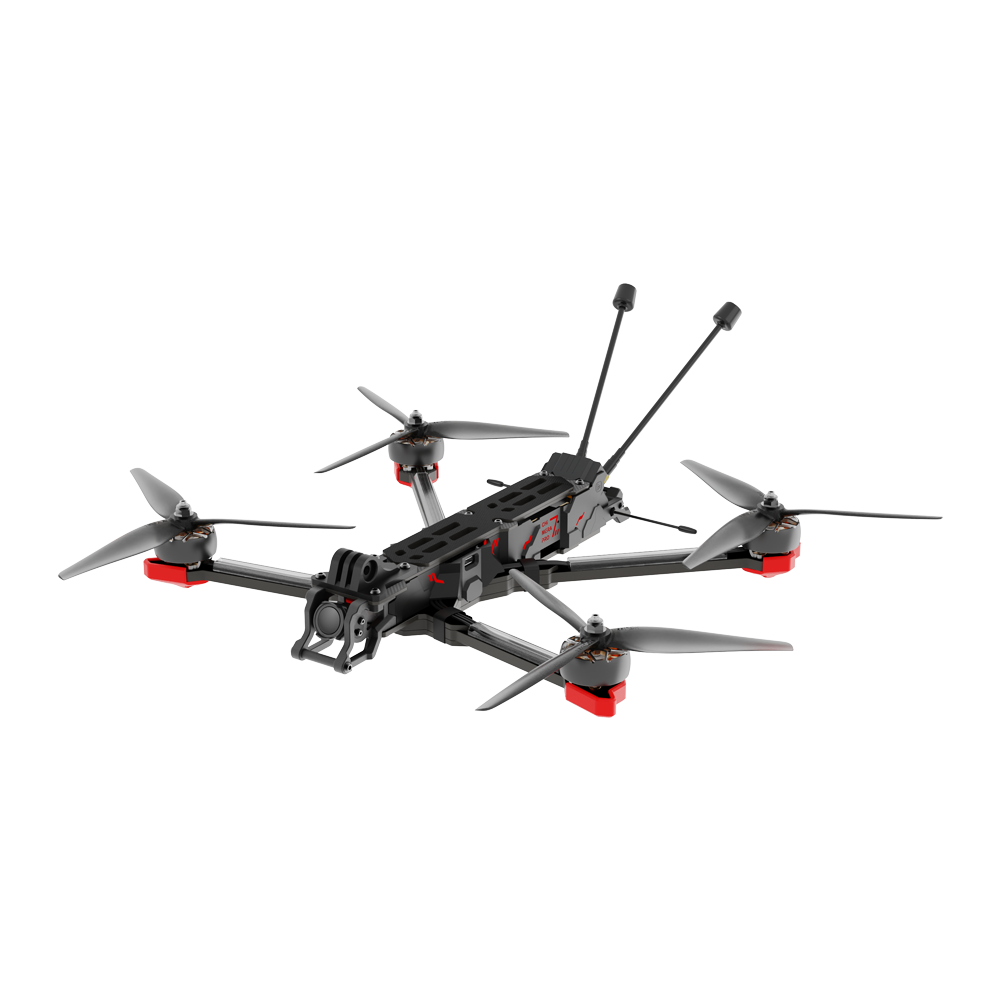

IFlight Chimera7 Pro V2 HD (DJI O3) BNF - 6S (DJI)
Description The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded...
- $5,744.00
- $5,744.00
- Unit price
- per
Description
The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.
Highlights
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
Latest Chimera7 Pro Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
DJI O3 HD Air Unit Low-Latency Digital Transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.
GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.
Specifications
Product Name: Chimera7 Pro V2 6S HD
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame: 345mm wheelbase
Motor: XING2 2809 motors
Prop: 7.5X3.7X3 propellers
Weight：695grams
Model：Chimera7 Pro
Takeoff Weight：Approx. 750g
Dimensions (L×W×H)：
Diagonal Distance：120 mm
Max Ascent Speed：6 m/s (Normal Mode, Sport Mode)
Max Descent Speed：6 m/s (Normal Mode, Sport Mode)
Max Speed：27 m/s (Manual Mode)
Maximum Takeoff Altitude：7000 m
Max Hover Time：Approx. 30 mins
Max Flight Distance：18 km
Max Wind Speed Resistance：130 Km/H (Level 5)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Transmission Power (EIRP)：FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas：Dual Antennas
GNSS：GPS + Galileo
Video Transmission
Product Name：DJI O3 Air Unit
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
Communication Bandwidth： Max 40 MHz
Live View Quality and Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate：50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)Audio Transmission：N/A
Packing List
1 x Chimera7 Pro V2 6S HD
1 x Battery pad
2 x 7 inch Prop(Pairs)
2 x Battery strap
1 x Screw bag
