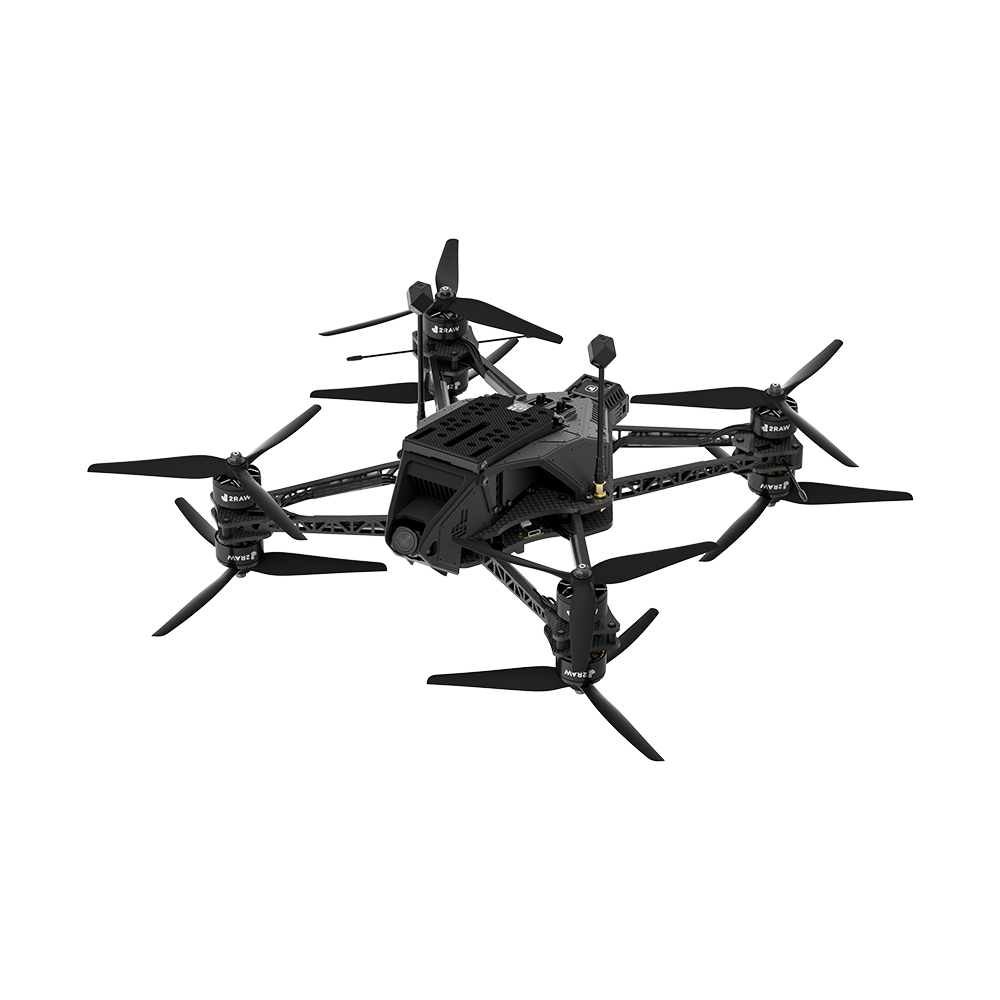

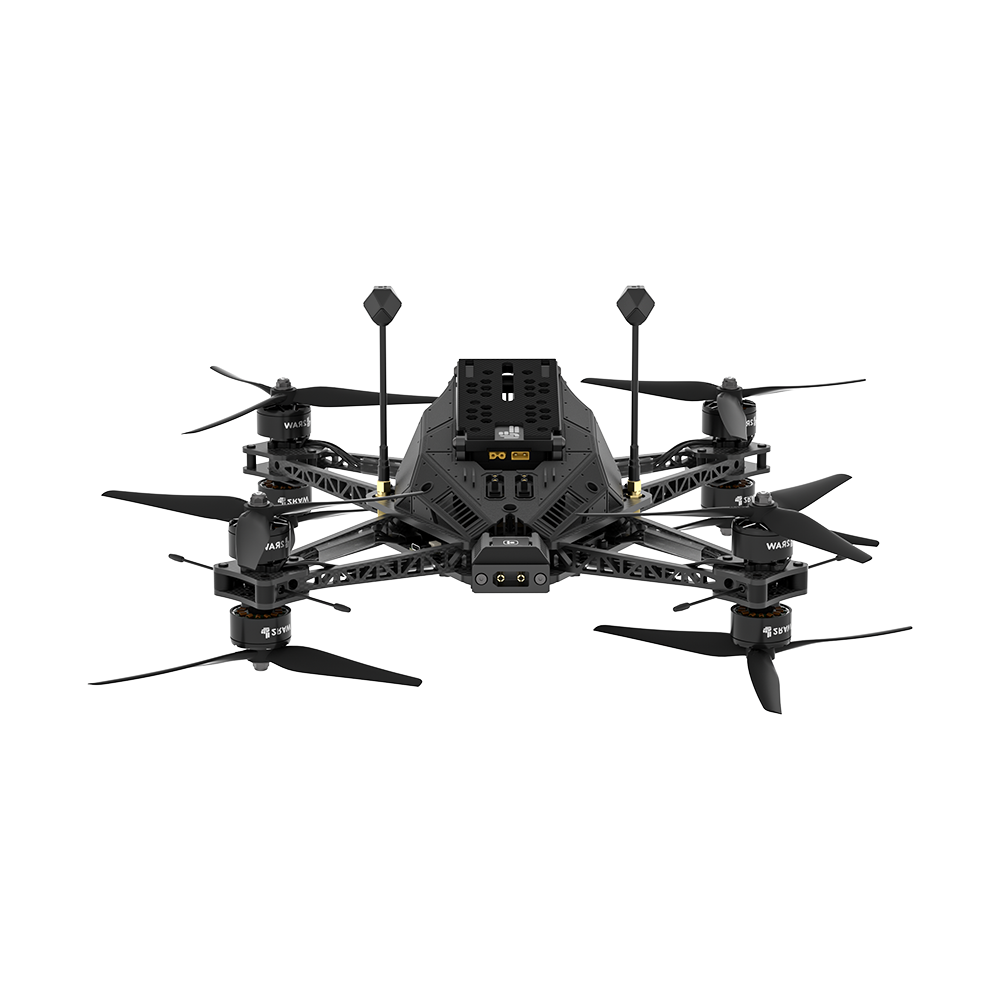

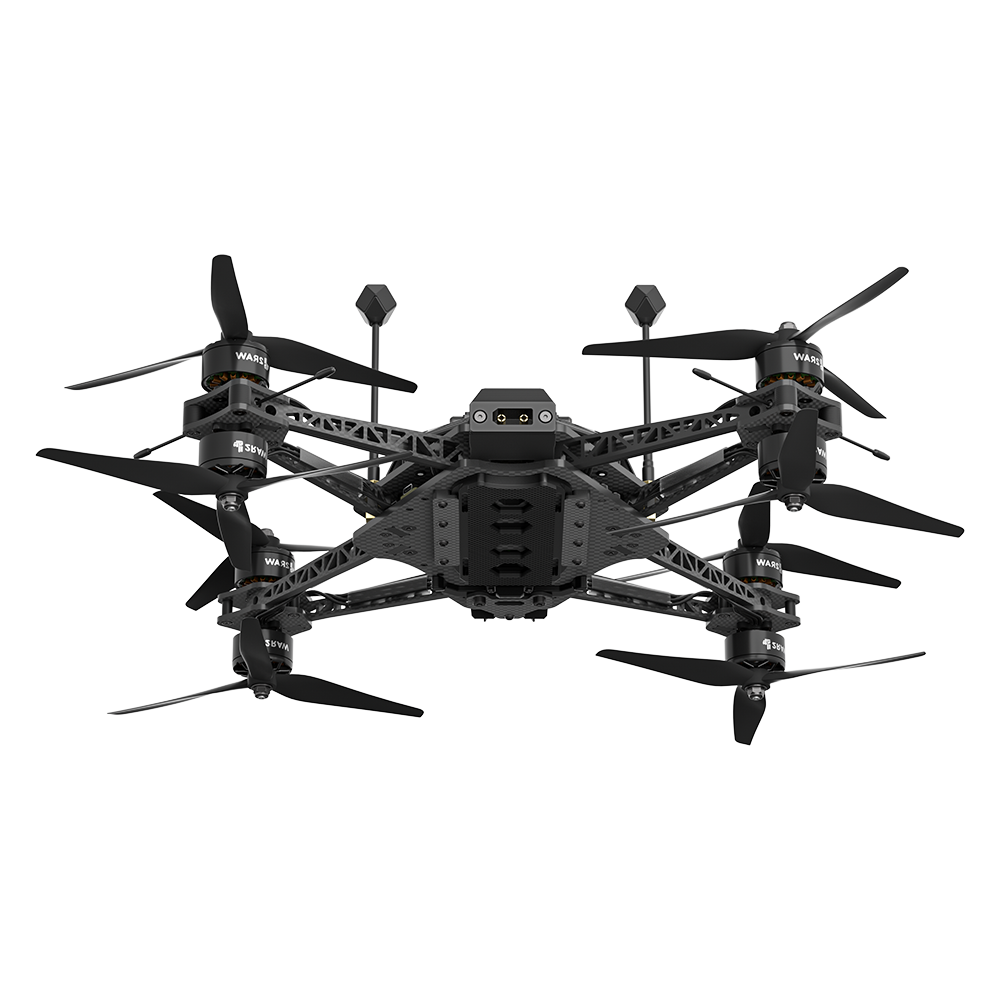

Centurion, developed by 2RAW in collaboration with iFlight, represents a pioneering step in cinelifter technology. It boasts custom-designed electronics, encompassing motors and a distinctive Thunder 8-in-1 ESC renowned for its exceptional filtering capabilities. Coupled with the formidable processing power of the 2RAW Thunder H7 Flight Controller, this amalgamation delivers unparalleled performance for a 6s craft. Additionally, Centurion is furnished with cutting-edge GPS chips featuring an enlarged antenna, facilitating rapid and precise satellite acquisition.

Advanced Truss Arms

The integration of an A-frame design with trusses ensures exceptional stiffness while effectively managing weight, resulting in outstanding performance.

Innovative Camera Mount

Centurion's pioneering camera mount stands apart from others on the market with its adjustable angles ranging from 10 to 50 degrees. Fashioned from 7075 aero-grade aluminium, the mount is elevated to eliminate the propellers from the cinema camera's view. Critically, it is supported along both the horizontal and vertical axes to mitigate payload resonances. As the camera angle increases for heightened speeds, the mount provides increasing support.

AeroShell

The AeroShell not only imparts a distinctive appearance to Centurion but has also been meticulously engineered with the assistance of PHD students to regulate airflow around the body and within the drone. Air ingress occurs through the intakes to cool the ESC, while egress is facilitated through rear exhausts. As the drone's velocity escalates, the AeroShell acts as an air divider, deflecting airflow away from the flat top plate. Moreover, the shell serves as a barrier against dirt infiltration into the electronics.

Thermal Cooling

The shell's design facilitates direct airflow across the electronics, ensuring consistent cooling. Additionally, the O3 Air Unit features an aluminum heatsink and fan assembly installed atop it to prevent overheating, even in the most extreme desert conditions, instilling confidence in operation.

Quick Release Battery System

Featuring a seamlessly integrated quick-release battery system, the Centurion optimizes efficiency in demanding filming environments. Unlike competing models, it employs battery straps and carbon plates, eliminating the need for individual battery tie-downs. This swift battery swap capability enables users to return to flight in mere seconds, enhancing productivity.

Product Name: Centurion 8 O3 6S HD

FC: Thunder H7 Flight Controller

ESC: Thunder 80A 8-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 384mm wheelbase

Motor: XING2 2812 1150KV motors

Prop: GEMFAN 8046 propellers

Weight: 1837g (Without Battery)

Dimensions (L×W×H)：272×272×96mm

Max Speed:  160km/h

Maximum Takeoff Altitude: 7000m

Max Hover Time: Approx. 6mins with 6S Lipo 5600mAh battery

Max Cruising Time: Approx. 5mins with 6S Lipo 5600mAh battery

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x Centurion 8 O3 6S HD BNF

4 x GEMFAN 8046 CW propeller

4 x GEMFAN 8046 CCW propeller

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

4 x iFlight Lipo Strap 20*300mm

2 x iFlight Lipo Strap 15*250mm (Black)

1 x XT90 Smart Smoke Stopper

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
