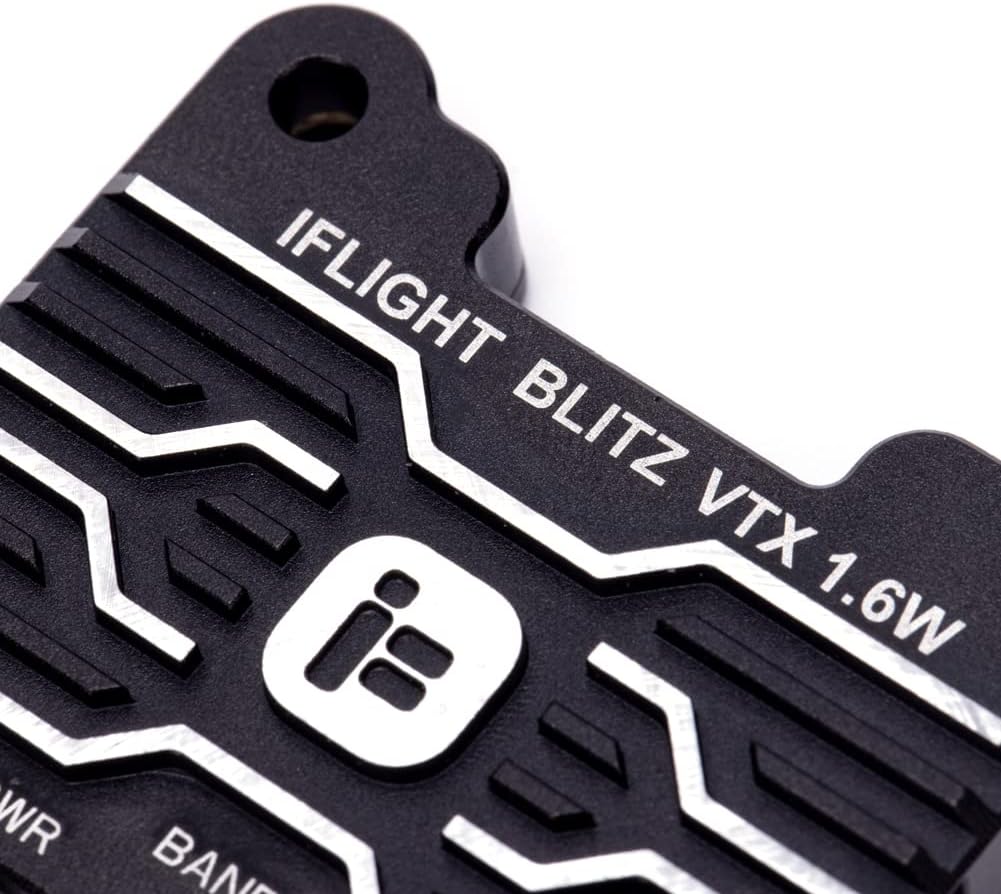

iFlight BLITZ 5.8G 1.6W VTX

Basic parameters:

Transmission power: 25MW / 400MW / 800MW / 1600MW

Installation hole: 30.5 * 30.5/ Φ3mm

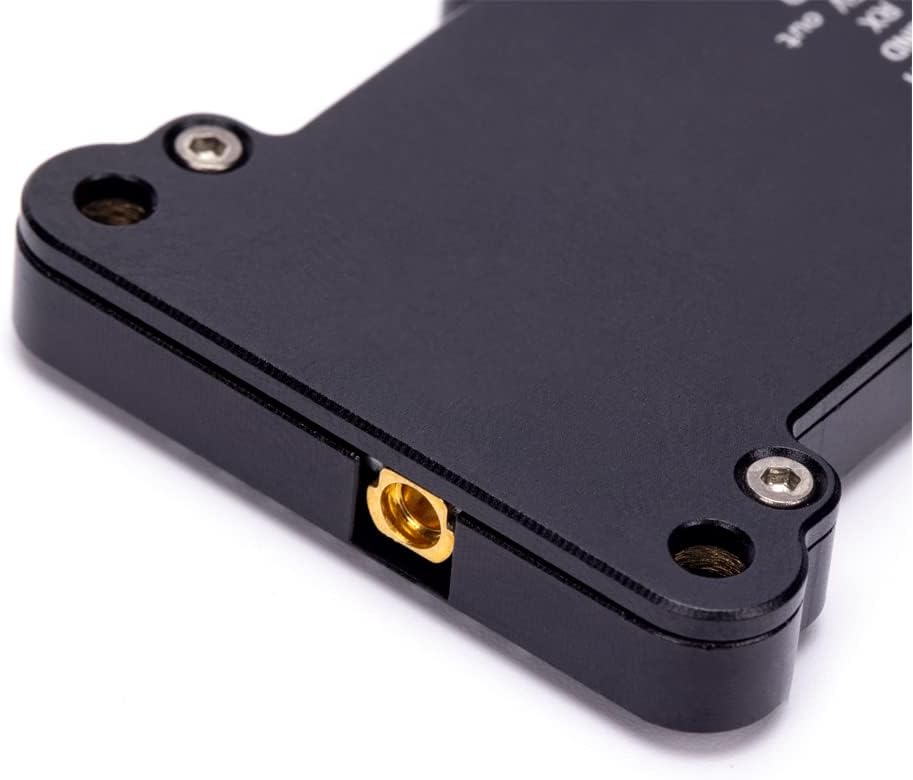

Antenna interface: MMCX

Image transmission protocol: IRC tramp

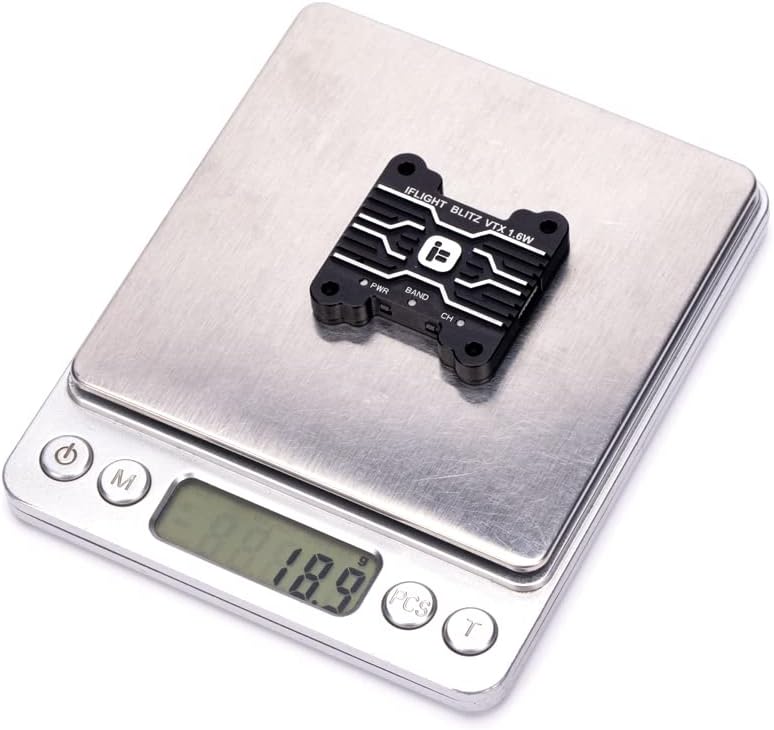

Weight: 18.9g

1.6w vtx

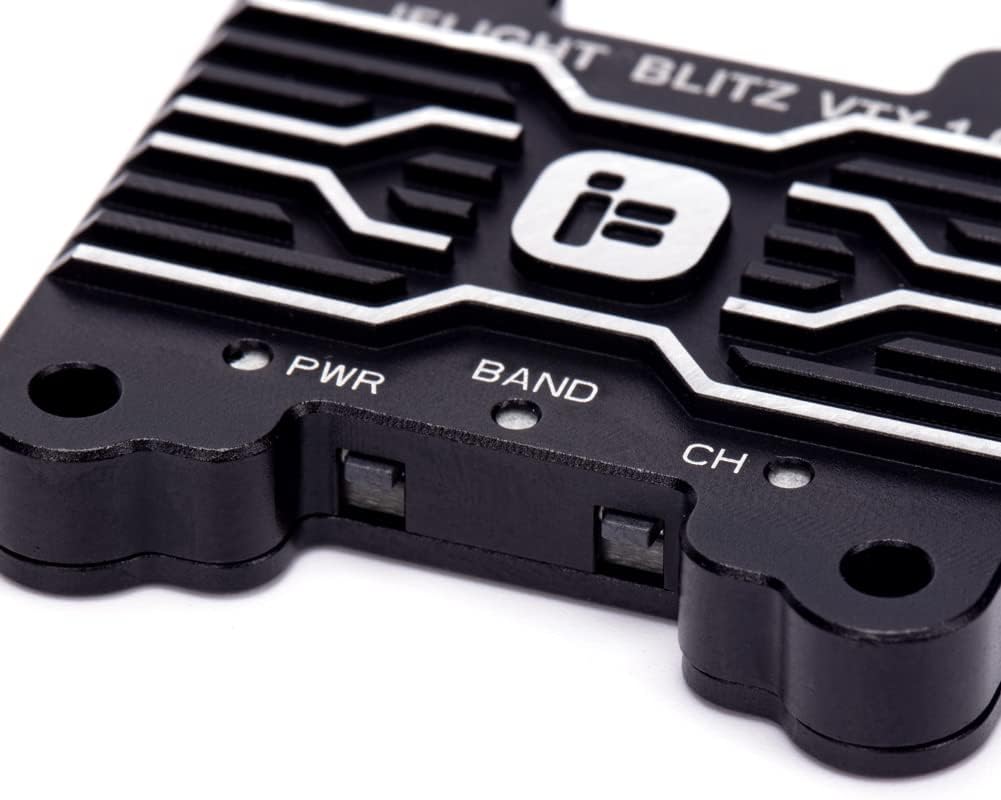

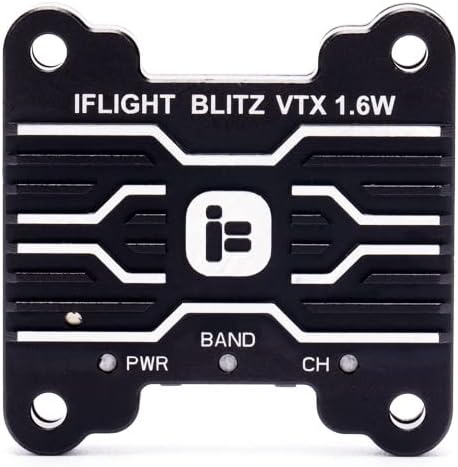

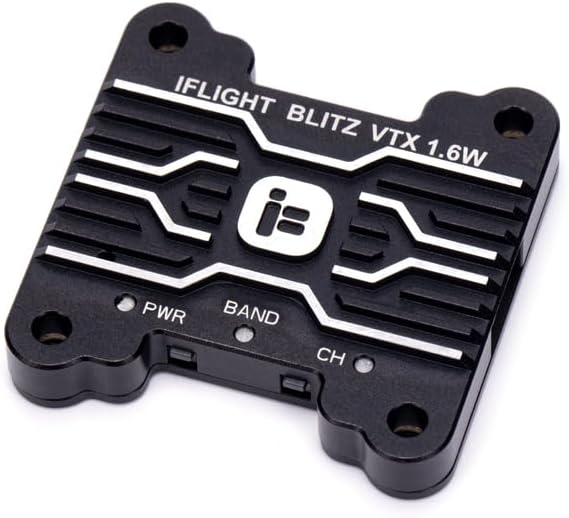

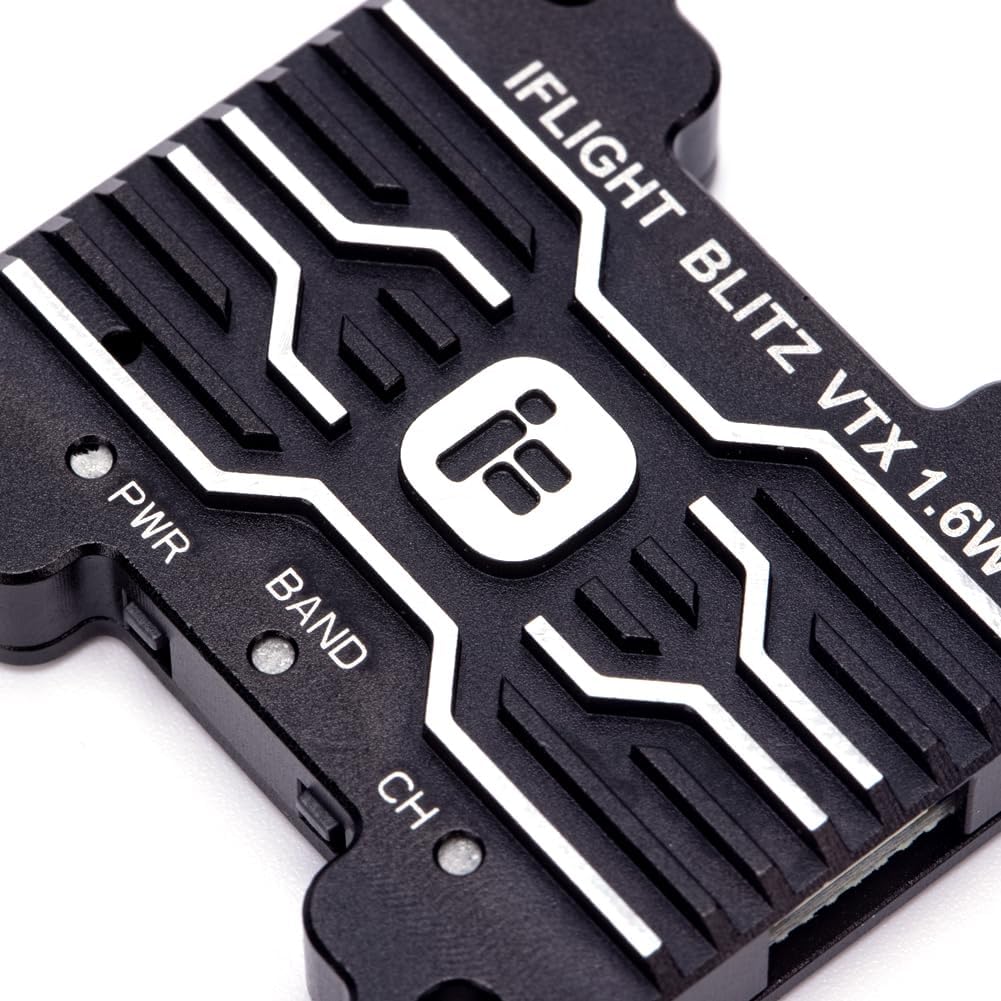

Description of button and indicator light:

Two function button are parallel in the VTX circuit, and the operation and function are the same.

Red light: Ch indicator. (short press to enter the Channel selection)

Blue light: Band indicator. (long press for 3 seconds to enter Band selection)

Green light: Power indicator. (long press for 2 seconds to enter Power selection)

1.6w vtx

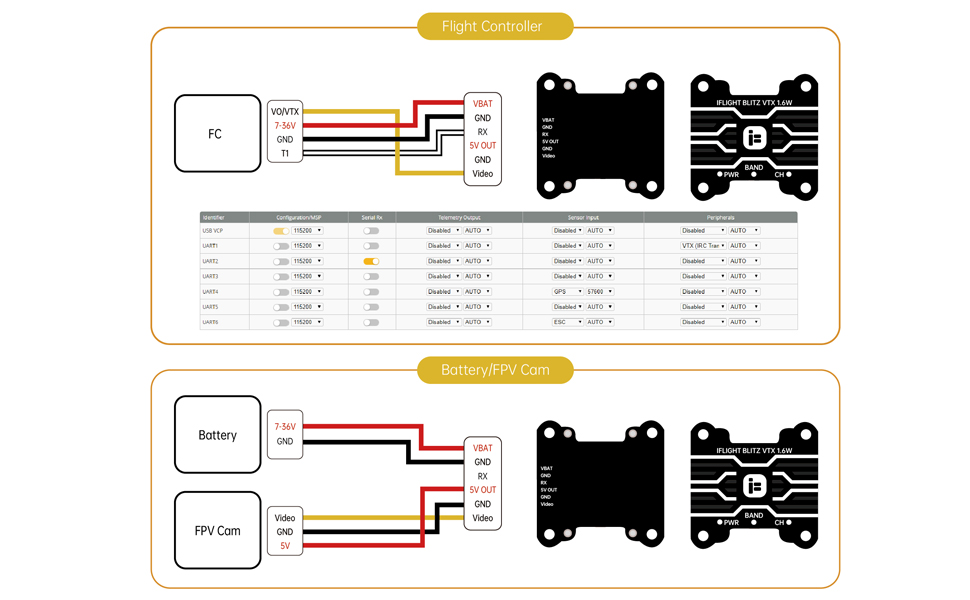

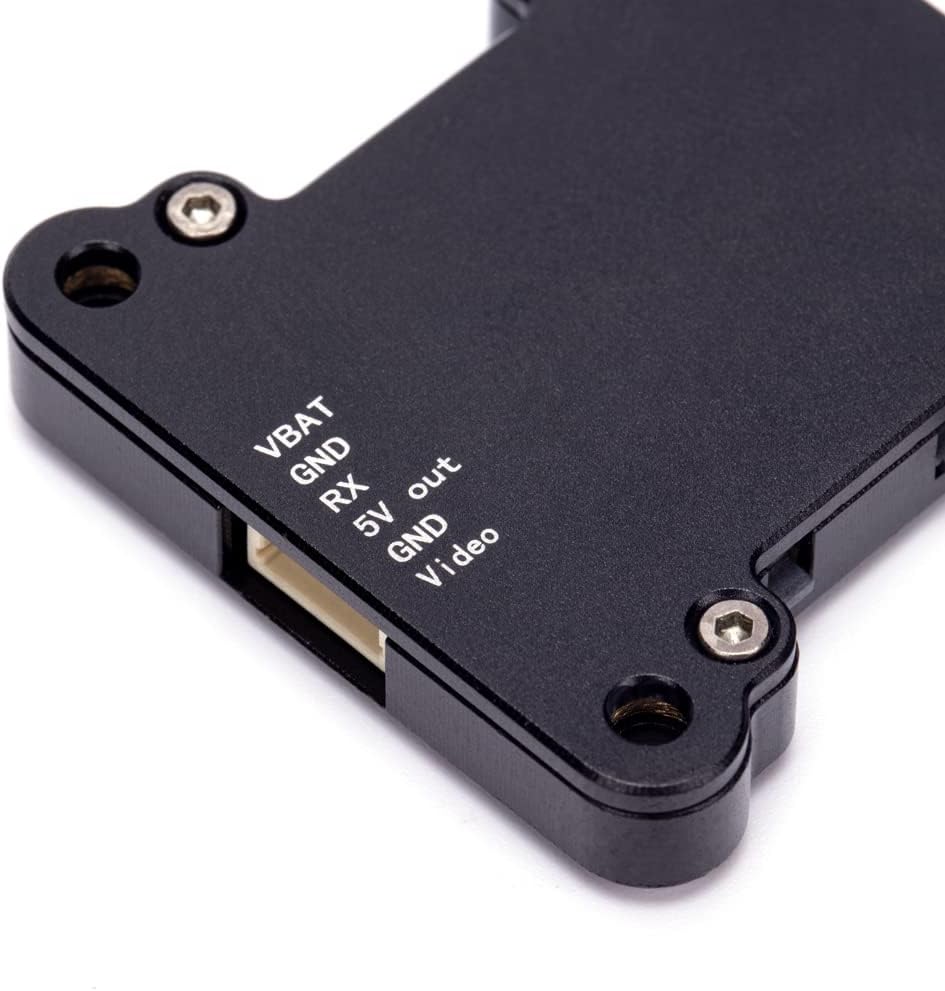

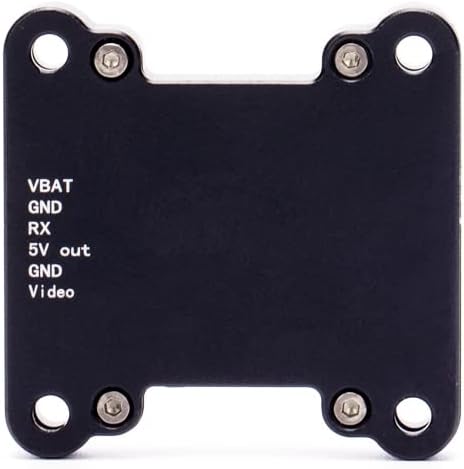

Connector definition description:

DC 7-36V: Input 2-8s Battery power

GND: Common ground wire

Video: connect to the video output port of FC or Camera

IRC: Connect to UART TX port of FC

5V OUT: output 5V power to the Camera

GND: Common ground wire

1600mw vtx

Warning:

*Install Antenna before use.

*To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

*The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

1.6w vtx

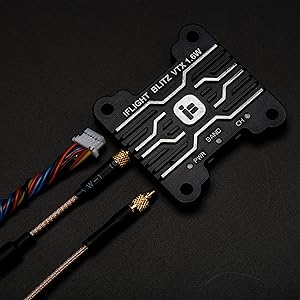

Pack list:

1x 1.6W VTX.

1x MMCX to SMA Female pigtail 100mm.

1x 5.8GHz MMCX whip antenna 65mm.

1x SH1.0 6P cable 100mm.
