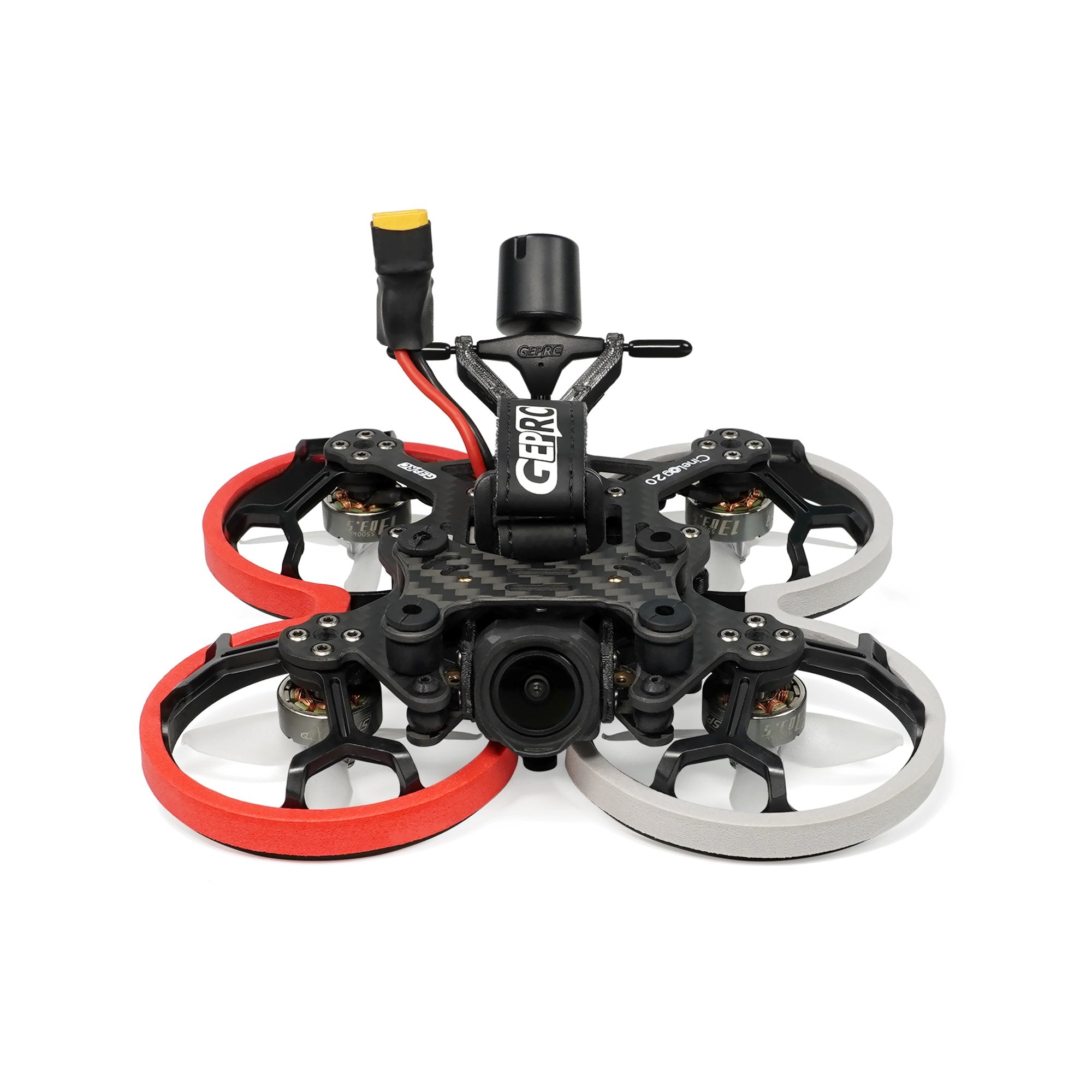

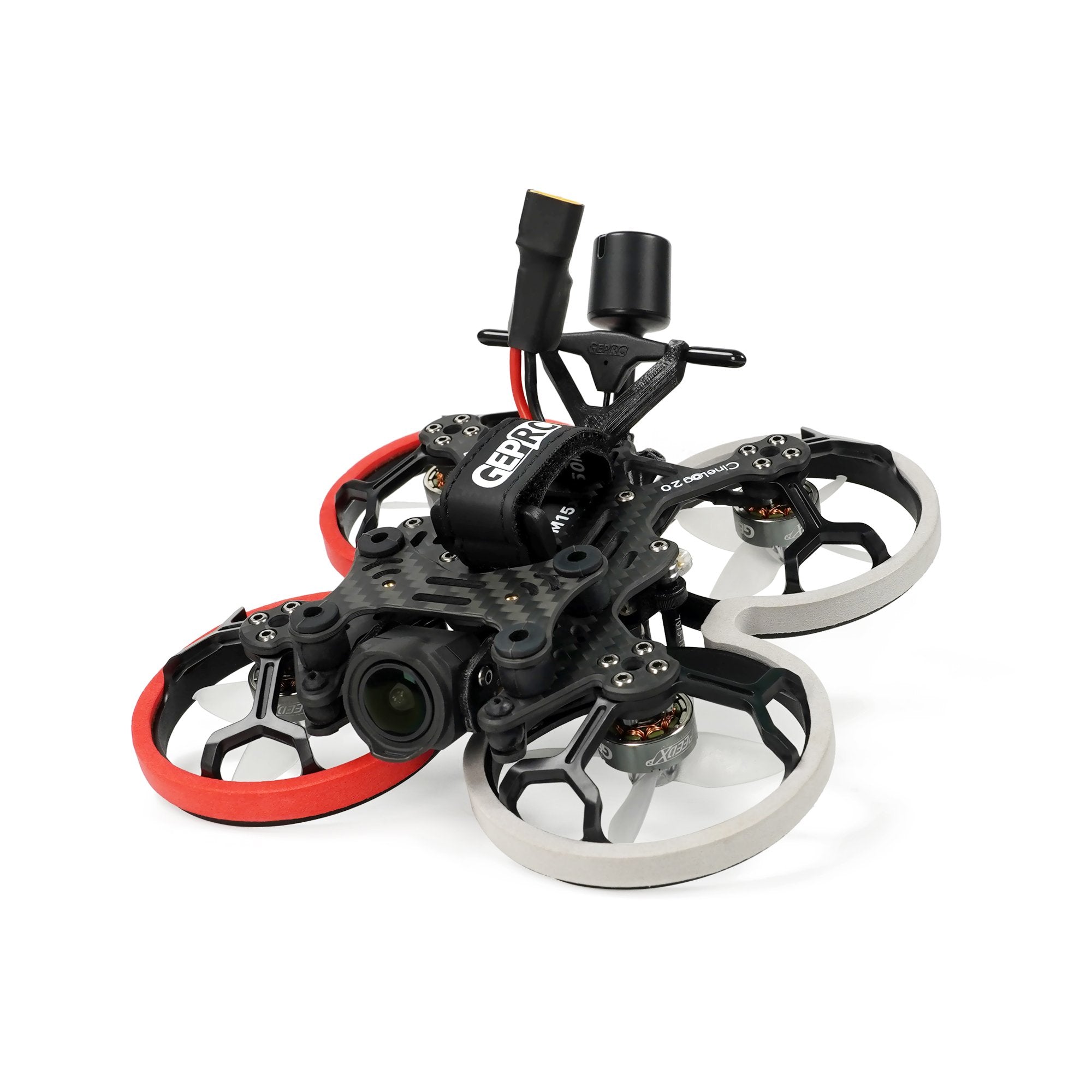

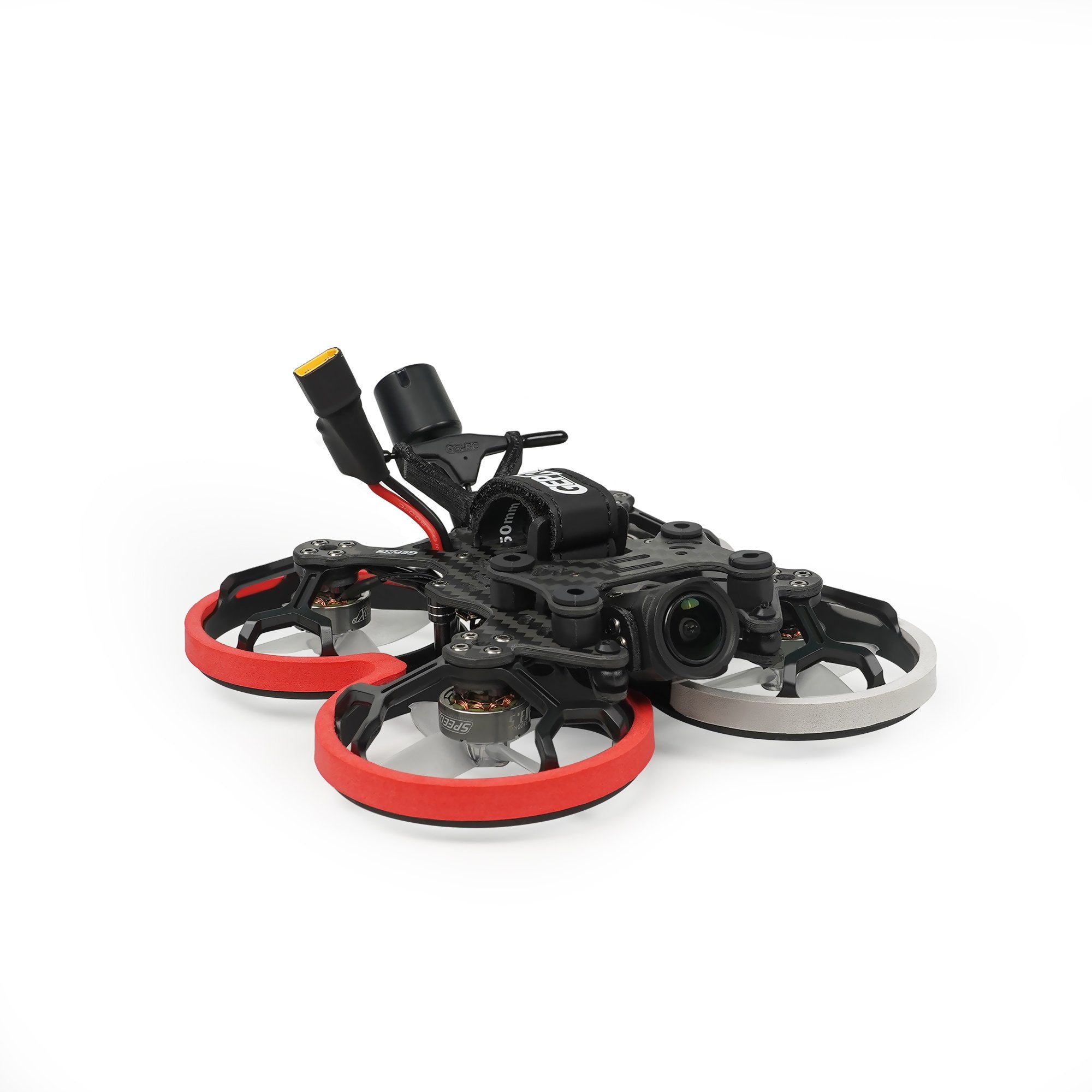

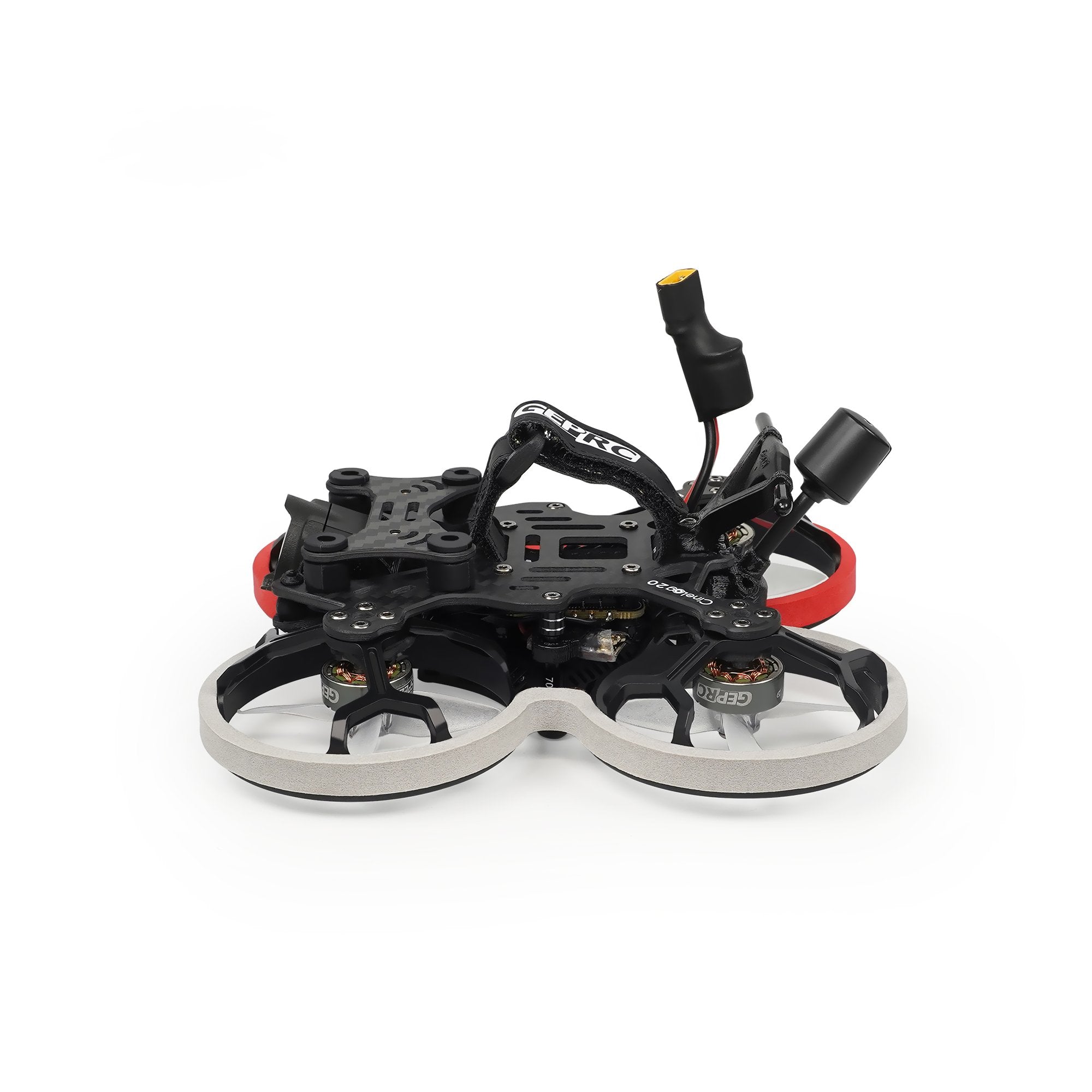

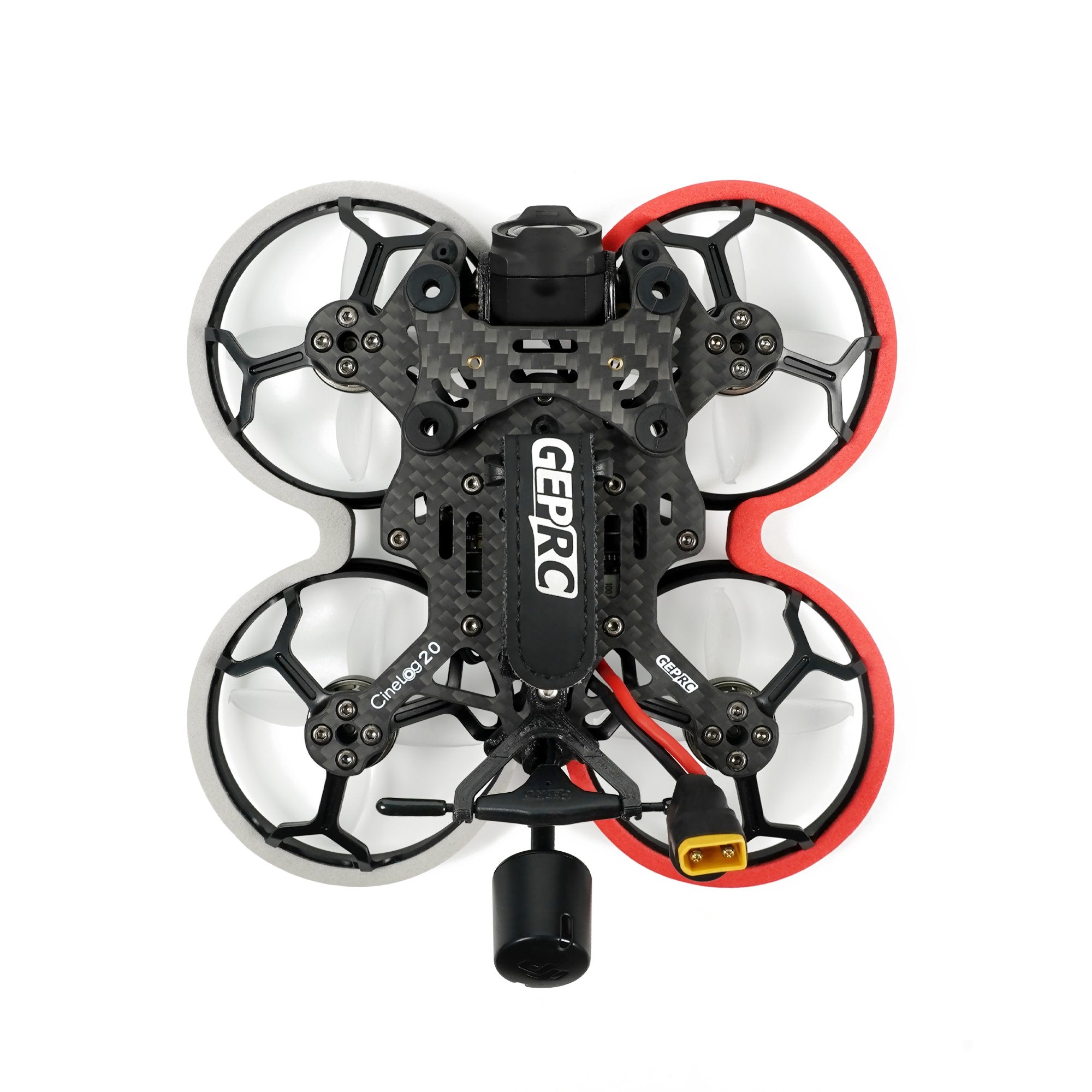

GEPRC CineLog20 HD O3 FPV Drone - 4S/ELRS 2.4G
Summary For the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop...
- $3,869.00
- $3,869.00
- Unit price
- per
Summary
For the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop CineLog20. Available in Link Wasp, O3 AIR Unit, Walksnail, and Analog four mainstream video transmission system on the market.
The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 AIR Unit shooting, which can achieve excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life.
It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GoPro 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.
Feature
-
Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
-
Provide mainstream Link Wasp, O3 AIR Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
-
2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
-
SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
-
Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GoPro mounted.
-
The GEPRC Team’s splendid tuning and the overall flight feel are delicate and flexible.
Specifications
- Model: CineLog20 HD O3
- Frame: GEP-CL20
- Wheelbase: 100mm
- Gimbal plate: 2.0mm
- Top plate: 2.5mm
- Bottom plate: 1.5mm
- FC system: GEP-F411-35A AIO
- MCU: STM32F411CEU6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E chip
- ESC: 8Bit 35A
- VTX: O3 AIR Unit
- Camera: O3 Camera
- Antenna: 5.8G&2.4G
- Motor: GR1303.5 5500KV
- Propeller: EMAX Avan Micro 2×2.4×4
- CineLog20 HD O3 TBSNanoRX weight: 140g
- Receiver: PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX / RXSR
- Recommended battery: LiHv 4S 450mah-660mah
- Flight time:4-6min
Includes
1 x CineLog20 HD O3
2 x 2 inch propellers (pairs)
1 x Naked GoPro Base
2 x M15*150mm battery strap
2 x Battery Silicone Pads
2 x EVA landing Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x Antenna fixed tube
1 x 4S Naked GoPro power cable (with balanced terminal head)
2 x EVA damping rings of guards
1 x TBS Antenna mount (Vertical Type)
1 x TBS Antenna mount (Horizontal Type)
1 x TBS Antenna printed parts
Screw package includes:
3 x M2*12mm cup head screws
2 x M2*5mm round head screws
1 x M2*8mm round head screw with pad
3 x M2*7mm round head screws
2 x M2*8mm round head screws
2 x M2 iron nuts
1 x self-clinching nut
