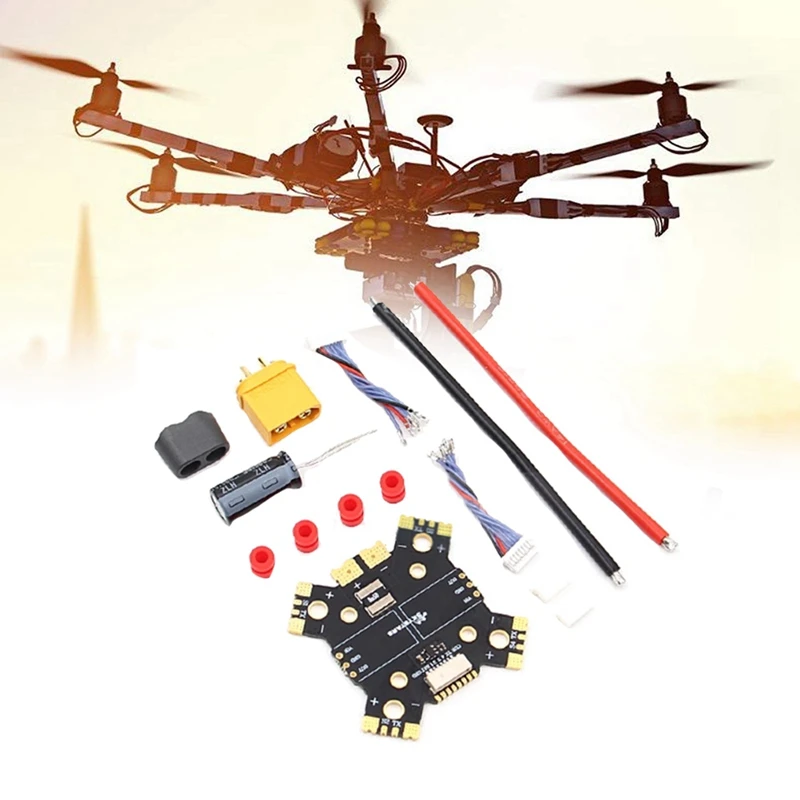

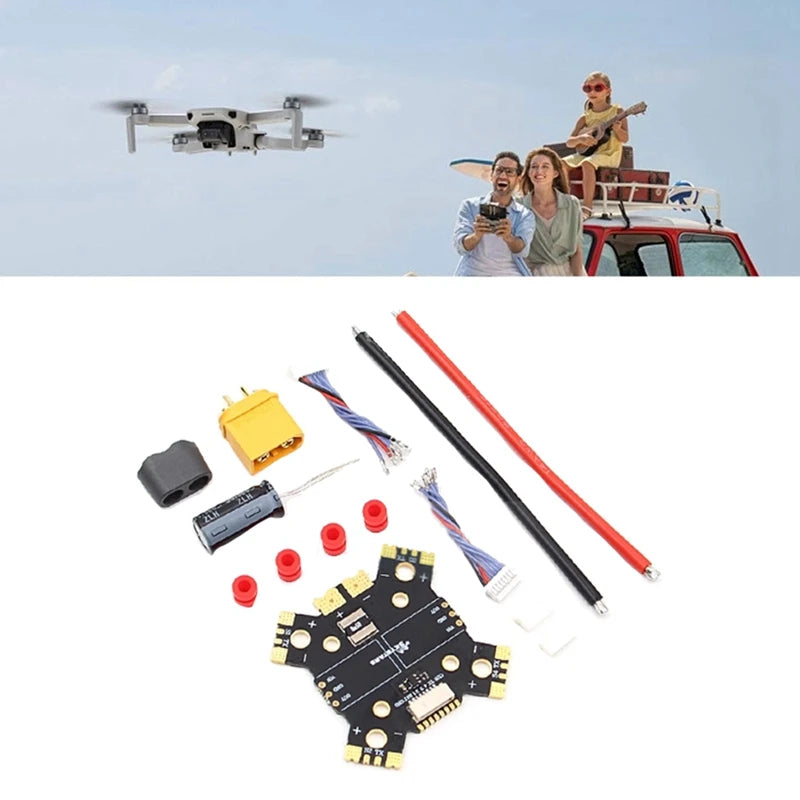

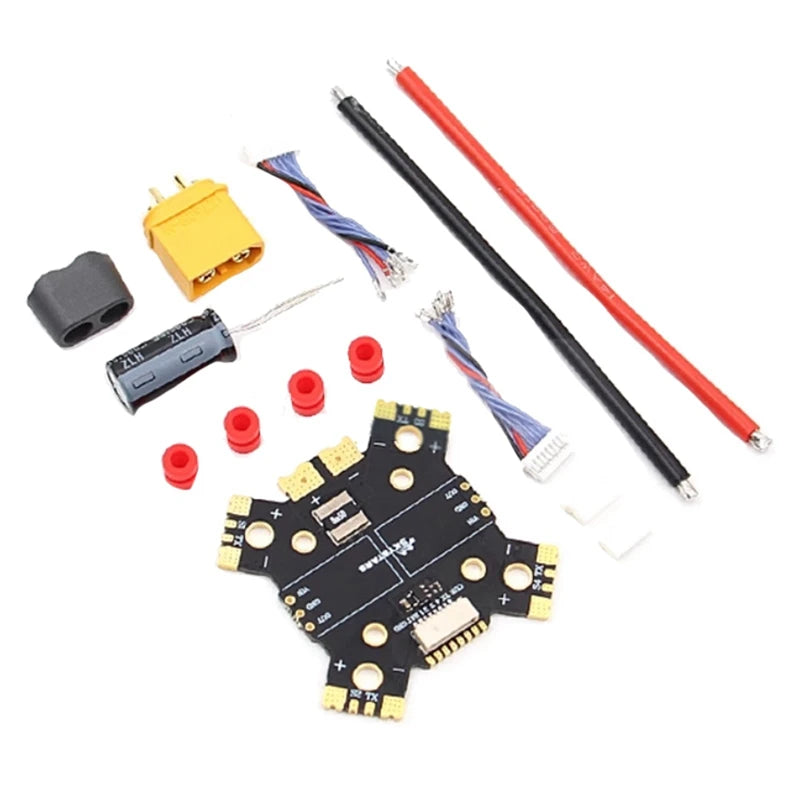

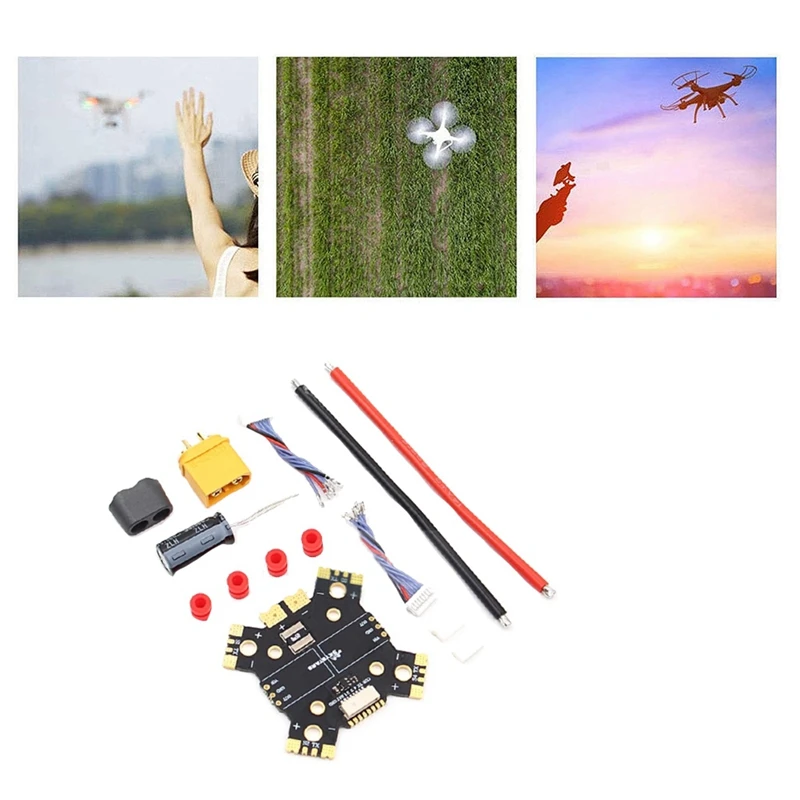

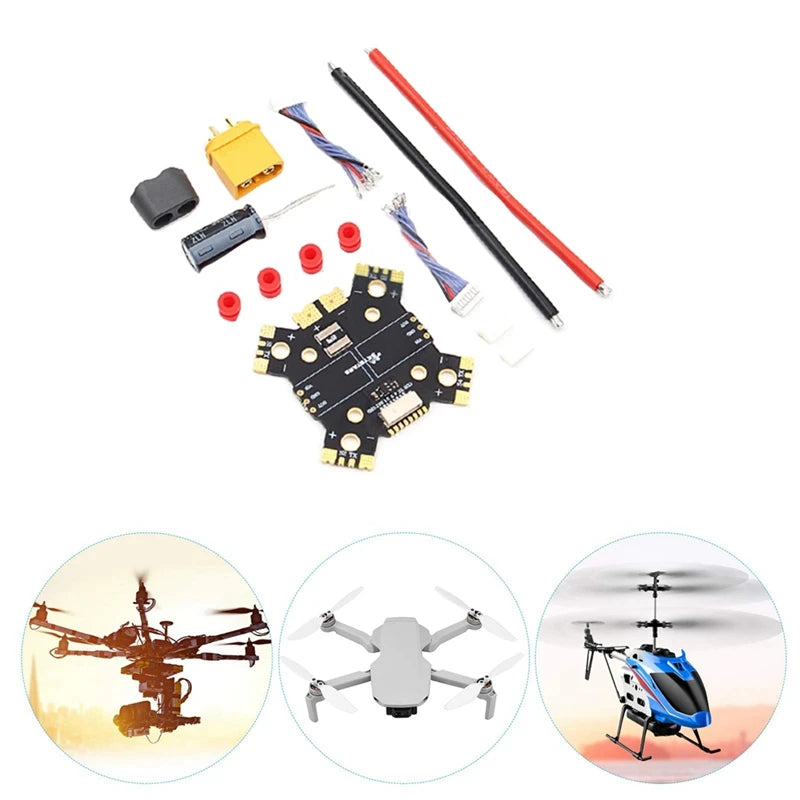

For SKYSTARS PDB XT60 Power Distribution Board 4X25A 4X30A For FPV Drone Quadcopter PDB XT60 Power Hub
Single ESC distribution board 3oz copper foil, 4-layer PCB, ensuring large current flow 4 pairs of ESC...
- $39.00
$39.00- $39.00
- Unit price
- per
Single ESC distribution board
3oz copper foil, 4-layer PCB, ensuring large current flow
4 pairs of ESC power pads, suitable for ESC arrangement in X-shaped or H-shaped racks
The distribution board can withstand current of 4*25A, short-term 4*30A (10s)
48x48mm, 8.9g, with galvanometer
Double hole distance 30.5X30.5mm, hole diameter 4mm/20X20mm, hole diameter 3mm
Direct plug-in flight control cable, this flight control does not require soldering wires, specially designed for single ESCs
2 sets of BEC external pads, need to be able to plug in an independent BEC module for power supply (BEC module not included)
The package contains 1 XT60 plug, the user needs to weld the distribution board by themselves
Pay attention to the input polarity, do not reverse the input or short-circuit it!
Do not touch the carbon fiber board behind the distribution board, as it may cause a short circuit.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:Black
Material:PCB
Package Contents:
1 x Power Distribution Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
3oz copper foil, 4-layer PCB, ensuring large current flow
4 pairs of ESC power pads, suitable for ESC arrangement in X-shaped or H-shaped racks
The distribution board can withstand current of 4*25A, short-term 4*30A (10s)
48x48mm, 8.9g, with galvanometer
Double hole distance 30.5X30.5mm, hole diameter 4mm/20X20mm, hole diameter 3mm
Direct plug-in flight control cable, this flight control does not require soldering wires, specially designed for single ESCs
2 sets of BEC external pads, need to be able to plug in an independent BEC module for power supply (BEC module not included)
The package contains 1 XT60 plug, the user needs to weld the distribution board by themselves
Pay attention to the input polarity, do not reverse the input or short-circuit it!
Do not touch the carbon fiber board behind the distribution board, as it may cause a short circuit.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:Black
Material:PCB
Package Contents:
1 x Power Distribution Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
