DS525MG 8.4V HV Digital Metal Gear Servo 7.5Kgf.cm 0.04sec for 550-700 Class Helicopters

DS525MG features with 0.04sec extremely fast speed and robust aluminum housing. Precise and backlash-free metal gear. Extremely...
Vendor: KST
SKU: HP0023.0035
Availability: Many In Stock
Product Type: Servo Motor
$506.00
$506.00
Subtotal: $506.00
KST DS525MG 8.4V 7.5kg 0.04sec HV Digital Metal Gear Servo Motor

DS525MG 8.4V HV Digital Metal Gear Servo 7.5Kgf.cm 0.04sec for 550-700 Class Helicopters

$506.00

DS525MG 8.4V HV Digital Metal Gear Servo 7.5Kgf.cm 0.04sec for 550-700 Class Helicopters

$506.00

DS525MG features with 0.04sec extremely fast speed and robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopter tail rotors in the 550-700 class.

DS525MG 8.4V HV Digital Metal Gear Servo 7.5kg 0.04sec for Helicopters

Features

  • Hardened Steel Gears
  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings

Specification

  • Item: DS525MG Metal Gear Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque:
    7.5Kgf.cm@8.4V
    6.5Kgf.cm@7.4V
    5.5Kgf.cm@6.0V
  • Speed:
    0.040sec/60°@8.4V
    0.045sec/60°@7.4V
    0.050sec/60°@6.0V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%
  • Ball Bearing: 2 BB

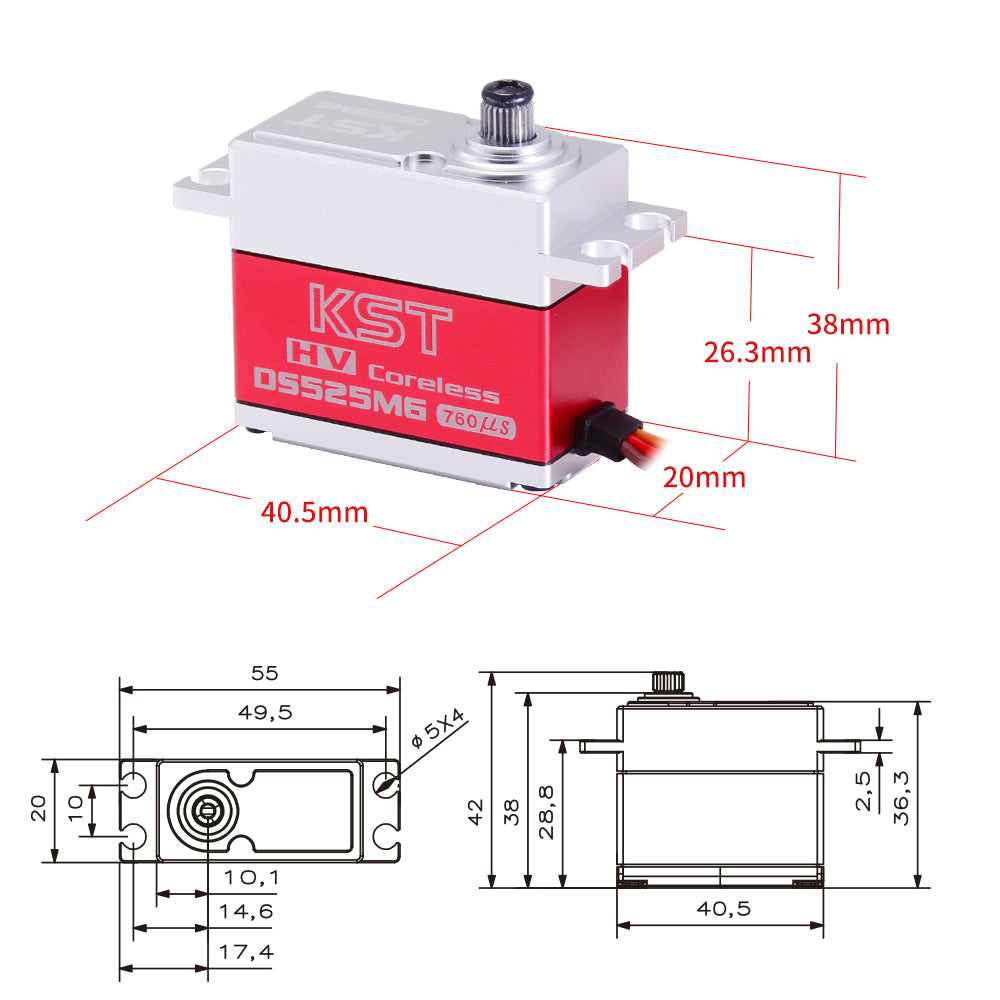

Size

DS525MG 8.4V HV Digital Metal Gear Servo 7.5kg 0.04sec for Helicopters

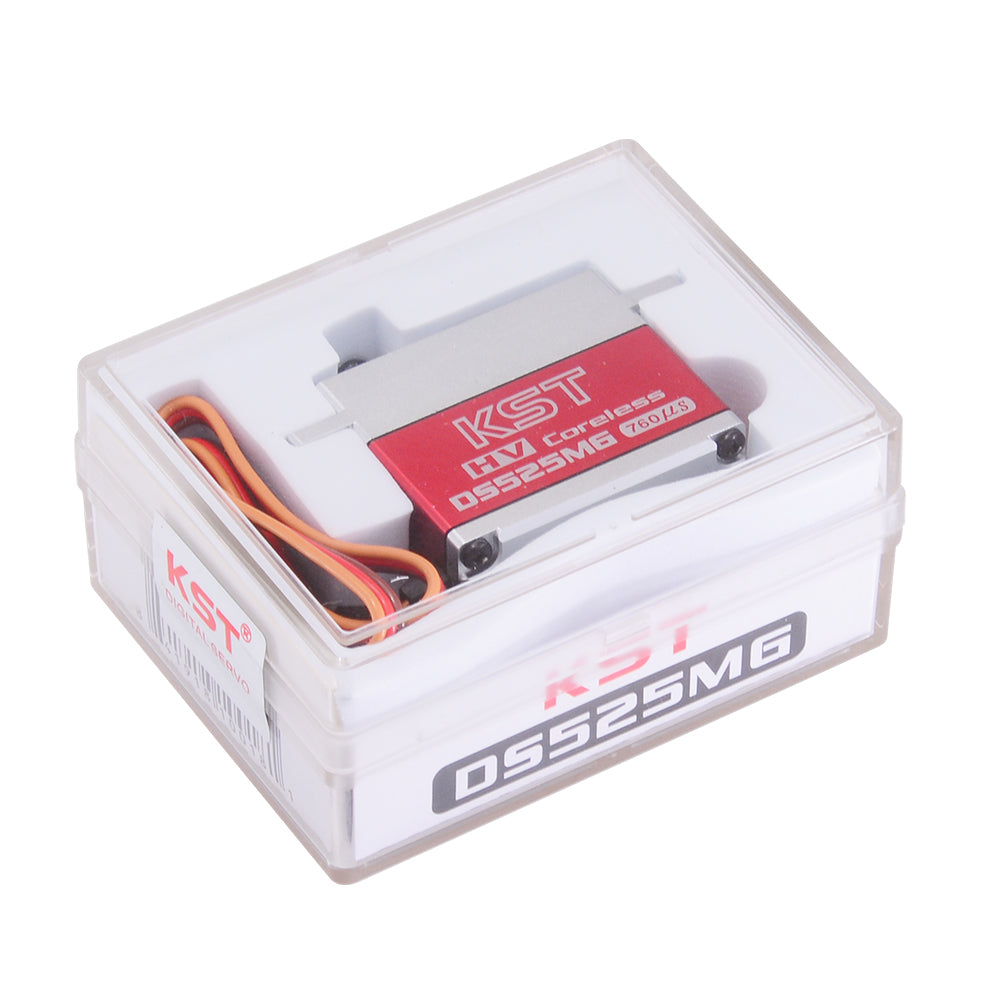

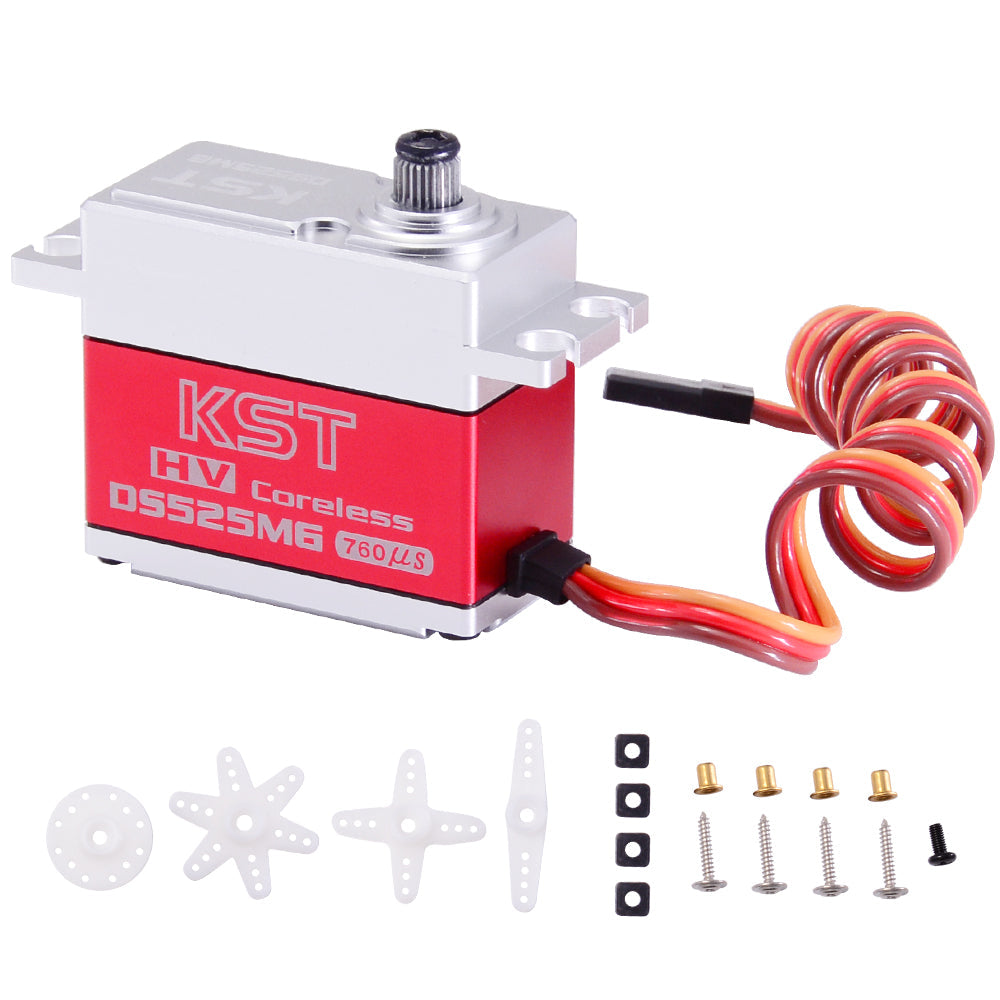

Package Including

  • 1 * DS525MG Metal Gear Servo Motor
  • 1 * Pack of Accessories
DS525MG 8.4V HV Digital Metal Gear Servo 7.5kg 0.04sec for Helicopters
