DS3509MG Digital HV Metal Gear Servo 35kg 0.12sec for RC Airplanes

DS3509MG is a high-quality and ultra fast digital standard servo with robust aluminum housing. Precise and backlash-free...
Vendor: KST
SKU: HP0023.0040
Availability: Many In Stock
Product Type: Servo Motor
$662.00
$662.00
Subtotal: $662.00
KST DS3509MG 32kg 0.13sec Digital HV Metal Gear Servo

DS3509MG Digital HV Metal Gear Servo 35kg 0.12sec for RC Airplanes

$662.00

DS3509MG Digital HV Metal Gear Servo 35kg 0.12sec for RC Airplanes

$662.00

DS3509MG is a high-quality and ultra fast digital standard servo with robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopters in the 550-700 class, ailerons, and elevators for large 3D model airplanes.

DS3509MG Digital HV Metal Gear Servo 35kg.cm 0.12sec for RC Airplanes

Features

  • Hardened Steel Gears
  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings
  • Programmable
  • Ideal for helicopters in the 550-700 class, ailerons and elevators for large 3D model airplanes.

Specification

  • Item: DS3509MG Metal Gear Servo
  • Rated Voltage DC7.4V
  • Operating Voltage: DC 6.0V-8.4V
  • Size: 40.5mm*21mm*39.5mm±0.2m
  • Torque:
    35Kgf.cm @ 8.4V
    32Kgf.cm @ 7.4V
    30Kgf.cm@6.0V
  • Speed:
    0.12sec/60° @ 8.4V
    0.13sec/60° @ 7.4V
    0.14sec/60° @ 6.0V
  • Weight: 78g±10%
  • Working Frequency: 1520us/333Hz
  • Default Travel Angle: ±50°=100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
  • Accessories: 25T-6C Aluminum Servo Horn25T Servo Arm & Screw Set

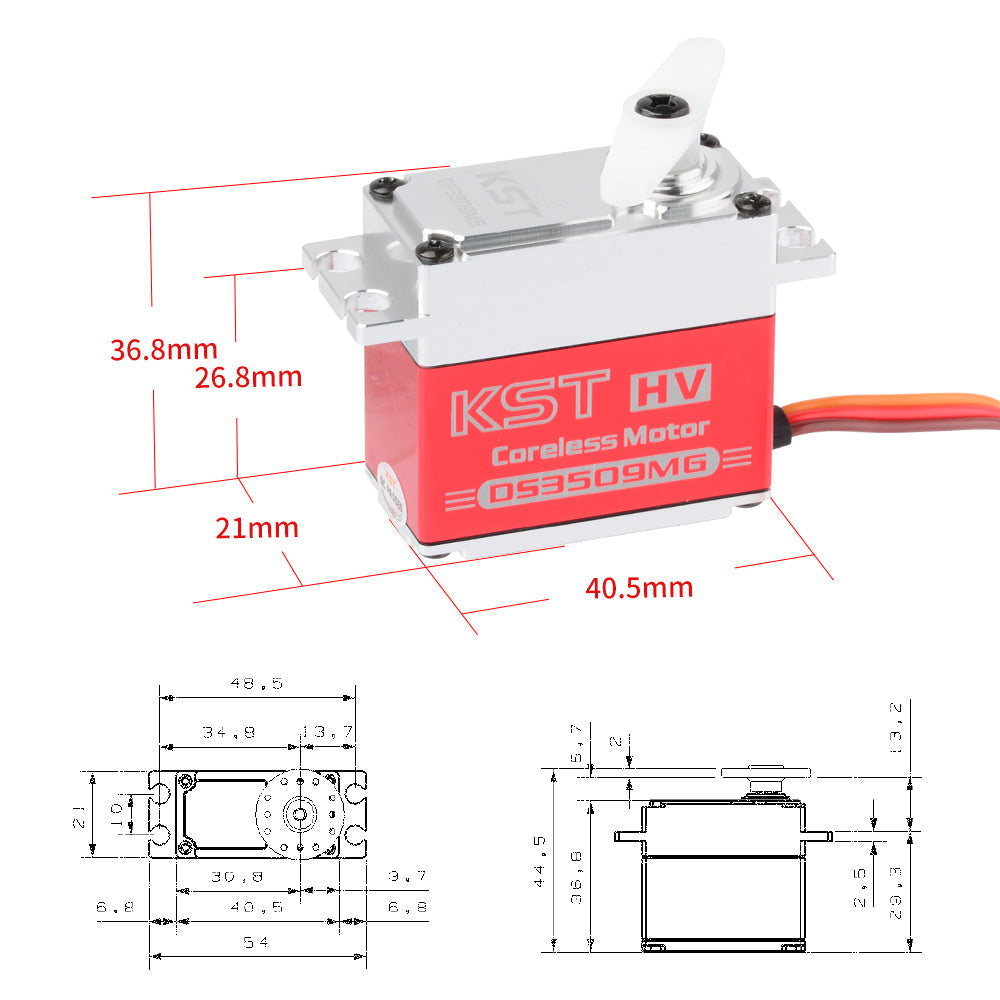

Size

DS3509MG Digital HV Metal Gear Servo 32kg.cm 0.13sec for RC Airplanes

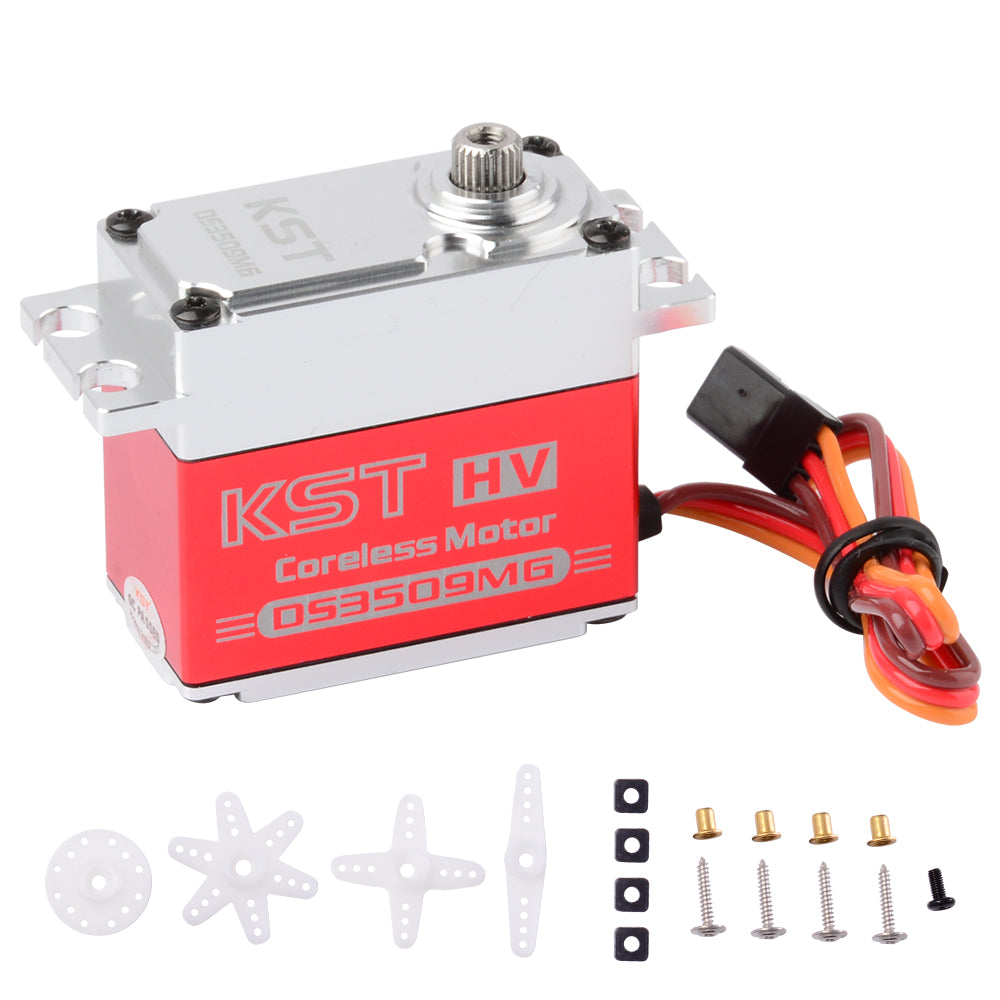

Package Including

  • 1 * DS3509MG Coreless Servo
  • 1 * Pack of Accessories

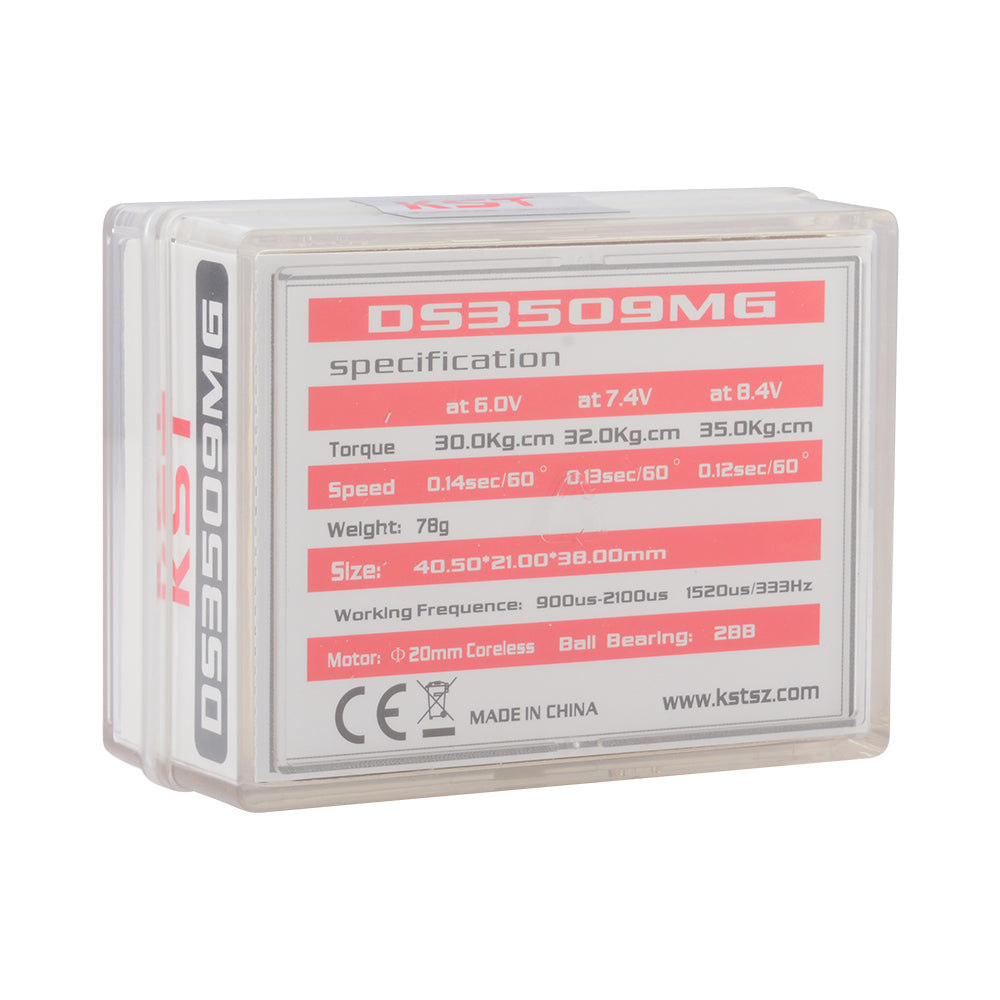

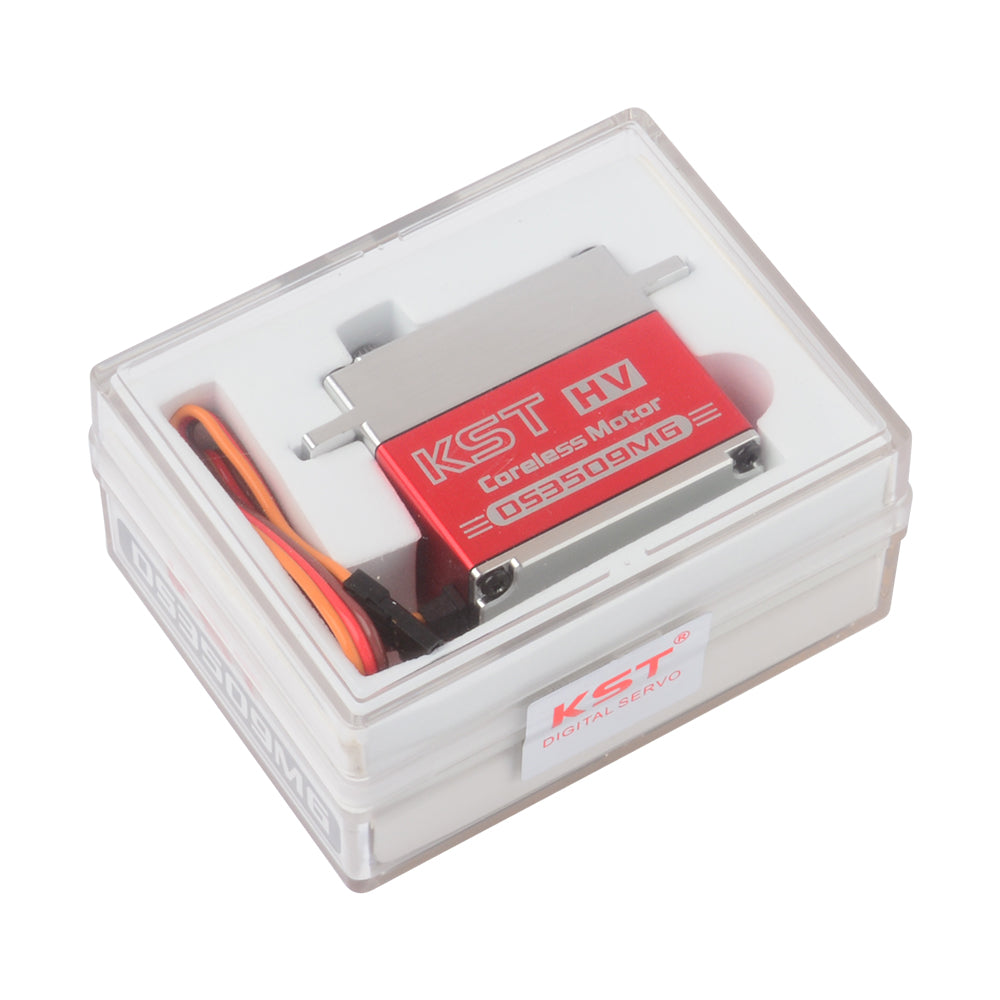

DS3509MG Package
