KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor

DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters

DS315MG has a hardened steel drive train and a coreless motor capable of running from 4.8V to...
Vendor: KST
SKU: HP0023.0031
Availability: Many In Stock
Product Type: Servo Motor
$275.00
$275.00
Subtotal: $275.00
KST DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor

DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters

$275.00

DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters

$275.00

DS315MG has a hardened steel drive train and a coreless motor capable of running from 4.8V to 8.4V (4 cell NiMH to 2S LiPo) meaning these servos will deliver the power and reliability you need. They are super high speed with pretty good torque.

DS315MG 8.4V Digital Metal Gear Mini Servo 4.8kg 0.07sec for RC Helicopters

Features

  • CNC Aluminium Case
  • Programmable
  • 2 Ball Bearings
  • With 12mm Coreless Motor
  • High Precision Metal Gear
  • Large Stall Torque of 4.8Kg
  • Lightweight and Compact Design

Specification

  • Item: DS315MG V8.0 Mini Servo
  • Rated Voltage: DC6.0V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 2.8Kgf.cm@4.8V / 3.5Kgf.cm@6.0V / 4.3Kgf.cm@7.4V / 4.8Kgf.cm@8.4V
  • Speed: 0.10sec/60°@4.8V / 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±70°=140° Total
  • Temperature Range: -20℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

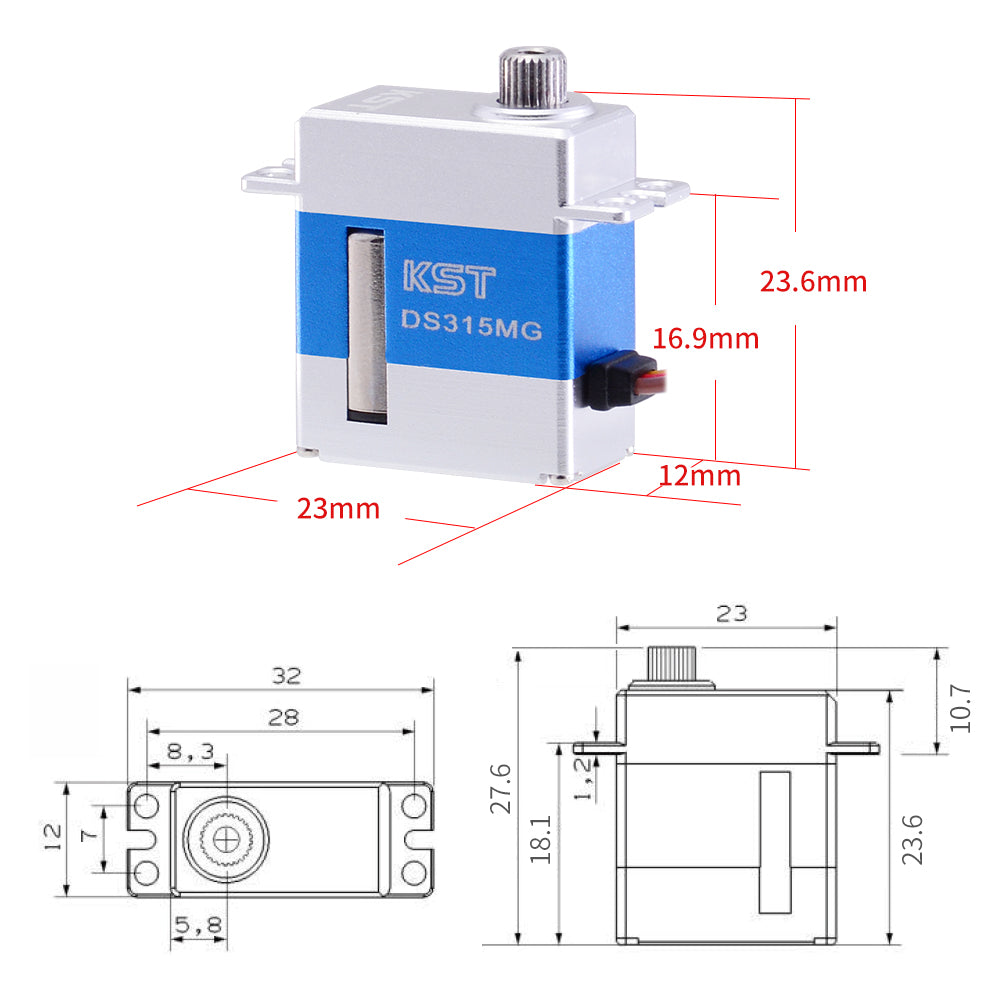

  • Case Dimensions: 23mm*12mm*27.5mm±0.2mm
  • Weight: 20g±10%

    Size

    DS315 V8.0 Mini Servo

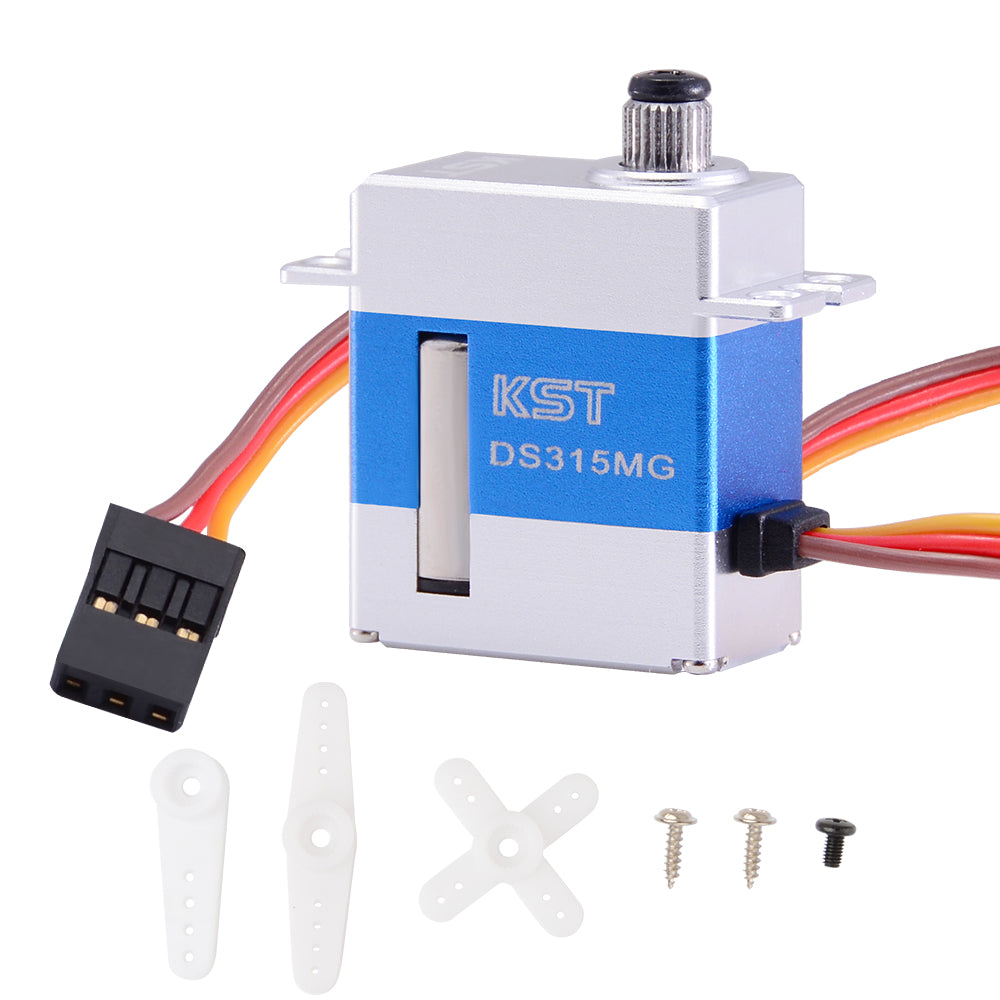

      Package Including

      • 1 * DS315MG V8.0 Mini Servo
      • 3 * Plastic Servo Horn
      • 2 * Mounting Screw
      • 1 * Servo Horn Screw
      DS315MG 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
