DS135MG Digital Metal Gear Servo 5.2KG 0.12sec for Glider Wing
DS135MG Wing Servo
DS135MG Wing Servo
DS135MG Wing Servo Size
DS135MG Wing Servo Packing
DS135MG Wing Servo Size

DS135MG Digital Metal Gear Servo 10mm 5.2Kgf.cm 0.12sec for Glider Wing

The KST DS135MG Wing Servo is an amazingly good metal cased wing servo. It is exactly the...
Vendor: KST
SKU: HP0023.0013
Availability: Many In Stock
Product Type: Servo Motor
$273.00
$273.00
Subtotal: $273.00
DS135MG Digital Metal Gear Servo 5.2KG 0.12sec for Glider Wing

DS135MG Digital Metal Gear Servo 10mm 5.2Kgf.cm 0.12sec for Glider Wing

$273.00

DS135MG Digital Metal Gear Servo 10mm 5.2Kgf.cm 0.12sec for Glider Wing

$273.00

The KST DS135MG Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo, it has no geartrain slop.

At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2Kgf.cm torque the KST DS135MG is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.

DS135MG Servo

Features

  • Extreme torque and Excellent speed
  • CNC aluminium case
  • Two Ball Bearings
  • Programmable

Specification

  • Iteam: DS135MG Digital Metal Servo
  • Operating Voltage: DC4.8V-6.0V
  • Rated Voltage: DC4.8V
  • Size: 30*10*30mm
  • Torque: 5.2Kgf.cm@6.0V / 4.3Kgf.cm@4.8V
  • Speed: 0.12sec/60°@6.0V / 0.15sec/60°@4.8V
  • Default Travel Angle: ±50° = 100° Total
  • Operating Temperature Range:-10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Case Dimensions: 30mm*10mm*29.6mm±0.2mm
  • Weight: 23g±10%
  • Recommend Servos: DS125MG Servo, DS135MG ServoDS145MG Servo

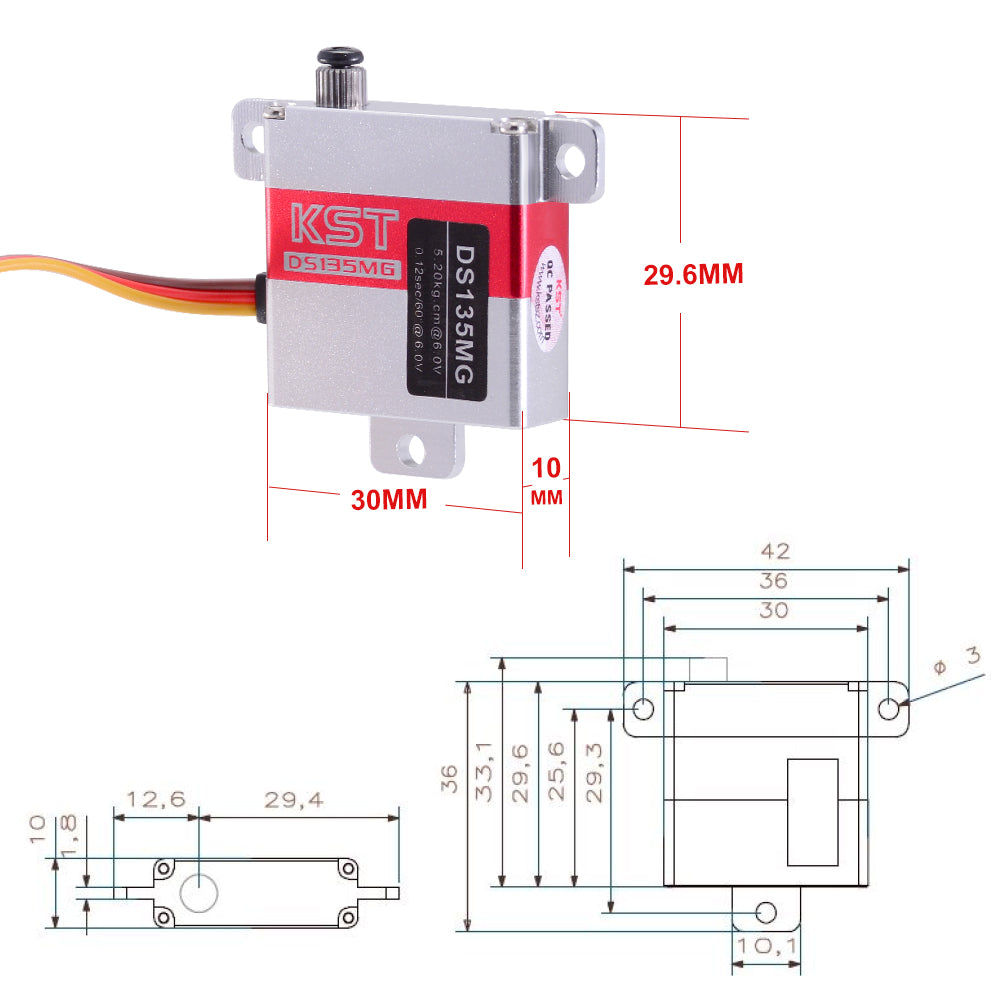

Size

DS135MG Digital Metal Gear 5.2KG 0.12sec Wing Servo Motor

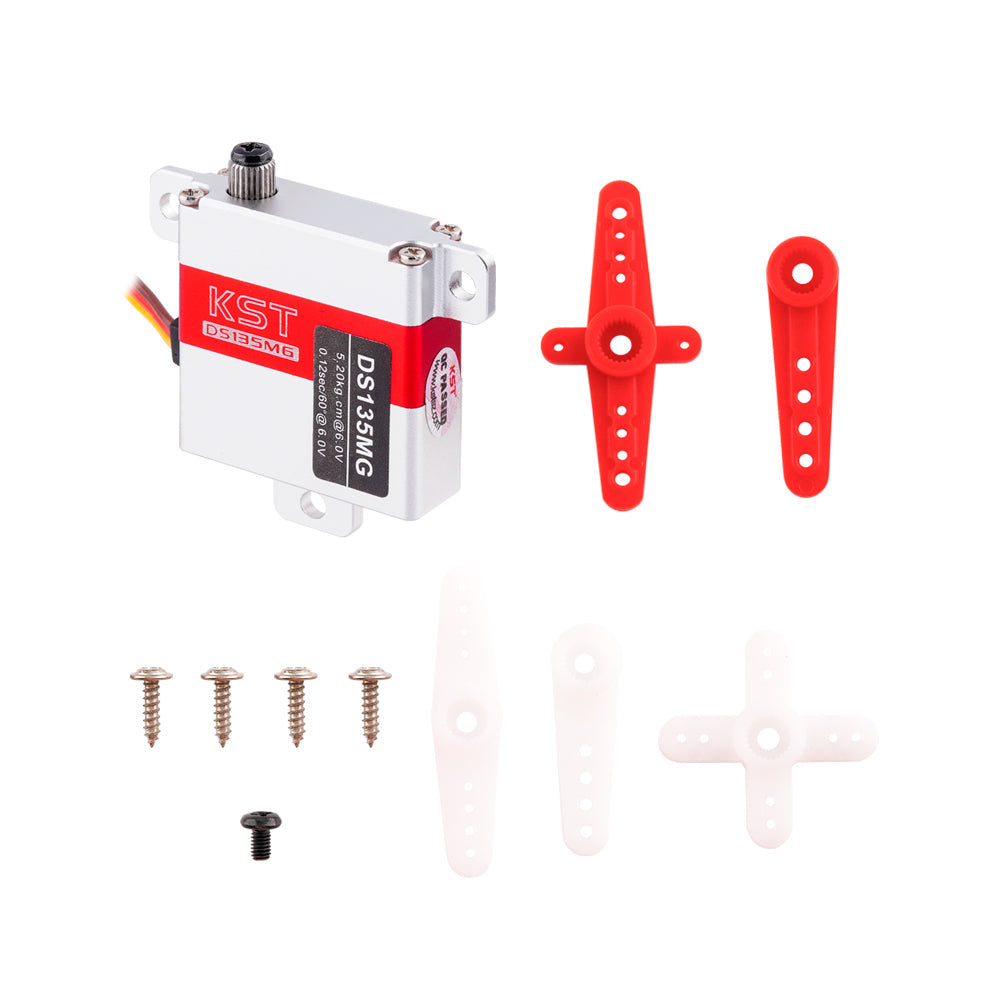

Package Including

  • 1 * DS135MG Servo Motor
  • 1 Pack of Accessories
DS135MG Digital Metal Gear Servo 5.2KG 0.12sec for Glider Wing
