Drone for Matek Systems GNSS M10Q-5883 for U B x M10 GPS with Compass QMC5883L Module Digital AirSpeed 4~9V for FPV Racing Drone RC Toy parts
Product Description For Matek Systems GNSS M10Q-5883 For U B x M10 GPS with Compass QMC5883L Module...
- $627.00
$627.00- $627.00
- Unit price
- per
Product Description

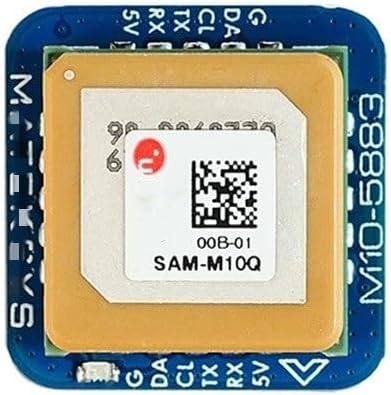

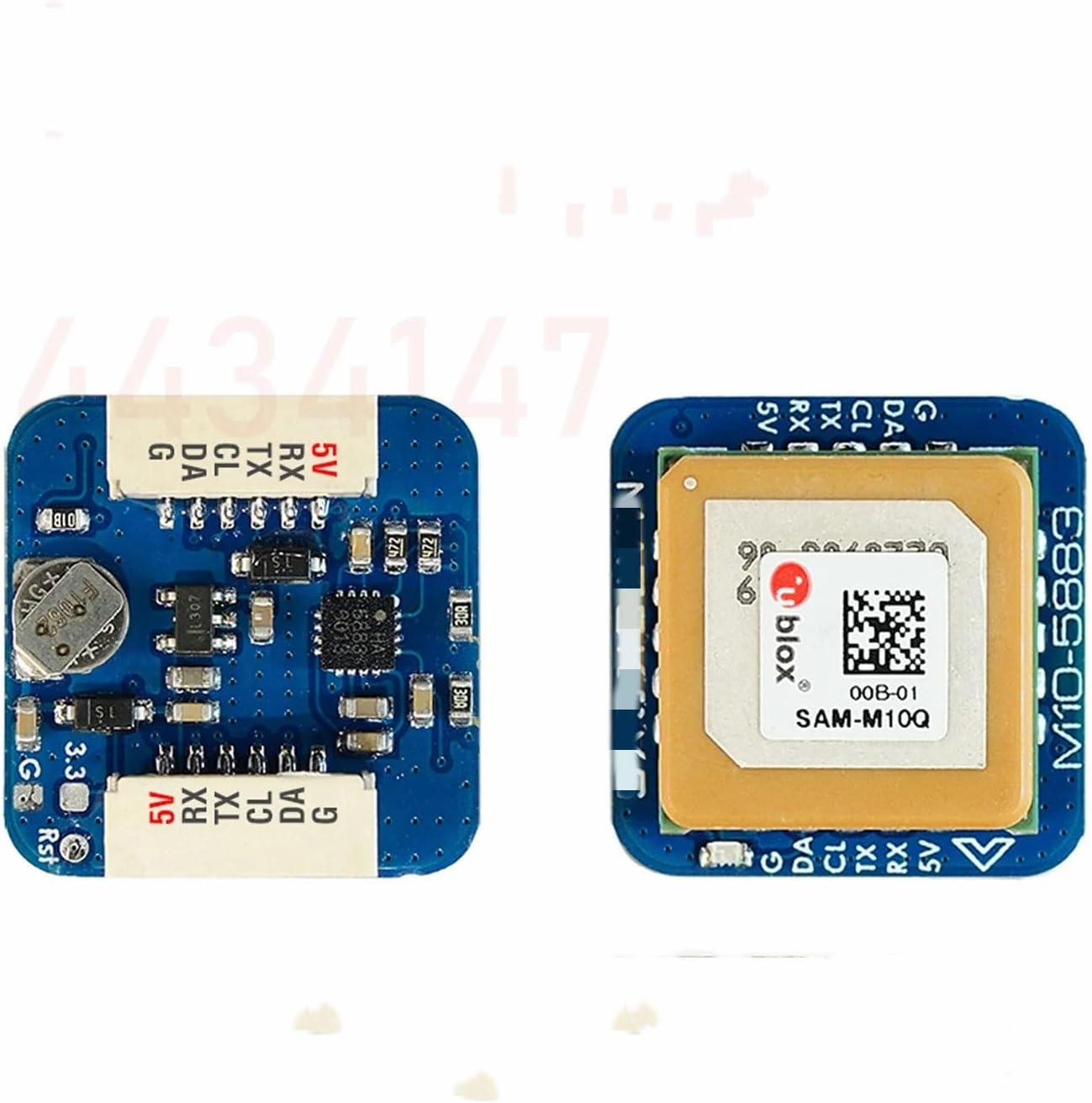

For Matek Systems GNSS M10Q-5883 For U B x M10 GPS with Compass QMC5883L Module Digital AirSpeed 4~9V For FPV Racing Drone

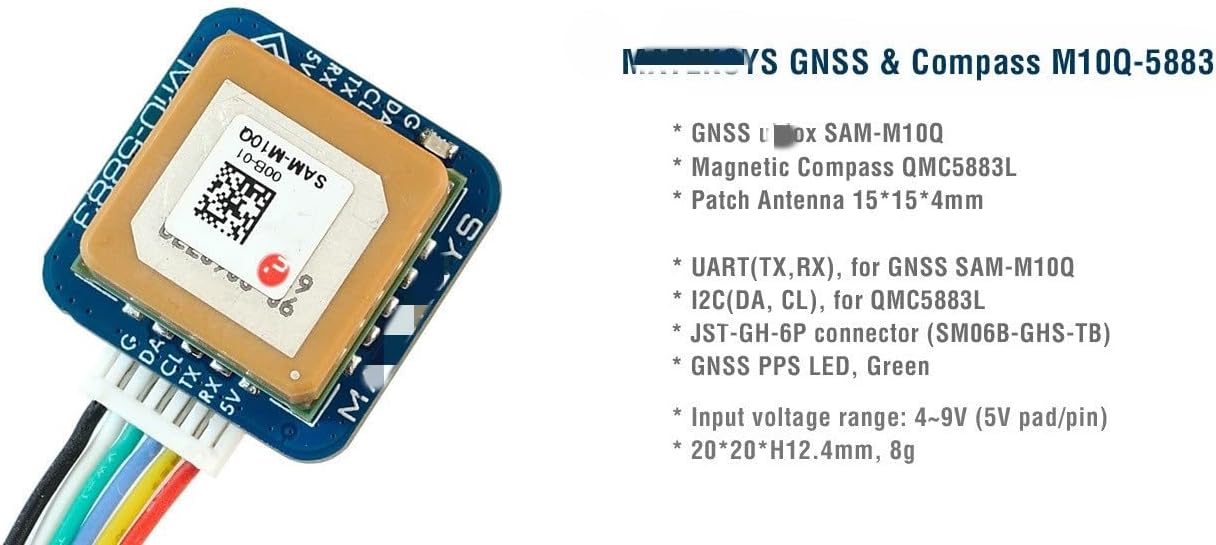

Specifications
GNSS For u b x SAM-M10Q (For GPS, For GLONASS, For Galileo and For BeiDou)
Magnetic Compass QMC5883L
Patch antenna 15*15*4mm
Input voltage range: 4~9V (5V pad/pin)
Power consumption: 13mA
For UART baudrate: 9600 default
Operating Temperatures: -20~80 °C
For UART(For TX, For RX) interface for GNSS SAM-M10Q-00B
I2C(DA, CL) interface for Compass QMC5883L
For JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
Protocol: For U B X
5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

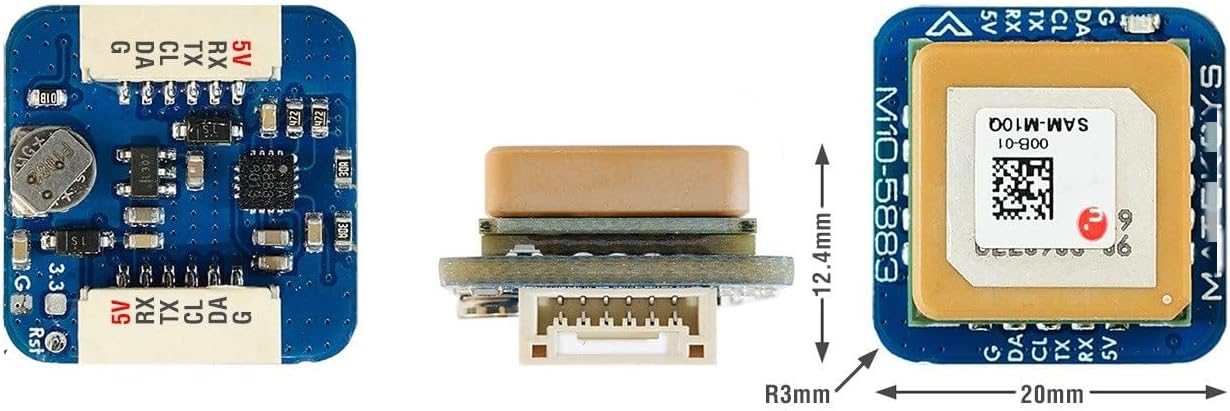

20mm*20mm*12.4mm
8g
M10Q-5883_step.zip
Includes
1x M10Q-5883

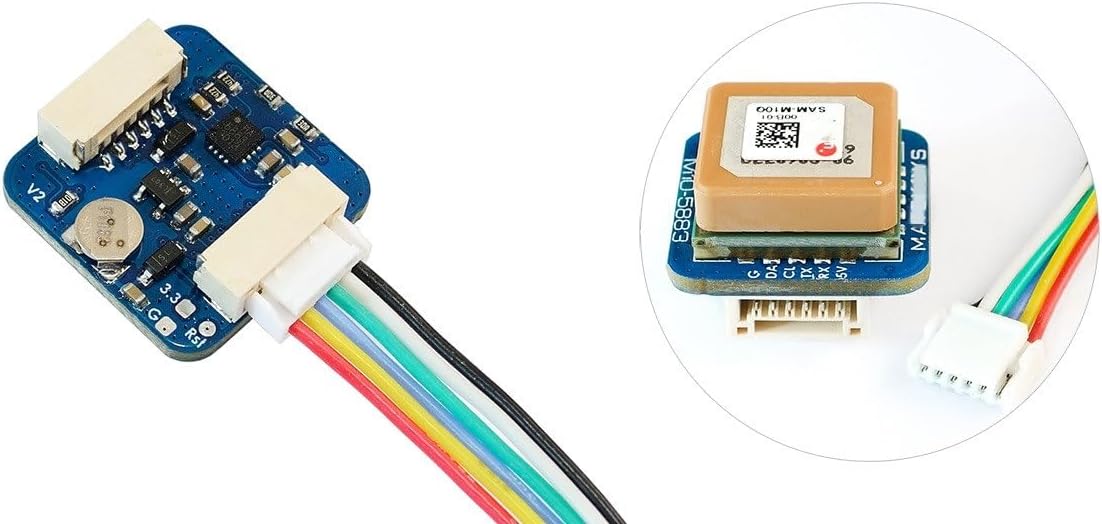

1x For JST-GH-6P to for JST-GH-6P 20cm silicon wire
Wiring and settings
M10Q-5883 5V to Flight controller 4~9V
M10Q-5883 RX to Flight controller UART_TX
M10Q-5883 TX to Flight controller UART_RX
M10Q-5883 CL to Flight controller I2C_SCL
M10Q-5883 DA to Flight controller I2C_SDA
M10Q-5883 G to Flight controller GND
Tips and Notes
Compass Alignment(flat mounting): Tilting the magnetometer is strongly discouraged !
For INAV/For BetaFLight: compass Arrow forward, set CW 270° Flip when flight controller arrow is facing forward.
For INAV/For BetaFLight: compass Arrow backward, set CW 90° Flip when flight controller arrow is facing forward.
For Ardupilot/Mission Planner: Rotation None.
Make sure to have compass/magnetometer 10cm away from power lines/ESC/motors/iron based material
------
For INAV 5.0.0, For Betaflight 4.3.0, For ArduPilot 4.3 or newer is required.
For U B X NEO-M9N, MAX-M10S, SAM-M10Q series all don't have dataflash built in. once GNSS is powered off and the supercapacitor run out. the settings will back to default.
For U B X protocol is bidirectional. Flight con
