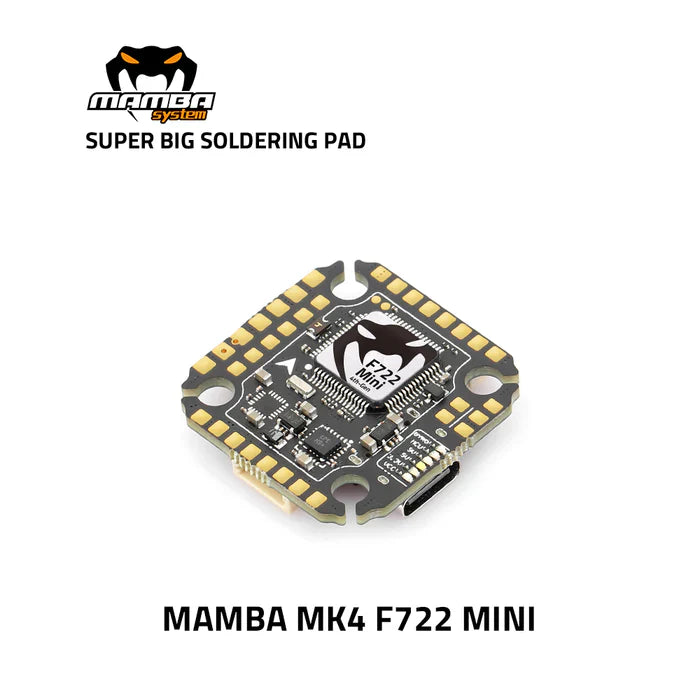

Diatone MAMBA MK4 F722 MINI Flight Controller 20mm/M2

Specifications GYRO Version B: Gyro ICM42688P Mounting: 20.0x20.0mm,M3/M2 Receiver: TBS/SBUS/IBUS/DSM Receiver Protection: Yes Blackbox: 16M Memory Size:...
Vendor: Diatone
Availability: Many In Stock
Product Type: Drone FC+ESC
$413.00
$413.00
Subtotal: $413.00
Diatone MAMBA MK4 F722 MINI Flight Controller 20mm/M2

Diatone MAMBA MK4 F722 MINI Flight Controller 20mm/M2

$413.00

Diatone MAMBA MK4 F722 MINI Flight Controller 20mm/M2

$413.00

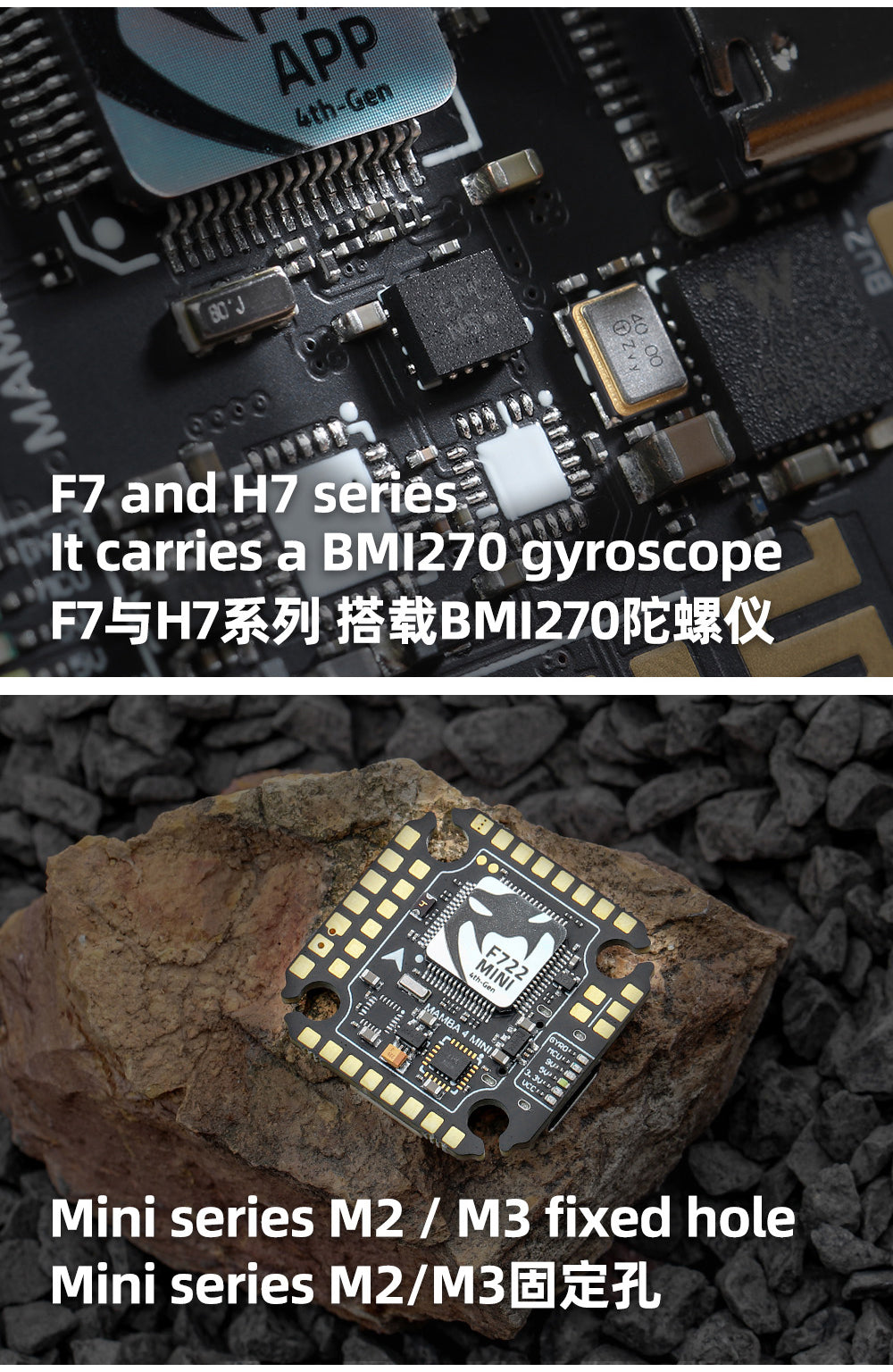

GYRO: BMI270

MK4 F722 MINI MK4

MK4 F722 MINI FC

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

MK4 F722 MINI

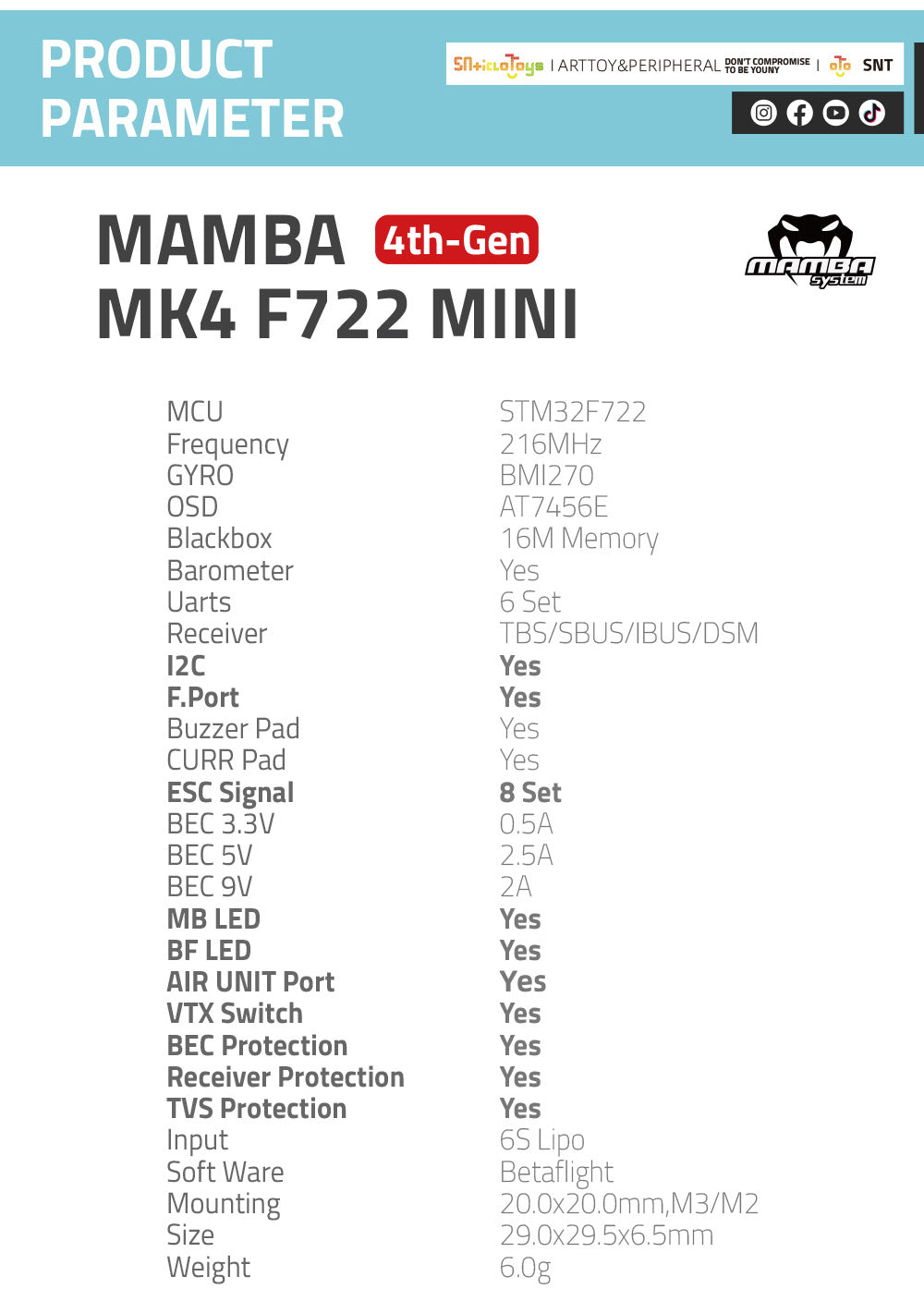

Specifications

  • GYRO Version B: Gyro ICM42688P
  • Mounting: 20.0x20.0mm,M3/M2

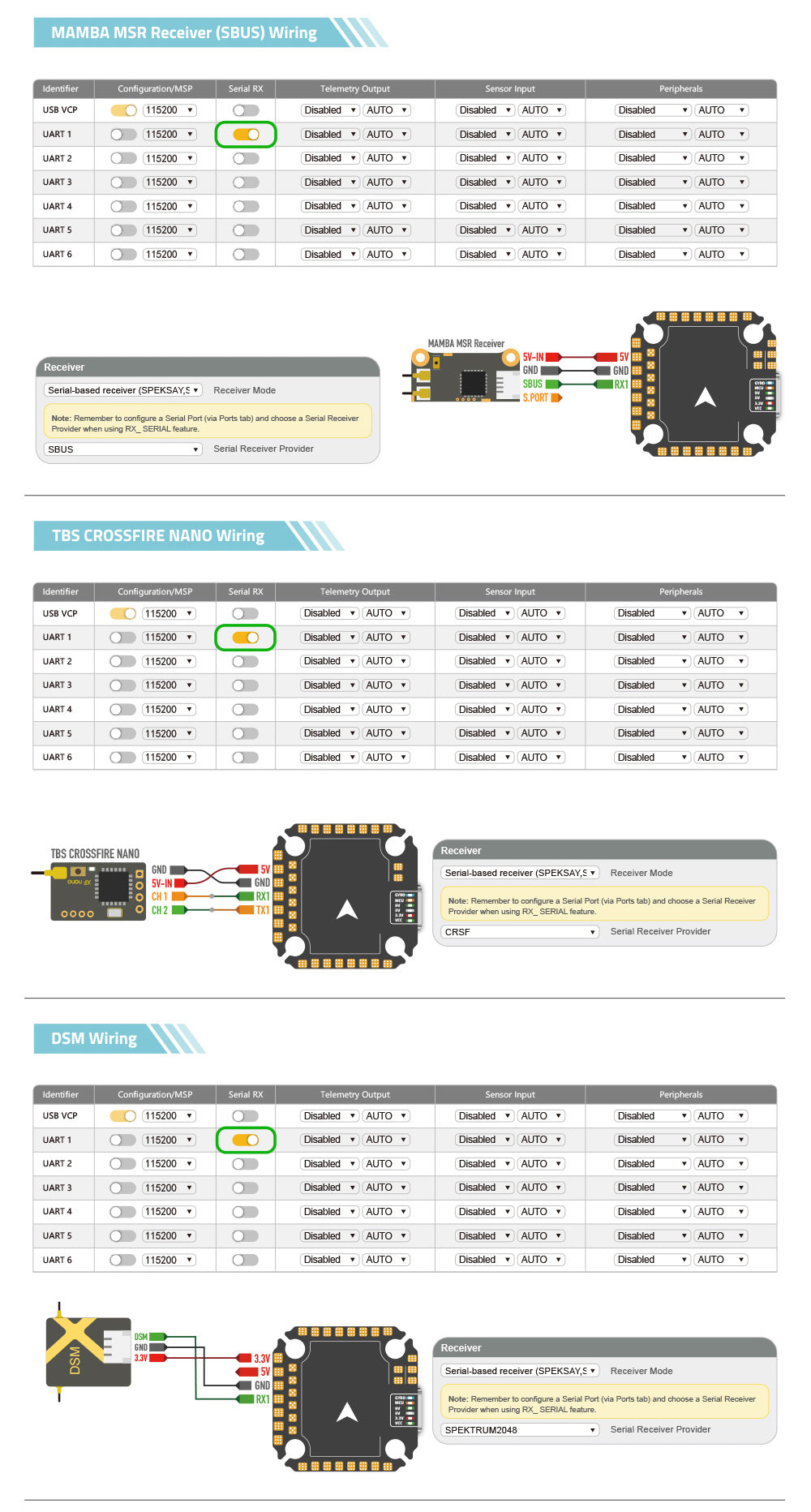

  • Receiver: TBS/SBUS/IBUS/DSM
  • Receiver Protection: Yes
  • Blackbox: 16M Memory
  • Size: 29.0x29.5x6.5mm
  • Frequency: 216MHz
  • Software: Betaflight
  • BEC Protection: Yes
  • TVS Protection: Yes
  • AIR UNIT Port: Yes
  • MCU: STM32F722
  • ESC Signal: 8 Set
  • VTX Switch: Yes

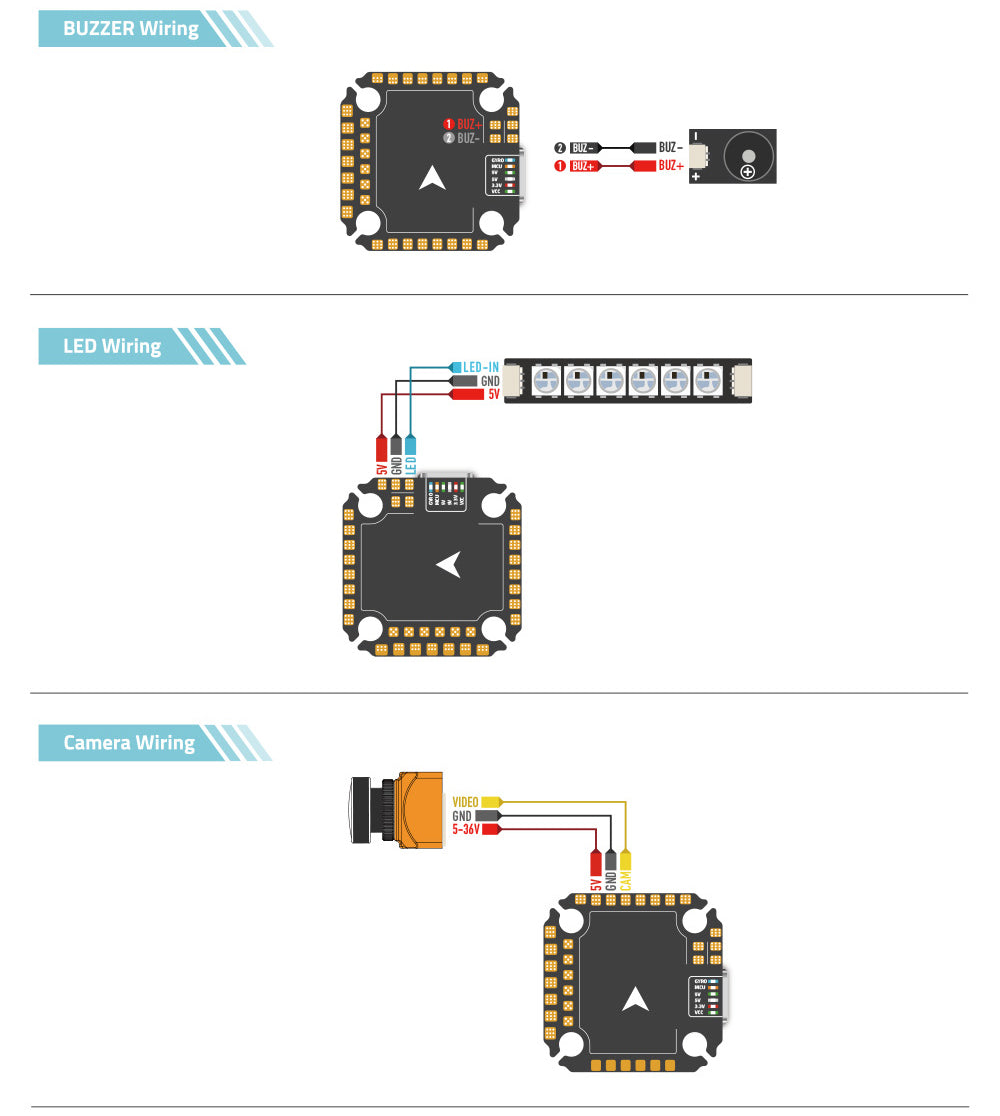

  • Buzzer Pad: Yes
  • Barometer: Yes
  • OSD: AT7456E
  • CURR Pad: Yes
  • BEC 3.3V: 0.5A
  • Input: 6S Lipo
  • BEC 5V: 2.5A
  • Weight: 6g
  • Uarts: 6 Set
  • BEC 9V: 2A
  • BF LED: Yes
  • F.Port: Yes
  • 12C: Yes

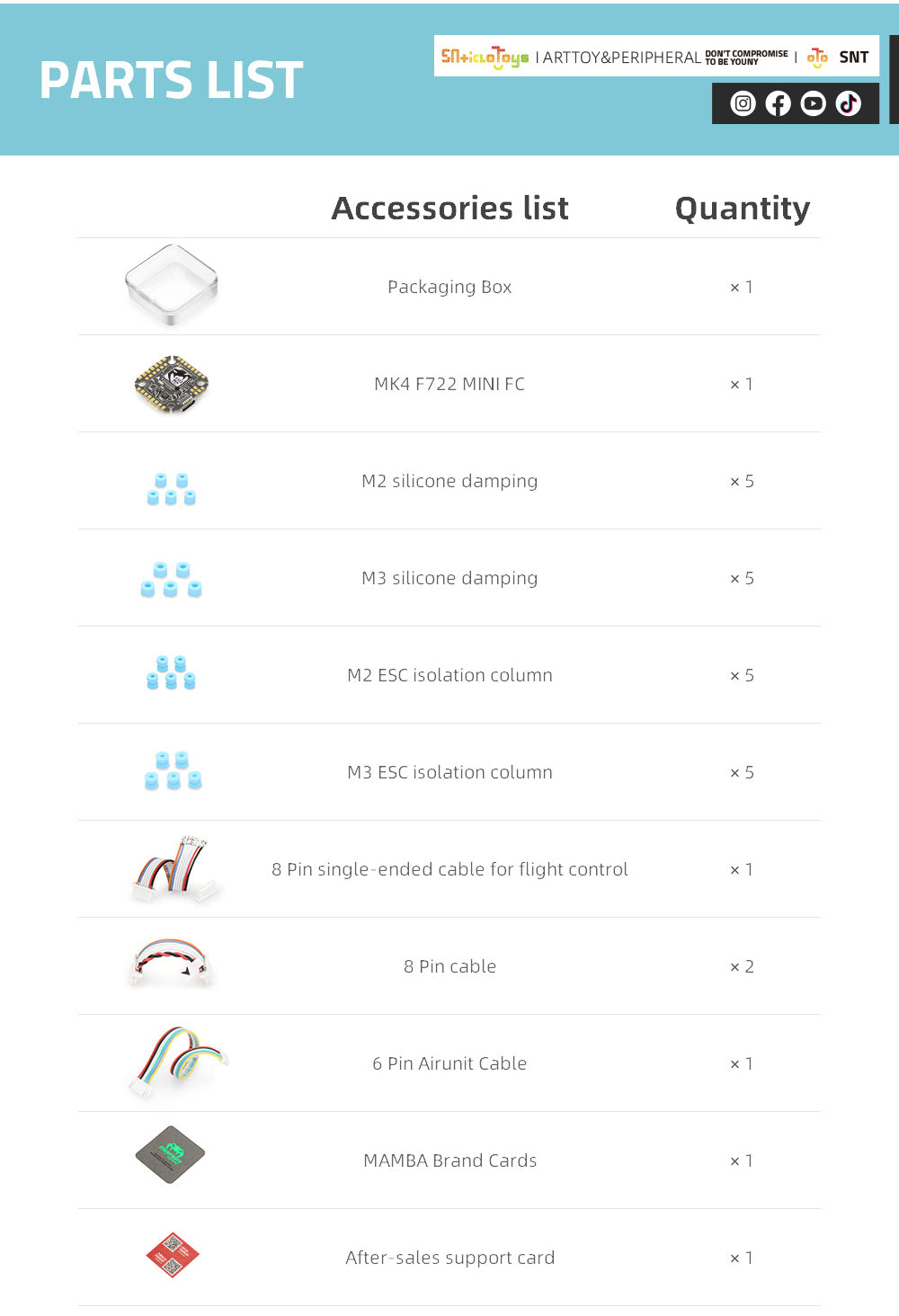

Includes

  • 1x Diatone Mamba MK4 F722 Mini Flight Controller
  • 5x M3 ESC Isolation Dampers
  • 5x M2 ESC Isolation Dampers
  • 5x M3 Silicone Dampers
  • 5x M2 Silicone Dampers
  • 1x 6-Pin Air Unit Cable
