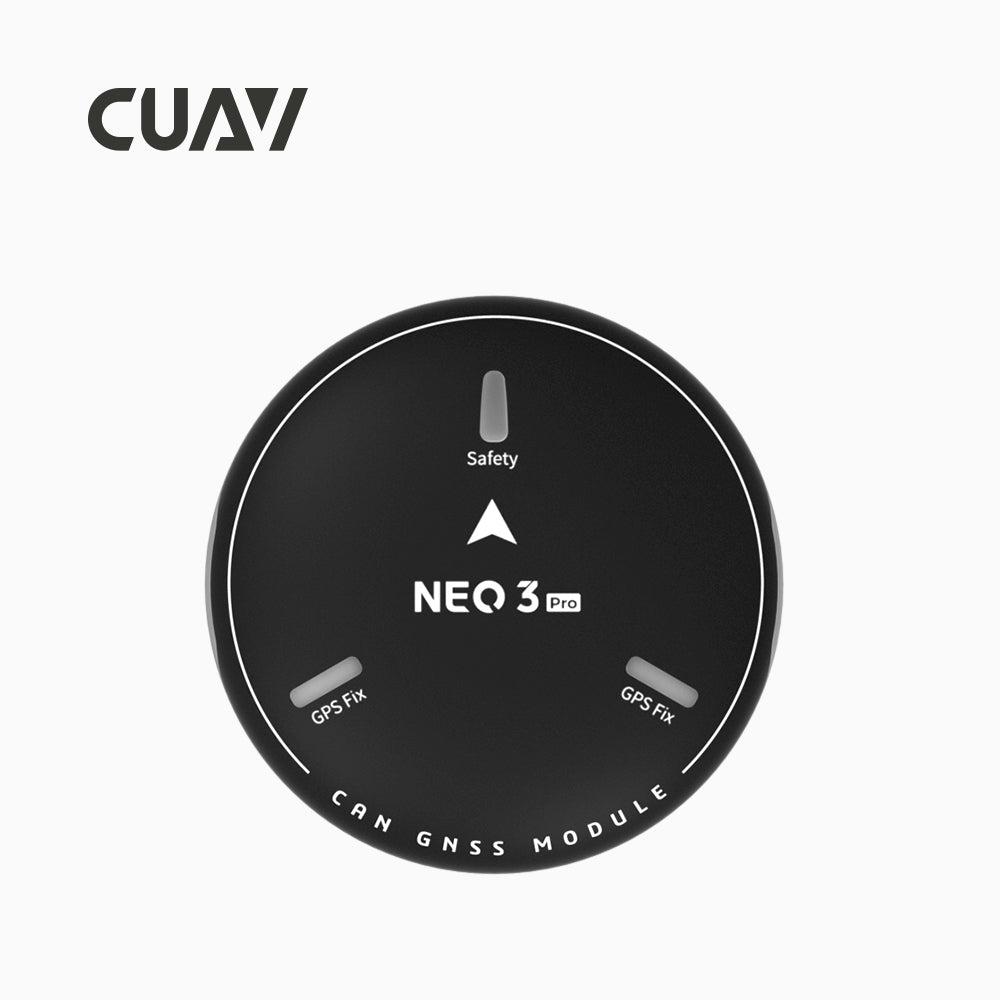

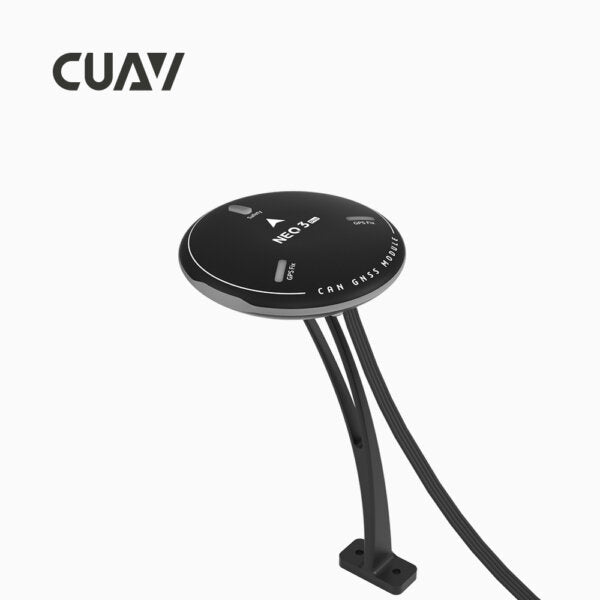

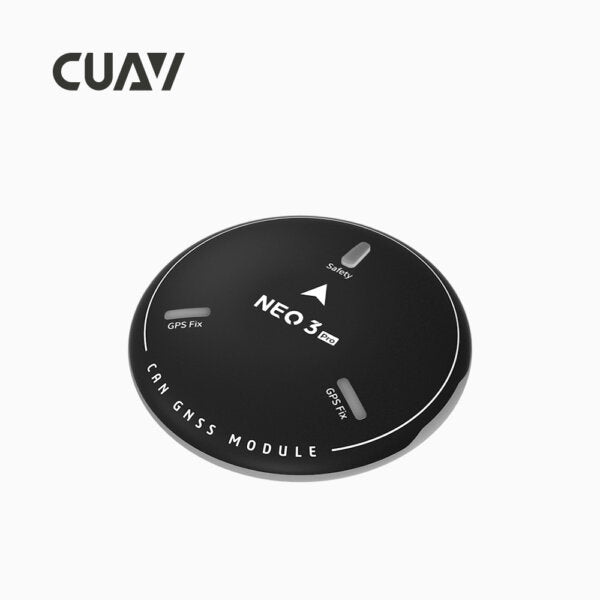

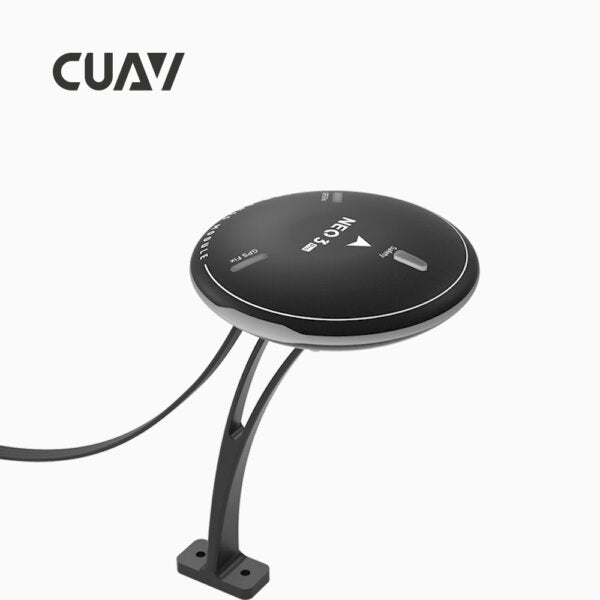

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS

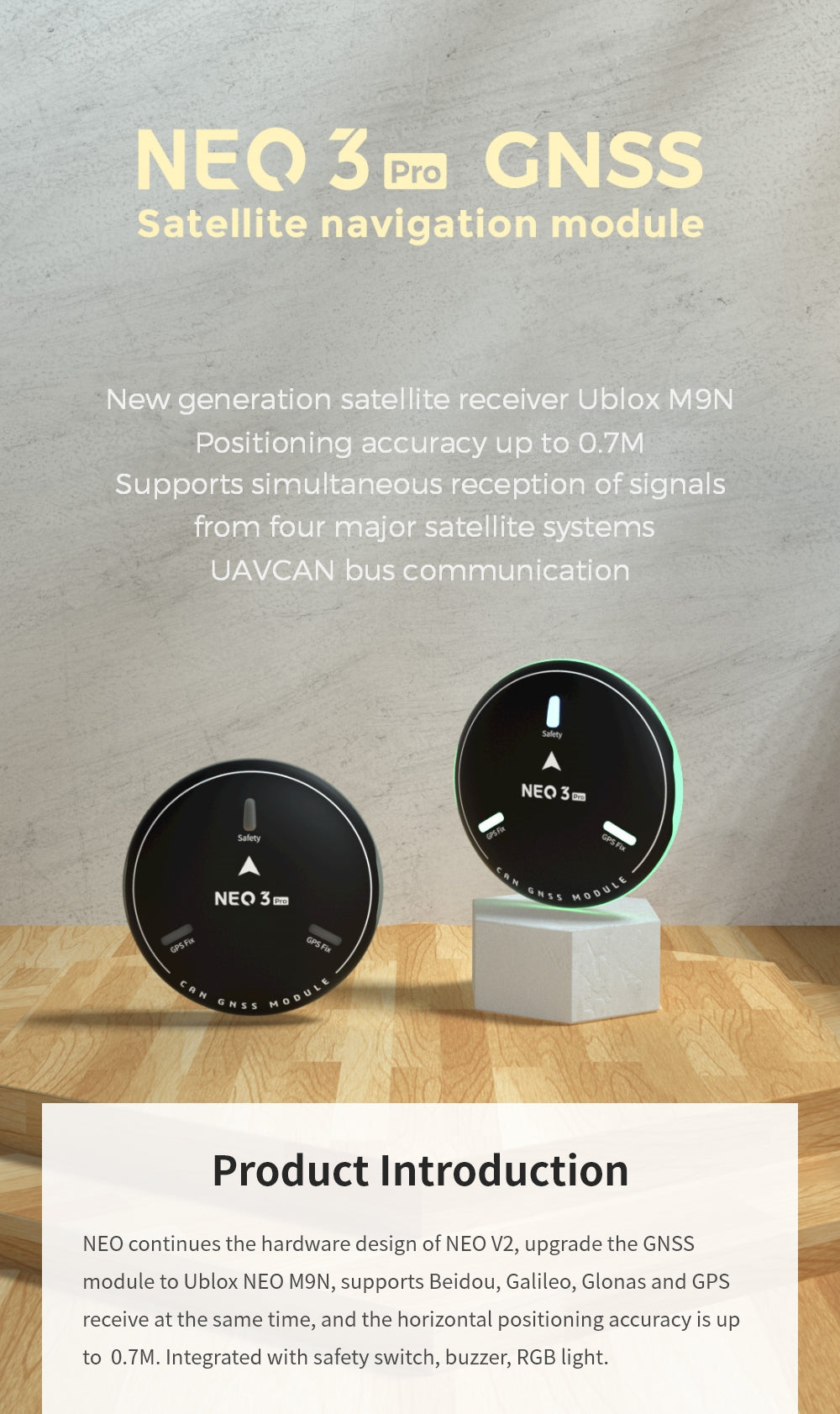

NEO continues the hardware design of NEO V2, upgrade the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive at the same time, and the horizontal positioning accuracy is up to 0.7M. Integrated with safety switch, buzzer, RGB light.

Features



Buzzer prompt



safety switch



CAN Bus



MS5611 Barometer



RGB Status Light



RM3100 Industrial Compass

Ublox M9N Satellite receiver

New generation satellite receiver Ublox M9N,The actual measurement can reach a maximum accuracy of 0.7m.

Simultaneous reception by the four satellite systems

Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems

High-performance processing unit STM32F412

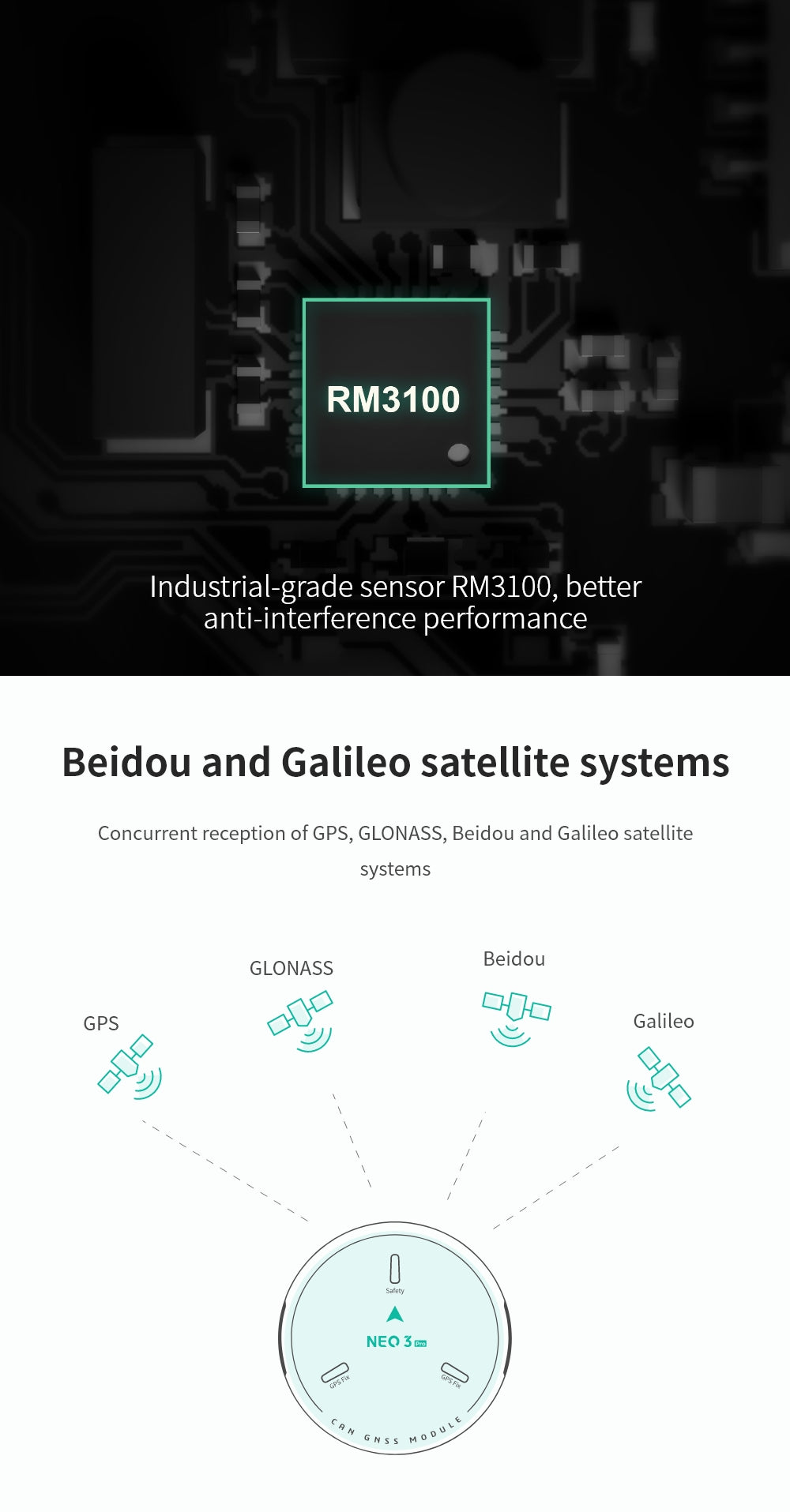

RM3100 industrial sensor

Using RM3100 industrial grade sensor, has better anti-interference performance

002CIROCOMM

CROCOMM custom antenna

Special four-star high gain antenna


Built-in high-precision barometer

Built-in MS5611 high-precision barometer to meet the needs of different application scenarios

Triple filter design

NEO 3 Pro adopts SAW+LNA+SAW triple filter design, effectively avoiding the influence of remote control, data transmission, 4G signal on GPS positioning reception

Open source program, support custom program

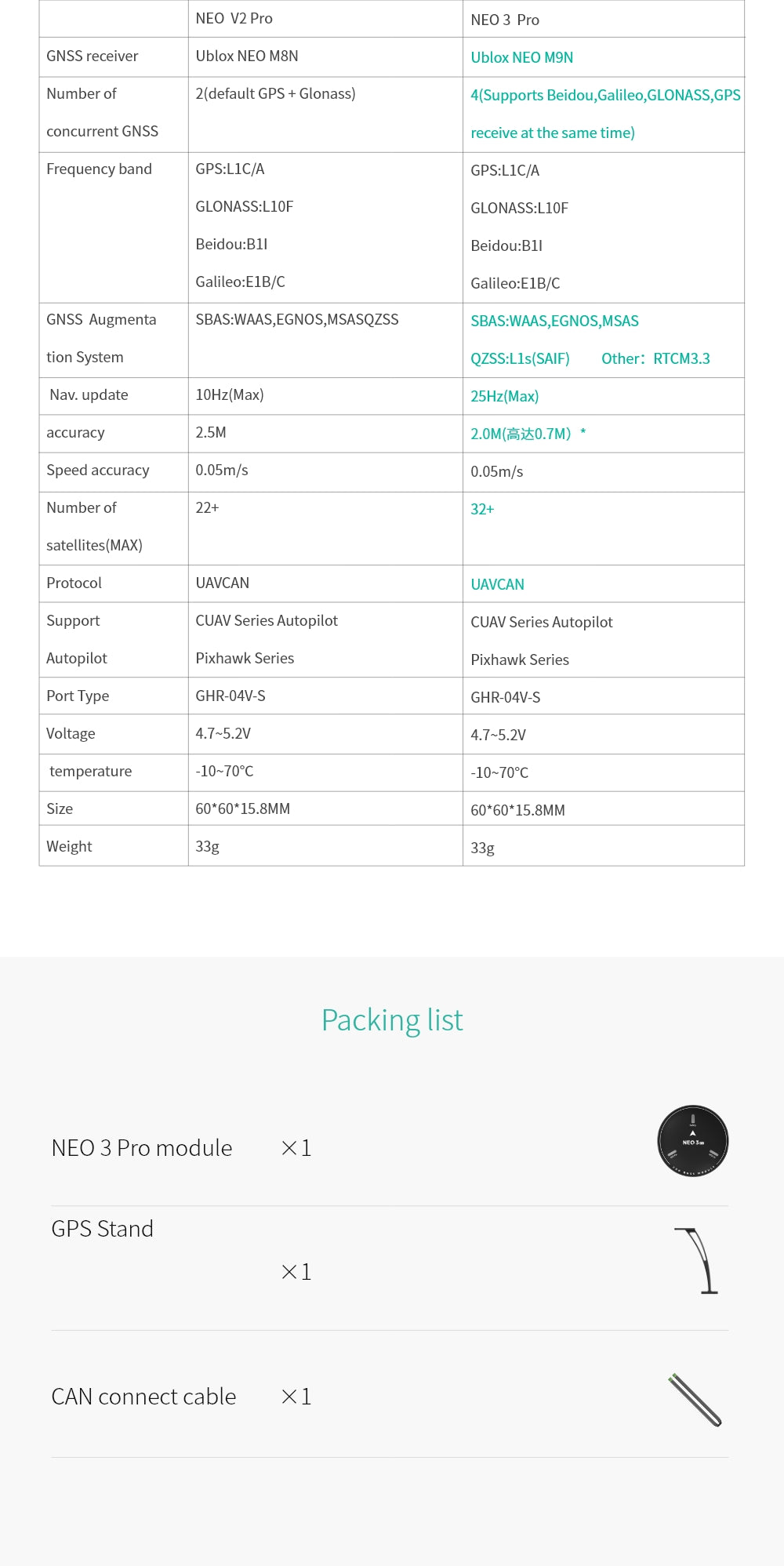

NEO 3 Pro Specifications

Processor STM32F412
Compass RM3100
Barometer MS5611
GNSS receiver UBLOX NEO M9N
RGB drive NCP5623C
Buzzer Passive buzzer
Safety switch Physical button
GNSS Beidou、Galileo、 GLONASS、 GPS
GNSS Augmentation System SBAS:WAAS,EGNOS,MSAS
QZSS:L1s(SAIF)
other:RTCM3.3
Number of concurrent GNSS 4
Frequency band GPS:L1C/A
GLONASS:L10F
Beidou:B1I
Galileo:E1B/C
Horizontal accuracy 2.0M
Speed accuracy 0.05M/S
Nav. update rate 25Hz(Max)
Acquisition Cold start:24S
Hot start:2S
Aided start:2s
Number of satellites(MAX) 32+
Sensitivity Tracking and nav-167dBm
Cold start Hot star-148dBm
Reacquisition -160dBm
Protocol UAVCAN
Port TYpe GHR-04V-S
Supported flight controller CUAV series,
Pixahwk series
Wave filtering SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference EMI+RFI
Upgrade firmware support
Support Flight control type Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
Input voltage 5V
Operating temperature -10~70℃

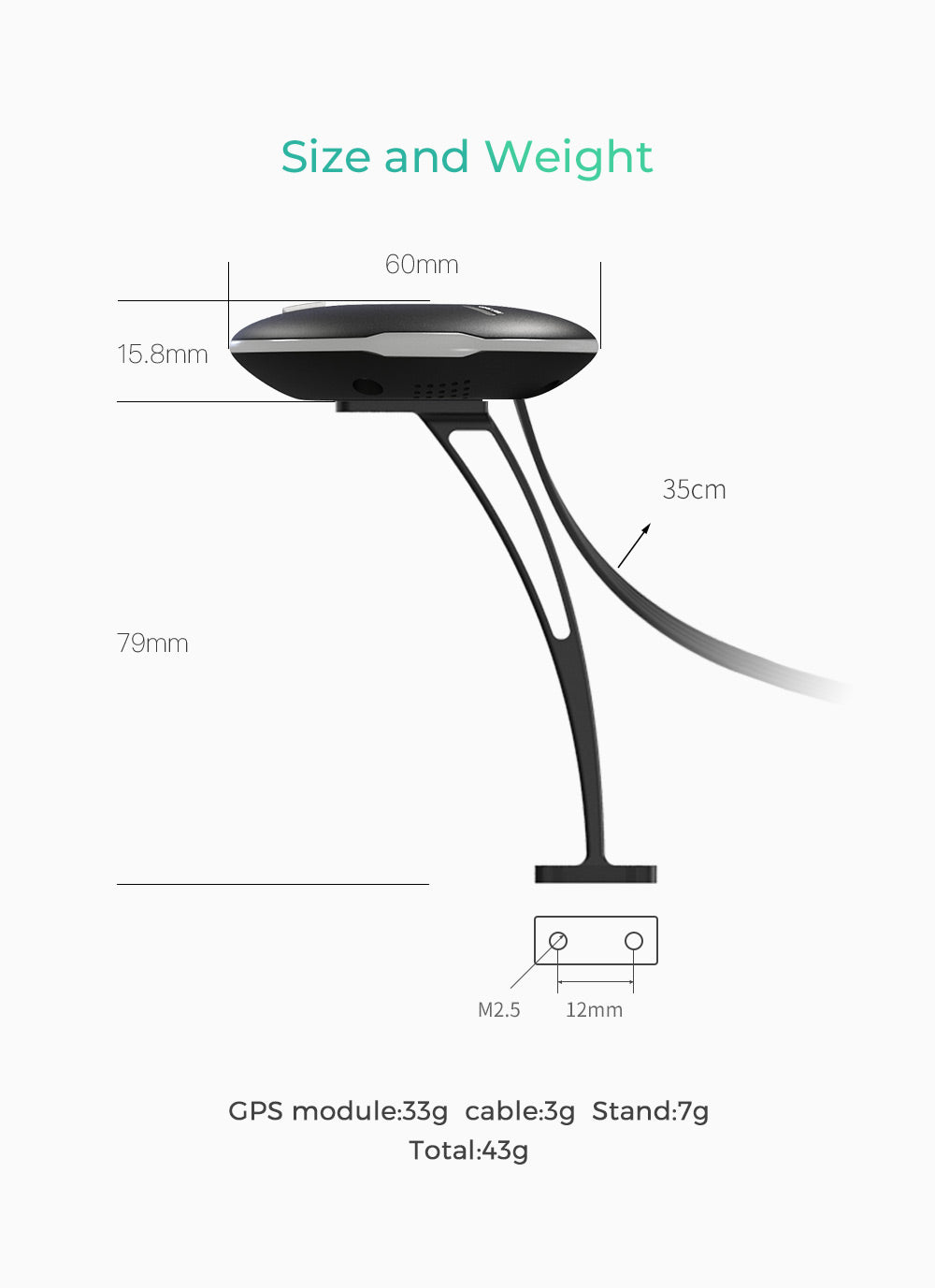

Size 60*60*16MM
Weight 33g
  • NEO 3 Pro level accuracy when the SBAS enhancement system is turned on, the nominal accuracy is 1.5m (default); when the SBAS enhancement system is turned off, it is 2.0m
  • NEO 3 Pro supports RTCM3.3 injection, but does not support RTCM output; it can achieve pseudorange differential (meter-level positioning) but does not support carrier phase differential (RTK), and it needs a base station that supports RTCM3.3 output.
Ardupilot 4.0.0 and above firmware supports NEO 3 PRO, and PX4 firmware is still in the adaptation stage.

Use tutorial

Connect to V5+

Please connect it to the flight control CAN1 / CAN2 interface (CAN1 is recommended)
The connection of other PIX flight controllers is the same.

Autopilot parameter settings​

You need to set flight control parameters to enable Neo 3 pro; there are different setting methods according to the flight control firmware.

ArduPilot firmware

Set the following parameters in all parameter tables of Mission planner and restart after writing
  • CAN_P1_DRIVER set to 1.
  • CAN_P2_DRIVER set to 1.
  • NTF_LED_TYPES set to 231.
  • GPS_TYPE set to 9.
