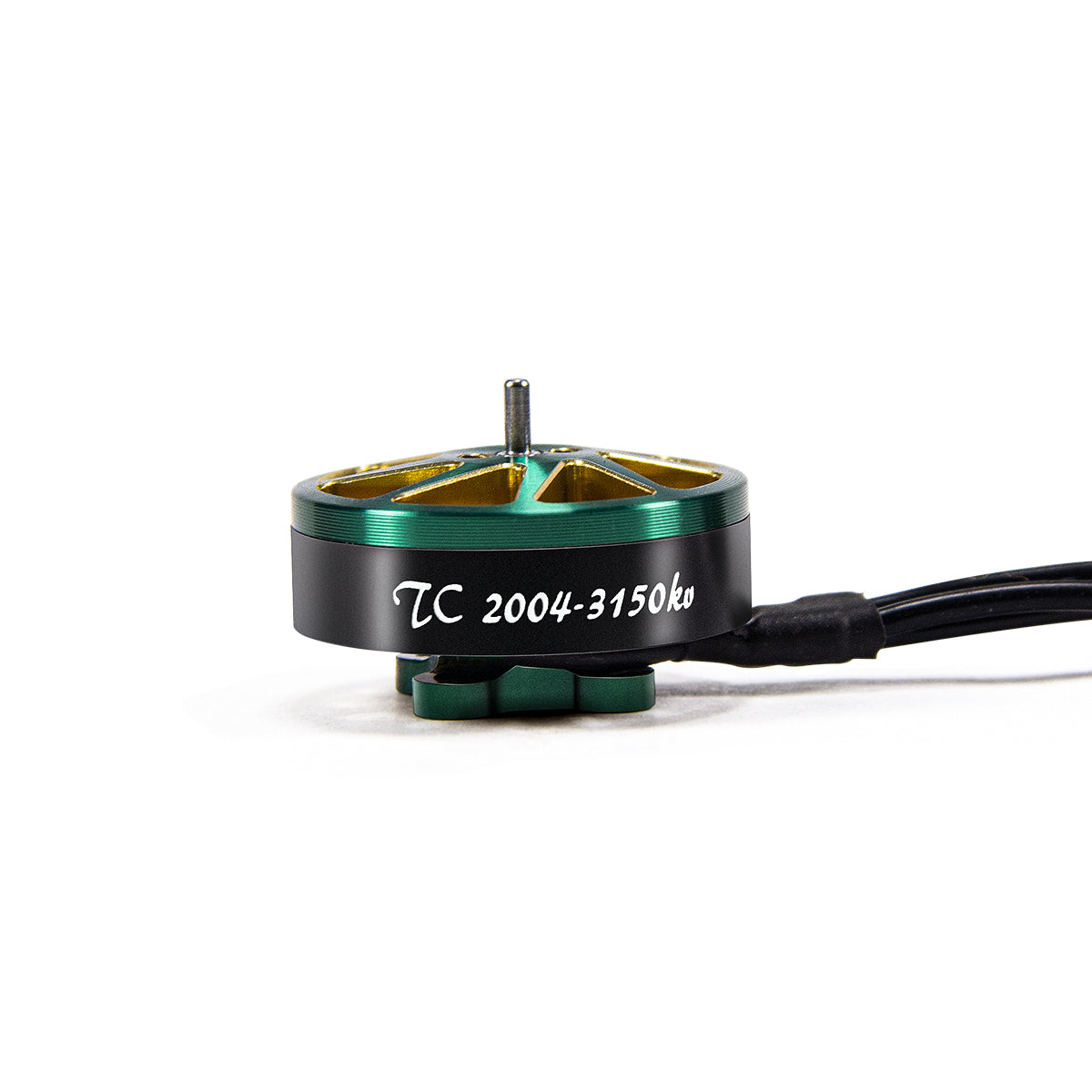

Brotherhobby TC 2004 Ultralight Motor

The new TC line of Brotherhobby motors are designed to be a bulletproof lightweight motor dependable in high power situations.

The bell and base are made of aerospace-grade 7075 aluminum alloy with a durable anodized coating in stylish green and gold colors. The shaft is made from heat-treated steel to be extra durable in the event of a crash.

To provide for high-power applications, the stator wires are made of high purity electrolytic silver wire that can reach water-boiling temperatures of 260C. The magnets are rounded and form a uniform air gap to smoothen flight.

Specifications

  • KV: 1700, 1950, 2100, or 3150 KV
  • Lipo Voltage: 4-6s
  • Stator: 0.15mm Nippon Silicon Steel
  • Bearings: NSK 7x3x3
  • Bell: 7075 Aluminum
  • Propeller Adapter Shaft Thread: M1.5
  • Weight: 14.9g with short wires
  • Configuration: 12N14P
  • Rotor: N52H Arc Magnets
  • Shaft: SUS 420 Steel
  • Wire AWG: 24 AWG Wire 10cm Length
  • Base Casing: 7075 Aluminum
  • Mounting Bolt Pattern: M2 12x12mm

Brotherhobby TC2004 Ultralight Motor Let it Rip!
