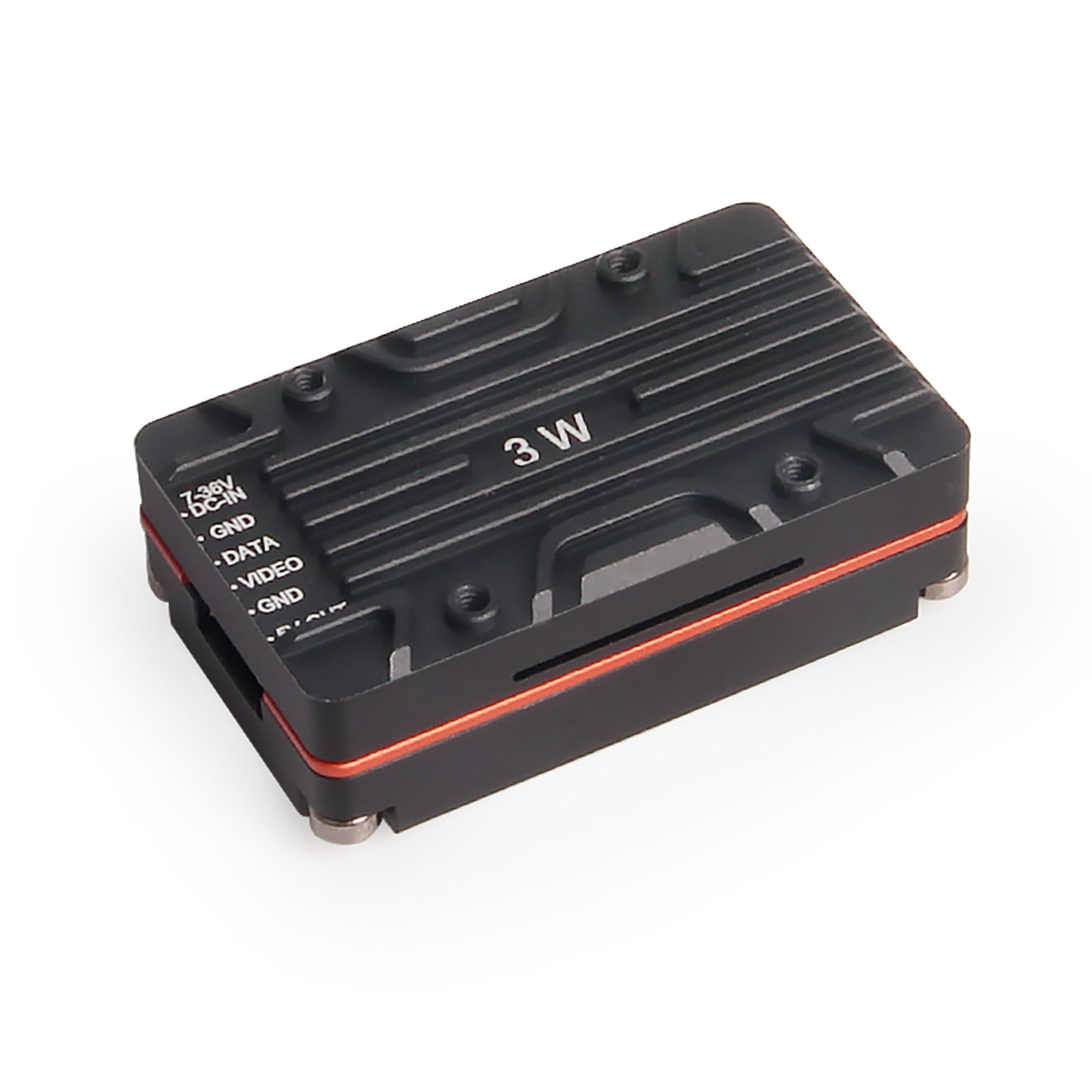

Atlatl HV 5.8G 3W VTX

12 sold in last 15 hours
Specifications Frequency 5.8G5 bands: A, B, E, F, R Transmission Channel: 37 Operating mode Key button, Smart Audio...
Vendor: Holybro
SKU: 13038
Availability: Many In Stock
Product Type: VTX & OSD
$467.00
$467.00
Subtotal: $467.00
 More payment options
Atlatl HV 5.8G 3W VTX

Atlatl HV 5.8G 3W VTX

$467.00

Atlatl HV 5.8G 3W VTX

$467.00

Specifications

Frequency

5.8G
5 bands: A, B, E, F, R
Transmission Channel: 37

Operating mode

Key button, Smart Audio

Transmission power

Switchable: PIT, 25mW, 3000mW

Antenna connector

MMCX

Power input

7-36VDC

Current consumption

800mA/12VDC @ 3000mW

RF impedance

50Ω

Inputvideo impedance

75Ω

Input video amplitude

CVBS 0.8~1.2VP-P

Video format

NTSC/PAL

Dimension(L*W*H)

40.8mm*24.8mm*13.3mm

WARNING: Make sure to install antenna before turning on this video transmitter


Indicator Light Description

  • #1 Power light
    • Off - 25mW
    • Steady on - 3000mW
    • Flashing - PIT mode
  • #2 Frequency indicator light
    • The first frequency of each frequency band is always on and flashes when switching.
  • #3-#7 Frequency band lights
    • #3 - F frequency band
    • #4 - E frequency band
    • #5 - A frequency band
    • #6 - R frequency band
    • #7 - B frequency band

Function Button Operation Instructions

  • To switch frequency - Click the button, the red-light flashes and goes out, then you can switch to the next frequency.
    • (Note: The red light of the first frequency of each frequency band is a constant light indicator)
  • To switch frequency band - Press and hold the button for 2 seconds. When the blue light flashes, release the button to switch to the next frequency band.
  • To switch power - Press and hold the button for 4 seconds

Frequency Table

Package Includes:

  • Atlatl HV 5.8G 3000mW VTx *1
  • 80mm SMA--MMCX Cable *1
  • 70mm 6pin JST SH wire *1
